Design for Manufacturability and Assemblability of Printed Circuit Board

This professional guide covers PCB DFMA principles, IPC standards, manufacturability rules, assembly optimization, yield improvement, cost reduction, and global industrial best practices for reliable PCB and PCBA production.

What is DFMA for PCB?

DFMA (Design for Manufacturability and Assemblability) integrates DFM and DFA into a unified engineering framework to optimize PCB design for production efficiency, cost control, quality stability, and fast assembly.

Design for Manufacturing (DFM) focuses on optimizing bare board fabrication: layer stackup, trace width, spacing, annular rings, hole size, solder mask, and material selection.

Design for Assembly (DFA) optimizes component placement, pad design, clearance, polarity, test points, and assembly process to minimize defects and speed up SMT and through‑hole assembly.

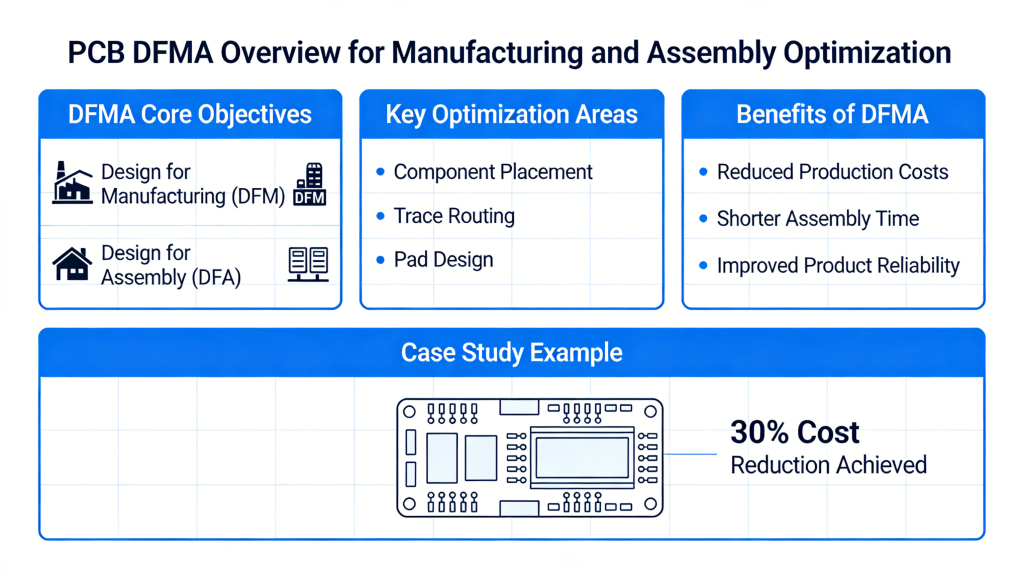

PCB DFMA overview for manufacturing and assembly optimization

Core DFM Principles for PCB

DFM ensures your PCB design matches real manufacturing capabilities to avoid rework, delays, and high costs.

  • Follow minimum trace and space per layer count and material
  • Maintain valid annular ring for PTH and VIP holes
  • Use standard hole sizes and avoid non‑standard drilling
  • Ensure sufficient clearance from trace to board edge
  • Optimize solder mask coverage and relief
  • Standardize panelization and tooling features
  • Comply with IPC‑2221 generic performance standard

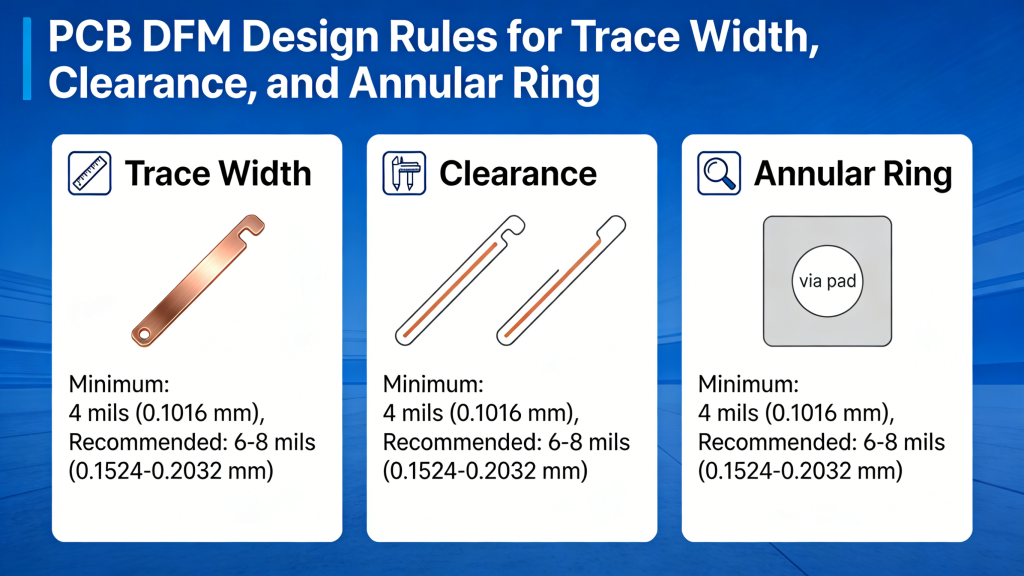

PCB DFM design rules for trace width, clearance, and annular ring

Core DFA Principles for PCBA

DFA eliminates assembly risks and improves PCBA first‑pass yield.

  • Standardize component orientation and polarity marking
  • Provide sufficient clearance between adjacent components
  • Place test points for ICT and functional test
  • Avoid small components near large connectors or heatsinks
  • Use symmetrical design for balanced reflow soldering
  • Label clear pin 1 and polarity indicators

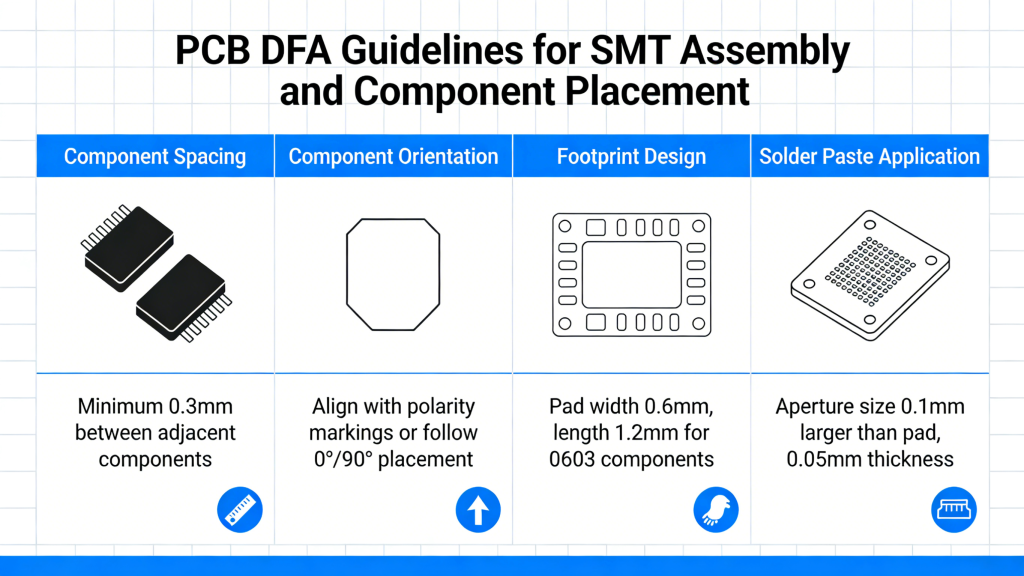

PCB DFA guidelines for SMT assembly and component placement

PCB Manufacturability Analysis

Manufacturability analysis uses rule‑based checking to validate PCB design against production capabilities early in the design phase.

Key analysis areas:

  • Layer count and material compatibility
  • Conductor spacing and impedance control
  • Drill capability and aspect ratio
  • Pad size and solderability
  • Courtyard and component placement
  • Panel design and assembly constraints

Automated DFM software reduces analysis time from days to hours and ensures consistency with IPC standards.

Benefits of DFMA Implementation

AspectWithout DFMAWith DFMA
Production YieldMedium to LowHigh & Stable
Lead TimeLong, with delaysShort & Predictable
Total CostHigher due to reworkOptimized & Lower
Quality ReliabilityVariableConsistently High
  • Reduce design iterations and engineering changes
  • Lower material, labor, and scrap costs
  • Improve PCB and PCBA reliability
  • Speed up time‑to‑market for new products
  • Support scalable mass production

IPC Standards for DFMA

Key industry standards for PCB DFMA:

  • IPC‑2221: Generic Standard for Printed Board Design
  • IPC‑4101: Laminate Specifications
  • IPC‑D‑300G: Printed Board Design Standard
  • IPC‑A‑600: Acceptability of Printed Boards
  • IPC‑7351: Land Pattern Standards

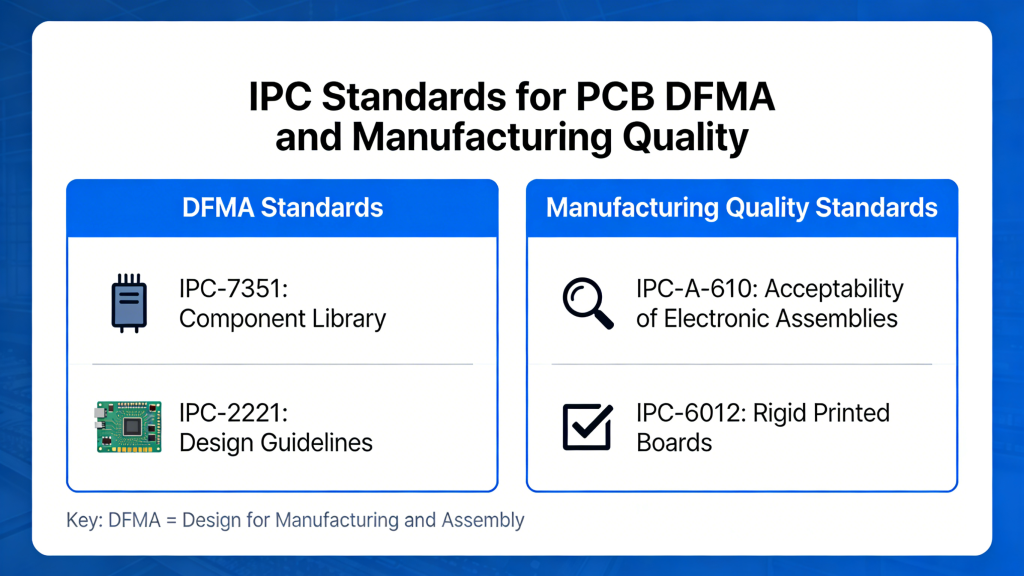

IPC standards for PCB DFMA and manufacturing quality

DFMA Checklist & Free Resources

A complete DFMA checklist ensures no critical design rule is missed.

  • Trace width / space per layer and current
  • Hole size and aspect ratio validation
  • Pad and land pattern compliance
  • Component clearance and height check
  • Test point coverage
  • Panelization and assembly feasibility

We provide a free downloadable DFMA checklist for your design team.

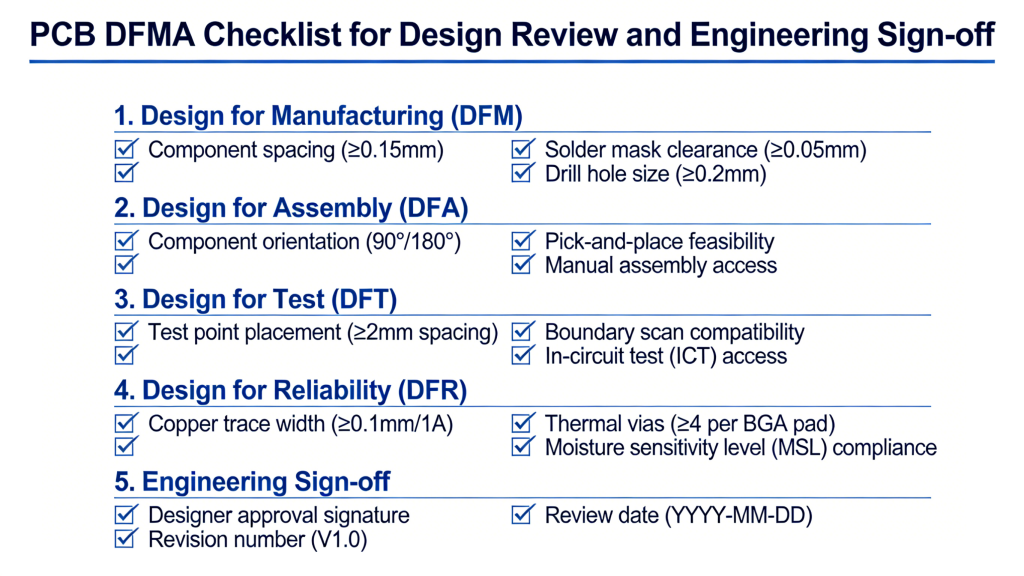

PCB DFMA checklist for design review and engineering sign-off

Conclusion

DFMA is essential for reliable, cost‑effective, and scalable PCB and PCBA manufacturing. By integrating DFM and DFA early in design, you achieve higher yield, lower cost, faster delivery, and stronger product performance for global markets.

Ready for Professional DFMA PCB Service?

Get free DFM analysis, fast quoting, custom engineering support, and high‑quality PCB & PCBA production.

Request DFMA Review & Quote
