Gerber Files for PCB Prototyping: Complete Professional Guide

Gerber Export Settings PCB Prototyping RS-274X Units Precision Drill File

Gerber files are the universal manufacturing standard for PCB prototyping, defining copper traces, solder mask, silkscreen, drill data, and board geometry to ensure accurate, fast, and reliable fabrication.

What Are Gerber Files for PCB Prototyping?

Gerber files (RS‑274X standard) are vector‑based fabrication files that translate your CAD design into machine‑readable instructions for PCB prototyping. They carry complete layer data, aperture definitions, and coordinates without needing external D‑code files.

Using validated Gerber data eliminates reworks, shortens lead times, and ensures your prototype matches design intent precisely.

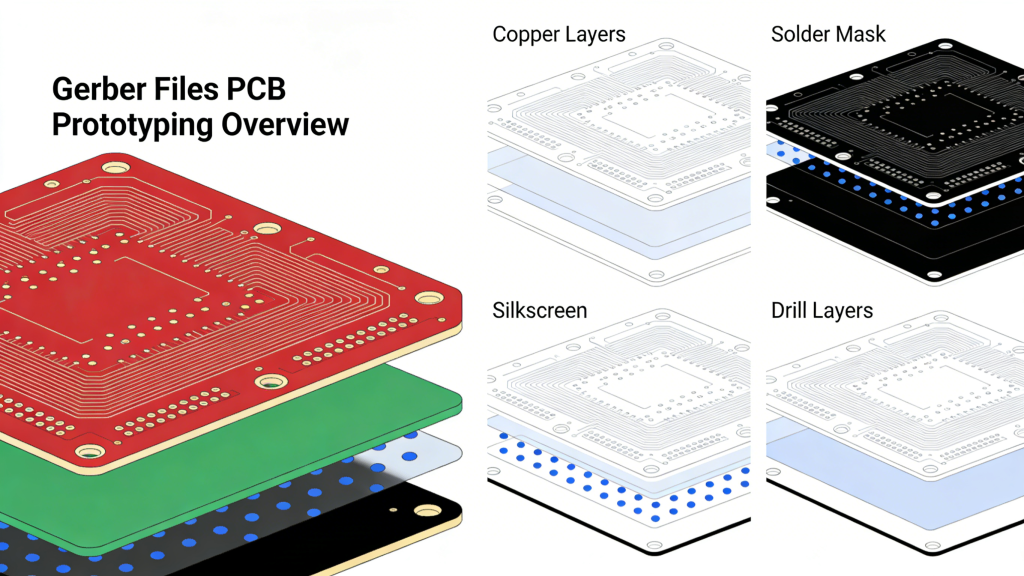

Gerber Files PCB Prototyping Overview Layers Copper Solder Mask Silkscreen

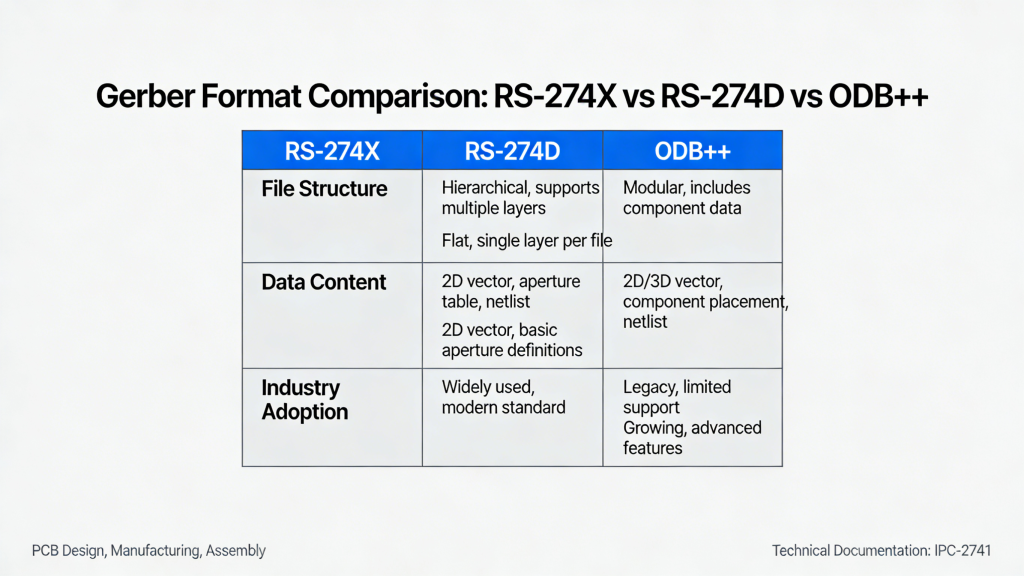

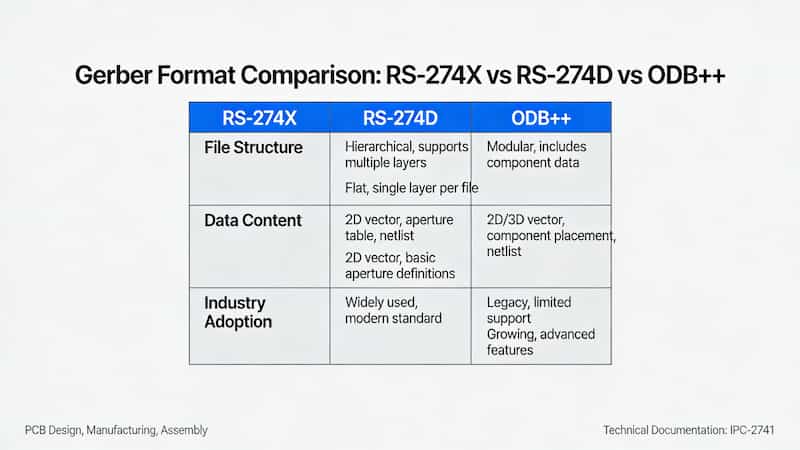

Gerber Formats & Compatibility for PCB Prototyping

Selecting the right format ensures smooth production and avoids delays in PCB prototyping.

FormatFeaturesBest ForCompatibility
RS‑274X (Extended)Embedded apertures, net support, regionsMost PCB prototypesUniversal
RS‑274DBasic vectors, requires D‑codesLegacy designs onlyLimited
ODB++ / IPC‑2581Full design intent, stackup, BOMHigh‑density HDI boardsAdvanced fabs

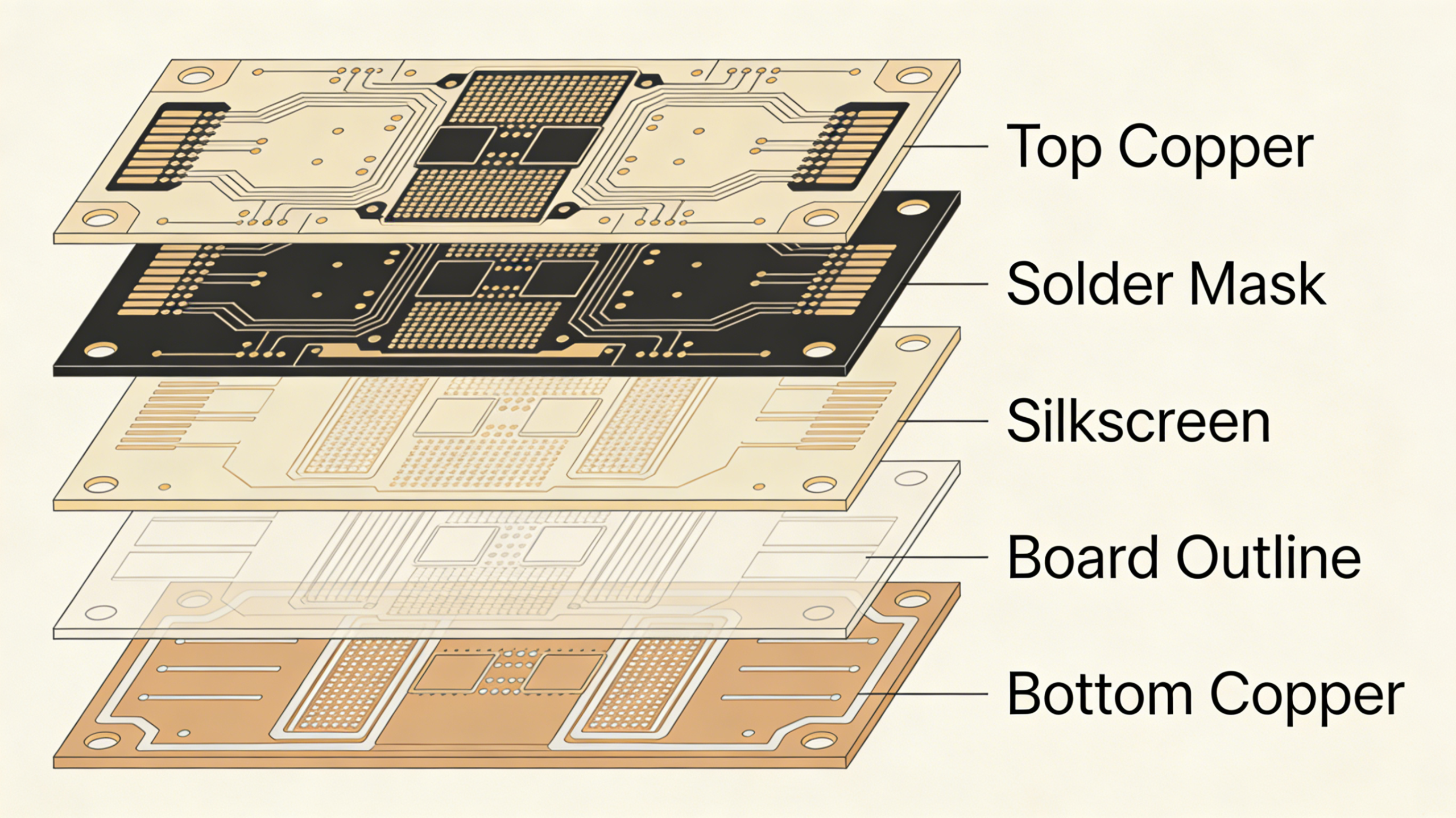

Essential Layers for Gerber Files in PCB Prototyping

A complete Gerber package includes these critical layers for reliable PCB prototyping:

  • Top & Bottom Copper (GTL, GBL)
  • Top & Bottom Solder Mask (GTS, GBS)
  • Top & Bottom Silkscreen (GTO, GBO)
  • Top & Bottom Paste Mask (GTP, GBP)
  • Board Outline / Edge Cuts (GKO)
  • Excellon Drill File (DRL)
Gerber PCB Layers Structure Copper Solder Mask Silkscreen Drill Prototyping

Gerber Export Best Practices for PCB Prototyping

Follow these rules to create production‑ready Gerber files for PCB prototyping:

1. Use RS‑274X with embedded apertures; avoid RS‑274D.

2. Keep consistent units (inch or mm) and precision (3:5 or 3:6) across all files.

3. Include all functional layers and omit unused internal layers.

4. Verify polarity for solder mask: openings align with pads.

5. Use a free Gerber viewer to check overlaps, registration, and clearances before ordering.

Gerber Export Settings PCB Prototyping RS-274X Units Precision Drill File

Common Gerber Mistakes That Delay PCB Prototyping

Avoid these errors to speed up PCB prototyping and reduce costs:

• Missing layers or incomplete drill files

• Inverted solder mask polarity causing open pads

• Unit mismatches between Gerber and NC drill

• Outdated RS‑274D without aperture lists

• Unchecked files leading to misalignment or re‑spins

Common Gerber File Errors PCB Prototyping Delays Reworks

Summary

Validated Gerber files are foundational for successful PCB prototyping. Using RS‑274X, including all required layers, verifying data, and standardizing export settings drastically reduce errors, lead times, and costs.

We support all standard Gerber workflows and provide fast, reliable PCB prototyping for global engineers and buyers.

Need Reliable PCB Prototyping?

Upload your Gerber files for a free, instant quote. We deliver high‑quality prototypes with fast lead times and full technical support.

Request a Quote
