PCB OSP Surface Finish: Complete Technical Guide for Buyers & Engineers

Advantages of OSP PCB surface finish for fine pitch SMT

OSP (Organic Solderability Preservative) is a lead‑free, RoHS‑compliant organic coating applied to exposed copper pads on printed circuit boards to prevent oxidation and preserve solderability before SMT assembly. This guide explains PCB OSP surface finish in full: process, pros, cons, storage, assembly, comparisons, and best practices for industrial electronics manufacturing.

What Is PCB Surface Finish?

A PCB surface finish is a protective layer applied after solder mask development. It shields exposed copper from oxidation, corrosion, and contamination while providing a stable, solderable surface for component mounting. Surface finishes are divided into metallic types (ENIG, Immersion Silver, HASL) and organic types, with OSP surface finish being the most widely used organic solution.

Key functions include ensuring reliable soldering, extending board life, supporting fine‑pitch SMT assembly, and complying with global environmental regulations such as RoHS and WEEE.

What Is OSP Surface Finish?

OSP (Organic Solderability Preservative) is a water‑based, transparent organic compound that bonds chemically to copper surfaces. It forms a thin protective film that blocks oxidation and preserves solderability without adding metallic layers. This makes PCB OSP finish ideal for lead‑free assembly, high‑yield production, and cost‑sensitive industrial projects.

Unlike ENIG or Immersion Silver, OSP leaves a perfectly flat surface, which is critical for BGAs, QFNs, and other fine‑pitch components used in consumer electronics, automotive, and industrial control systems.

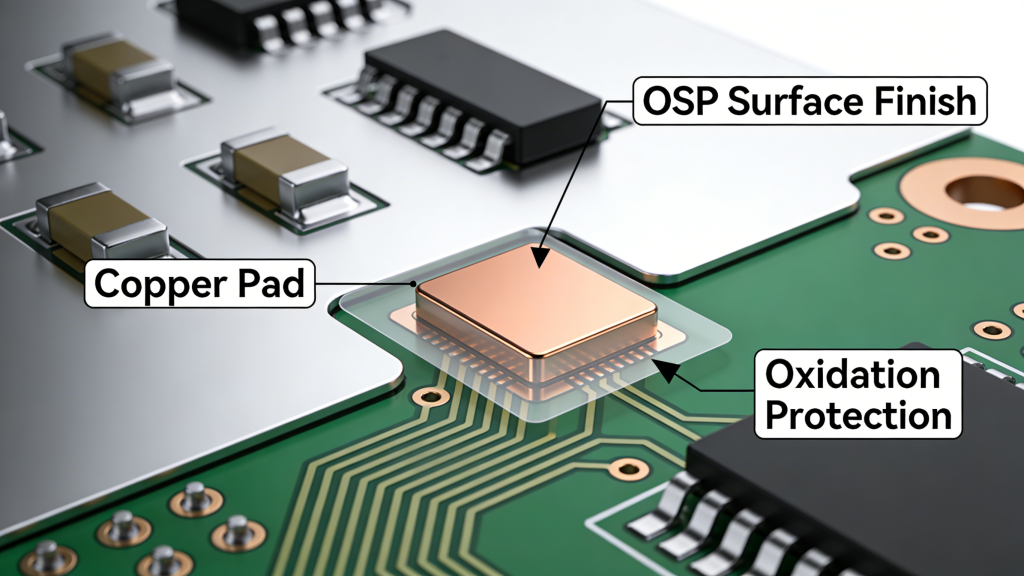

What is OSP PCB surface finish for SMT assembly

OSP Surface Finish Manufacturing Process

The OSP coating process is clean, efficient, and compatible with high‑volume PCB lines:

  1. Cleaning: Removes oils, residues, and oxides from copper pads.
  2. Micro‑Etching: Improves adhesion for the OSP layer.
  3. DI Rinsing: Eliminates ionic contamination.
  4. OSP Coating: Uniform organic film deposition at pH 4.0–7.0.
  5. Drying: Stabilizes the coating for safe handling and storage.

Advantages of OSP Surface Finish

PCB OSP finish offers industry‑leading benefits for mass production:

  • Excellent flatness for fine‑pitch and BGA components
  • Lowest cost among mainstream surface finishes
  • 100% RoHS‑compliant and eco‑friendly
  • Simple rework and repair capability
  • Compatible with lead‑free reflow and wave soldering
  • No heavy metals or hazardous waste

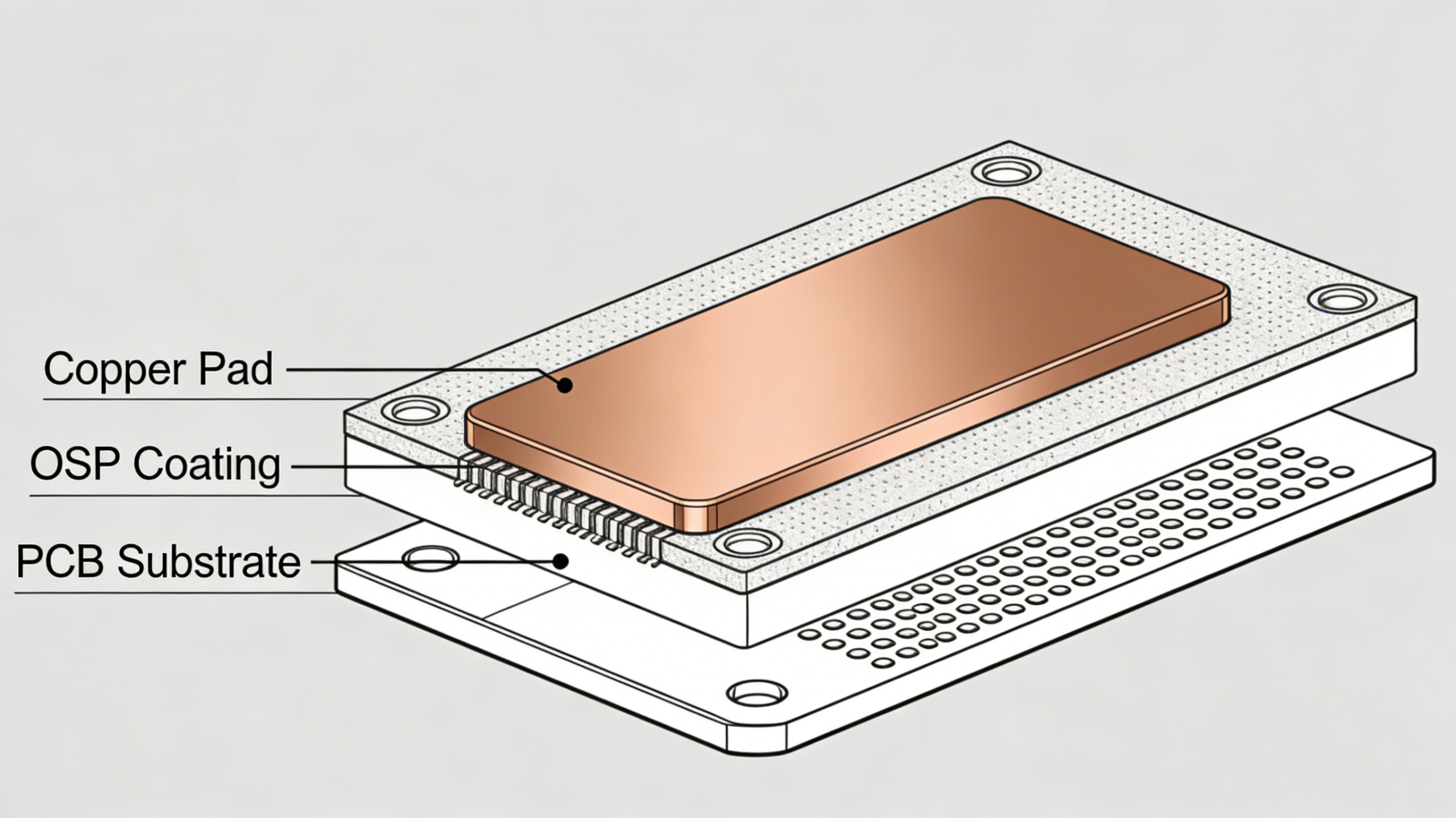

Advantages of OSP PCB surface finish for fine pitch SMT

Limitations of OSP Surface Finish

While OSP PCB is highly versatile, it has key constraints:

  • Shorter shelf life: typically 6–12 months
  • Sensitive to fingerprints, scratches, and contamination
  • Limited thermal cycles compared to ENIG
  • Transparent layer makes visual inspection difficult
  • Baking before assembly may degrade coating performance

How to Store OSP‑Coated PCBs

Proper storage preserves OSP surface finish solderability:

  • Use vacuum packaging with desiccants and humidity cards
  • Keep temperature 15–30°C and humidity 30–70%
  • Avoid direct sunlight and high moisture environments
  • Use separator paper to prevent abrasion
  • Use within 12 months for best assembly yield

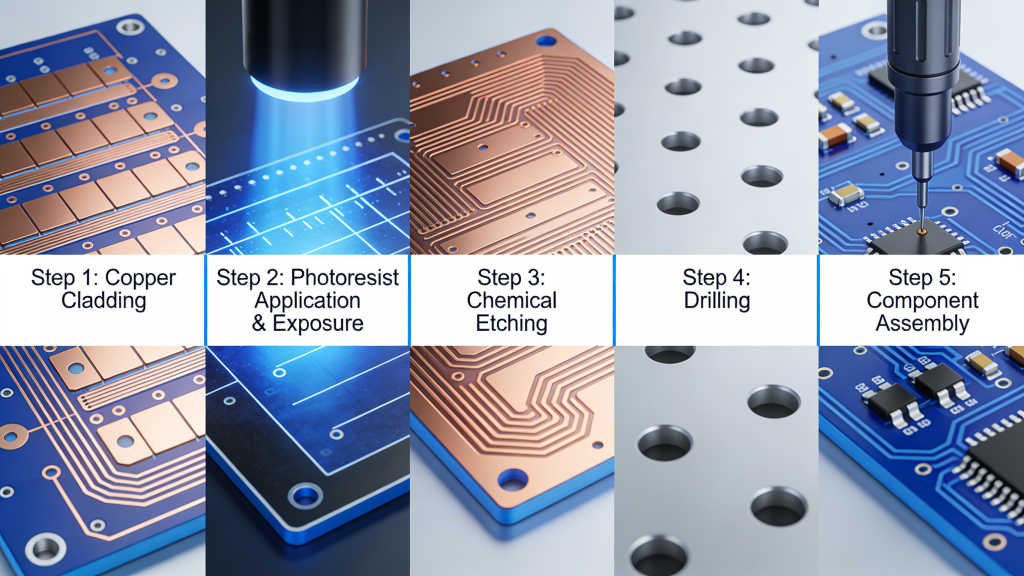

Storage for OSP coated PCB vacuum sealed packaging

Assembly Guidelines for OSP PCBs

For reliable assembly with OSP surface finish:

  • Minimize handling; use powder‑free gloves
  • Optimize reflow profile to avoid overheating
  • Avoid repeated thermal cycles
  • Use solder pastes formulated for OSP coatings
  • Complete assembly soon after opening vacuum packs

OSP vs. ENIG vs. Immersion Silver vs. HASL

FeatureOSPENIGImmersion SilverLead‑Free HASL
CostLowHighModerateModerate
FlatnessExcellentGoodGoodPoor
Shelf Life6–12 months12+ months6–12 months12+ months
RoHSCompliantCompliantCompliantCompliant
Best ForFine Pitch, SMT, Cost SavingsHigh Reliability, Long LifeMixed TechnologyThrough‑Hole, General Use

Conclusion

OSP surface finish remains one of the most practical, cost‑effective, and eco‑friendly choices for modern PCB manufacturing. It delivers unmatched flatness, strong solderability, and full regulatory compliance for high‑volume SMT production. While it requires careful storage and assembly, its performance and cost benefits make PCB OSP finish a top choice for engineers and global buyers.

Need OSP‑Coated PCB Manufacturing & Assembly?

We provide professional OSP surface finish PCB fabrication, prototyping, and full turnkey assembly for global export. Get free quotation, DFM check, and lead time now.

Request PCB Quote

High Tg PCB manufacturing process and production line

High Tg PCB Manufacturing for High Temperature Applications

Posted on
0 Comments
We manufacture reliable High Tg PCB boards using Tg 170–180+ FR‑4 materials, engineered for automotive, power electronics, industrial control, and telecom applications that must survive elevated temperatures and demanding duty cycles. What Is a High Tg PCB A High Tg PCB is a printed circuit board made with materials that have a higher glass transition…
PCB storage environment temperature humidity IPC standard control

How to Store PCB and PCBA? Complete IPC Storage Guidelines

Posted on
0 Comments
Learn PCB storage and PCBA storage best practices to avoid oxidation, ESD, moisture damage, and ensure reliable performance for industrial electronics. PCB storage and PCBA storage are critical for manufacturers and buyers alike. Proper storage prevents damage, maintains solderability, and avoids costly failures during assembly or operation. After production, boards are stored with strict precautions…
Semi-Flex PCB Bending Principle Depth Milling

Semi-Flex PCBs: The Ultimate Bridge Between Rigid and Flex PCBs

Posted on
0 Comments
Semi-Flex PCBs deliver the ideal balance of rigidity and flexibility for modern electronics. Built on standard FR-4 with precision thinned bending zones, they offer cost efficiency, reliable performance, and easy assembly, filling the critical gap between traditional rigid PCBs and high-cost flex circuits. Ideal for static bend installations, Semi-Flex PCBs reduce assembly complexity while enhancing…
PCB soldering basics showing solder joint structure and component connection

How to Solder on PCB: Essential Techniques and Best Practices for Reliable Assembly

Posted on
0 Comments
PCB soldering is the foundation of reliable electronics assembly. This professional guide covers proven methods for how to solder on PCB, including hand soldering, wave soldering, reflow soldering, and selective soldering, with industrial best practices to eliminate defects and ensure long-term performance for industrial, automotive, and aerospace applications. What is PCB Soldering? A Foundation for…

Multilayer PCB Layer Stackup and Thickness: Standard 4‑Layer to 14‑Layer Configurations

Posted on
0 Comments
Complete professional guide to multilayer PCB stackup design, standard thicknesses, layer arrangements, impedance control, and ready-to-use 4–14 layer configurations for industrial, high-speed, and high-reliability electronics. Why Multilayer PCB Stackup and Thickness Matter Today’s electronics demand smaller size, higher speed, greater integration, and longer reliability. Multilayer PCB stackup and total board thickness directly determine signal integrity,…
PCB Manufacturability Analysis Software Interface DFA Check

Design for Manufacturability and Assemblability of Printed Circuit Board

Posted on
0 Comments
Optimize your PCB design for high yield, low cost, and reliable assembly with industry-leading DFM and DFA principles aligned with IPC standards. What is Design for Manufacturing Design for Manufacturing, also known as concurrent or simultaneous engineering, focuses on the relationship between product physical design and manufacturing systems. By integrating DFM principles into product design,…

FAQs About PCB OSP Surface Finish Property, Storage & Assembly Standard

A: OSP is transparent organic protective film chemically combined with bare copper to avoid oxidation, flat finish specially used for fine-pitch BGA/QFN SMT soldering.

A: Lowest unit cost, outstanding pad flatness, full RoHS eco-friendly, convenient board repair and compatible with lead-free soldering process.

A: Short storage shelf life only 6~12 months, vulnerable to scratch & sweat contamination, poor resistance against multiple repeated reflow thermal cycles.

A: Vacuum packing with desiccant, storage temp 15~30℃, humidity 30~70%, avoid damp & sunshine and finish assembly within valid period.

A: Reduce bare hand contact, adopt OSP-specific solder paste, control reflow peak temp and finish production quickly after unpacking vacuum bag.

A: High-volume cost-sensitive consumer electronics, dense fine-pitch BGA control board and mass industrial SMT-only PCB projects.

A: Long-term storage & harsh environment choose ENIG; mixed SMT+THT selects Immersion Silver; ordinary through-hole board adopts lead-free HASL.

A: Copper surface cleaning → micro etching → DI water rinsing → organic OSP coating → low-temperature drying to form protective film.
