PCB Immersion Gold (ENIG) Surface Finish: Benefits, Process & Full Guide

ENIG PCB benefits flat surface SMT BGA assembly PCB

PCB Immersion Gold (ENIG) is a premium lead-free surface finish delivering superior solderability, flatness and oxidation resistance for high-reliability printed circuit boards. This guide explains definition, advantages, limitations, manufacturing steps and comparisons for engineers and global buyers.

What Is PCB Immersion Gold (ENIG) Surface Finish

Electroless Nickel Immersion Gold (ENIG) is a widely adopted chemical surface treatment for PCBs. It deposits a nickel-phosphorus alloy layer followed by a thin immersion gold layer without electric current.

This finish protects copper pads, prevents oxidation, ensures stable solderability, and supports high-precision assembly including BGAs, flip chips and fine-pitch SMT components.

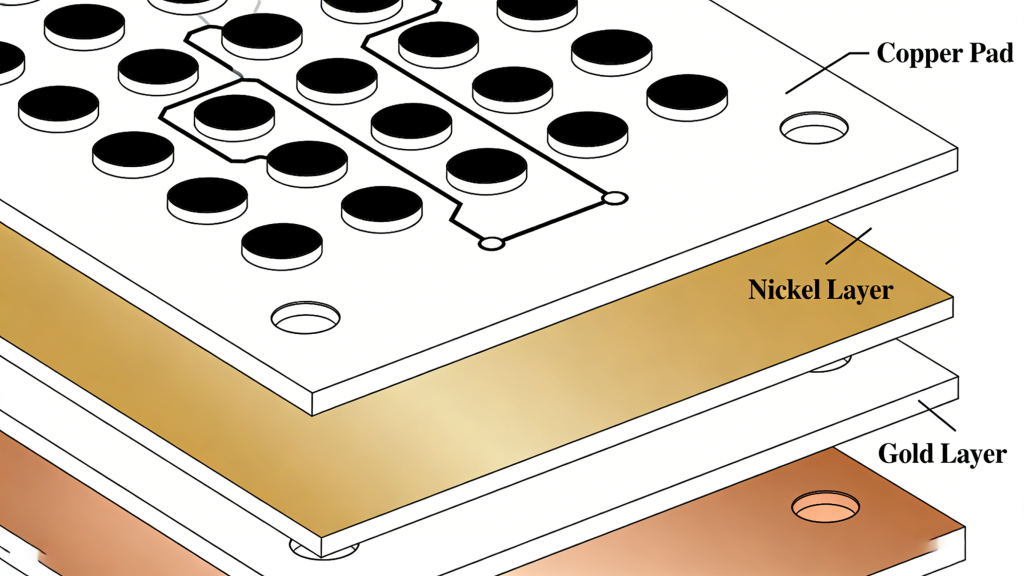

ENIG PCB surface finish layer structure nickel gold SMT PCB

Key Benefits of ENIG Surface Finish for PCBs

ENIG provides critical advantages for industrial and high-performance PCB applications:

  • Ultra-Flat Surface: Perfect for fine-pitch SMT, BGAs and lead-free assembly
  • Excellent Oxidation Resistance: Long shelf life and reliable storage
  • Stable Electrical Performance: Consistent signal integrity and connectivity
  • High Temperature Resistance: Withstands multiple reflow cycles
  • Lead-Free & RoHS Compliant: Safe for global markets
  • Strong PTH Performance: Reliable protection for plated through-holes

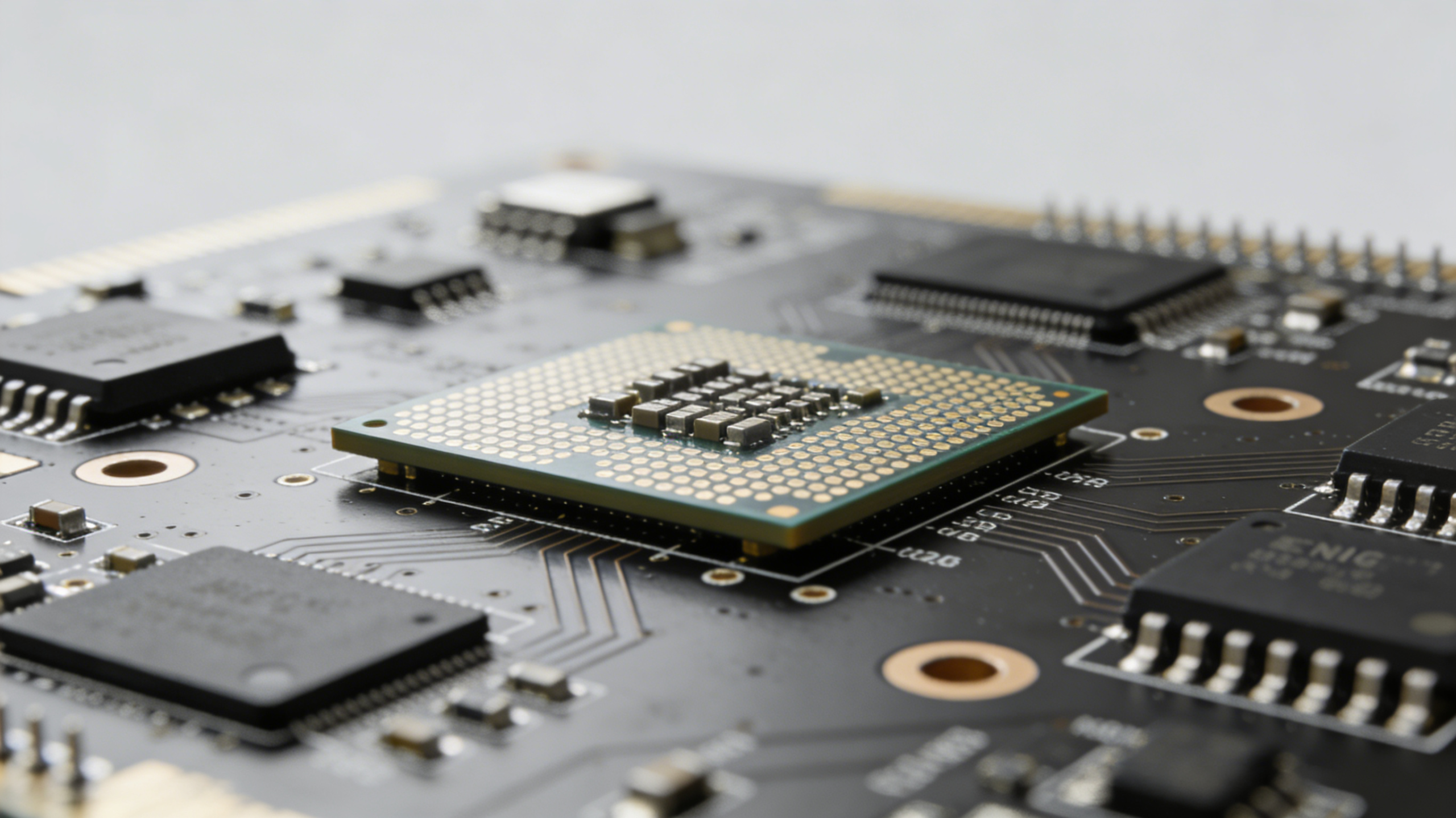

ENIG PCB benefits flat surface SMT BGA assembly PCB

Applications of ENIG Surface Finish

ENIG is widely used in high-reliability electronics worldwide:

  • Automotive electronics (engine, safety, infotainment)
  • Medical devices and diagnostic equipment
  • 5G communication, RF and high-frequency circuits
  • High-density consumer electronics with BGAs
  • Industrial control and aerospace systems
ENIG PCB applications automotive medical 5G SMT PCB

Disadvantages of ENIG Surface Finish

You should consider these limitations when selecting ENIG:

  • Higher Cost: More expensive than HASL, OSP due to gold material
  • Black Pad Risk: Possible nickel corrosion under poor process control
  • Limited Reworkability: Rigid structure complicates repairs
  • RF Signal Loss: Nickel layer may impact high-frequency performance

ENIG Manufacturing Process

The ENIG process uses controlled chemical deposition:

  1. Surface Preparation: Clean, micro-etch and activate copper surfaces
  2. Electroless Nickel Deposition: Deposit 3-6 μm Ni-P alloy layer
  3. Immersion Gold: Apply 0.05-0.1 μm thin gold layer
  4. Cleaning & Drying: Rinse, dry and inspect quality

Standard thickness: Nickel 100-200 μin; Gold 10-15 μin.

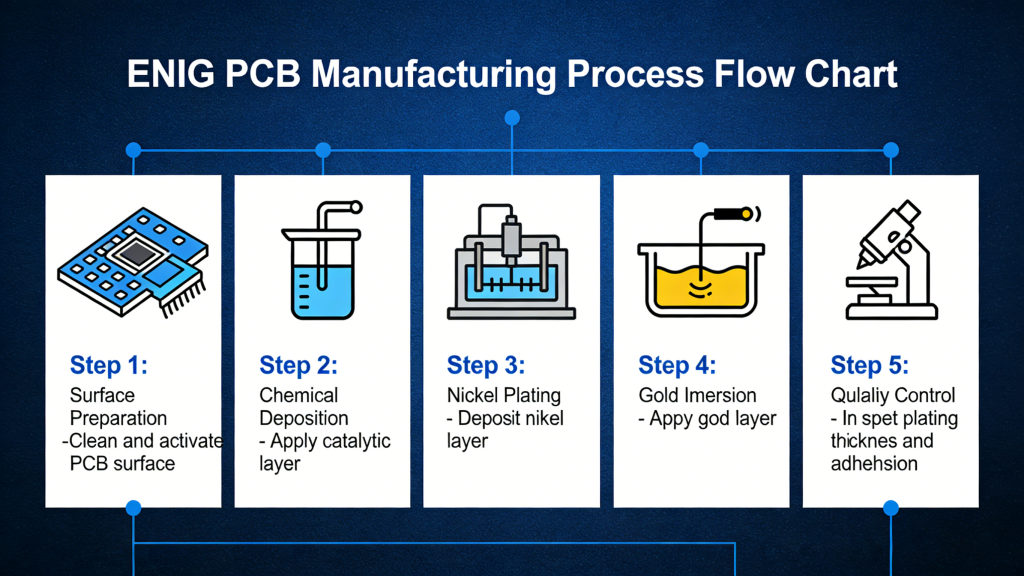

ENIG PCB manufacturing process flow chemical deposition SMT PCB

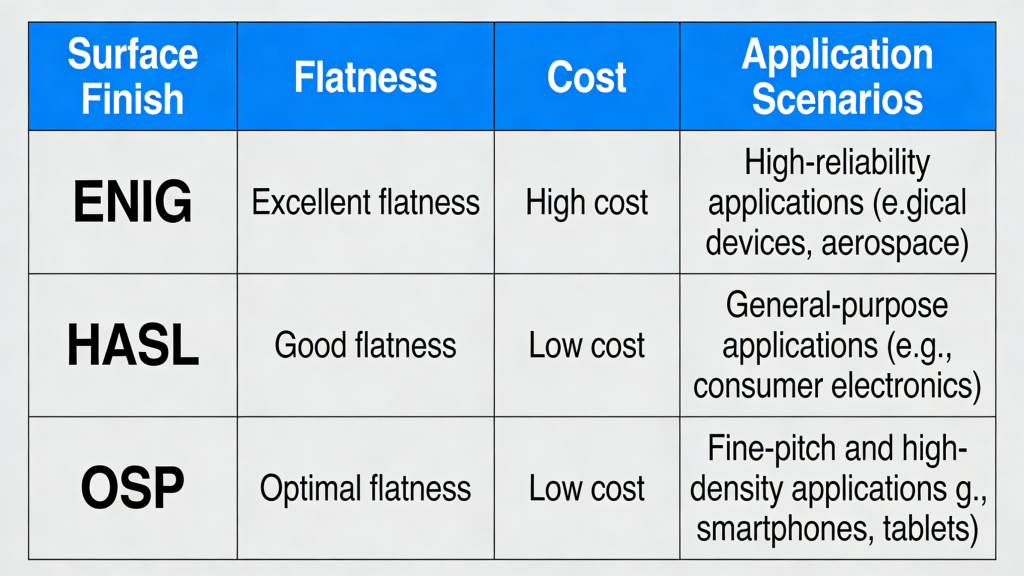

ENIG vs Other PCB Surface Finishes

FinishCostFlatnessBest For
ENIGHighExcellentBGA, SMT, High-Reliability
HASLLowPoorGeneral Purpose
OSPLowGoodHigh Volume, Short Shelf Life
ENEPIGVery HighExcellentHigh-Frequency, Advanced

Conclusion

PCB Immersion Gold (ENIG) is a top-tier surface finish offering excellent flatness, solderability, oxidation resistance and lead-free compliance. It is the preferred choice for high-precision SMT, BGA and high-reliability PCB applications worldwide.

Understanding ENIG helps engineers and buyers select the optimal finish to improve yield, reliability and product lifecycle.
