Copper Clad Laminate (CCL): The Complete 2026 Guide for PCB Manufacturing
Copper Clad Laminate (CCL) is the material on which all circuitry and printed circuit boards (PCBs) are based. It is the basic material used in the PCB industry with wide applications in consumer electronics (e.g. radio and television), mobile communication industry, computers, avionics, military hardware, and others. The copper-clad laminate manufacturing industry is a growing industry with huge development prospects as a result of development and innovation in mobile communication technology, consumer and industrial electronics, semiconductor manufacturing technology, PCB manufacturing technology, and surface mounting technology, especially in China and Southeast Asia.
What Is Copper Clad Laminate (CCL)

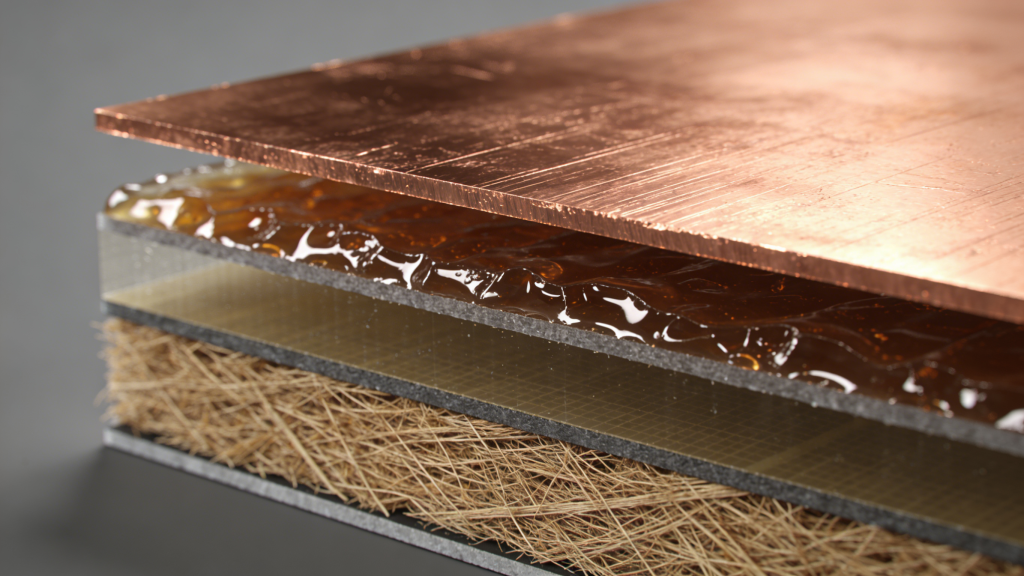

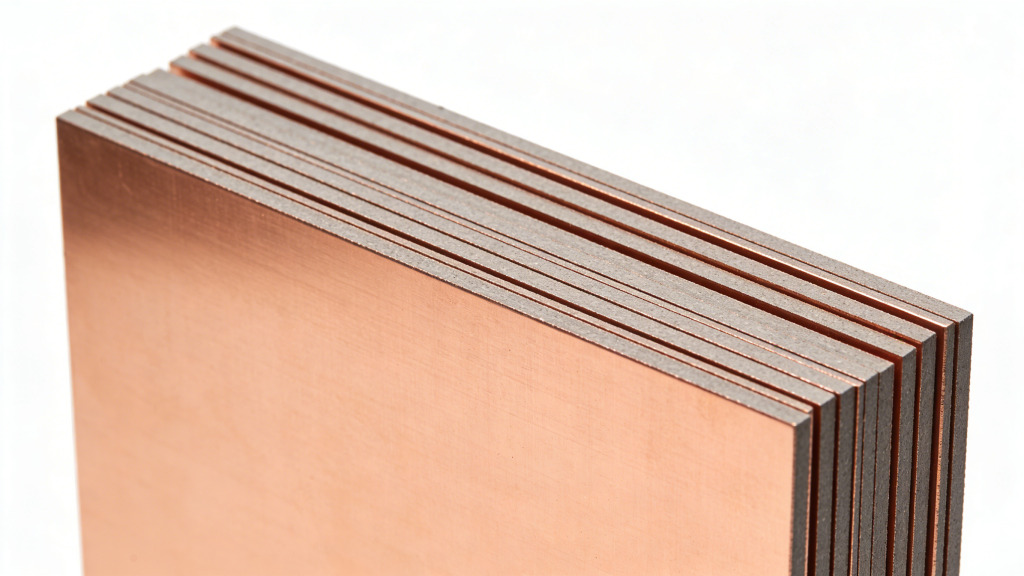

Copper Clad Laminate (CCL) is an insulating base material laminated with copper foil under high temperature and pressure. It consists of reinforcement (glass fiber, paper, etc.), resin matrix, and copper foil, forming the foundational material of all printed circuit boards (PCB).
In multilayer PCB production, CCL acts as the core layer (CORE), providing insulation, support, and electrical connectivity. Its quality directly determines the stability, lifespan, and performance of electronic products.
CCL Classifications & Materials
1. By Mechanical Rigidity
- Rigid CCL: FR-4, CEM-1, CEM-3; used for rigid PCB
- Flexible CCL (FCCL): Polyimide-based; used for FPC flexible boards
- Rigid-Flex CCL: Combines rigid and flex materials
2. By Reinforcement Material
- Glass cloth-based CCL (FR-4, FR-5)
- Paper-based CCL (XPC, FR-1, FR-2)
- Composite CCL (CEM-1, CEM-3)
- Special material: metal core, ceramic, PTFE
3. Common CCL Types for PCB

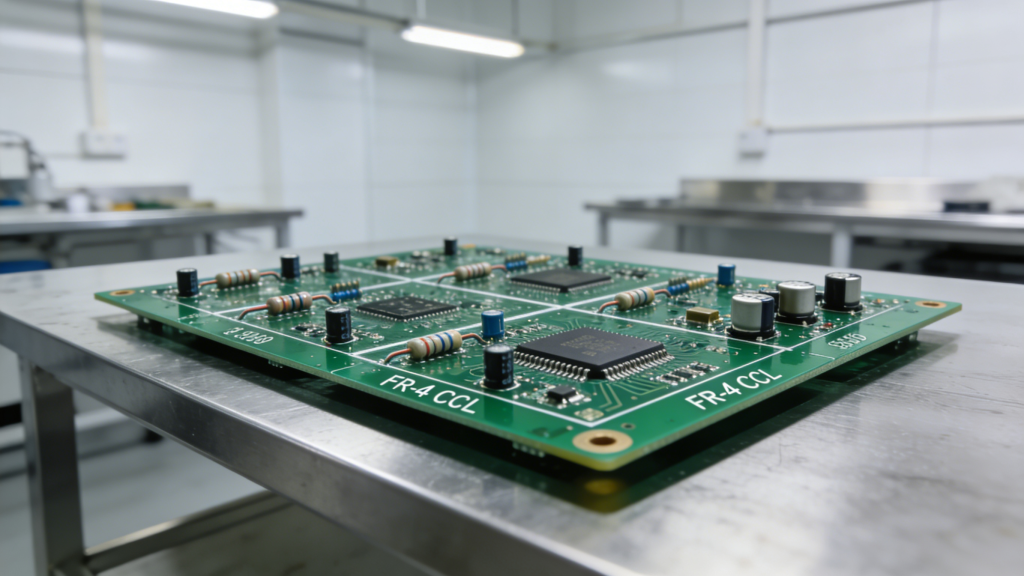

FR-4 CCL: Most widely used; flame-retardant, glass fiber + epoxy resin. Suitable for consumer electronics, industrial control, automotive PCB.

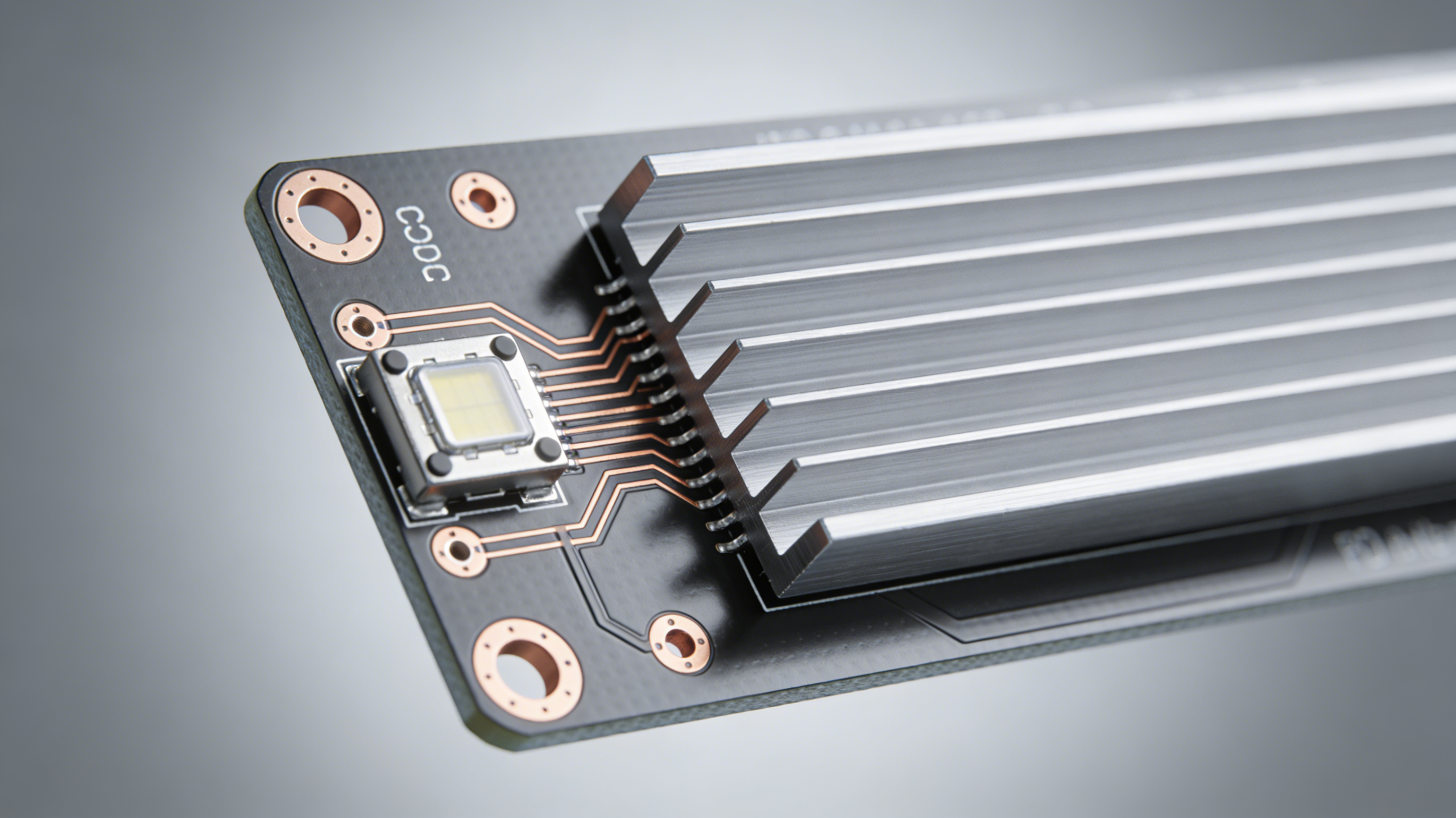

Aluminum Core CCL: High thermal conductivity; for LED, power, heat-dissipation PCB.
Copper Core CCL: Ultra-high thermal conductivity; for high-power modules.
PTFE CCL: Low Dk/Df; for 5G, RF, microwave, high-frequency PCB.
Halogen-Free CCL: Eco-friendly, RoHS compliant; for automotive, medical, green electronics.
Key Performance Properties of CCL
When evaluating CCL for PCB, focus on these critical parameters:
- Thermal Properties: Tg (glass transition temperature), Td, T260/T288 delamination time
- Electrical Properties: Dk (dielectric constant), Df (dissipation factor), insulation resistance
- Mechanical Properties: Peel strength, bending strength, dimensional stability
- Environmental: Water absorption, flame resistance (UL94), RoHS
| Property | Standard | Impact on PCB |
|---|---|---|
| Tg Value | 130°C, 150°C, 170°C+ | Heat resistance & reliability |
| Peel Strength | ≥1.0 N/mm | Copper foil bonding stability |
| UL94 Flammability | V-0 | Safety certification |
CCL Manufacturing Process
- Resin impregnation: Reinforcement material soaked with epoxy/polyimide resin
- Prepreg drying: Semi-cured to form prepreg sheets
- Lay-up: Stack prepreg and copper foil
- Hot pressing: High temperature + pressure to laminate
- Trimming & inspection: Cut to size and quality check
Industrial Applications
Copper Clad Laminate (CCL) supports nearly all electronic PCB applications:
- Consumer electronics: Mobile phones, TVs, laptops
- 5G communication: Base stations, antennas, high-speed signal PCB
- Automotive: ADAS, EV control, infotainment
- Industrial control: Power supply, IGBT, inverter
- Aerospace & military: High-reliability PCB
- Medical devices: Precision monitoring & imaging equipment
How to Select the Right CCL
Choose CCL based on PCB application, frequency, power, environment, and cost:
- General-purpose: FR-4 CCL
- High-power/heat: Aluminum/copper core CCL
- High-frequency/RF: PTFE or low-Dk hydrocarbon CCL
- Flexible devices: FCCL (polyimide)
- Eco-friendly: Halogen-free CCL
FAQ
Q1: What is the difference between CCL and prepreg?
A: Prepreg is semi-cured resin-impregnated material; CCL is prepreg laminated with copper foil, the finished substrate for PCB.
Q2: Why is Tg important for CCL?
A: Tg determines heat resistance; higher Tg improves PCB stability in high-temp environments.
Q3: Can CCL be used for high-frequency PCB?
A: Yes, specialized low-Dk/Df CCL (e.g., PTFE, Rogers) is designed for high-frequency and 5G PCB.
Summary
Copper Clad Laminate (CCL) is the irreplaceable foundation of PCB manufacturing. Selecting the right CCL ensures electrical performance, thermal reliability, and long-term durability of electronic products. Understanding CCL types, properties, and applications helps engineers and purchasers optimize PCB design and cost.
