Standard PCB Thickness – The Complete Guide for Engineers & Buyers

PCB layer thickness vs standard PCB thickness

Standard PCB thickness is typically 1.57 mm (0.062 inches), often rounded to 1.6 mm. This guide covers definitions, influencing factors, manufacturing constraints, non-standard design rules, and selection tips for industrial buyers and engineers.

Quick Overview: standard PCB thickness (1.6mm) is industry default; common alternatives include 0.78mm (0.031in) and 2.36mm (0.093in). Thickness impacts durability, weight, assembly, and reliability.

What Is Standard PCB Thickness?

The industry standard PCB thickness is 1.57 mm (0.062 inches), universally referred to as 1.6 mm for simplicity. This dimension is compatible with most connectors, enclosures, and assembly processes.

Other widely used thicknesses:

  • 0.78 mm (0.031 inches) – thin boards for compact devices
  • 2.36 mm (0.093 inches) – thick boards for high-power or rugged use

The final thickness depends on assembly needs, layer count, and application environment.

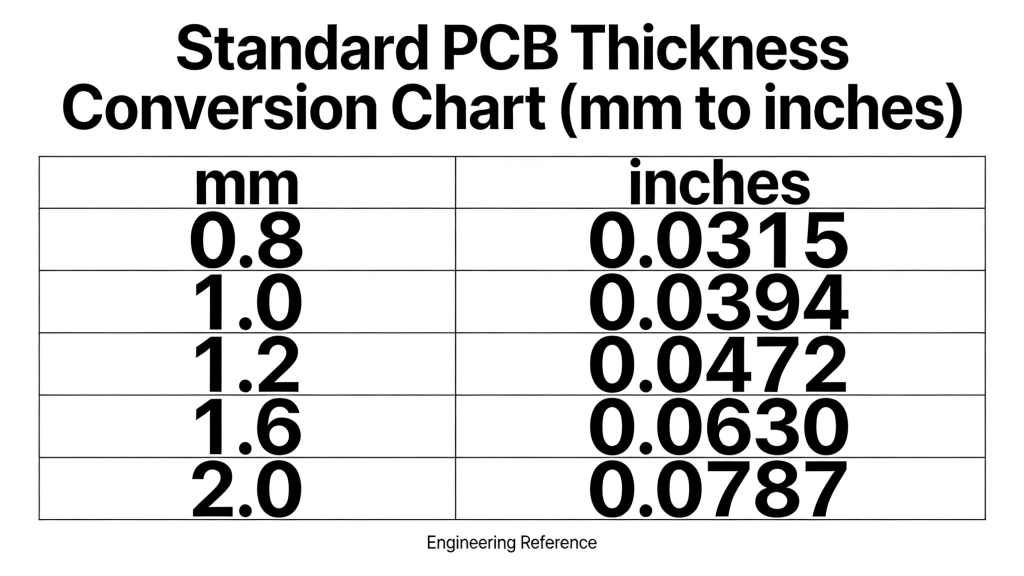

standard PCB thickness chart mm to inches conversion

Key Factors That Affect PCB Thickness

1. Copper Thickness

Standard copper weight is 1–2 oz (1.4–2.8 mils). Copper thickness directly affects current capacity and total board thickness. Thicker copper increases cost and final thickness.

2. Substrate Material

Dielectric materials like FR-4, G-10, and IMS form the core structure. Laminate thickness and Tg value determine the base thickness of the PCB.

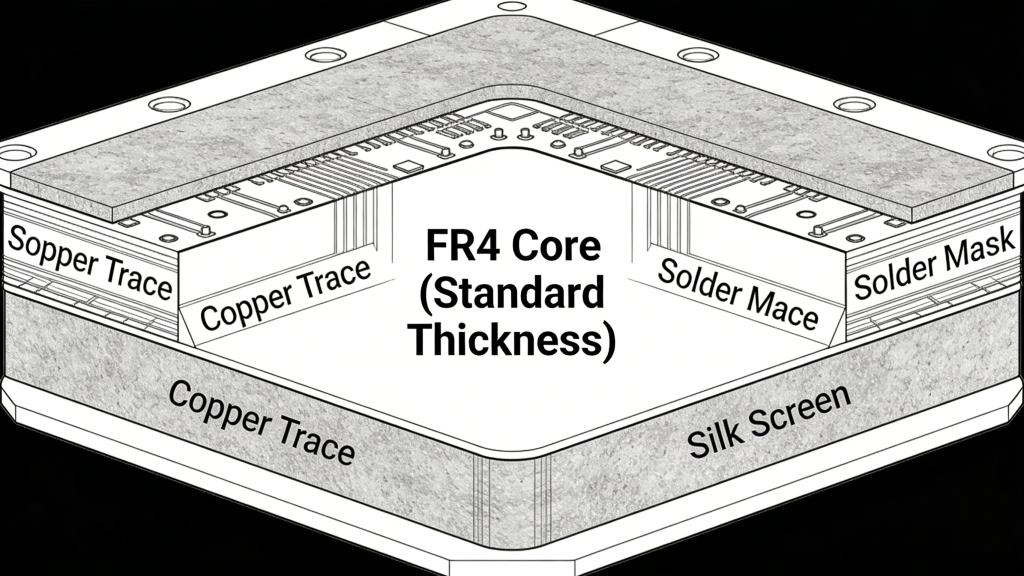

FR4 substrate thickness standard PCB core material

3. Number of Layers

2–6 layer boards often use standard PCB thickness (1.6mm). Boards with 8+ layers require greater thickness to maintain reliability and manufacturability.

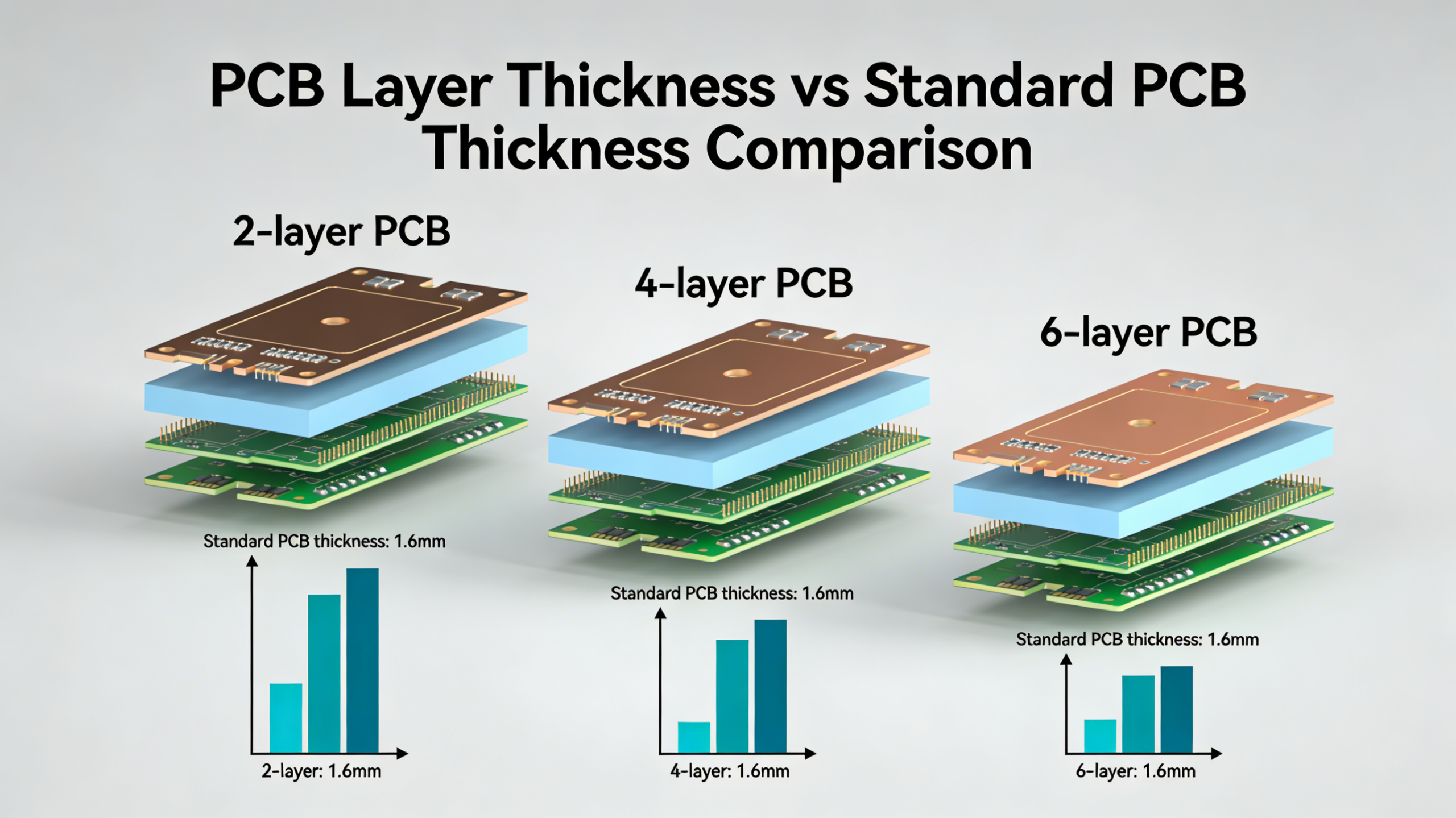

PCB layer thickness vs standard PCB thickness

4. Signal & Power Requirements

High-power circuits need thicker copper and reinforced substrates, increasing overall thickness. High-frequency signals may require controlled dielectric thickness.

5. Via Type & Density

Through vias, microvias, blind vias, and buried vias affect minimum thickness and aspect ratio limits.

6. Operating Environment

Thicker boards perform better in high-vibration, high-temperature, or high-humidity environments. Thin PCBs suit lightweight, low-stress applications.

Manufacturing Factors That Affect PCB Thickness

1. Drilling Aspect Ratio

Standard drilling ratio is 7:1 (depth:diameter). Exceeding this requires special processes and raises costs. Thickness is limited by machine capability.

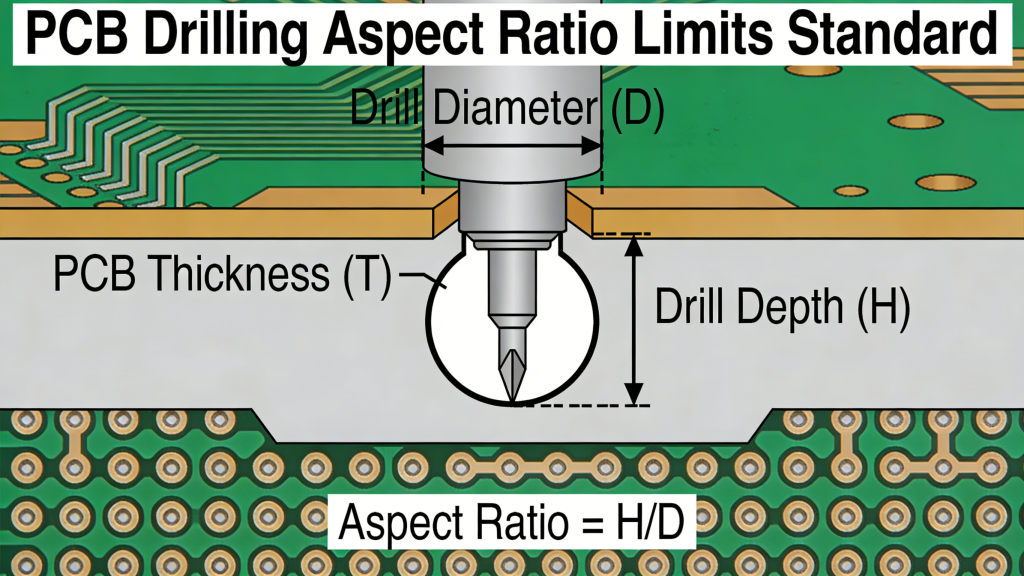

PCB drilling aspect ratio limits standard PCB thickness

2. Copper Plating & Etching

Inner-layer copper thickness impacts lamination and final board dimension. Plating uniformity affects tolerance control.

3. Lamination Process

Multilayer lamination compresses materials slightly. High-layer-count boards cannot maintain standard PCB thickness without compromising quality.

Considerations for Non-Standard Thickness PCBs

When designing outside standard PCB thickness, verify these points:

  • Factory capability: minimum 0.3mm, maximum 3.0mm thickness supported
  • Additional cost for custom thickness and special processes
  • Connector, component, and enclosure compatibility
  • Mechanical strength and reliability testing

Standard PCB Thickness Comparison Table

Thickness (mm)Thickness (inch)Typical UseLayer Count
0.780.031Compact consumer electronics1–2 layers
1.6 (Standard)0.062 (Standard)General industrial, commercial2–6 layers
2.360.093High-power, rugged devices4–8+ layers

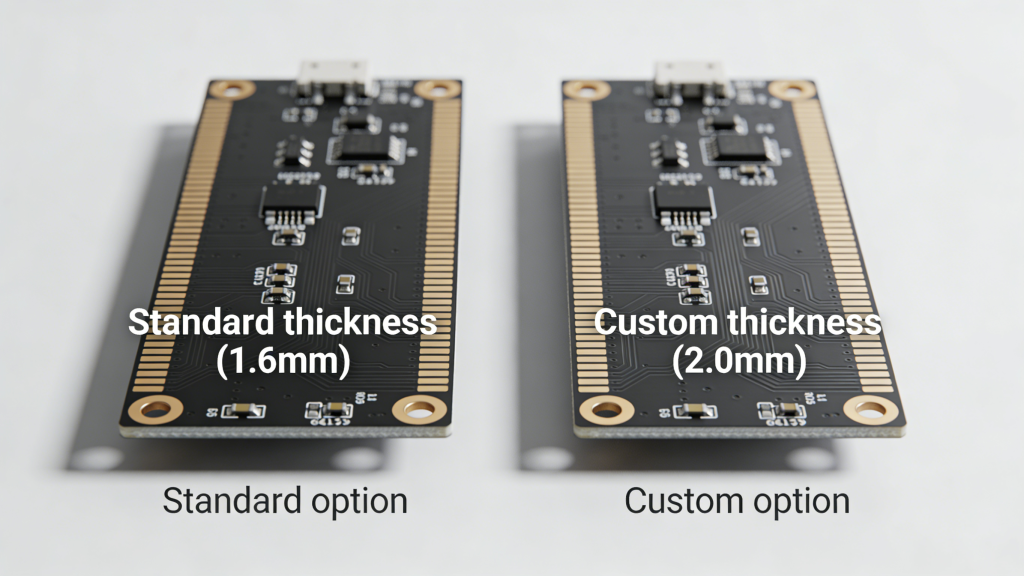

PCB thickness comparison standard vs custom options

Summary

Standard PCB thickness (1.6mm / 0.062in) is the most cost-effective and widely compatible choice for most applications. Thickness is determined by copper weight, substrate, layer count, vias, signal needs, and manufacturing limits.

Non-standard thicknesses are available for specialized use but require factory confirmation and may add cost. Always match thickness to assembly, environment, and performance requirements.

Request a Custom PCB Quote

We provide standard and custom thickness PCBs from 0.3mm to 3.0mm, supporting prototyping and mass production. Our ISO, UL, and RoHS certified facilities ensure stable quality and fast delivery.

Tell us your layer count, copper weight, substrate, target thickness, and quantity. We will send a free DFM check and detailed quote within 24 hours.

Get Free Quote Now

Plated Half-Hole PCB Overview Castellated Holes

Understanding Plated Half-Holes (Castellated Holes) in PCB Design

Posted on
0 Comments
Plated half-holes (also known as castellated holes) offer a space-efficient, reliable method for interconnecting PCB modules through direct soldering. Positioned at board edges, they simplify assembly, improve alignment, and boost mechanical stability compared to traditional bottom pads. This guide covers structure, design rules, fabrication, benefits, applications, and best practices for engineers and buyers. What Are…
Types of PCB vias diagram blind buried through micro thermal

PCB Vias: Complete Overview, Types, Design & Manufacturing for Engineers & Buyers

Posted on
0 Comments
Summary: This professional guide covers PCB vias definitions, core types, structure, design rules, aspect ratio, annular ring, manufacturing processes, and reliability standards. It helps engineers and buyers select the right via solutions for multilayer, high-speed, and HDI PCBs to ensure signal integrity, yield, and cost efficiency. What Are PCB Vias A via is a vertical…
PCB DFM design rules for trace width, clearance, and annular ring

Design for Manufacturability and Assemblability of Printed Circuit Board

Posted on
0 Comments
This professional guide covers PCB DFMA principles, IPC standards, manufacturability rules, assembly optimization, yield improvement, cost reduction, and global industrial best practices for reliable PCB and PCBA production. What is DFMA for PCB? DFMA (Design for Manufacturability and Assemblability) integrates DFM and DFA into a unified engineering framework to optimize PCB design for production efficiency,…
4 Layer PCB Standard Appearance for Industrial and Communication Use

4 Layer PCB Manufacturing & Prototype Service | Factory Direct FR4 Stackup

Posted on
0 Comments
Factory-direct 4 Layer PCB with standard FR4 stackup, fast prototype lead time, free DFM support, and reliable quality for global industrial, IoT, and communication projects. What Is a 4 Layer PCB? A 4 Layer PCB (four‑layer printed circuit board) is a multilayer circuit board that contains four copper layers laminated together with insulating dielectric material,…
SMT and PTH High Volume PCB Assembly Process

High Volume PCB Assembly Services

Posted on
0 Comments
With over 14 years of expertise, we deliver cost-effective, scalable high volume PCB assembly for automotive and medical industries. Advanced automation and strict quality control ensure reliable PCBAs with fast global delivery. What Is High Volume PCB Assembly? High volume PCB assembly means large‑scale production of printed circuit board assemblies to fulfill orders of thousands…
SMT stencil creation for PCB assembly process

The 10 Main Steps of the PCB Assembly Process | Full Professional Guide

Posted on
0 Comments
This step-by-step guide explains the complete PCB assembly process for engineers, procurement teams, and industrial buyers. Learn every stage from stencil creation to functional testing, with professional details to ensure high-quality, reliable electronic assemblies for prototypes and mass production. What transforms a bare printed circuit board into a fully functional electronic module for industrial, automotive,…

FAQs About Standard PCB Thickness

A: The standard size is 1.57 mm, commonly rounded to 1.6 mm or 0.062 inches, which fits most assembly and enclosure designs.

A: Popular alternatives include 0.78 mm for slim compact devices and 2.36 mm for high-power or rugged electronic products.

A: It depends on copper weight, substrate material, layer count, via types, power demands and working environment.

A: 2–6 layer boards usually adopt 1.6mm standard thickness; PCBs with 8 or more layers generally need larger thickness.

A: The standard drilling aspect ratio is 7:1. Too thick boards will exceed this limit and require special manufacturing processes.

A: Confirm factory production capacity, extra costs, compatibility with connectors and mechanical strength in advance.

A: We support custom PCB thickness from 0.3 mm up to 3.0 mm for both prototypes and mass production orders.
