PCB Vias: Complete Overview, Types, Design & Manufacturing for Engineers & Buyers

Types of PCB vias diagram blind buried through micro thermal

Summary: This professional guide covers PCB vias definitions, core types, structure, design rules, aspect ratio, annular ring, manufacturing processes, and reliability standards. It helps engineers and buyers select the right via solutions for multilayer, high-speed, and HDI PCBs to ensure signal integrity, yield, and cost efficiency.

What Are PCB Vias

A via is a vertical electrical connection between layers in a printed circuit board. Vias enable traces to transition between layers to facilitate complex routing pathways and component connections within a confined PCB area or across multilayer PCB boards.

Without reliable vias, multilayer PCBs cannot achieve layer-to-layer connectivity, leading to functional failure, signal loss, or overheating. For industrial, automotive, and high-speed applications, consistent via quality directly determines product lifespan and stability.

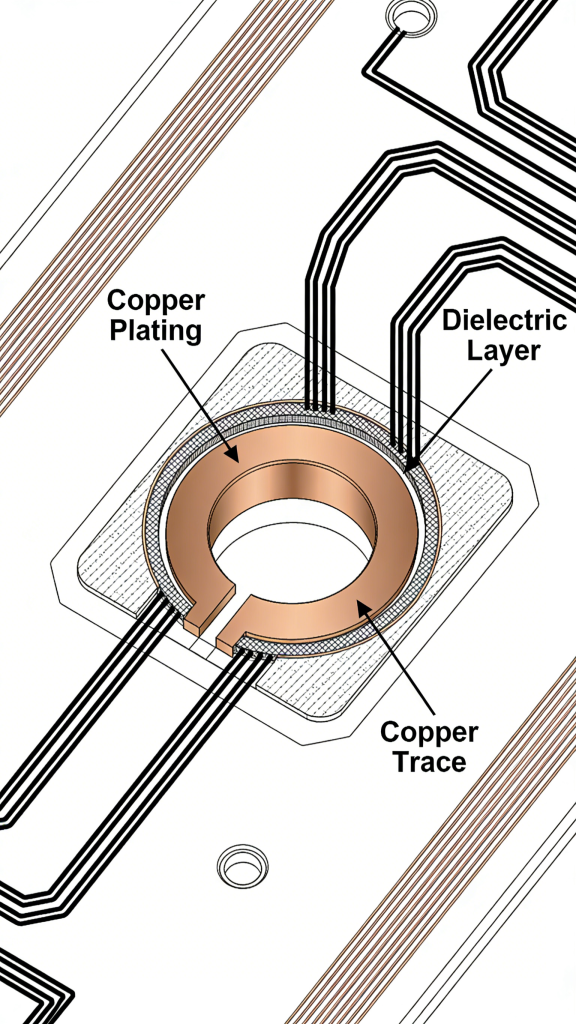

PCB via structure cross section diagram

Core Structure of a Via

Every standard PCB via includes three key components:

  • Barrel: Copper-plated inner hole forming the main conductive path
  • Pad: Copper annular ring connecting the barrel to traces or planes
  • Antipad: Clearance area isolating the via from non-target layers
PCB via components barrel pad antipad illustration

Main Types of PCB Vias

1. Plated Through-Hole Via (PTH)

Spans the full board thickness, most widely used for general circuits. Low cost, mature process, high reliability. Ideal for conventional 2–8 layer PCBs.

2. Blind or Buried Vias

Partial-depth vias connecting internal layers without spanning fully through the board. Blind vias connect one internal layer to an external layer, while buried vias connect internal layers only.

3. Buried Via

Located only between inner layers, invisible externally. Maximizes routing density for high-layer-count and HDI boards.

4.Micro Vias:

Small diameter vias, typically below 0.15mm, created with laser drilling. Micro vias facilitate connections in high density PCBs.

5. Thermal Via

Designed for heat transfer from power components to inner planes. Often used in arrays to enhance cooling efficiency.

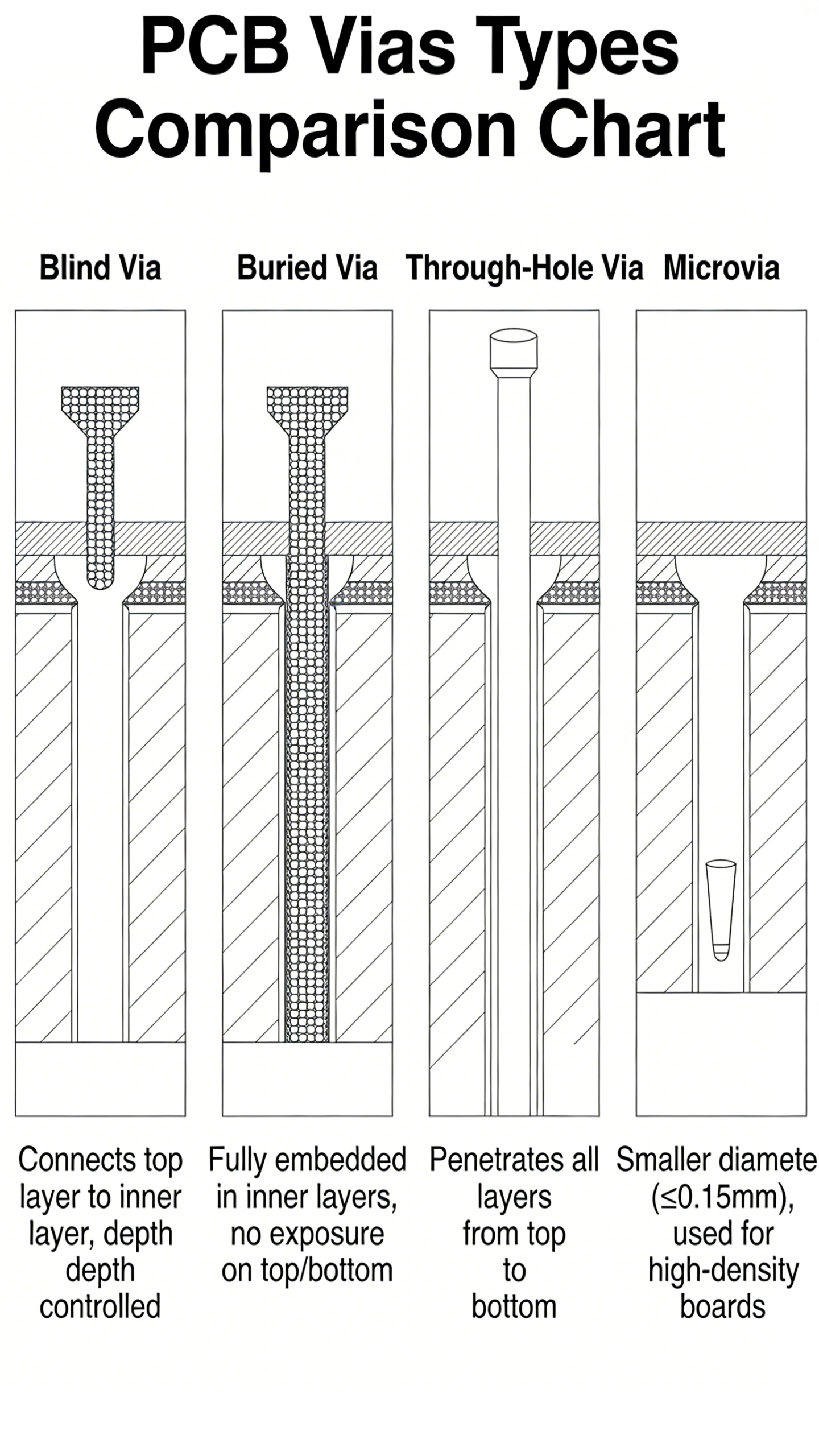

Types of PCB vias diagram blind buried through micro thermal

Key Design Parameters & Standards

Professional PCB via design follows strict parameters to ensure manufacturability and reliability:

  • Aspect Ratio: Board thickness ÷ via diameter. Standard: 8:1–10:1; advanced up to 12:1
  • Annular Ring: Min. 4–5 mil to avoid breakout and ensure connection
  • Via Spacing: ≥8 mil to prevent shorts and drilling issues
  • Copper Plating: Uniform thickness per IPC‑A‑600 Class 2/3

Compliance with these rules reduces defects, improves yield, and lowers overall production cost for your PCB projects.

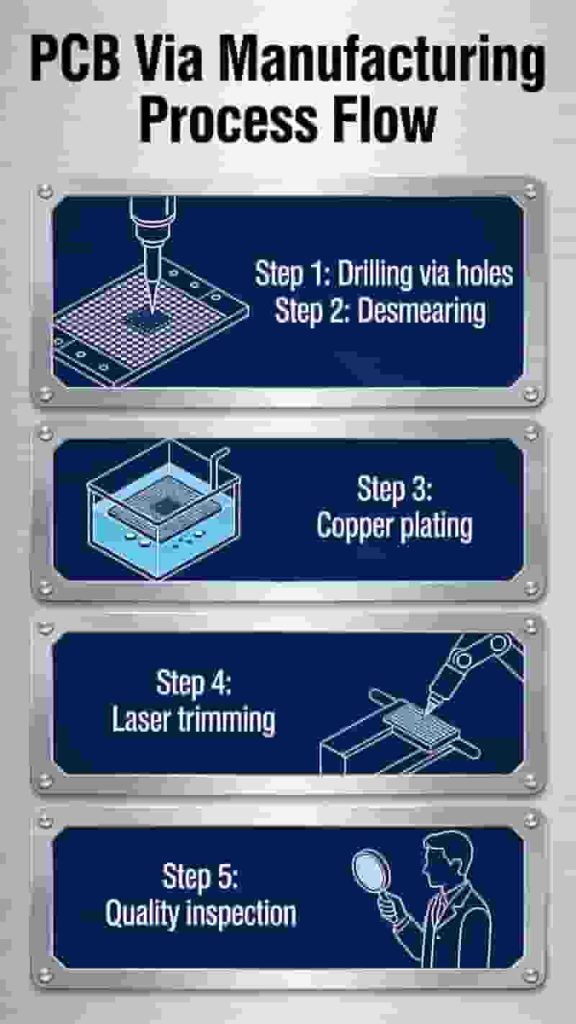

Via Manufacturing Process

  1. Drilling: Mechanical for PTH; laser for microvias and blind vias
  2. Deburring & Desmearing: Remove residues to improve plating adhesion
  3. Copper Plating: Form conductive barrel with consistent thickness
  4. Inspection: Electrical test and visual check for voids or defects

We use precision equipment and strict IPC standards to ensure every PCB via meets international quality requirements for global buyers.

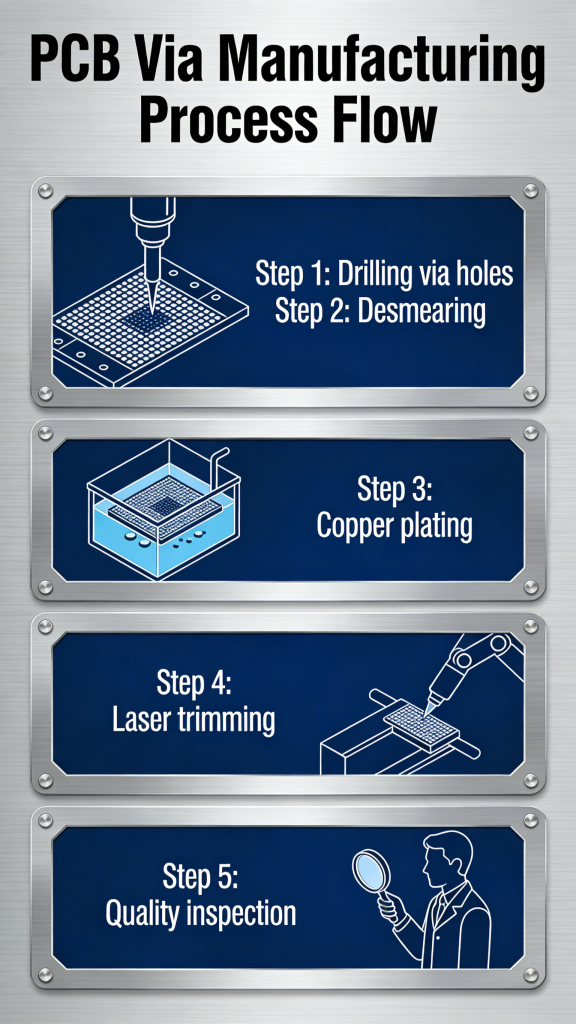

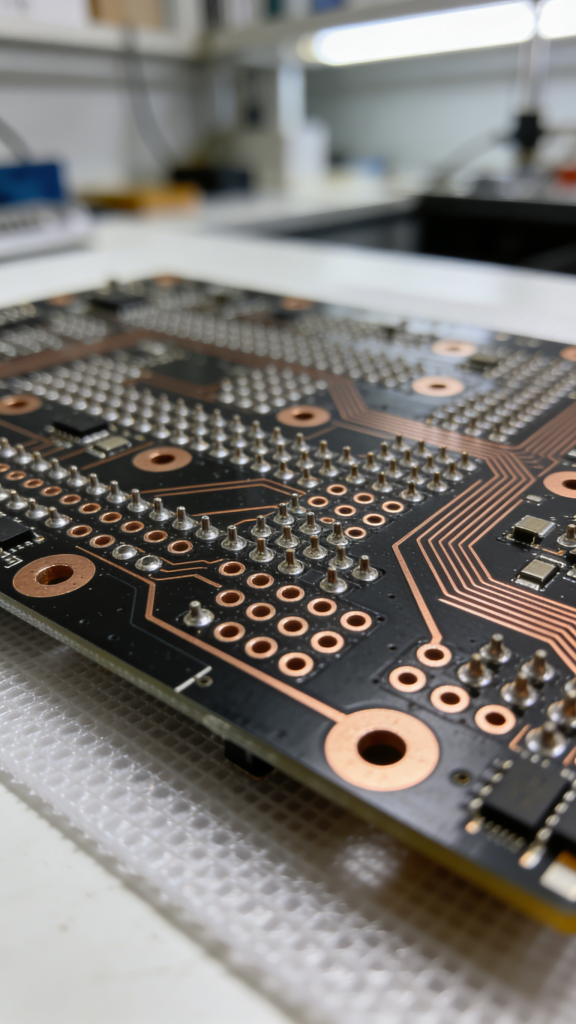

PCB via manufacturing process drilling plating inspection

Via Type Comparison Table

Via TypeCostDensityBest Application
Through-Hole ViaLowStandardGeneral PCBs
Blind ViaMediumHighHigh‑Speed HDI
Buried ViaHighUltra HighMultilayer Advanced
MicroviaHighMaxBGA, 5G, Wearables

Conclusion

PCB vias are foundational interconnect elements that directly influence performance, reliability, and cost. Choosing the right via type and following professional design rules are critical for successful PCB development and mass production.

Whether you need standard through-hole vias or advanced microvias for HDI boards, we provide reliable manufacturing solutions that meet global industrial standards.

Need Custom PCB Via Solutions & Quotation?

Send your Gerber files and requirements for professional DFM check, via optimization, and competitive pricing for global export.

Inquire Now & Get Free Quote
