Flexible PCB Manufacturing Process Steps: Complete Technical Guide

Flexible PCB Overview Structure and Applications

This professional guide covers full flexible PCB manufacturing workflow, materials, key processes, quality control, and engineering best practices for global industrial buyers, engineers, and procurement teams.

What is Flexible PCB (FPC)

Flexible PCB (FPC) is a lightweight, bendable printed circuit board widely used in consumer electronics, automotive, medical devices, and industrial equipment. It supports component mounting and signal interconnection while adapting to dynamic bending and narrow installation spaces.

Unlike rigid PCBs, flexible PCB uses polymer films as substrates, offering excellent flexibility, thermal stability, and reliability. It is categorized by layer count: single-sided, double-sided, multilayer, rigid-flex, and specialized types.

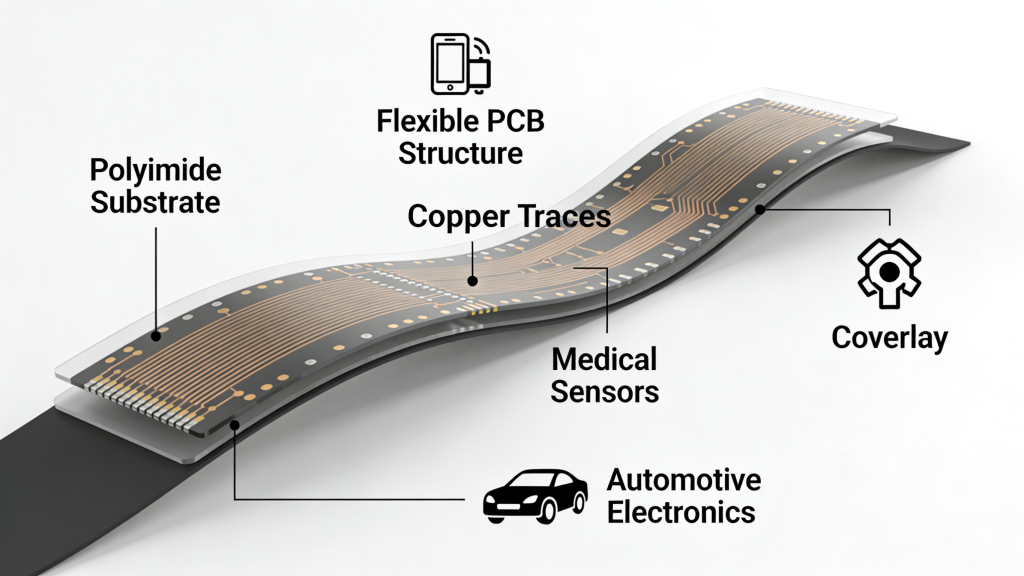

Flexible PCB Overview Structure and Applications

Types & Stackup of Flexible PCB

1. Single-Sided Flexible PCB

Low-cost structure with one conductive layer on flexible substrate. Ideal for simple circuits with low electrical performance requirements.

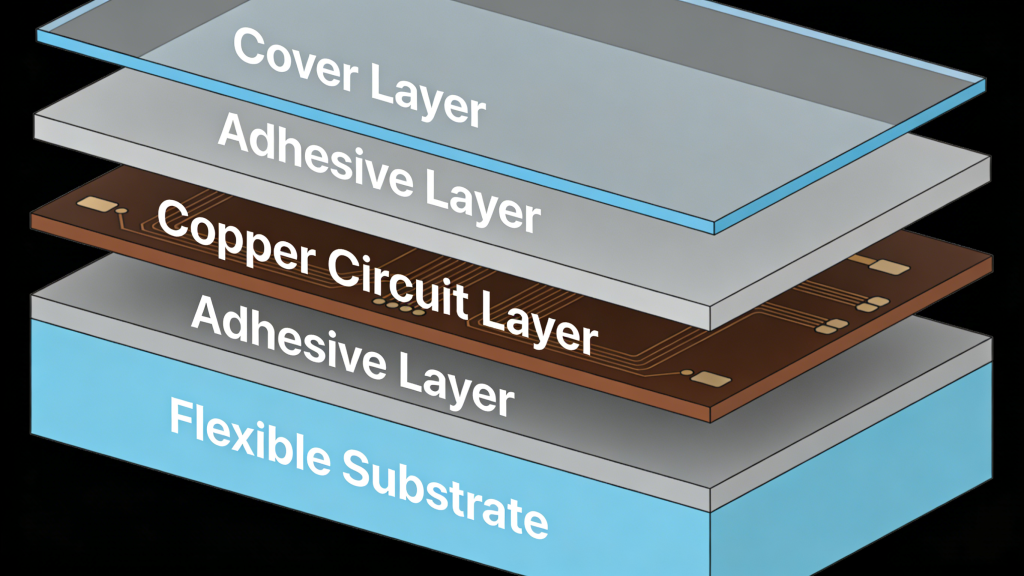

Single-Sided Flexible PCB Stackup Structure

2. Double-Sided Flexible PCB

Conductive layers on both sides of the base film, connected by plated through holes (PTH). Suitable for moderate-complexity designs.

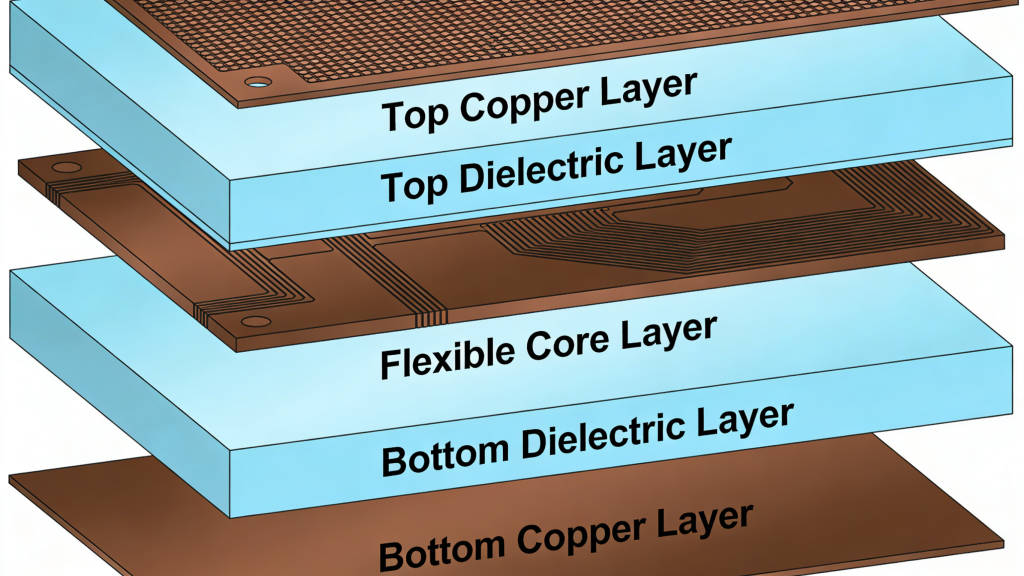

Double-Sided Flexible PCB Stackup Structure

3. Multilayer Flexible PCB

3+ layers of single or double FPC bonded together with interlayer vias. Delivers high reliability, thermal performance, and routing density.

Multilayer Flexible PCB Stackup Structure

4. Rigid-Flex PCB

Combines rigid and flexible substrates for compact, high-strength assemblies used in aerospace, automotive, and medical devices.

5. Air Gap & Sculptured Flexible PCB

Specialized structures for high-density interconnection, LCD bonding, and floating contact applications.

Core Materials for Flexible PCB Manufacturing

The performance of flexible PCB manufacturing depends on high-quality raw materials:

  • Flexible Copper Clad Laminate (FCCL): PI/PET/PEN/LCP base films with electrolytic or rolled copper foil
  • Coverlay (CVL): Protective insulating film for circuits
  • Adhesive: Bonding material for multilayers and components
  • Stiffeners: FR4, metal, or plastic for mechanical support

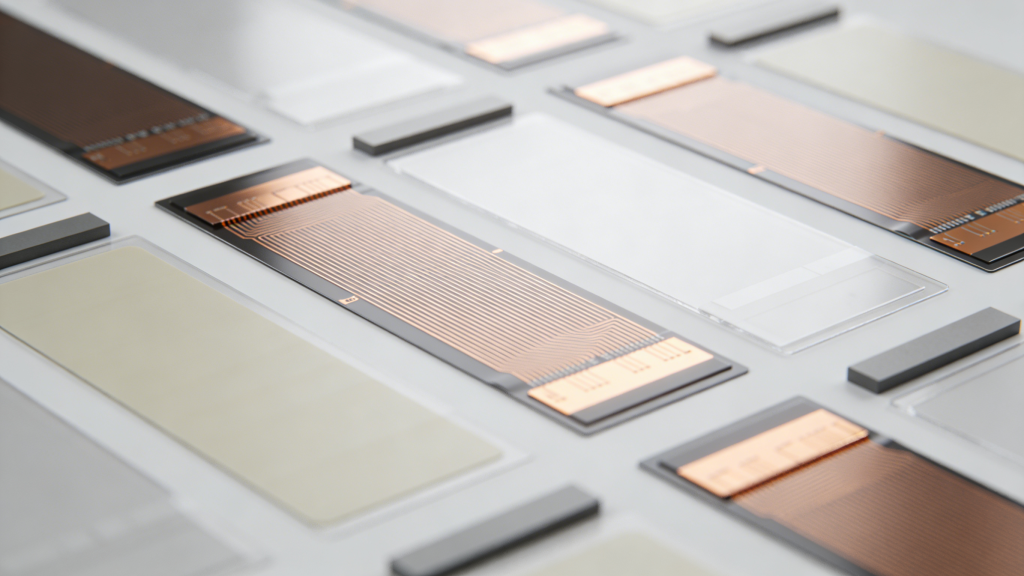

Flexible PCB Core Materials FCCL Coverlay Adhesive Stiffener

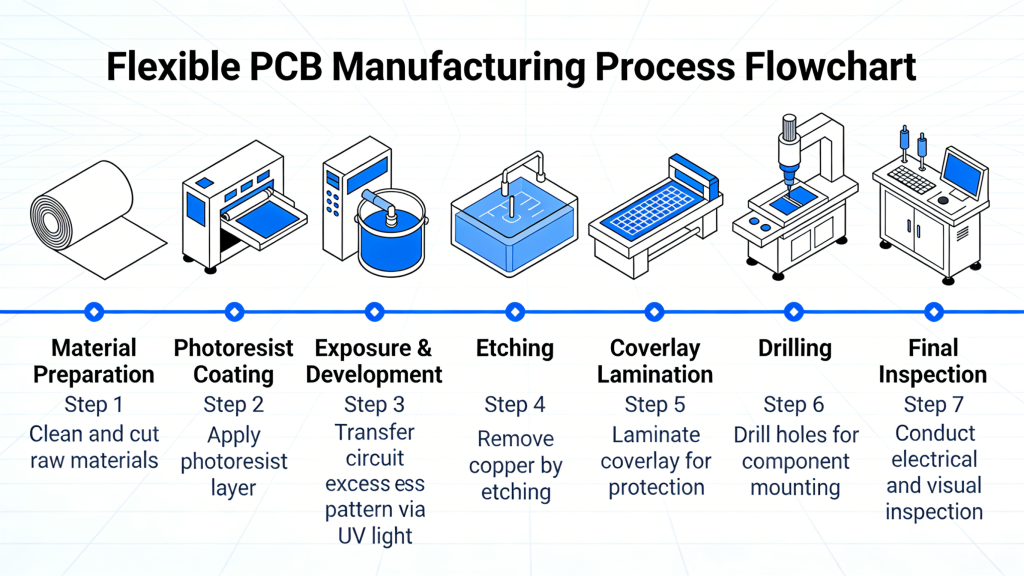

Complete Flexible PCB Manufacturing Process Steps

  1. Cutting: Cut FCCL to required panel size
  2. CNC Drilling: Drill vias and mounting holes
  3. Plasma Etchback: Clean hole walls and remove contaminants
  4. Black Hole / Shadow Process: Deposit conductive carbon layer
  5. Chemical Cleaning: Clean and roughen copper surface
  6. PTH (Plating Through Hole): Plate copper to connect layers
  7. Dry Film Lamination: Apply photosensitive resist
  8. Exposure & Development: Transfer circuit pattern
  9. Pattern Etching: Remove unwanted copper
  10. Dry Film Stripping: Remove resist to reveal circuits
  11. AOI Inspection: Check for open/short circuits
  12. Coverlay Lamination: Laminate protective film
  13. Hot Press Lamination: Bond layers under high temperature and pressure
  14. Surface Finish: Immersion gold, tin, OSP, etc.
  15. Silkscreen: Print labels and symbols
  16. Electrical Test: Verify open/short circuits
  17. Punching / Routing: Profile to final shape
  18. Final Inspection & Packaging: Visual, dimensional, and reliability check

Single-Sided vs Double-Sided FPC Process

ProcessSingle-Sided FPCDouble-Sided FPC
Layer StructureOne conductive layerTwo conductive layers with PTH
PTH ProcessNot requiredRequired
ComplexityLowMedium
CostLowerModerate

Quality Control & Testing in Flexible PCB Manufacturing

Professional flexible PCB manufacturing requires strict quality control:

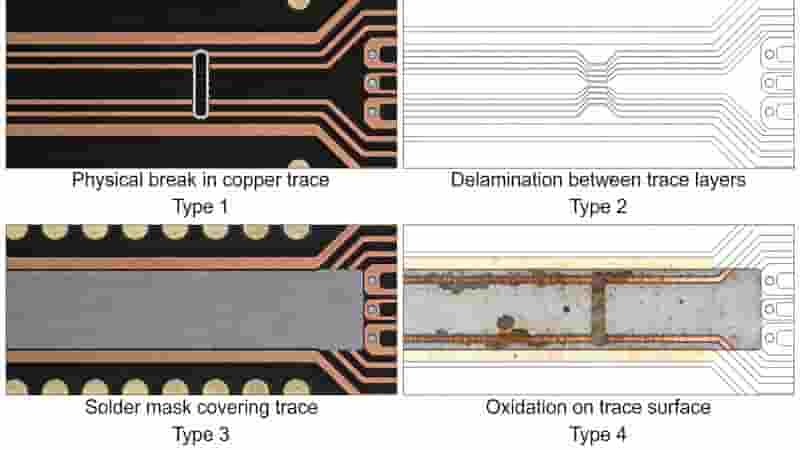

  • AOI automatic optical inspection
  • Electrical open/short test
  • Impedance test (for high-speed designs)
  • Solderability and adhesion test
  • Environmental reliability test (temperature cycling, humidity)

Summary

Understanding flexible PCB manufacturing process steps helps engineers and buyers evaluate suppliers, optimize design, and ensure product reliability. A complete, standardized process ensures stable performance, consistent quality, and cost efficiency for global industrial applications.
