Turnkey PCB Assembly Services | Full & Partial Solutions

We provide end-to-end turnkey PCB assembly supporting full and partial models, with SMT assembly, THT, BGA/QFN, rigorous testing, and global logistics for industrial buyers, engineers, and importers.

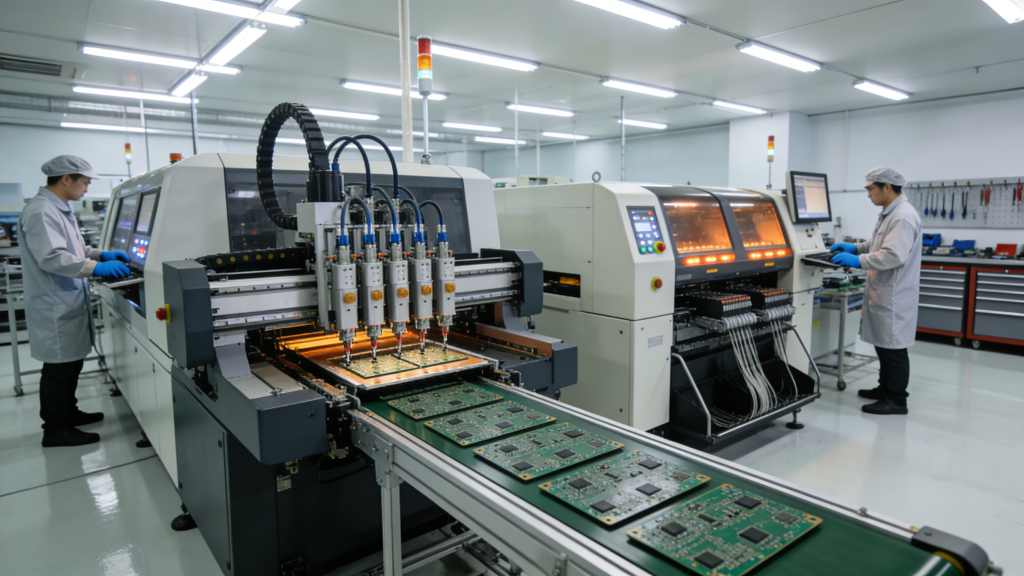

What Is Turnkey PCB Assembly

Turnkey PCB assembly is a one-stop manufacturing solution covering PCB fabrication, component sourcing, assembly, testing, and delivery. We manage the full supply chain so you focus on design and market launch.

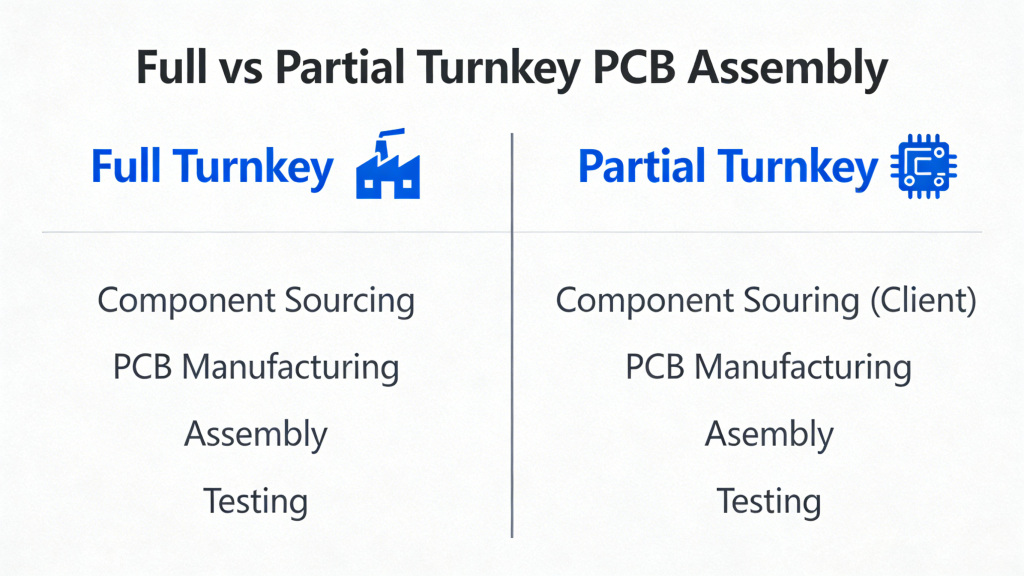

Full vs Partial Turnkey PCB Assembly

PCB Assembly Capabilities

Our turnkey PCB assembly supports high-mix, high-precision needs for global clients:

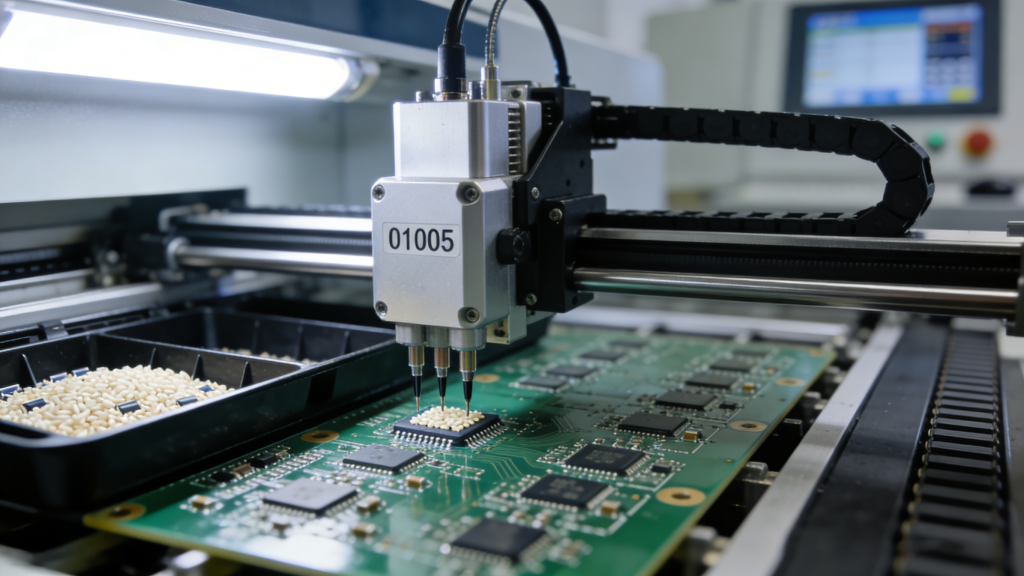

• SMT & THT mixed assembly, 01005 components, fine-pitch BGA/QFN
• 1–40 layers, rigid, flex, rigid-flex, HDI, heavy copper, high-frequency
• Lead-free/RoHS, IPC-A-610 Class 2/3, ISO 9001, ISO 13485
• Free DFM/DFA review, 100% AOI, X-ray for hidden joints, ICT/FCT
• Prototypes to mass production, no MOQ for samples

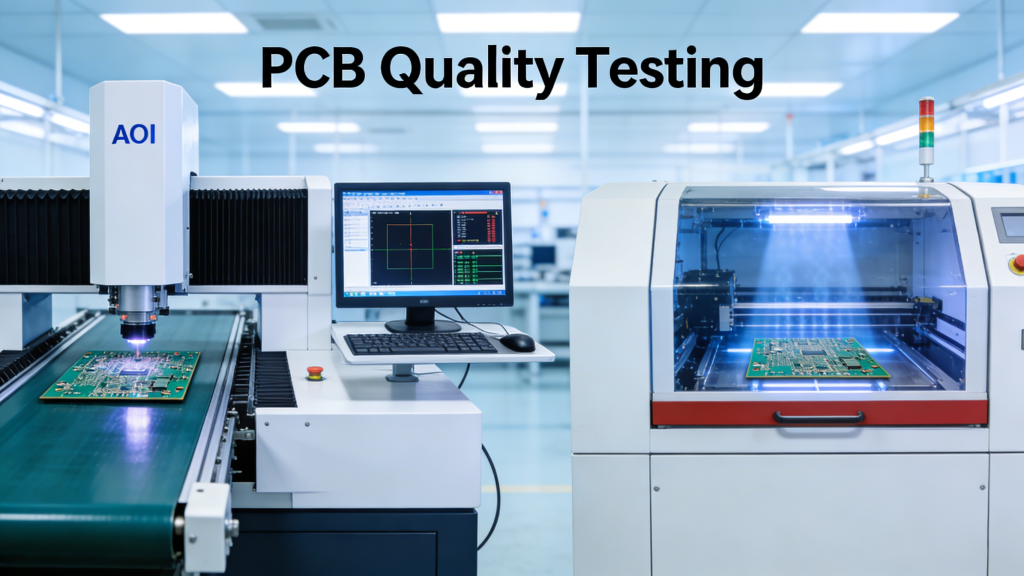

Quality & Standards for Turnkey PCB Assembly

Every turnkey PCB assembly order follows strict quality systems to ensure reliability for industrial and medical applications.

• ISO 9001 quality management
• IPC-A-610 Class 2/3 workmanship
• 100% electrical test, AOI, X-ray inspection
• Full traceability for components and production batches
• RoHS, REACH compliance for global markets

Turnkey PCB Assembly Workflow

1. File submission: Gerber, BOM, centroid data
2. Free DFM review and engineering feedback
3. PCB fabrication + component procurement
4. SMT/THT assembly, reflow/wave soldering
5. Inspection: AOI, X-ray, ICT, functional test
6. Packaging and global door-to-door delivery

Industries for Turnkey PCB Assembly

Our turnkey PCB assembly serves industrial automation, medical devices, automotive electronics, communications, IoT, and consumer electronics worldwide.

Summary

We deliver reliable turnkey PCB assembly with full and partial options, strong technical support, strict quality control, and efficient global logistics. We help you reduce costs, shorten lead times, and stabilize supply chains for long-term overseas business.

Contact & Inquiry

Request a free quote for your turnkey PCB assembly project. Send Gerber files, BOM, quantity, and target lead time. We provide detailed pricing, timeline, and DFM suggestions within 24 hours.

Get Your PCB Assembly Quote Now →
