SMT PCB Assembly Services for Prototypes & Production

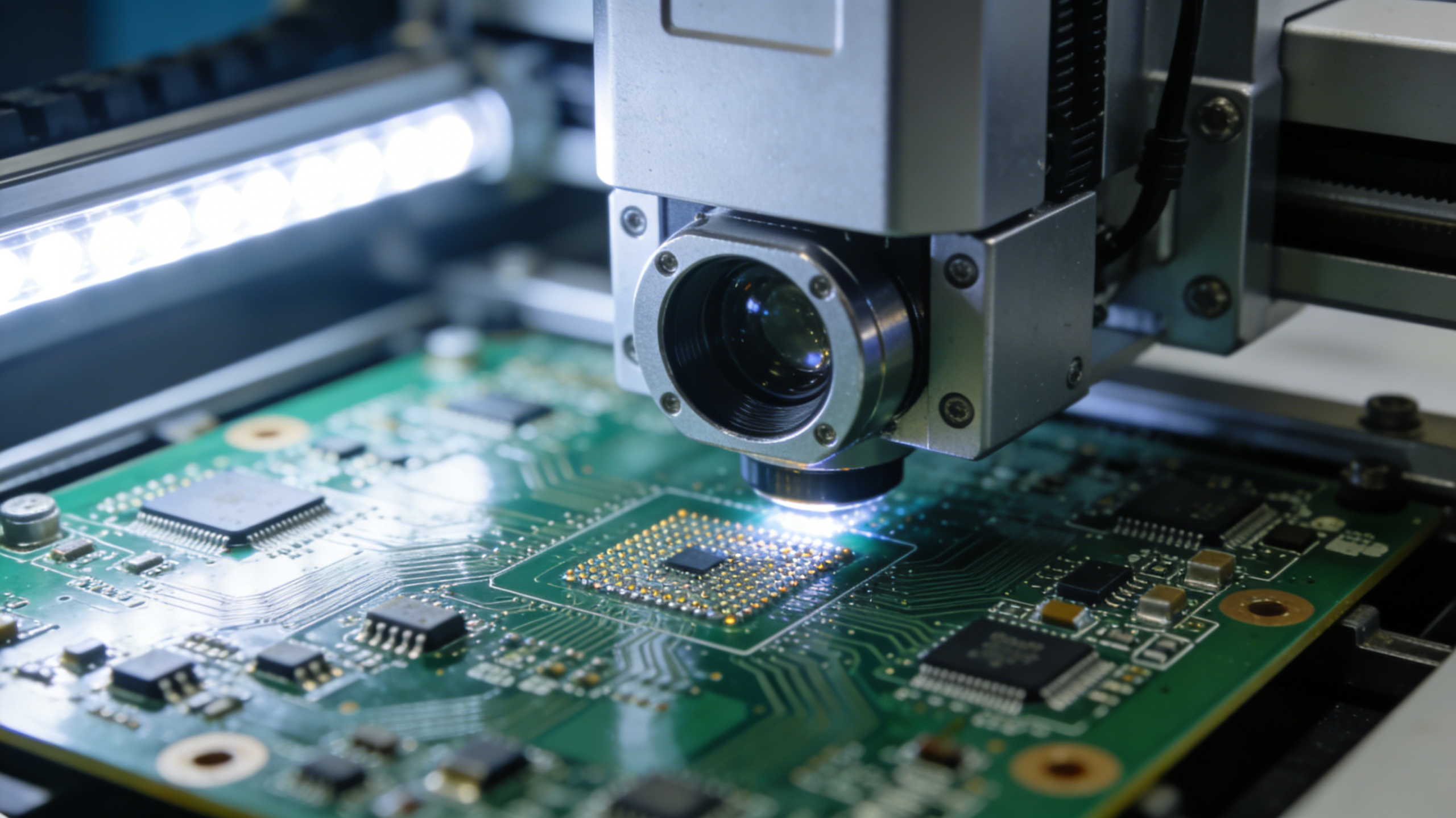

SMT PCB Inspection AOI X-Ray Testing

We provide professional SMT PCB assembly supporting rapid prototypes to high-volume production, compliant with IPC-A-610, ISO, and RoHS standards, with full inspection, fast lead times, and global delivery for industrial buyers and engineers.

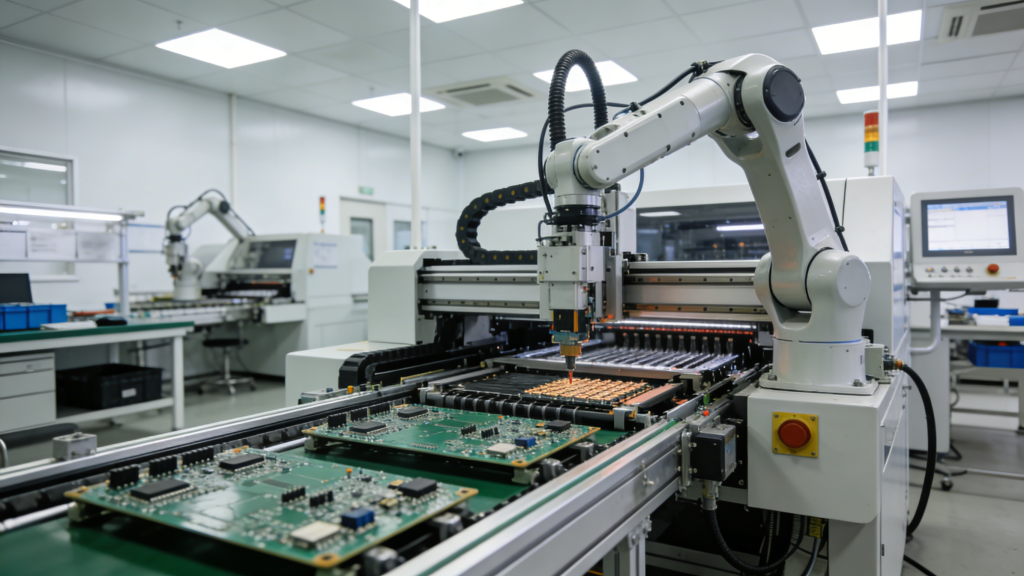

Automated SMT PCB Assembly Production Line

SMT PCB Assembly Capabilities

Our SMT PCB assembly supports single-sided, double-sided, and mixed-tech assembly for rigid, flex, and rigid-flex PCBs. We handle ultra-fine-pitch components including 01005 chips, 0.25mm BGAs, QFN, QFP, and PoP packages.

  • Component range: 01005 to large connectors
  • Board types: rigid, flex, rigid-flex, HDI, metal-core
  • Soldering: lead-free/RoHS, leaded, no-clean
  • Layer count: 1 to 32 layers
  • Quality standard: IPC Class 2 and Class 3
  • Capacity: up to 5 million SMT points per day
  • MOQ: no minimum order quantity

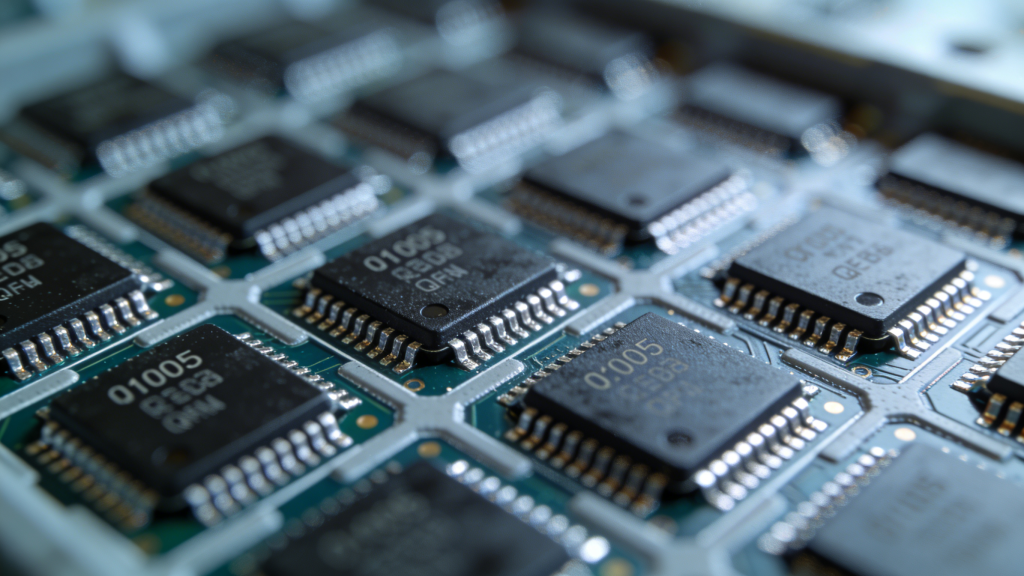

SMT PCB Fine Pitch Components BGA QFN 01005

SMT PCB Assembly Process

We follow a standardized and traceable process for SMT PCB assembly to ensure stable quality and on-time delivery.

  1. File review and free DFM/DFA check
  2. Component sourcing and verification
  3. PCB fabrication
  4. Solder paste printing and SPI inspection
  5. Automated pick and place
  6. Reflow soldering
  7. AOI, X-ray, ICT and functional testing
  8. Final inspection and global shipment
SMT PCB Assembly Full Process Flow

Flexible SMT PCB Assembly Service Models

We offer three service options to match your supply chain and project needs for SMT PCB assembly.

Full Turnkey Assembly

We manage PCB fabrication, component sourcing, assembly, testing and delivery. Ideal for one-stop solution needs.

Partial Turnkey Assembly

You supply key components; we handle the rest including PCB, standard parts and assembly.

Consigned Assembly

You provide all components; we focus on PCB fabrication, assembly and inspection.

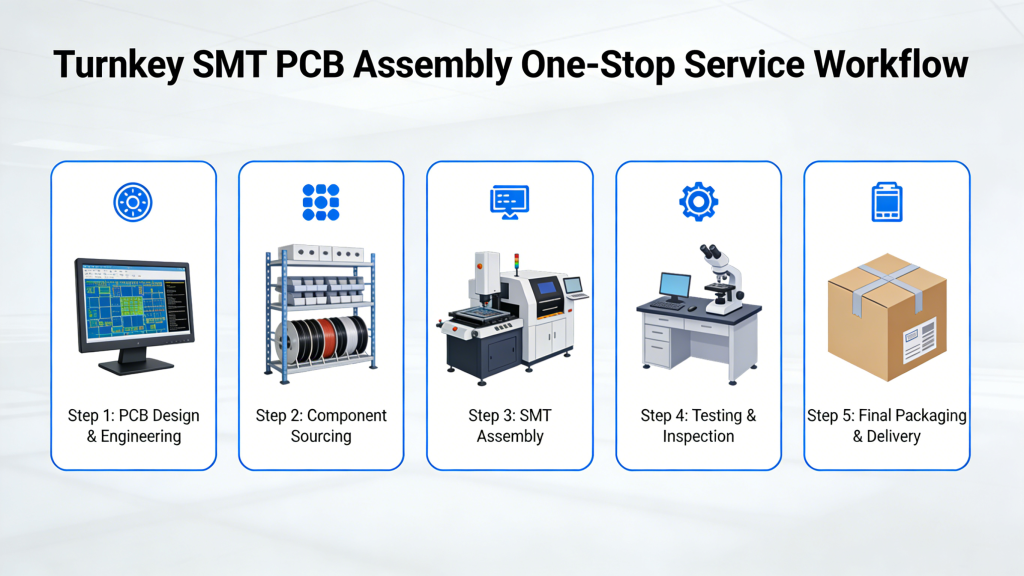

Turnkey SMT PCB Assembly One Stop Service

Quality & Inspection for SMT PCB Assembly

Quality is embedded in every step of SMT PCB assembly to ensure reliability and compliance.

  • Free DFM/DFA engineering review
  • SPI and AOI in-line inspection
  • X-ray inspection for BGA, QFN and hidden joints
  • ICT and functional testing available
  • Compliance with IPC, RoHS and REACH
  • Full process traceability
SMT PCB Inspection AOI X-Ray Testing

Applications & Industries

Our SMT PCB assembly serves global customers across industrial, medical, automotive, consumer electronics, telecom and LED lighting industries.

Request Your SMT PCB Assembly Quote

Get a fast, accurate quote for SMT PCB assembly. Please send your Gerber files, BOM and CPL files for engineering review and pricing.

Upload Files & Get Quote

Summary

We provide reliable, professional SMT PCB assembly from prototype to mass production. With advanced capabilities, flexible services, strict quality control and global delivery, we are your trusted partner for PCB assembly projects.

Start Your SMT PCB Assembly Project

Send your design documents today for a free DFM check and fast quote. We support prototype, low-volume and production SMT PCB assembly with consistent quality.

Contact Us Now
