What is FR-4 Material in PCB Fabrication? The Complete Professional Guide

FR-4 laminate structure fiberglass epoxy copper foil

FR-4 is the most widely used flame-retardant glass-epoxy laminate material for rigid PCB manufacturing. Defined by NEMA standards, it offers excellent electrical insulation, mechanical strength, thermal stability, and cost efficiency, making it the global industry standard for most electronic applications.

What is FR-4 Material?

FR-4 (Flame Retardant Grade 4) is a NEMA-defined material grade for PCB substrates, not a specific material name. It indicates the resin self-extinguishes after combustion and meets the UL94 V-0 flammability standard.

FR-4 uses brominated epoxy resin for fire resistance and electronic-grade woven fiberglass cloth as reinforcement. It is laminated with copper foil under high temperature and pressure to form Copper Clad Laminate (CCL), the core material for rigid printed circuit boards.

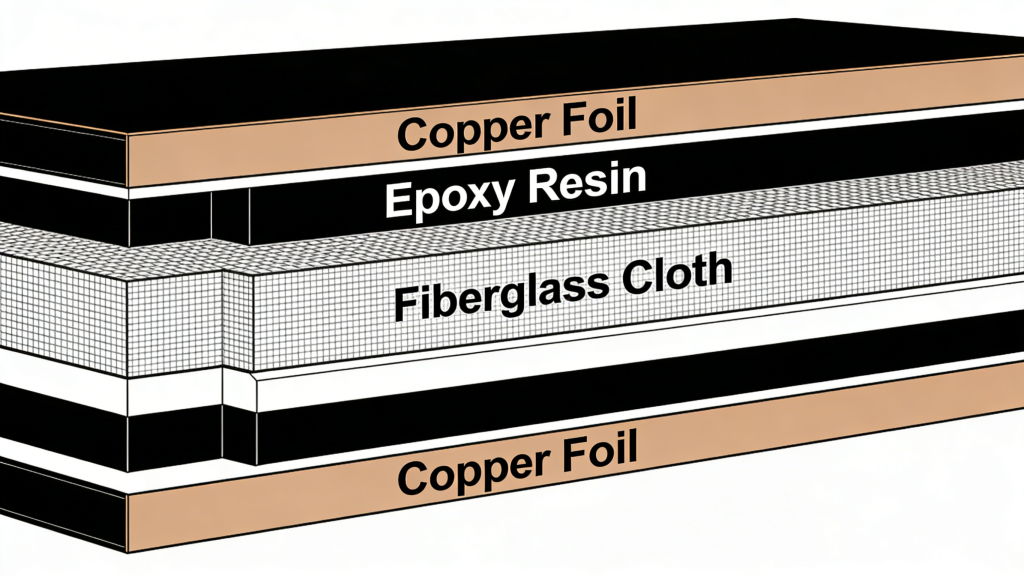

FR-4 PCB material definition NEMA grade flame retardant

FR-4 Composition & Laminate Structure

A standard FR-4 laminate consists of three core components that determine its performance in PCB fabrication:

  • Woven fiberglass cloth: Provides rigidity, tensile strength, and dimensional stability
  • Flame-retardant epoxy resin: Delivers electrical insulation and self-extinguishing properties
  • Copper foil: Forms conductive circuits on one or both sides of the laminate

This composite structure makes FR-4 ideal for single-sided, double-sided, and multilayer PCB production.

FR-4 laminate structure fiberglass epoxy copper foil

Key Technical Properties of FR-4

FR-4 offers balanced performance critical for reliable PCB operation across industries:

  • Flammability: UL94 V-0 rated, self-extinguishing, no fire spread
  • Glass Transition Temperature (Tg): Standard 130°C; high-Tg up to 180°C+
  • Electrical insulation: High dielectric strength, low leakage current
  • Dielectric constant (1MHz): ~4.4, stable for general circuits
  • Mechanical strength: High flexural strength, resistant to warping
  • Moisture absorption: Low rate, stable in humid environments
  • Cost efficiency: Lower cost than high-frequency or special materials
FR-4 PCB technical properties Tg dielectric constant

FR-4 vs Other PCB Substrate Materials

MaterialFlame RetardantTg (°C)Best For
FR-4UL94 V-0130–180+Most rigid PCB
CEM-3UL94 V-0120–130Low-cost double-sided PCB
FR-2UL94 V-1~105Single-sided consumer PCB
High-FrequencyUL94 V-0180–250RF/microwave circuits

FR-4 Grades & Selection Guide

FR-4 substrates are classified by performance to match different PCB requirements:

  • Standard Tg FR-4 (130°C): General-purpose consumer and industrial electronics
  • Mid Tg FR-4 (150°C): Automotive and industrial control applications
  • High Tg FR-4 (170–180°C+): Lead-free soldering, high-temperature environments
  • Halogen-free FR-4: Eco-friendly, RoHS compliant for medical and automotive
  • High CTI FR-4: High tracking resistance for industrial power devices

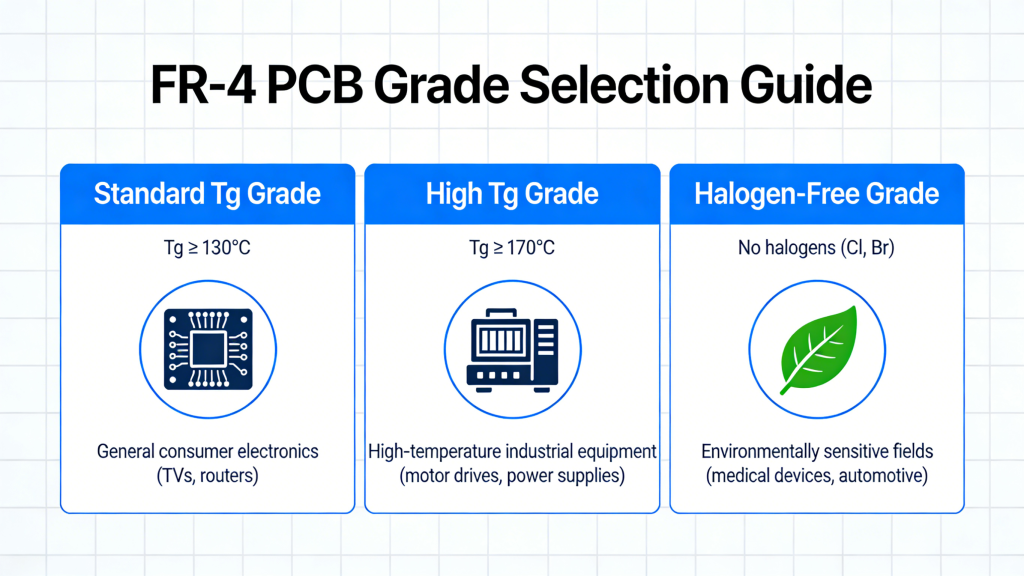

FR-4 PCB grade selection standard Tg high Tg halogen free

FR-4 Standard Parameters & Thickness

Common FR-4 specifications for PCB fabrication:

  • Board thickness: 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.6mm, 2.0mm
  • Copper weight: 0.5oz, 1oz (standard), 2oz (high current)
  • Dielectric constant (Er): 4.2–4.7 @ 1MHz
  • Dissipation factor (Df): ≤0.04 @ 1MHz
  • CTI: ≥600V for high-performance grades

Typical FR-4 PCB Applications

FR-4 is the first choice for most PCB applications due to its versatility:

  • Consumer electronics: smartphones, laptops, home appliances
  • Industrial control: automation equipment, instruments, power supplies
  • Automotive: infotainment, sensors, lighting, control units
  • Communication: routers, base stations, network devices
  • Medical: diagnostic equipment, monitoring devices

Conclusion

FR-4 is the global standard material for rigid PCB fabrication, offering unmatched balance of performance, reliability, and cost. It meets the requirements of most electronic applications from consumer products to industrial and automotive systems.

Choosing the right FR-4 grade (standard Tg, high Tg, halogen-free) ensures your PCB design performs reliably in its operating environment.

Ready for Your FR-4 PCB Project?

We provide professional FR-4 PCB manufacturing, custom prototyping, and mass production with fast lead times and strict quality control.

Get a Free Quote

PCB Solder Mask full color options green red blue white black matte

PCB Solder Mask: The Complete Technical Guide for Global Buyers

Posted on
0 Comments
PCB Solder Mask (also known as solder resist) is a protective polymer layer applied to printed circuit boards to prevent solder bridging, resist oxidation, improve insulation, and ensure long‑term reliability in SMT assembly and industrial applications. This guide covers definitions, types, colors, processes, DFM rules, IPC standards, testing, and troubleshooting for engineering and procurement teams…
Wave soldering process flow for PCB through‑hole assembly

Selective Soldering vs Wave Soldering vs Reflow Soldering: What’s the Difference?

Posted on
0 Comments
Soldering is the process of joining metal components using melted solder, which has a lower melting point than base metals. It is the core connection technology in the electronics industry and the most important step in PCB assembly. PCB soldering refers to the process of fixing electronic parts onto a printed circuit board. It is…
Filled vs Capped Vias PCB Reliability Comparison

Filled and Capped Vias: Boost PCB Reliability for Industrial & Export Applications

Posted on
0 Comments
Filled and capped vias are advanced PCB design techniques that measurably enhance connection reliability. Learn when and why to leverage precision via filling and durable capping to prevent moisture ingress, fractures, and short circuits. Introduction As PCBs become more complex with higher component densities and more demanding performance requirements, the reliability of plated through holes,…
HDI PCB structure cross section with microvias and fine traces

HDI PCB Layout and Basic HDI Design Guidelines

Posted on
0 Comments
This professional guide covers HDI PCB layout practices, stack-up, microvias, routing rules, DFM, impedance control and IPC standards to help engineers and procurement teams build reliable, mass-producible HDI PCB for high-speed, miniaturized electronics. What Is HDI PCB Layout HDI PCB (High-Density Interconnect) layout refers to design methods used when trace widths drop below 8 mils…
Reflow soldering oven and temperature profile for SMT PCB

Reflow Soldering vs. Wave Soldering: What’s the Difference?

Posted on
0 Comments
Soldering is a core step in PCBA manufacturing that securely bonds electronic components to printed circuit boards. Wave soldering and reflow soldering are the two dominant industrial processes. Understanding their differences helps you select the ideal method for cost, quality, and assembly type in your PCB production. What Is Wave Soldering? Wave soldering is a…
Flexible PCB Stiffener Overview Structure

Flexible PCB Stiffeners: Materials, Benefits & Industrial Uses

Posted on
0 Comments
Flexible PCB stiffeners add targeted rigidity to flex & rigid‑flex circuits, improving SMT yield, protecting components, stabilizing connectors, and extending service life. This professional guide covers materials, selection, design rules, and applications for global engineers and buyers. What Are Flexible PCB Stiffeners Flexible PCB stiffeners are non‑conductive reinforcement layers bonded to specific areas of flex…

FAQs About FR4 Substrate Grade, Parameter & PCB Material Selection

A: NEMA standard flame retardant grade4 substrate with UL94 V-0; composed of woven fiberglass cloth + brominated flame-retardant epoxy resin bonded with copper foil to form CCL.

A: Standard Tg130℃ for common consumer goods; Mid Tg150℃ for regular industrial; High Tg170~180℃+ for lead-free automotive & high temp environment.

A: Dk 4.2~4.7, Df ≤0.04, stable insulation property applicable for most medium/low-speed universal circuit design.

A: CEM3 cheaper for low-cost double side; FR2 only for low-end single side; high-frequency material high Dk stability but expensive for RF only; FR4 balances cost & performance for most rigid PCB.

A: Zero halogen eco-friendly RoHS compliant; widely adopted for medical equipment, automotive green electronic and export certified products.

A: Thickness from 0.3mm~2.0mm; copper specification 0.5oz,1oz(standard),2oz for different current carrying demand.

A: Consumer electronics, industrial automation control, automotive ECU, communication router module and portable medical diagnostic equipment.

A: High-frequency RF microwave design picks Rogers; high-power heat concentrated circuit chooses aluminum MCPCB instead of standard FR4 laminate.
