HASL: Hot Air Solder Leveling for PCB Surface Finish

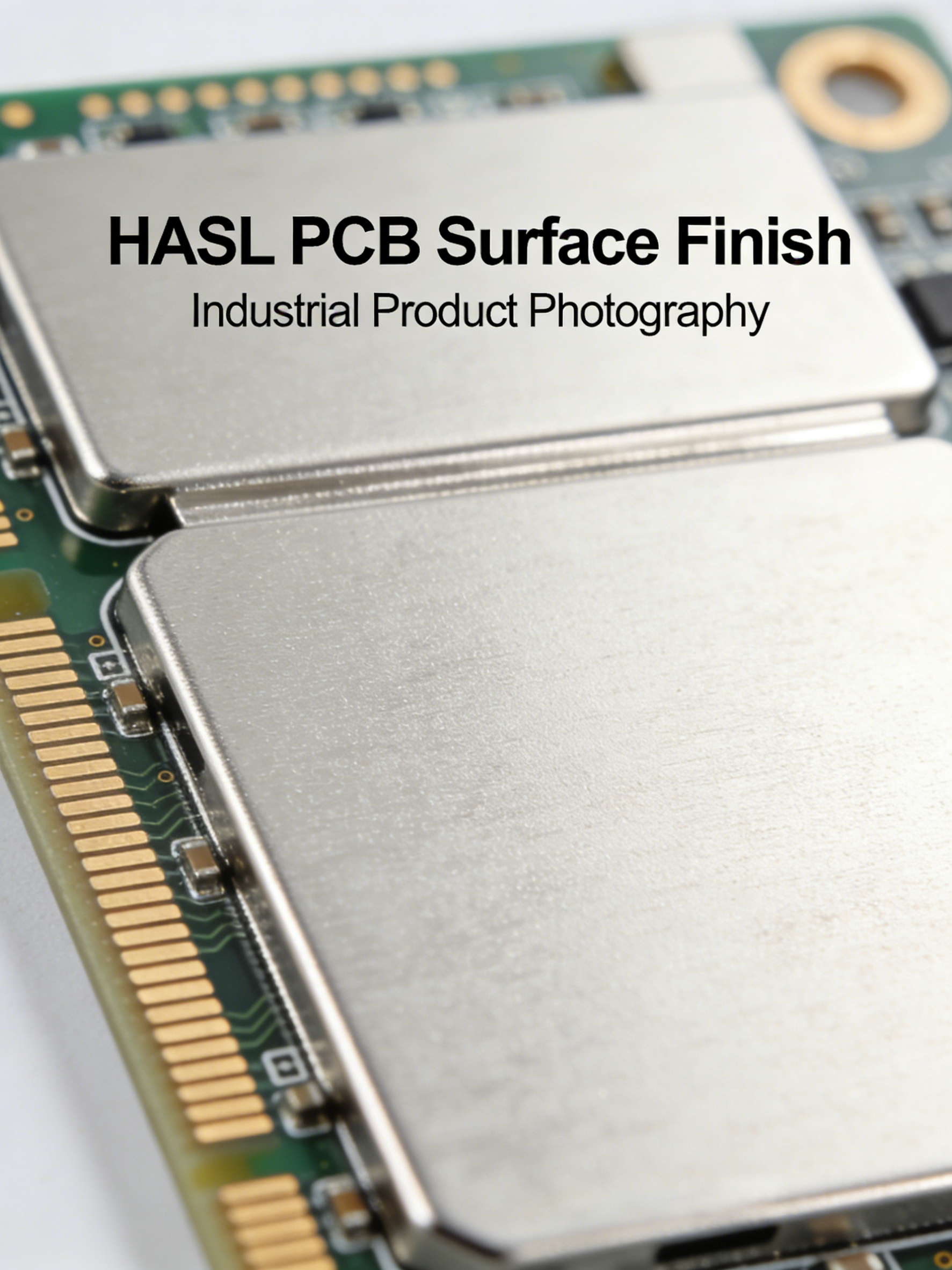

HASL PCB surface finish diagram for SMT and through‑hole assembly

HASL (Hot Air Solder Leveling) is one of the most widely used and cost‑effective PCB surface finish processes in electronics manufacturing. It provides excellent solderability, protects copper from oxidation, and supports reliable assembly for through‑hole and standard SMT applications. This guide explains the HASL process, benefits, limitations, lead‑free options, and comparisons to help you select the best surface finish for your PCB project.

What Is HASL (Hot Air Solder Leveling)

HASL (Hot Air Solder Leveling) is a mature, industrial‑grade PCB surface finish that coats exposed copper circuits with a layer of molten solder. The process uses high‑temperature air knives to create a uniform, protective layer that prevents oxidation and ensures strong solder joints during assembly.

For decades, HASL has been the industry standard for its balance of cost, reliability, and compatibility with most assembly processes. We provide both traditional and lead‑free HASL to meet global regulatory requirements such as RoHS and REACH.

HASL PCB surface finish diagram for SMT and through‑hole assembly

How the HASL Process Works

The HASL process follows a strict, repeatable flow to ensure consistent quality for mass production:

  1. Pre‑cleaning to remove oils, oxides, and contaminants
  2. Preheating to avoid thermal shock to the PCB substrate
  3. Flux application to improve solder wetting
  4. Immersion in molten solder alloy
  5. Hot air knife leveling for uniform coating thickness
  6. Post‑cleaning and inspection

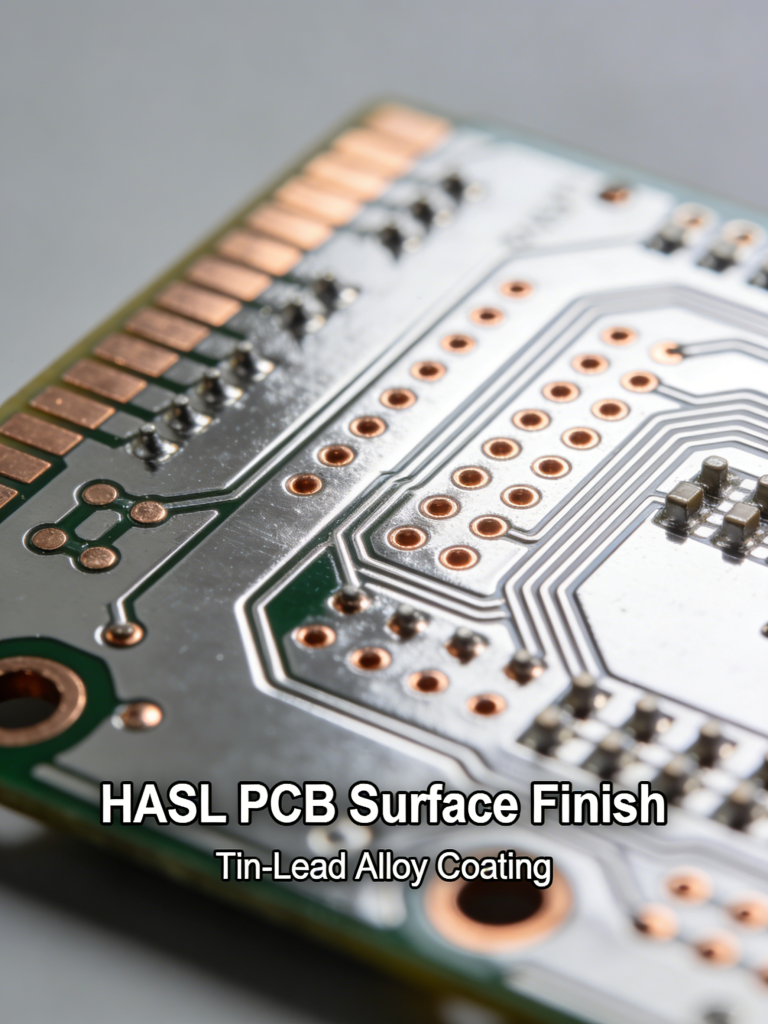

HASL process flow chart for PCB manufacturing

Key Benefits of HASL PCB Surface Finish

HASL remains a top choice for global buyers and engineers due to these advantages:

  • Lowest cost among common PCB surface finish options
  • Excellent solderability for through‑hole and standard SMT components
  • Strong oxidation resistance for long‑term storage
  • Easy rework and repair during assembly
  • Proven reliability in high‑volume production
  • Compatible with most PCB base materials

Limitations of HASL

While HASL performs well for most applications, it has constraints for advanced designs:

  • Uneven coating thickness, not ideal for fine‑pitch SMT
  • Higher thermal exposure during processing
  • Less suitable for ultra‑thin or high‑frequency PCBs
  • May cause minor bridging in small plated‑through holes

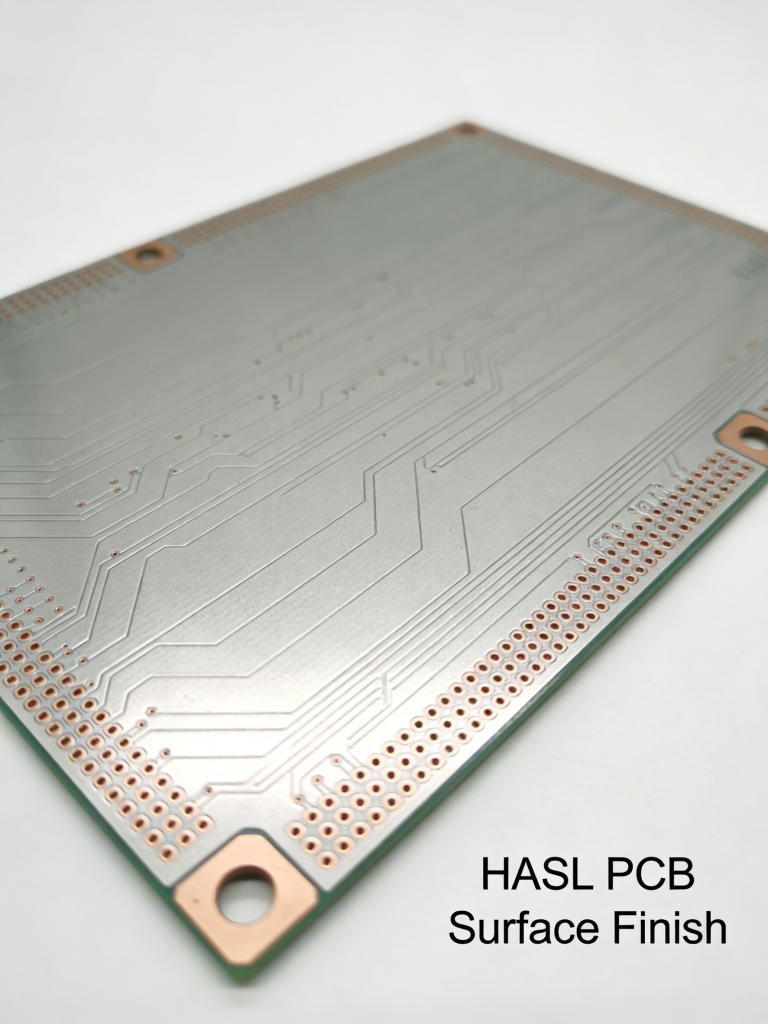

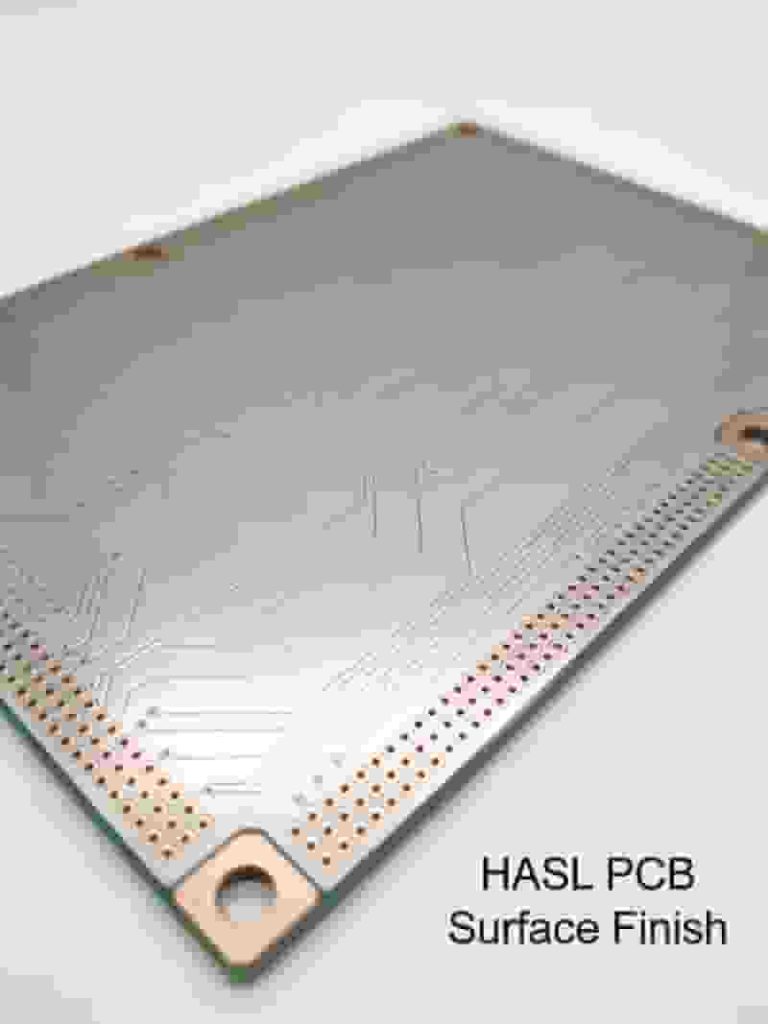

HASL surface finish comparison for fine‑pitch PCB components

Lead‑Free HASL vs Traditional HASL

We offer both versions to match your project’s regulatory and performance needs:

ItemTraditional HASLLead‑Free HASL
AlloySn63/Pb37SnCuNi (RoHS)
Melting PointLowerHigher
RegulatoryNon‑RoHSRoHS & REACH
CostLowerSlightly higher

HASL vs Other PCB Surface Finishes

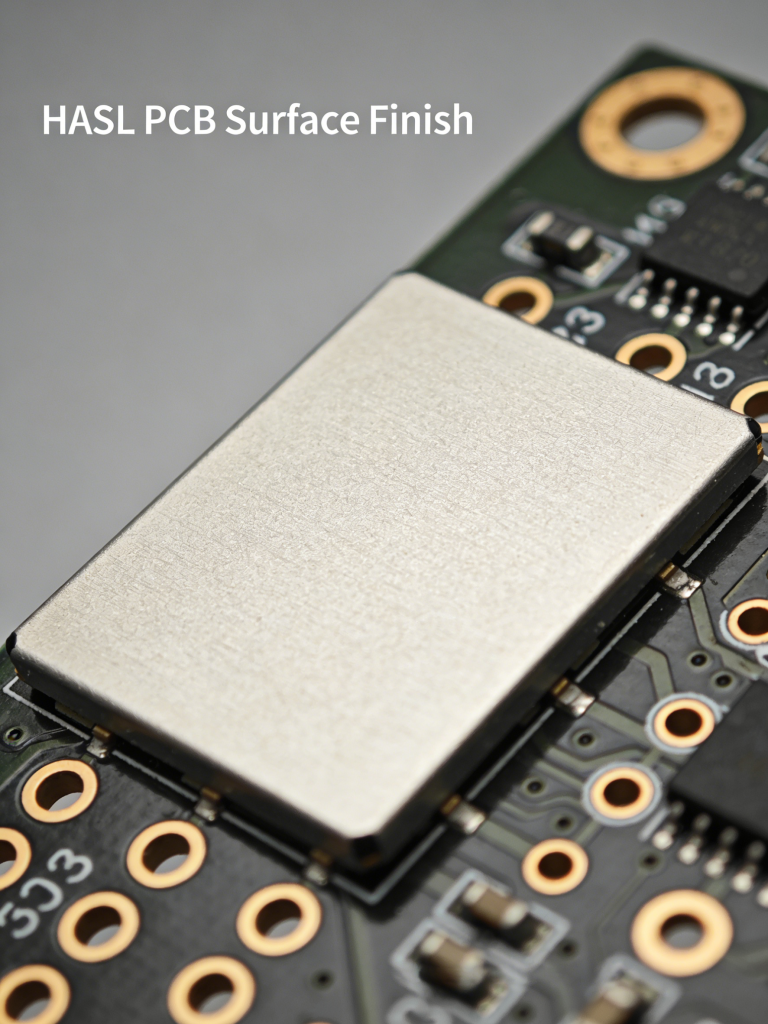

HASL vs ENIG vs OSP PCB surface finish comparison

Conclusion

HASL is a time‑tested, cost‑effective PCB surface finish that delivers consistent performance for most electronic devices. It balances affordability, solderability, and durability better than many alternatives. For standard to mid‑range PCB projects, HASL remains the most practical choice for global buyers.

We provide full‑process HASL and lead‑free HASL services with strict quality control, fast lead times, and competitive pricing for international importers, engineers, and contract manufacturers.

Get Your HASL PCB Quote Today

Contact us for free DFM check, custom manufacturing, and competitive pricing for your PCB project.

Request a Quote

PCB layer thickness vs standard PCB thickness

Standard PCB Thickness – The Complete Guide for Engineers & Buyers

Standard PCB thickness is typically 1.57 mm (0.062 inches), often rounded to 1.6 mm. This guide covers definitions, influencing factors, manufacturing constraints, non-standard design rules, and selection tips for industrial buyers and engineers. Quick Overview: standard PCB thickness (1.6mm) is industry default; common alternatives include 0.78mm (0.031in) and 2.36mm (0.093in). Thickness impacts durability, weight, assembly,…
Laser Drilled vs Photoimageable Microvias PCB

The Essentials of Microvias – Enabling Miniaturization in PCBs

As printed circuit boards pack more components into smaller spaces, microvias enable advanced PCB miniaturization for HDI PCBs. We explain core technology, fabrication, types, reliability, and industrial applications for engineers and global buyers. What Are Microvias As printed circuit boards are designed to pack ever more components into compact spaces, manufacturers use microvias to enable…
Single Layer Rigid PCB FR-4 Manufacturing

Single Layer PCB Manufacturing | Affordable Single Sided PCBs

We provide professional single layer PCB manufacturing and cost-effective single sided PCBs for LED lighting, power supplies, consumer electronics, and industrial equipment. Our ISO & IPC‑certified production ensures stable quality, fast lead times, and free DFM analysis for prototypes and mass production. Single-Layer PCB Definition A single layer PCB (also called single sided PCB) has…
Laser cutting nano coating SMT PCB stencil production process

Nano-Coated PCB Stencil Manufacturing for Precision & Durability

Discover industry-leading performance with our nano-coated PCB stencils. Engineered to support high-precision SMT printing processes, professional nano surface treatment greatly improves stencil durability, stabilizes solder paste deposition quality, and cuts routine maintenance workload, helping your entire PCB assembly line run stably and efficiently. Why Choose Nano-Coated PCB Stencils For SMT Production Nano-coated SMT stencils deliver…
4 Layer and 6 Layer Multilayer Flex PCB Stack Up Design

Multilayer Flexible PCB Manufacturer | Custom 4–16 Layer Flex Circuits

Lightweight, high‑density multilayer flexible PCB for compact, reliable electronics in consumer, automotive, medical, and industrial applications. Up to 16‑layer flex and rigid‑flex PCB manufacturing with tight tolerances and controlled impedance. 10+ years flex PCB experience in China 1,000,000+ flex circuits shipped per year Quick‑turn prototypes & volume production for multilayer flexible PCB Multilayer Flex PCB…
Device Name:Round Aluminum PCB for LED Lighting (LED Aluminum Base Board)

Aluminum PCB Manufacturing Process: Step-by-Step Guide

An aluminum PCB is a printed circuit board with a thin layer of conductive dielectric material—this special structure enables efficient heat dissipation, a key advantage over traditional PCBs. It is widely used in the LED lighting industry, especially for high-power LED fixtures like street lamps, downlights, and automotive headlights, where heat management directly affects product…

FAQ About HASL PCB Surface Finish

A: HASL is not recommended for fine‑pitch SMT due to uneven coating. We recommend ENIG for high‑precision designs.

A: With proper packaging, HASL‑finished PCBs can be stored for 6–12 months without oxidation issues.

A: Lead‑free HASL meets environmental standards and offers similar reliability for most industrial applications.

A: HASL solder thickness usually ranges from 1–5 μm, depending on process parameters.
