Heat Resistant Circuit Boards: High-Temperature PCB Solutions for Industrial & Automotive Applications

Heat Resistant PCB Structure High-Temperature Circuit Board

Heat resistant circuit boards are engineered to maintain stability, reliability, and electrical performance in extreme thermal environments. We specialize in high-temperature PCBs, IMS PCBs, and high-Tg FR4 boards for automotive, aerospace, industrial power, and LED systems.

Request a Quote

What Are Heat Resistant Circuit Boards?

Heat resistant circuit boards are printed circuit boards designed to resist warping, delamination, and performance loss at elevated temperatures. Unlike standard FR4 PCBs, high-temperature PCBs use specialized laminates and thermal management structures to operate safely above 130°C and up to 260°C continuously.

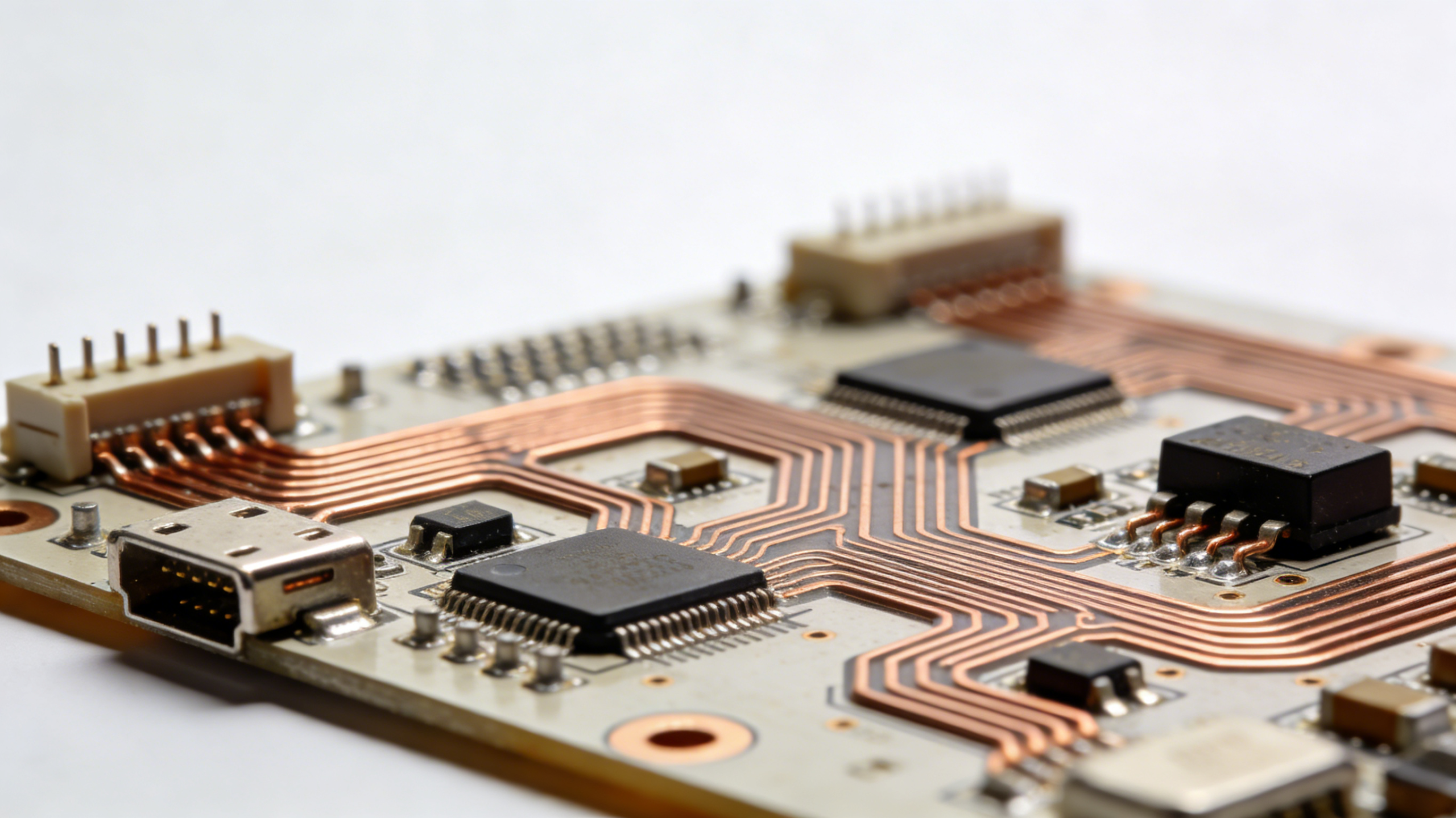

Heat Resistant PCB Structure High-Temperature Circuit Board

These boards are essential for applications where heat generation is unavoidable, such as power converters, engine controls, high-power LEDs, and industrial automation equipment.

Core Materials for High-Temperature PCBs

The performance of heat resistant circuit boards depends entirely on substrate materials. We use only certified, IPC-compliant high-temperature materials.

High-Tg FR4 PCB

High-Tg FR4 features a glass transition temperature above 170°C, offering improved dimensional stability and heat resistance compared to standard FR4. It is the most cost-effective solution for moderate high-temperature PCB applications.

Polyimide PCB

Polyimide substrates withstand continuous temperatures up to 260°C, with excellent chemical resistance and low thermal expansion. Ideal for aerospace, military, and extreme environment electronics.

Ceramic PCB

Ceramic-based PCBs handle temperatures exceeding 500°C, with ultra-high thermal conductivity for high-power and high-frequency applications.

Insulated Metal Substrate (IMS) PCB

IMS PCB is the most effective thermal management solution for heat resistant circuit boards. It uses an aluminum base, thermally conductive dielectric layer, and copper circuit layer to rapidly dissipate heat.

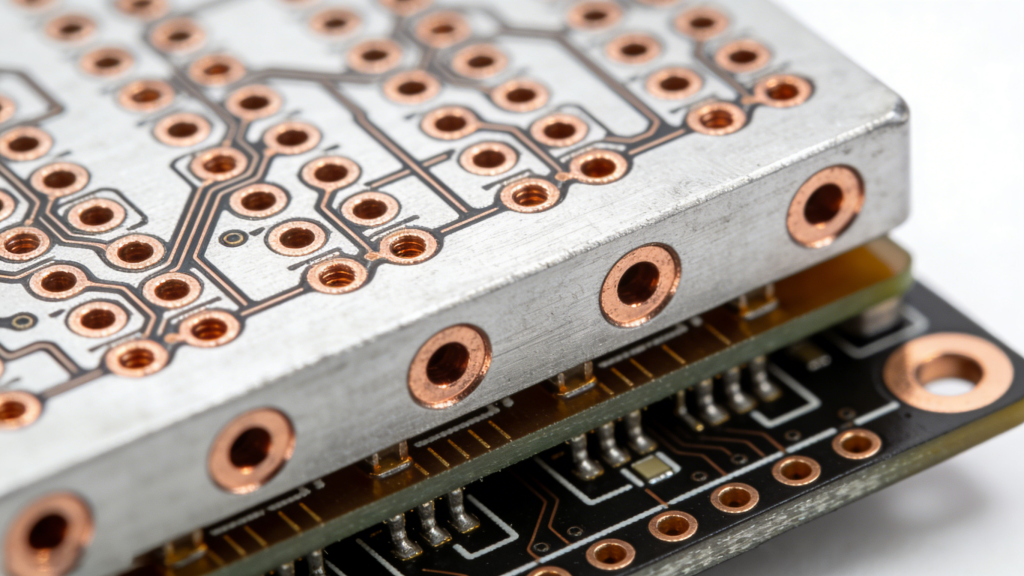

IMS PCB Thermal Dissipation High Power LED PCB

IMS PCBs eliminate hotspots, improve component lifespan, and enable higher power density. They are widely used in LED lighting, automotive electronics, power supplies, and motor drivers.

Thermal Design Guidelines for Heat Resistant PCBs

Effective design ensures high-temperature PCBs perform reliably over their lifetime.

  • Thermal vias under high-power components
  • Increased copper weight for better heat spreading
  • Strategic component placement to avoid heat concentration
  • Optimized layer stack‑up for multilayer heat resistant circuit boards
  • Compatible high-temperature components and solder materials

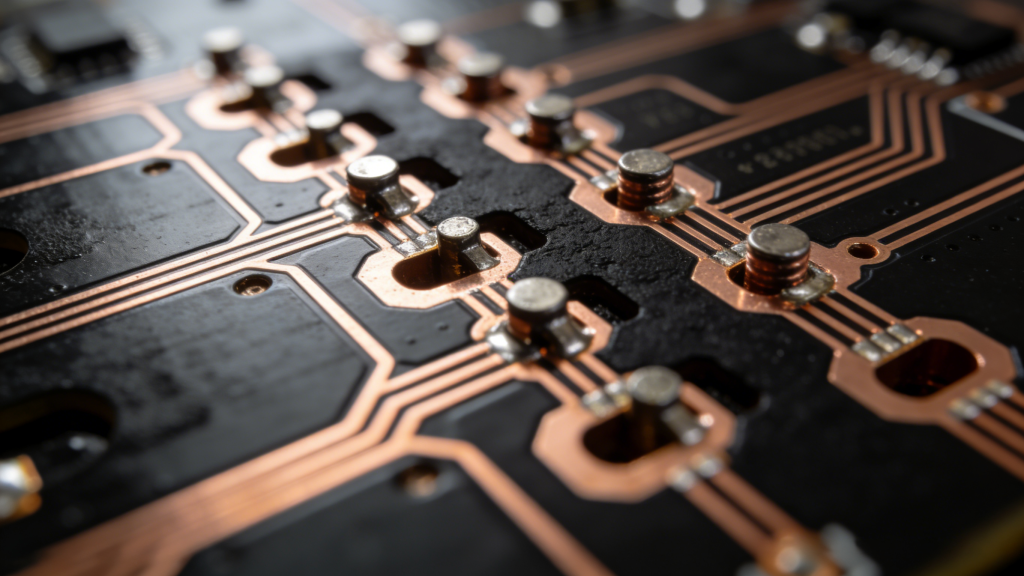

Thermal Via Design for High-Temperature PCB

Key Industries & Applications

Heat resistant circuit boards serve mission‑critical industries worldwide:

  • Automotive (ECU, LED headlights, inverters)
  • Aerospace & avionics
  • Industrial automation & power equipment
  • High-power LED lighting systems
  • Renewable energy (inverters, converters)
  • Telecom infrastructure & 5G equipment

Heat Resistant PCB Material Comparison

MaterialMax TempThermal ConductivityBest For
High-Tg FR4170–180°CStandardIndustrial controls, consumer electronics
IMS PCB (Aluminum)150°C continuousHighLED, power supplies, automotive
Polyimide260°CMediumAerospace, military, extreme environments

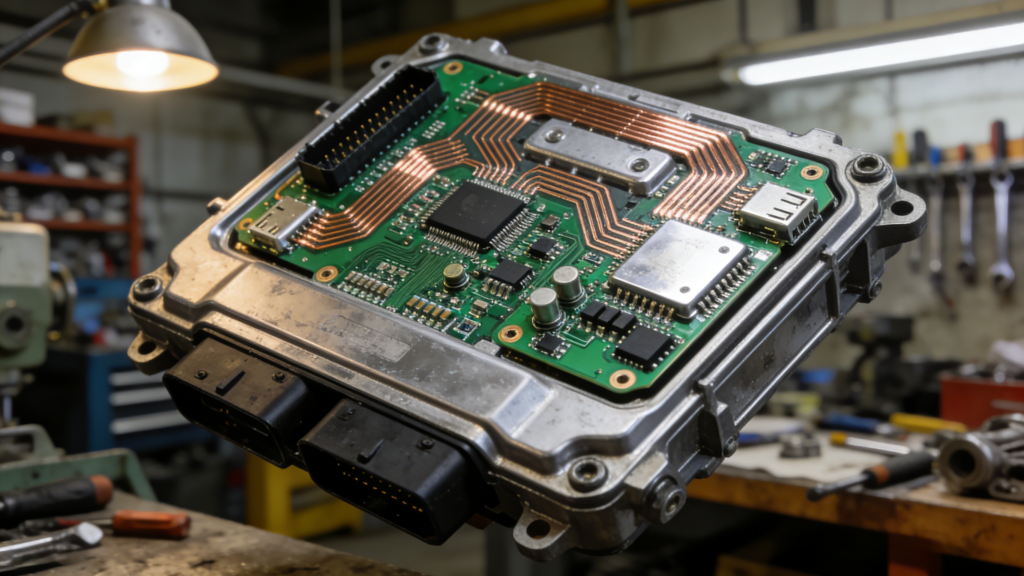

High Temperature PCB Applications Automotive Industrial LED

Conclusion

Heat resistant circuit boards are foundational to reliable high-performance electronics. Choosing the right high-temperature PCB material and design directly impacts product lifespan, safety, and operational stability.

We provide fully customized IMS PCBs, high-Tg FR4, polyimide, and ceramic heat resistant circuit boards to meet your exact specifications, certifications, and performance needs.

Inquiry, Customization & Quotation

Tell us your layer count, material, thickness, working temperature, and quantity. We will provide a fast, accurate quotation and DFM review for your heat resistant circuit boards project.

Get Your Free Quote Now
