Rigid-Flex PCB Stackup: Professional Design & Manufacturing Guide
Rigid-Flex PCB Stackup is the core of high-performance rigid-flex circuit boards, directly determining reliability, flexibility, signal integrity and service life. This guide covers layer structure, material selection, impedance control, DFM rules, common stackup examples and manufacturing standards for engineers and procurement teams.

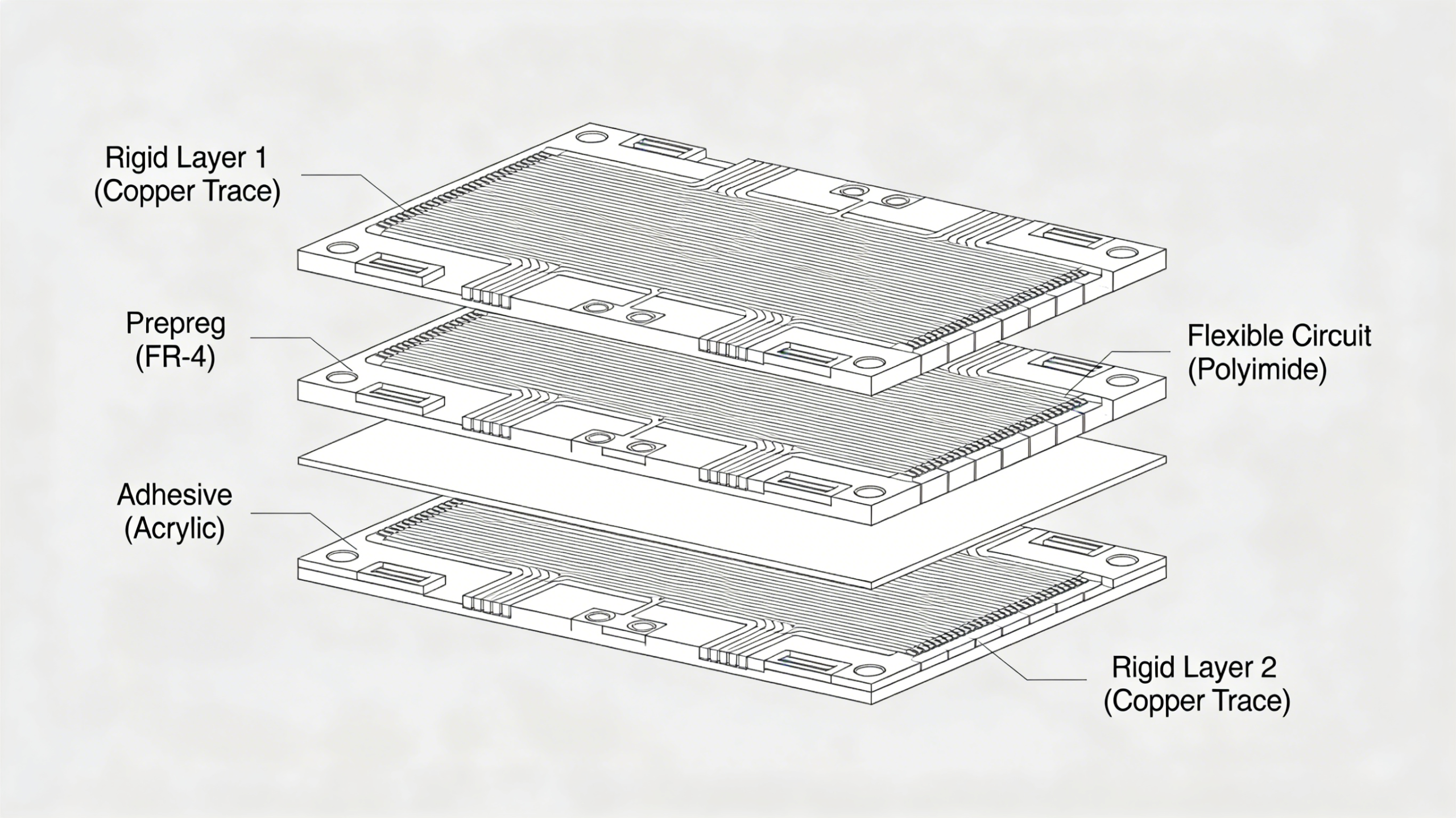

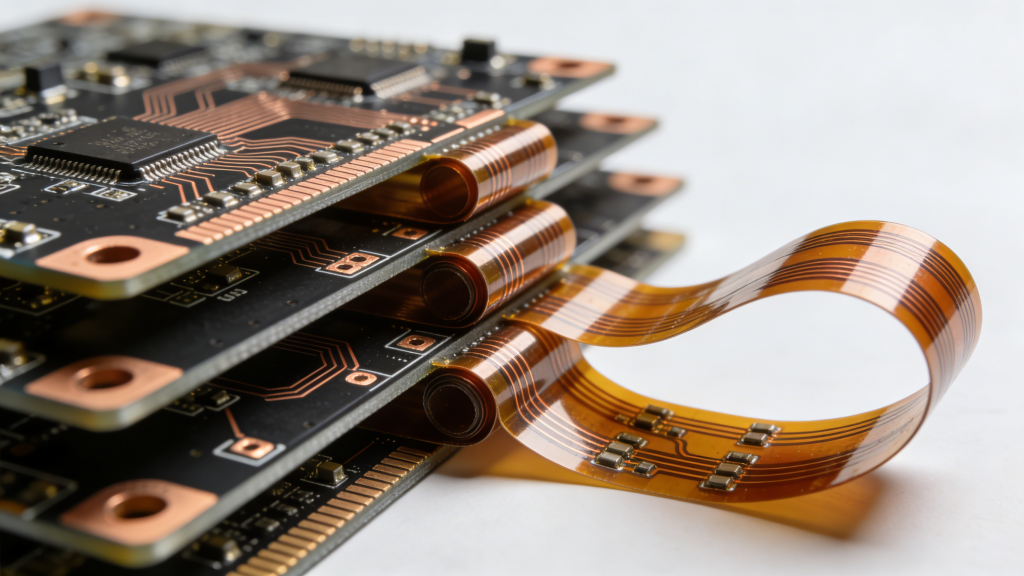

What Is Rigid-Flex PCB Stackup
Rigid-Flex PCB Stackup defines the layered arrangement of conductive copper, flexible dielectric (polyimide), rigid core (FR4), adhesives and protective coatings in a single integrated circuit board. It combines rigid sections for component mounting and flexible sections for dynamic bending, folding and 3D assembly.
Key Features of Optimized Stackup
- Minimizes solder joints and connectors, improving long-term reliability
- Supports ultra-thin profiles and lightweight design
- Enhanced thermal dissipation for high-power devices
- Stable impedance control for high-speed and RF signals
- 3D routing capability to save assembly space
Common Types of Rigid-Flex Stackup
1. Single-sided rigid-flex stackup: Simple circuits, low-cost, wearable electronics
2. Double-sided rigid-flex stackup: Two conductive layers, moderate routing density
3. Multilayer Rigid-Flex PCB Stackup: 4L–12L+, used in aerospace, medical, 5G and automotive
Typical Layer Stackup Examples

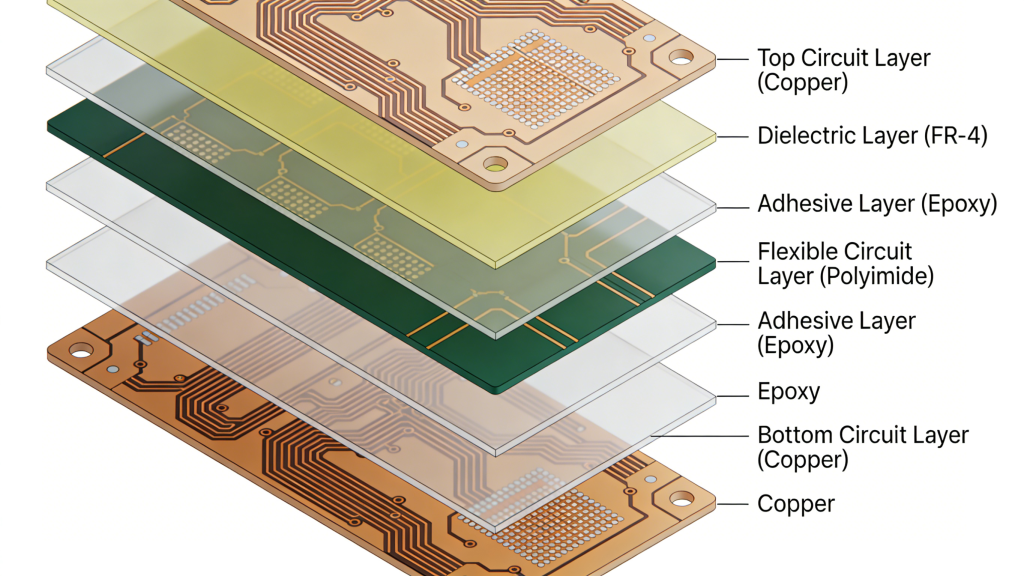

4-Layer Rigid-Flex PCB Stackup
| Layer | Material | Function |
|---|---|---|
| Top Rigid Layer | FR4 | Component mounting |
| Flex Layer 1 | Polyimide | Signal routing |
| Flex Layer 2 | Polyimide | Signal routing |
| Bottom Rigid Layer | FR4 | Connector & support |

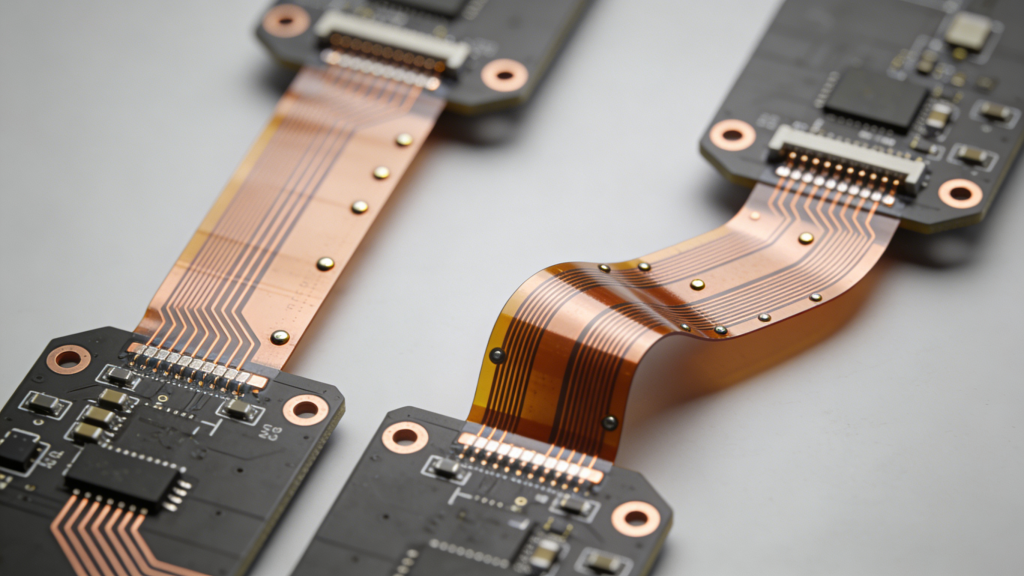

6-Layer Rigid-Flex PCB Stackup
Common configuration: 4 rigid layers + 2 flex layers or 2 rigid layers + 4 flex layers, supporting HDI, high-speed signals and high-density assembly.
Critical Design Considerations
• Bend radius: Min 8–10× flex thickness to avoid cracking
• Via design: Staggered vias in flex area to improve flexibility
• Impedance control: 50Ω / 75Ω / 90Ω / 100Ω for high-speed signals
• Coverlay & stiffener: Protect flex circuits and strengthen rigid areas
• DFM rules: Comply with IPC-6013, IPC-2221 and IPC-6018 standards
Material Selection Standards
Flex dielectric: Polyimide (PI), 25–50μm thickness
Rigid core: FR-4, High-Tg FR-4, Rogers for high frequency
Copper foil: 18–35μm standard, 70μm for high current
Surface finish: ENIG, Immersion Silver, HASL, Hard Gold
Industry Applications
• Medical: Implantable devices, monitors, surgical equipment
• Aerospace & defense: Satellites, drones, avionics
• Automotive: ADAS, EV controllers, infotainment
• 5G & IoT: Small base stations, foldable devices, sensors
• Consumer electronics: Foldable phones, wearables, cameras
Figure 5: Main applications supported by Rigid-Flex PCB Stackup
FAQ About Rigid-Flex PCB Stackup
Q1: What is the minimum bend radius for rigid-flex PCBs?
A: Typically 10 times the total thickness of the flex layers.
Q2: How many layers can a rigid-flex PCB support?
A: We support up to 12-layer Rigid-Flex PCB Stackup for high-end projects.
Q3: What standards apply to rigid-flex manufacturing?
A: IPC-6013, IPC-6018 and customer-specific reliability standards.
Q4: How to reduce cost in rigid-flex stackup design?
A: Optimize layer count, simplify flex area and use standard materials.
Summary
A well-designed Rigid-Flex PCB Stackup ensures flexibility, reliability, signal integrity and cost efficiency. It is essential for high-performance electronic products in medical, automotive, aerospace and 5G industries. Correct layer arrangement, material selection and DFM compliance directly determine production yield and long-term performance.
