Via-In-Pad Design Guidelines and Manufacturing Process for PCB

When to use via-in-pad in PCB for BGA and fine-pitch components

Via-in-pad (VIP) is a critical PCB design technique where vias are drilled directly on SMD and BGA pads to support high-density interconnects. This guide covers via-in-pad fundamentals, design rules, manufacturing processes, and comparisons between VIP and non-VIP processes to ensure reliable PCB assembly and performance.

What Is Via-In-Pad?

Via-in-pad (VIP) means drilling vias directly on component pads, typically SMD pads (0603 or larger) and BGA pads. Vias on through-hole component pads are not classified as via-in-pad because they are used for component lead insertion and soldering.

As electronics become lighter, thinner, and smaller, PCBs require higher density and more complex routing. Smaller BGA packages with finer pin pitch reduce available routing space, making via-in-pad essential for layer transitions in compact designs.

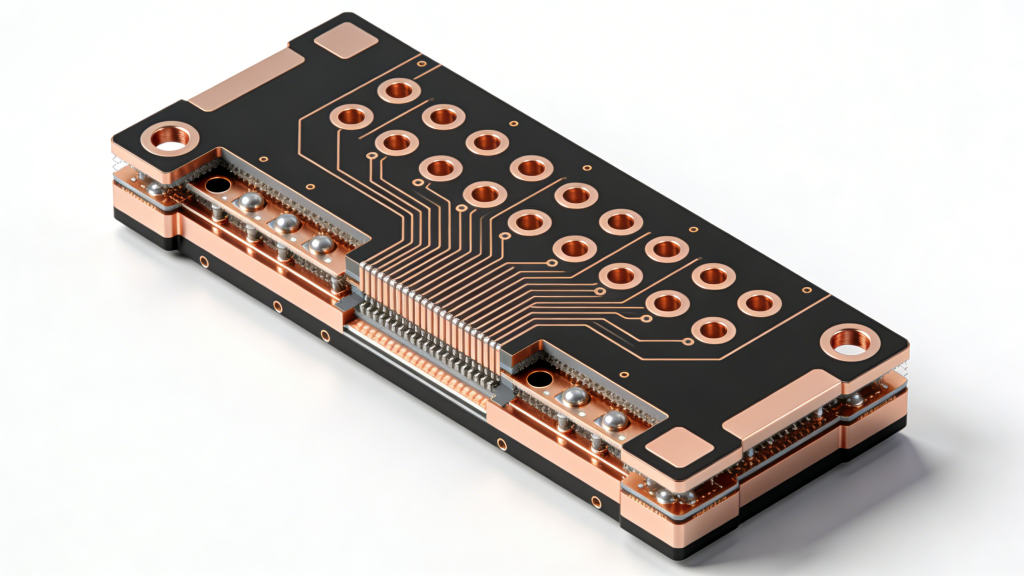

Via-in-pad structure on BGA pad in high density PCB design

When to Use Via-In-Pad

Via-in-pad is required in two main high-density PCB scenarios:

  • BGA pin pitch is too small for traditional fan-out routing
  • Bypass capacitors on the back of dense BGA components have no safe routing space for external vias

We recommend avoiding via-in-pad when routing space permits, as it increases PCB manufacturing cost and lead time.

When to use via-in-pad in PCB for BGA and fine-pitch components

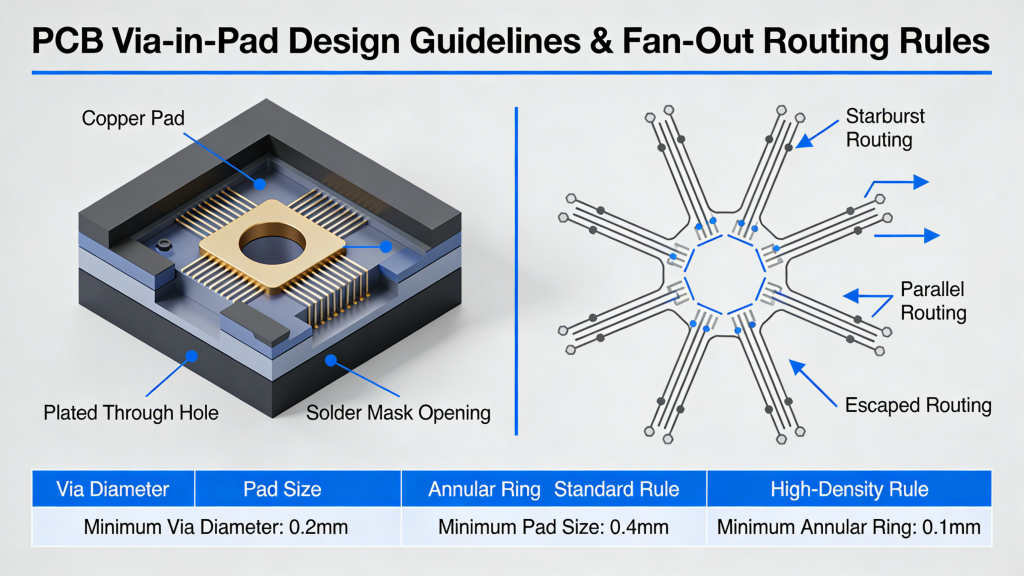

Via-In-Pad Design Guidelines

When Via-In-Pad Is Not Needed

Complete fan-out routing before layer wiring. For high-pin-count BGAs, place vias centered between pads. Standard BGA fan-out parameters:

  • Via diameter: 0.15-0.2 mm
  • Trace width: 3-4 mil
  • Annular ring: 0.3-0.4 mm
  • Minimum fan-out-compatible BGA pitch: 0.35 mm

When Via-In-Pad Is Necessary

Verify via hole size before BGA fan-out. Use via-in-pad when pin pitch is too small for fan-out, and route BGA pins through inner layers or the component side.

Via-in-pad design guidelines and fan-out routing rules for PCB

Via-In-Pad Manufacturing Process

BGA pad vias are standard via-in-pad structures and must be plugged and plated for reliable soldering unless customer specifies otherwise. For customer-requested fully plugged vias, all SMD pad vias are treated as via-in-pad.

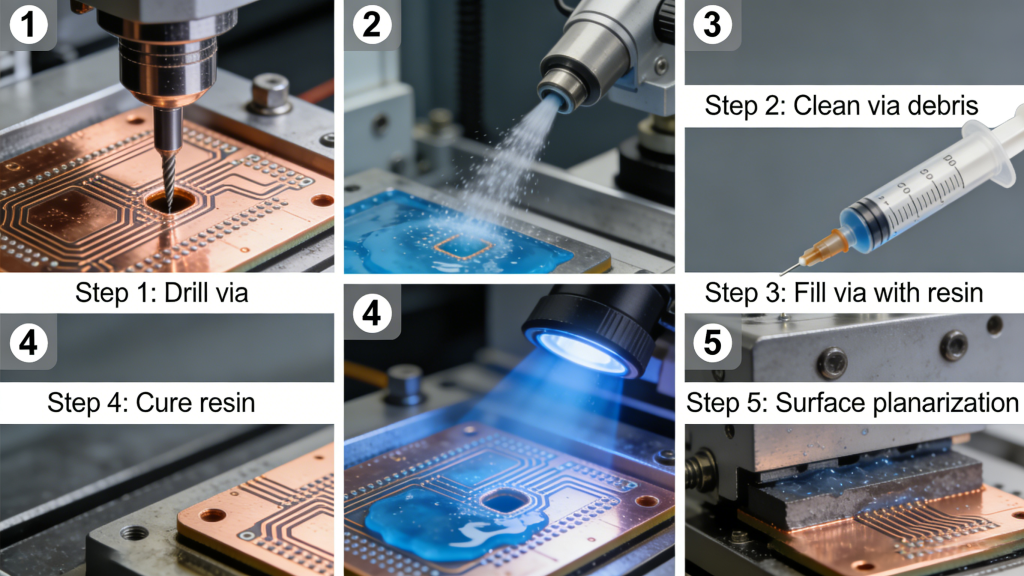

The typical resin-filled via-in-pad process ensures flat pad surfaces and stable SMT assembly.

Resin-filled via-in-pad manufacturing process flow for PCB production

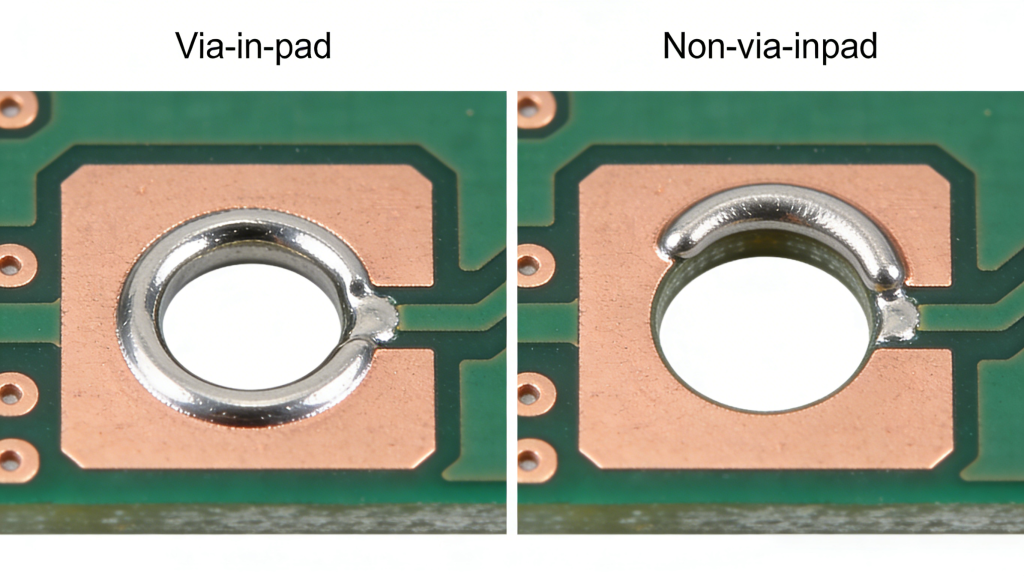

VIP vs. Non-VIP Process Comparison

ItemWith Via-In-Pad ProcessWithout Via-In-Pad Process
Pad ConditionPlugged, plated, planarizedOpen via, uneven surface
Solder QualityStrong joints, no voidsWeak joints, solder wicking
Assembly RiskLow, stable for BGA/SMDHigh, solder balls and defects
Cost & Lead TimeHigher, longer cycleLower, faster production

DFM Checks for Via-In-Pad

Our automated DFM analysis quickly detects via-in-pad in design files and provides engineer-friendly modification suggestions to reduce cost. We also notify production teams that via plugging is required for via-in-pad boards.

DFM checks help identify quality risks early, cut iterations, lower cost, and improve product reliability for global PCB buyers.

Conclusion

Via-in-pad is an essential technique for high-density PCB design, especially for fine-pitch BGA and compact SMD circuits. Following proper design guidelines and manufacturing processes ensures reliable performance, while DFM checks optimize cost and yield.

We specialize in via-in-pad PCB manufacturing and assembly for industrial, telecom, and high-tech applications worldwide.

Need Professional Via-In-Pad PCB Solutions?

Contact us for PCB design, DFM analysis, manufacturing, and assembly quotes.

Request a Quote
