How to Build a Multilayer PCB: Full Stack‑Up, Manufacturing & IPC Compliance Guide

8 layer 12 layer multilayer PCB stackup structure

Learn how to build multilaye multilayer PCB stack-upr PCBs with this complete guide covering stack‑up design, step‑by‑step manufacturing, IPC standards, material selection, and long‑term storage to ensure high‑reliability circuit boards for industrial, medical, automotive, and telecom applications.

What Is a Multilayer PCB?

A multilayer PCB integrates three or more conductive copper layers bonded with insulating core and prepreg materials, typically ranging from 4 to 50+ layers for high‑density electronics. Compared to single or double‑sided PCBs, multilayer PCB designs deliver higher routing density, better signal integrity, stable power distribution, and stronger anti‑interference performance, making them essential for smartphones, servers, medical devices, automotive electronics, and avionics systems.

Key Core Terms

  • Core: Rigid dielectric substrate (commonly FR‑4) clad with copper on both sides, forming inner conductive layers.
  • Prepreg: Semi‑cured epoxy resin glass cloth, used to insulate and bond layers during high‑temperature lamination.
  • Surface Layers: Top and bottom outer layers for component mounting, soldering, and external signal connection.

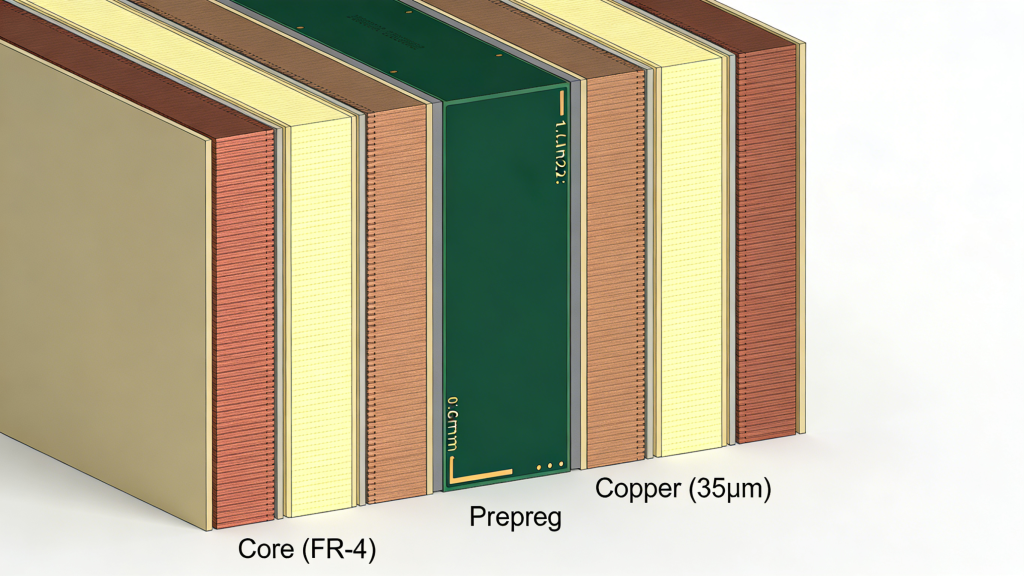

Basic structure of multilayer PCB core prepreg surface layers

Multilayer PCB Stack‑Up Design & Layer Configurations

Stack‑up directly determines the electrical performance, thermal management, and structural stability of a multilayer PCB. Symmetric layer arrangement is strongly recommended to avoid warpage; even layer counts (4, 6, 8, 10, 12) are industry standard.

4‑Layer Multilayer PCB Stack‑Up

The most cost‑effective multilayer PCB structure, ideal for consumer electronics and smart home devices.

  • Layer 1: Top Signal
  • Layer 2: GND Plane
  • Layer 3: Power Plane
  • Layer 4: Bottom Signal
  • Standard thickness: 1.6 ± 0.16 mm
4 layer multilayer PCB stackup structure diagram

6‑Layer Multilayer PCB Stack‑Up

Suitable for industrial controls and automotive sensors. Inner layers are dedicated to GND and power to reduce EMI and crosstalk.

  • Typical thickness: 1.6–2.0 mm
  • Supports moderate‑complexity signal routing and stable power delivery

8‑Layer & Higher Multilayer PCB Stack‑Up

Designed for high‑speed telecom, medical imaging, and aerospace equipment. Multiple cores and prepreg layers ensure excellent signal integrity and thermal control.

  • 8‑layer: 2.4 ± 0.24 mm
  • 12‑layer: 2.8–3.2 mm
  • Supports blind vias, buried vias, and HDI design
8 layer 12 layer multilayer PCB stackup structure

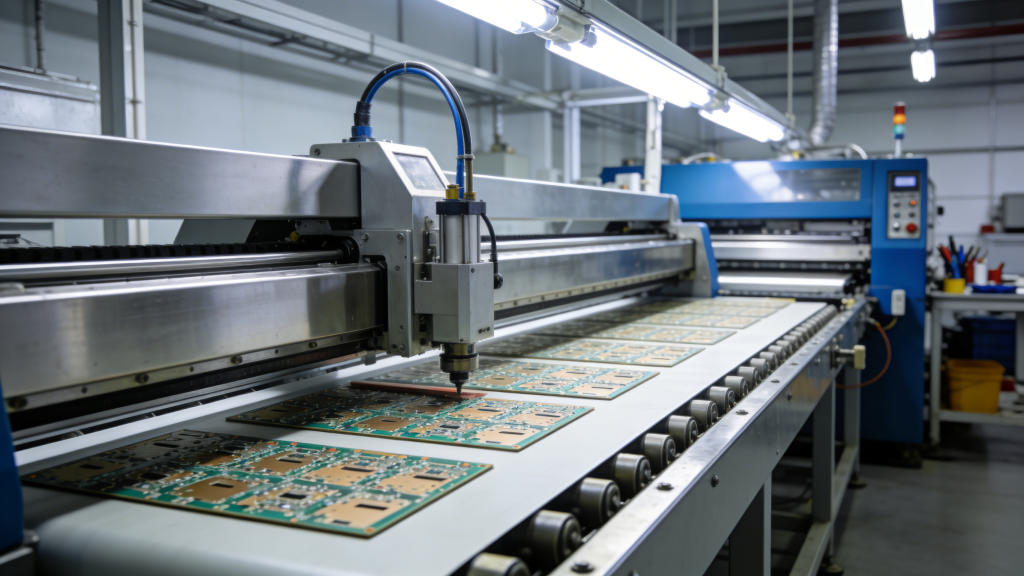

Multilayer PCB Full Manufacturing Process

Producing a reliable multilayer PCB requires precision processing and closed‑loop quality control.

1. Material Preparation

Select high‑speed FR‑4, Rogers, or other high‑frequency materials based on application needs. Inner cores are pre‑treated for reliable bonding.

2. Layer Stacking & Alignment

Copper foils, prepreg, and inner cores are stacked in fixed order and precisely aligned with positioning pins to avoid layer shift.

3. High‑Temperature Lamination

Heat and pressure cure the prepreg, permanently bonding all layers into a solid multilayer PCB core panel.

4. Drilling, Plating & Etching

CNC drilling, electroless copper plating, pattern transfer, and etching form conductive paths and interlayer connections.

5. Surface Finish & Testing

Apply HASL, ENIG, immersion silver, or other finishes. Complete electrical testing, impedance testing, and AOI optical inspection.

Multilayer PCB manufacturing process flow chart

IPC Standards for Multilayer PCB

Compliance with IPC standards ensures global market acceptance and long‑term performance of your multilayer PCB.

  • IPC‑4101E: Base material specification for rigid multilayer PCB
  • IPC‑ML‑960: Qualification for mass lamination panels
  • IPC‑6012: Performance specification for rigid printed boards
  • IPC‑A‑600: Acceptability criteria for printed boards

Multilayer PCB Storage Guidelines

To preserve solderability and reliability:

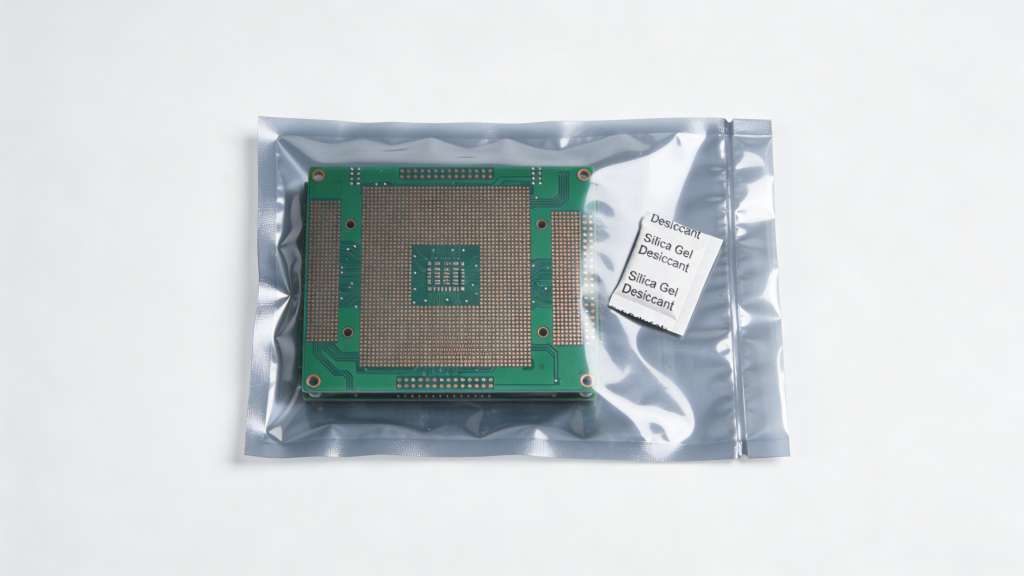

  • Use vacuum‑sealed packaging with desiccant
  • Store in dry, temperature‑controlled environment (18–25°C, RH < 60%)
  • Avoid direct sunlight, moisture, and mechanical stress

Conclusion

Building a high‑performance multilayer PCB depends on rational stack‑up design, standardized manufacturing, strict IPC compliance, and proper storage. From 4‑layer prototypes to 50+ layer high‑speed boards, we provide full engineering support and reliable manufacturing for global buyers.

Get Your Multilayer PCB Custom Solution

Contact us for stack‑up design, DFM review, free quotation, and fast lead times for industrial & export‑grade multilayer PCB.

Request a Quote Now

Heat Resistant PCB Structure High-Temperature Circuit Board

Heat Resistant Circuit Boards: High-Temperature PCB Solutions for Industrial & Automotive Applications

Heat resistant circuit boards are engineered to maintain stability, reliability, and electrical performance in extreme thermal environments. We specialize in high-temperature PCBs, IMS PCBs, and high-Tg FR4 boards for automotive, aerospace, industrial power, and LED systems. Request a Quote What Are Heat Resistant Circuit Boards? Heat resistant circuit boards are printed circuit boards designed to…
PCB DFM design standards showing trace width, via size, and board thickness

PCB DFM and DFA: Best Practices for Optimal Design

Master PCB DFM and DFA best practices to streamline manufacturing and assembly. This professional guide covers critical design rules, common errors, and practical solutions for high‑quality, high‑yield PCB production. Why PCB DFM and DFA Matter High‑quality PCB starts with optimized design. PCB DFM (Design for Manufacturability) and DFA (Design for Assembly) ensure your board is…
Fast Turnaround PCB Prototype Manufacturing Line HDI Microvias

Fast Turnaround PCB Prototype Services from Certified Manufacturer

Quick turn PCB prototyping, custom solutions for startups and enterprises. ISO-certified, rapid delivery, and global support – upload your design for a free DFM check! ✅ As fast as 24-hour build and delivery ✅ No minimum quantity ✅ IoT, automotive, medical, consumer electronics Get Instant QuoteUpload Gerber Files Contents Why Rapid PCB Prototyping for Every…
PCB Prototype Manufacturing Equipment and Production Line

Quick Turn PCB Prototyping | ISO-Certified Custom Solutions

Quick turn PCB prototyping delivers custom rapid printed circuit board solutions for startups and enterprises worldwide. We offer ISO-certified quality, 24-hour express delivery, global technical support, and free DFM checks to accelerate your product development. – As fast as 24-hour build and delivery – No minimum quantity – Serving: IoT, automotive, medical, consumer electronics Get…
Laser cutting nano coating SMT PCB stencil production process

Nano-Coated PCB Stencil Manufacturing for Precision & Durability

Discover industry-leading performance with our nano-coated PCB stencils. Engineered to support high-precision SMT printing processes, professional nano surface treatment greatly improves stencil durability, stabilizes solder paste deposition quality, and cuts routine maintenance workload, helping your entire PCB assembly line run stably and efficiently. Why Choose Nano-Coated PCB Stencils For SMT Production Nano-coated SMT stencils deliver…
Fine-Pitch SMT PCB Assembly with BGA QFN Components

SMT PCB Assembly Services for Prototypes & Production

We deliver reliable SMT PCB Assembly for rapid prototypes, NPI, low-volume and high-volume production. Our full turnkey solutions support fine-pitch components, BGAs, QFNs, rigid/flex‑rigid PCBs, and comply with IPC Class 2 & Class 3 standards for global industrial buyers. SMT PCB Assembly Capabilities We support full‑cycle SMT PCB Assembly from single prototypes to mass production,…

FAQs About Multilayer PCB Stack-Up & Manufacturing

Q: What is a multilayer PCB?

A: A multilayer PCB has three or more copper conductive layers bonded by cores and prepreg. It features high routing density, good signal integrity and strong anti-interference ability.

Q: What are core and prepreg used for in multilayer PCBs?

A: Core is rigid double-sided copper-clad substrate for inner circuits. Prepreg is semi-cured material that insulates and bonds layers during lamination.

Q: Why are even layer counts and symmetric stack-up recommended?

A: Symmetric even-layer layout effectively prevents PCB warpage and ensures stable structure during production and application.

Q: What are the common applications for 4-layer, 6-layer and 8-layer PCBs?

A: 4-layer for consumer electronics; 6-layer for industrial control and automotive sensors; 8+ layers for telecom, medical and aerospace high-speed devices.

Q: What is the general production workflow for multilayer PCBs?

A: Material preparation → stacking & alignment → high-temperature lamination → drilling, plating & etching → surface finish and full testing.

Q: Which main IPC standards apply to multilayer PCBs?

A: Main standards include IPC-4101E, IPC-ML-960, IPC-6012 and IPC-A-600 for materials, lamination, performance and acceptance criteria.

Q: What materials are selected for different multilayer PCB scenarios?

A: Standard FR-4 for general use; high-speed FR-4 or Rogers for high-frequency, high-speed signal circuits.

Q: How to properly store finished multilayer PCBs?

A: Use vacuum packaging with desiccant. Keep environment at 18–25°C with humidity below 60%, away from sunlight, moisture and physical damage.

Q: Can multilayer PCBs support blind vias, buried vias and HDI structures?

A: Yes. 8-layer and higher multilayer PCBs are widely designed with blind vias, buried vias and HDI for higher density routing.
