We provide professional single layer PCB manufacturing with ISO-certified quality, fast lead times, cost-effective pricing and free DFM analysis for global industrial buyers, engineers and importers. Our single sided PCBs are widely used in LED lighting, power supplies, consumer electronics and industrial control equipment.

What Is a Single Layer PCB

A single layer PCB (also named single sided PCB) is the most basic printed circuit board with only one conductive copper layer on an insulating substrate such as FR‑4, CEM‑1 or aluminum. All circuits, pads and components are mounted on one side, making it the most cost‑effective and easy‑to‑manufacture solution for simple circuit designs.

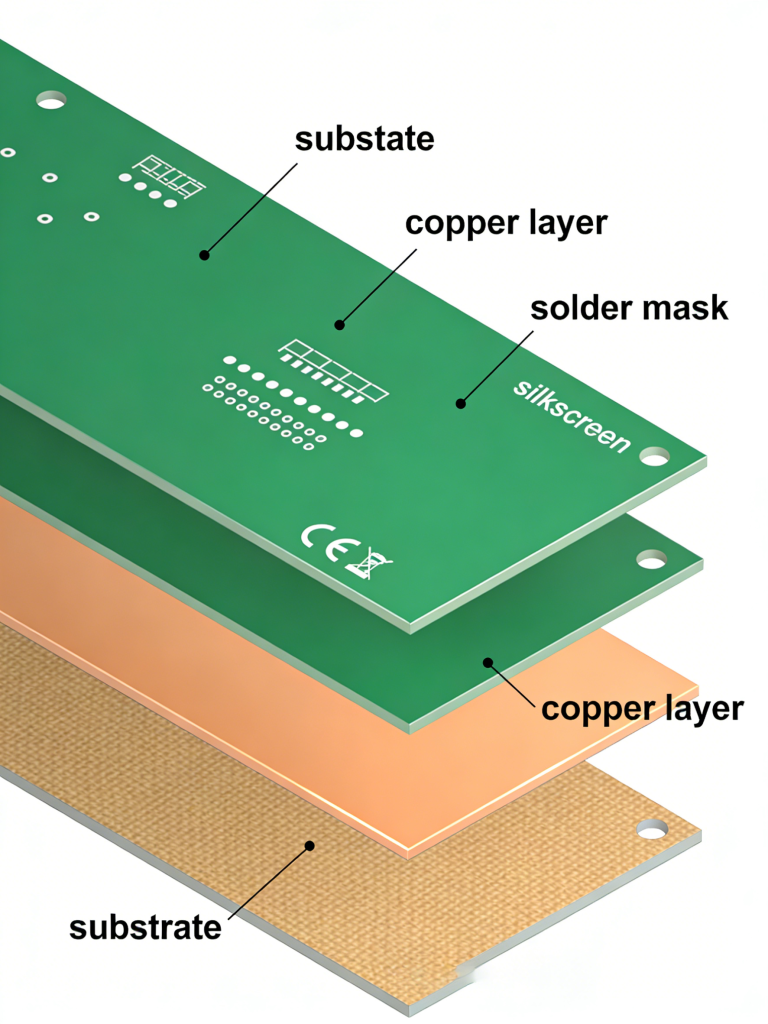

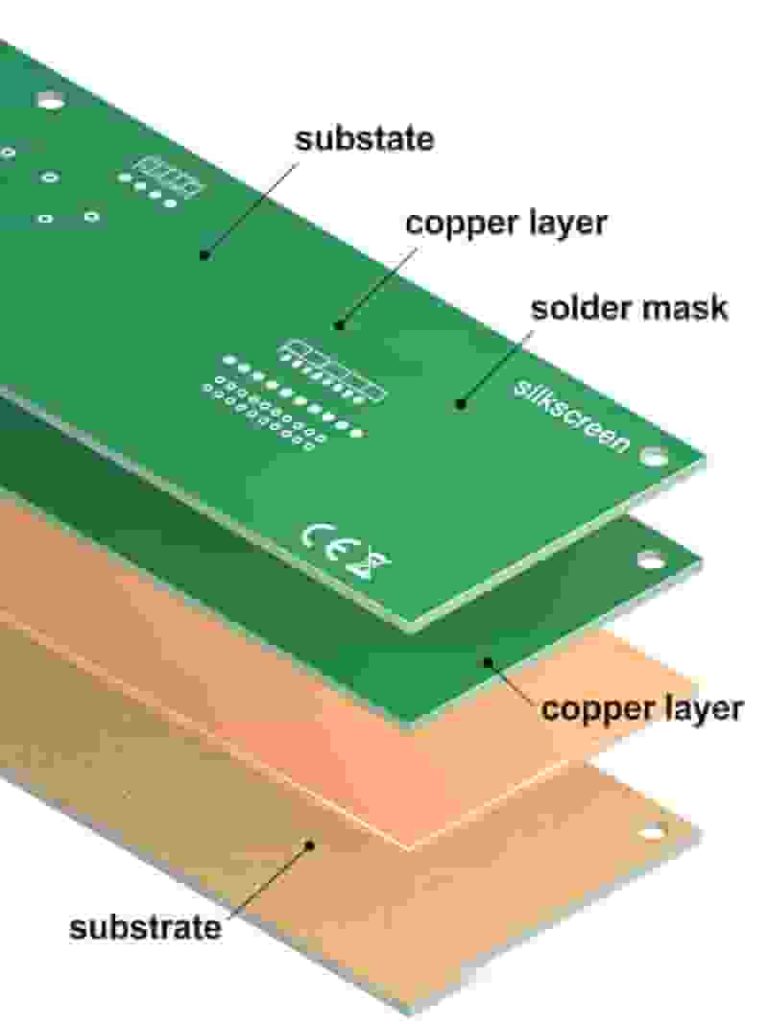

Single Layer PCB Structure Diagram Single Sided PCB Layer Composition

Single Layer PCB Basic Structure

Main Types of Single Layer PCBs

We support full customization for different single layer PCB types to meet various application requirements.

Single Layer Rigid PCB

Made of FR‑4 or CEM‑1 materials, the most widely used type for calculators, power supplies, controllers and household appliances.

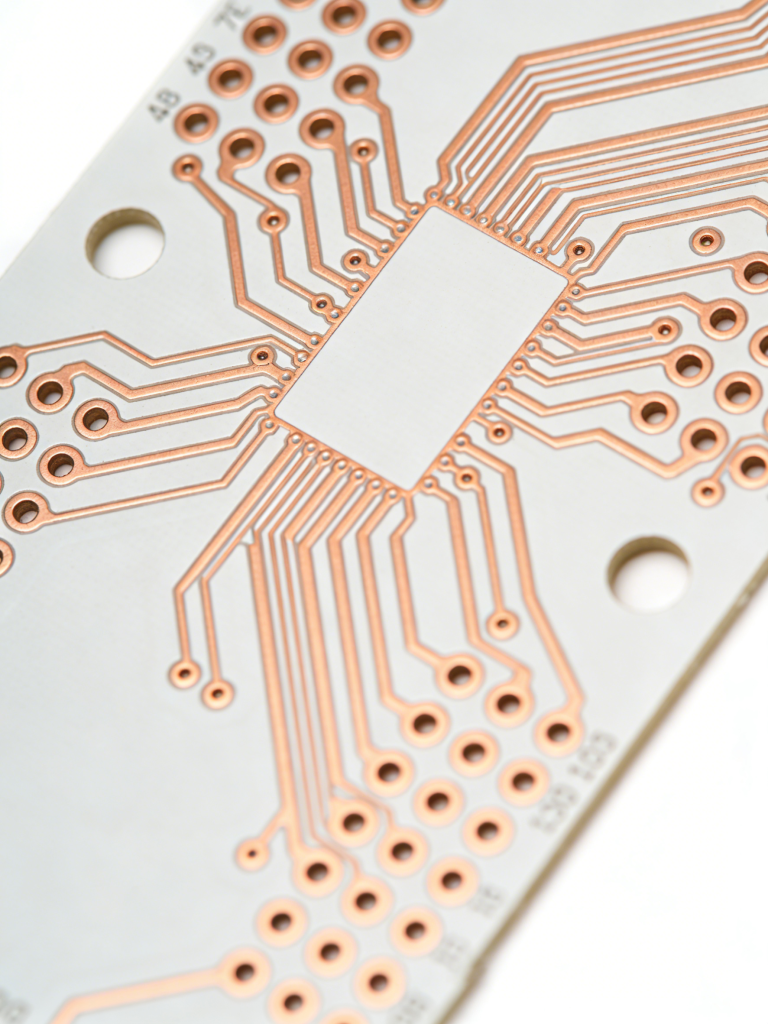

Single Layer Rigid PCB for Industrial Control and Consumer Electronics

Single Layer Flexible PCB

Built with flexible polyimide materials, ideal for wearable devices, compact sensors and folding components.

Single Layer Rigid‑Flex PCB

Combines rigid and flexible substrates, used in compact cameras, medical devices and automotive sensors.

Single Layer High‑Frequency PCB

Uses high‑frequency materials like Rogers, designed for RF modules, communication equipment and signal transmission devices.

Single Layer Aluminum PCB

Features excellent thermal conductivity, perfect for high‑power LED lighting, drivers and heat‑dissipation equipment.

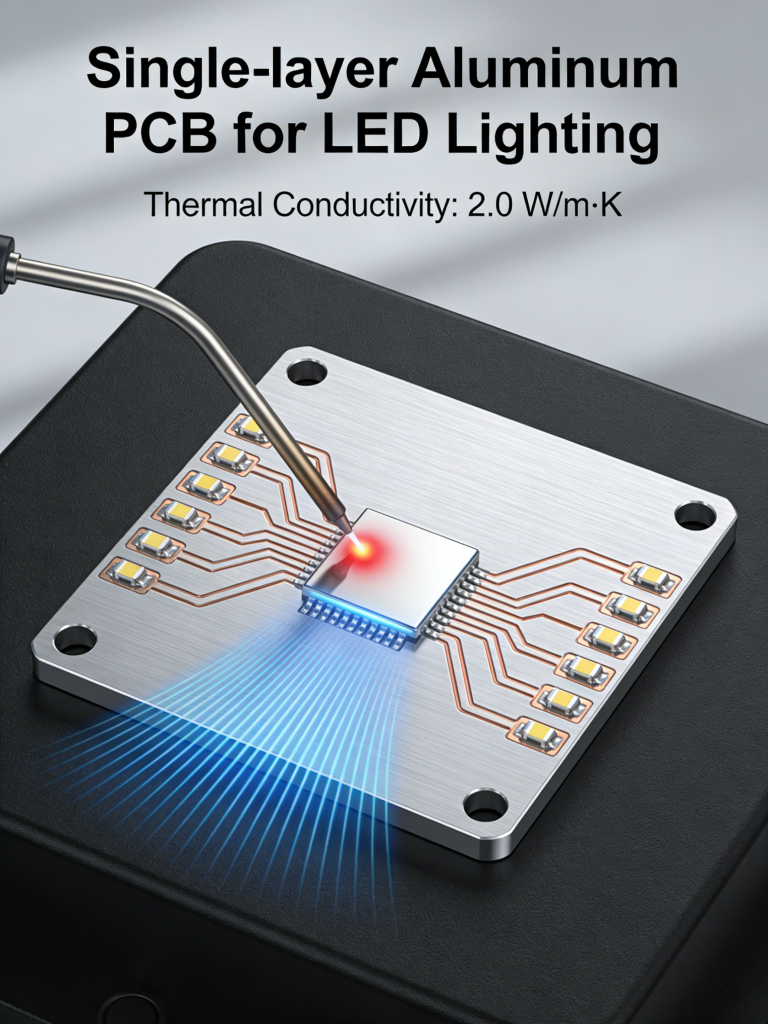

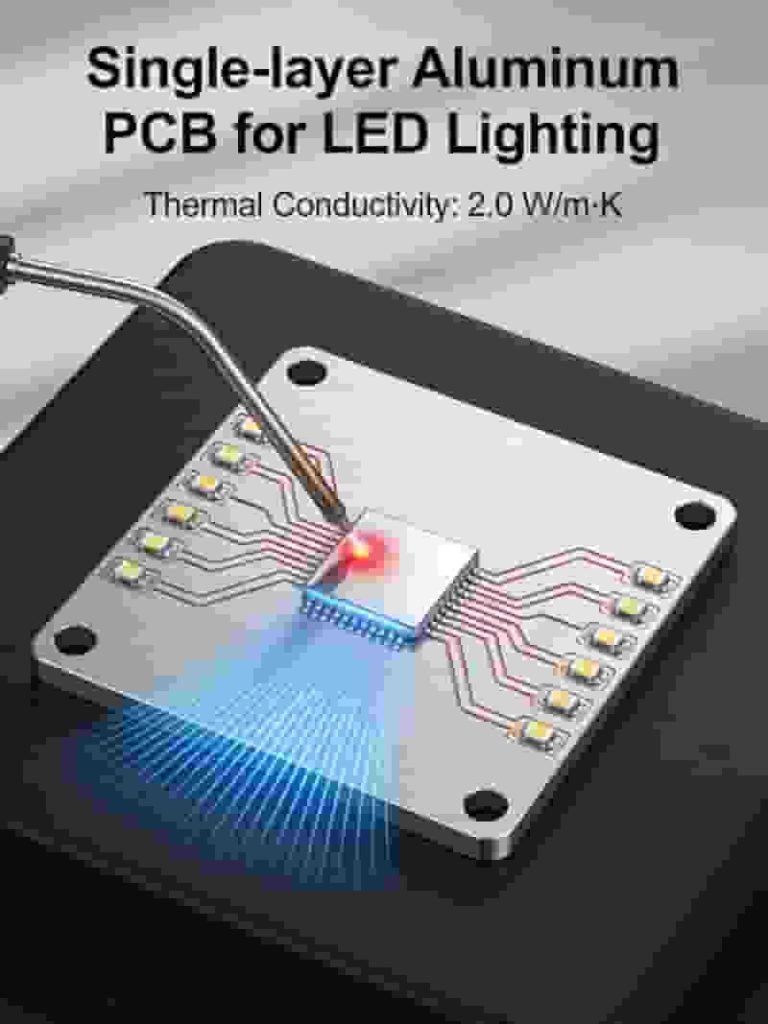

Single Layer Aluminum PCB for LED Lighting Heat Dissipation

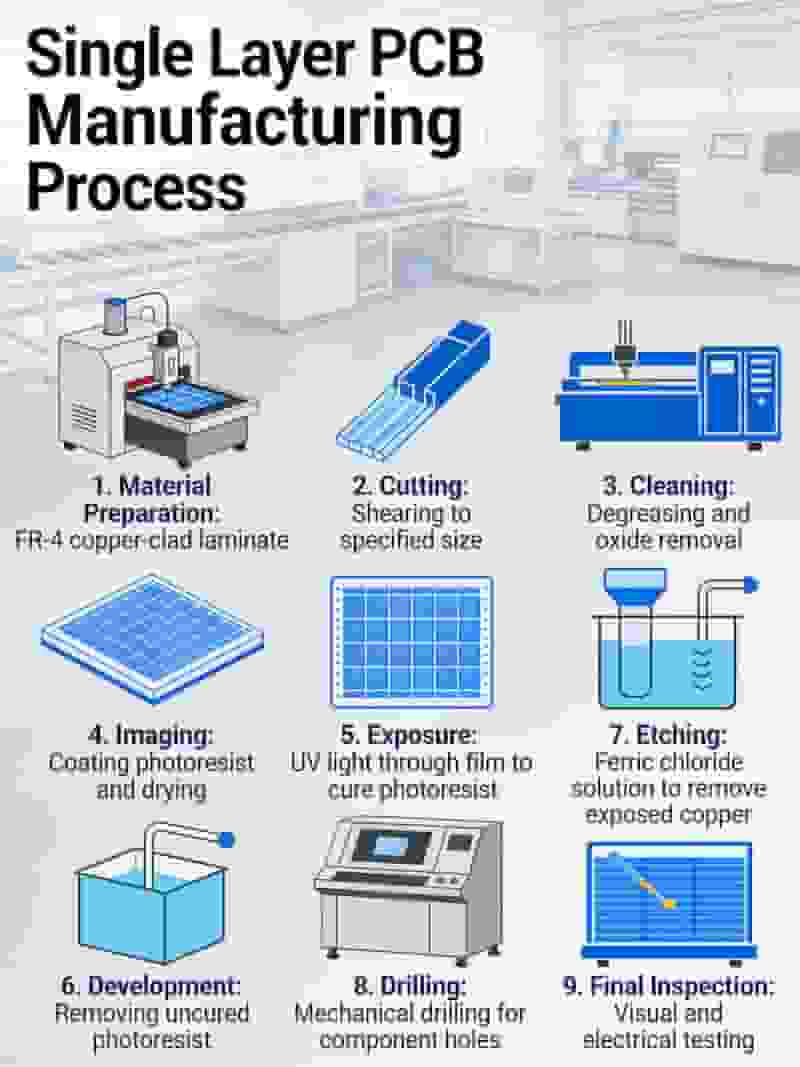

Single Layer PCB Manufacturing Process

Our standardized single layer PCB manufacturing follows IPC standards to ensure stable performance and high yield.

  1. Order Confirmation & DFM Check: Free design for manufacturability analysis to avoid production risks.
  2. Material Preparation: Select high‑quality base materials and copper foils.
  3. Circuit Printing & Etching: Transfer circuit patterns and remove excess copper accurately.
  4. Drilling: CNC drilling for component holes and mounting positions.
  5. Solder Mask & Silkscreen: Apply protective layer and print component labels.
  6. Surface Finish: HASL, OSP, ENIG or other customizable finishes.
  7. Electrical Testing: AOI and flying probe test to ensure 100% electrical reliability.
  8. Final Inspection & Packaging: Visual inspection and safe packaging for delivery.
Single Layer PCB Manufacturing Process Flow Chart

Single Layer PCB Full Manufacturing Flow

Key Benefits of Single Sided PCBs

Single layer PCB remains the top choice for low‑complexity projects due to its outstanding advantages:

  • Cost‑Effective: Lowest production cost among all PCB types, ideal for mass production.
  • Simplified Production: Shorter lead time and fewer manufacturing defects.
  • High Reliability: Simple structure ensures stable performance and long service life.
  • Easy Testing & Maintenance: Convenient electrical testing and repair work.
  • Flexible Customization: Support various materials, sizes and surface finishes.

Single vs Double vs Multilayer PCBs

FeatureSingle Layer PCBDouble Layer PCBMultilayer PCB
Conductive Layers123 or more
CostLowestModerateHigh
ComplexitySimpleModerateHigh
Typical ApplicationsLED, power supplies, calculatorsConsumer electronics, controlsAerospace, medical, automotive

Standard Technical Specifications

We provide stable and customizable parameters for single layer PCB manufacturing:

  • Base Materials: FR‑4, CEM‑1, Aluminum, PI
  • Copper Thickness: 0.5oz – 2oz
  • Board Thickness: 0.4mm – 3.0mm
  • Minimum Trace Width: 0.2mm
  • Minimum Hole Size: 0.3mm
  • Surface Finish: HASL, OSP, ENIG, Immersion Tin
  • Testing: AOI, Flying Probe, Impedance Test

Conclusion

Single layer PCB is the most economical and practical solution for simple circuit applications. With professional single layer PCB manufacturing, stable quality control, fast delivery and competitive pricing, we help global customers optimize costs and improve product reliability.

Request a Free Quote Now

Get professional single sided PCB solutions with free DFM check, fast prototyping and competitive pricing. Send your Gerber files now to receive a detailed quote within 24 hours.

Get My Free Quote

We support mass production and rapid prototyping for single layer PCB projects worldwide. Contact us today for your customized PCB solutions.

Double-sided rigid PCB showing two metal layers

Rigid PCB – Single-Sided, Double-Sided & Multilayer

What Is a Rigid PCB Circuit Board? A Rigid PCB is the most widely used type of printed circuit board (PCB). It’s made with a solid, inflexible base material (like the common FR-4 epoxy board) that keeps its shape permanently—no bending or warping, which protects the circuit connections inside. The easiest example to recognize? A…
PCB Manufacturability Analysis Software Interface DFA Check

Design for Manufacturability and Assemblability of Printed Circuit Board

Optimize your PCB design for high yield, low cost, and reliable assembly with industry-leading DFM and DFA principles aligned with IPC standards. What is Design for Manufacturing Design for Manufacturing, also known as concurrent or simultaneous engineering, focuses on the relationship between product physical design and manufacturing systems. By integrating DFM principles into product design,…
4 Layer PCB Standard Appearance for Industrial and Communication Use

4 Layer PCB Manufacturing & Prototype Service | Factory Direct FR4 Stackup

Factory-direct 4 Layer PCB with standard FR4 stackup, fast prototype lead time, free DFM support, and reliable quality for global industrial, IoT, and communication projects. What Is a 4 Layer PCB? A 4 Layer PCB (four‑layer printed circuit board) is a multilayer circuit board that contains four copper layers laminated together with insulating dielectric material,…
Cross Section of Plated Half Hole PCB

Understanding Plated Half-Holes (Castellated Holes) in PCB Design

Plated half-holes, also called castellated holes, provide a space-efficient way to interconnect separate PCB modules by soldering. Unlike bottom pads, their edge positioning simplifies mounting and enhances reliability. This article explains everything about plated half-hole structures, design guidelines, manufacture, benefits and use cases. Structure of Plated Half-Holes Plated half-holes, also known as castellated holes, resemble…
Types of PCB vias diagram blind buried through micro thermal

PCB Vias: Complete Overview, Types, Design & Manufacturing for Engineers & Buyers

Summary: This professional guide covers PCB vias definitions, core types, structure, design rules, aspect ratio, annular ring, manufacturing processes, and reliability standards. It helps engineers and buyers select the right via solutions for multilayer, high-speed, and HDI PCBs to ensure signal integrity, yield, and cost efficiency. What Are PCB Vias A via is a vertical…
4 Types of PCB Open Circuit Diagram Repeated Gap Vacuum Scratched

PCB Open Circuit: Causes, Types, Diagnosis & Proven Solutions

PCB open circuit is one of the most frequent defects in PCB manufacturing, causing production downtime, rework, delivery delays, and quality complaints. This professional guide explains definitions, types, root causes, inspection methods, prevention, and reliable fixes for global electronics buyers and engineers. What Is a PCB Open Circuit? A PCB open circuit is an interruption…

FAQs About Single Layer PCB

A: A single layer PCB has only one copper conductive layer on the insulating substrate. All components and circuits are arranged on one side, featuring low cost and simple structure.

A: We supply rigid, flexible, rigid-flex, high-frequency and aluminum-based single layer PCBs for different usage scenarios.

A: Common base materials include FR-4, CEM-1, polyimide and aluminum substrates.

A: They are low-cost, easy to produce, reliable, simple to test and maintain, and support flexible customization.

A: Widely applied in LED lighting, power supplies, household appliances, calculators and general industrial control equipment.

A: Copper 0.5oz–2oz, board thickness 0.4mm–3.0mm, min trace 0.2mm, min hole 0.3mm, with multiple surface finish options.

A: Optional finishes include HASL, OSP, ENIG and immersion tin to meet different welding and anti-oxidation demands.

A: Single layer has 1 copper layer with the lowest cost for simple circuits. Double and multilayer boards suit more complex designs with higher costs.

A: Yes, we offer free DFM check for all orders to eliminate potential production risks in advance.

A: Products go through AOI, flying probe test and impedance test to ensure full electrical performance and quality.
