PCB Fabrication Process Flow Chart: Complete Step-by-Step Industrial Guide

PCB DFM review and engineering analysis for PCB fabrication process

This professional guide details the full PCB fabrication process with engineering-grade steps, quality controls, and technical specifications for industrial buyers, engineers, and global procurement teams. Learn how reliable PCB manufacturing ensures consistency, performance, and compliance for export projects.

Pre-Production Engineering & DFM Review

Every professional PCB fabrication process starts with engineering validation. We perform full DFM/DFT checks, CAM file optimization, and layer alignment verification to eliminate production risks before manufacturing begins.

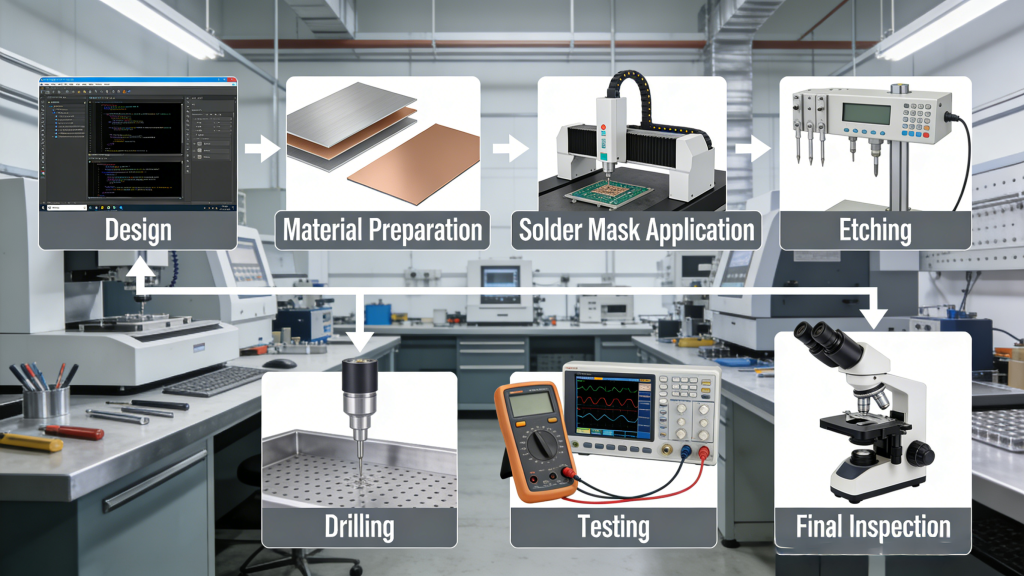

PCB DFM review and engineering analysis for PCB fabrication process

Key checks include Gerber/ODB++ validation, drill map consistency, impedance control planning, and material traceability. This step reduces rework and ensures your boards match IPC‑A‑600 and IPC‑6012 standards.

Inner Layer Imaging & Chemical Etching

Inner layers form the core circuitry of multilayer PCB manufacturing. Cleaned copper-clad laminates receive photoresist coating, UV exposure via LDI, and development to define trace patterns.

Inner layer imaging and etching in PCB fabrication process

Automated Optical Inspection (AOI) verifies each inner layer for opens, shorts, and line-width compliance before lamination. Defective panels are rejected early to avoid quality loss.

Multilayer Lamination & Stack-Up

Precision stacking uses prepreg and copper foil bonded under controlled heat (170–180°C) and pressure. This step creates a rigid, stable multilayer structure critical for high‑reliability applications.

Multilayer PCB lamination stack-up in PCB fabrication

Registration accuracy ensures layer alignment, preventing signal interference and structural failure in industrial and high‑speed designs.

CNC Drilling & Desmear Treatment

CNC drilling creates vias and through-holes with 0.1 mm precision. Desmear removes resin residue from hole walls to improve plating adhesion and long‑term reliability.

Mechanical drilling supports standard holes; laser drilling enables microvias for HDI PCBs used in compact, high‑performance devices.

Plated Through-Hole (PTH) & Copper Plating

Electroless copper deposition followed by electrolytic plating forms conductive barrels. This step establishes reliable interlayer connections essential in the PCB fabrication process.

Plated through-hole PTH and copper plating in PCB fabrication

Strict thickness control ensures consistent conductivity and thermal stability for industrial and export‑grade PCBs.

Outer Layer Imaging & Final Etching

Outer layers follow imaging, plating, and etching to form finished circuitry. Tin plating acts as an etch resist; final stripping reveals clean, precise traces.

Secondary AOI confirms trace integrity, pad geometry, and isolation before protective coatings.

Solder Mask, Silkscreen & Surface Finish

Liquid photo‑imageable solder mask protects circuits from oxidation and shorts. Silkscreen adds component labels for assembly clarity. Surface finish preserves solderability and pad integrity.

Solder mask and surface finish in PCB fabrication process flow

Surface Finish Comparison for Industrial PCB Export

FinishAdvantagesBest For
ENIGFlat, long shelf life, fine‑pitch friendlyBGA, high‑reliability, medical/industrial
HASL Lead-FreeLow cost, robust solderabilityGeneral industrial, through‑hole
OSPEco-friendly, flat, cost-effectiveHigh-volume SMT, fast assembly
Immersion SilverExcellent solderability, RF-friendlyHigh-frequency, communications

Profiling, Electrical Test & Final Packaging

Boards are routed to shape, deburred, and inspected dimensionally. 100% electrical testing verifies continuity and isolation. Final cleaning and ESD packaging ensure safe global delivery.

PCB final electrical test and export packaging for fabrication process

Certificates of conformance (COC), test reports, and material lot records are included for full traceability required by international buyers.

Conclusion

A controlled, repeatable PCB fabrication process is the foundation of reliable, export‑ready printed circuit boards. From DFM to final test, every step ensures performance, consistency, and compliance for industrial, automotive, and high‑tech applications worldwide.

Get Your Custom PCB Quote Today

Send Gerber files, layer count, quantity, and target lead time for a fast, detailed quotation. We support global export with full documentation and quality assurance.

Request PCB Quote

Contact Engineering Team
