Copper Core PCB vs. Metal Core PCB: Key Differences & Advantages

Copper Core PCB Structure - High Thermal Conductivity Copper Base

Copper Core PCB delivers superior thermal conductivity and stability for high-power electronics, while Metal Core PCB offers cost-effective thermal management for general industrial and commercial applications.

Introduction to PCB Technology

Printed Circuit Boards (PCBs) are the foundational building blocks of modern electronic devices. From consumer electronics to industrial machinery, PCBs ensure reliable electrical connectivity and mechanical support for components.

As devices become more compact and powerful, thermal management has become critical. This has driven the development of advanced substrates like Metal Core PCB and Copper Core PCB to handle higher heat loads.

What is a PCB?

A PCB mechanically supports and electrically connects electronic components using conductive copper tracks, pads, and features etched from copper sheets laminated onto a non-conductive substrate.

Evolution of PCB Materials

Traditional FR-4 PCBs work well for low-power applications but lack sufficient thermal conductivity for high-power designs. The limitations of FR-4 led to the development of Metal Core PCB and Copper Core PCB to improve heat dissipation and reliability.

Overview of Metal Core PCBs (MCPCBs)

What is a Metal Core PCB?

A Metal Core PCB uses a metal base (typically aluminum, copper, or steel) below the dielectric and circuit layers to efficiently dissipate heat.

Common Materials Used in MCPCBs

Aluminum is the most widely used material for Metal Core PCB due to its light weight, low cost, and reasonable thermal conductivity. Copper and steel are used for specialized applications.

Applications of Metal Core PCBs

Metal Core PCBs are widely used in LED lighting, automotive electronics, power converters, and telecommunications equipment where cost-effective thermal management is needed.

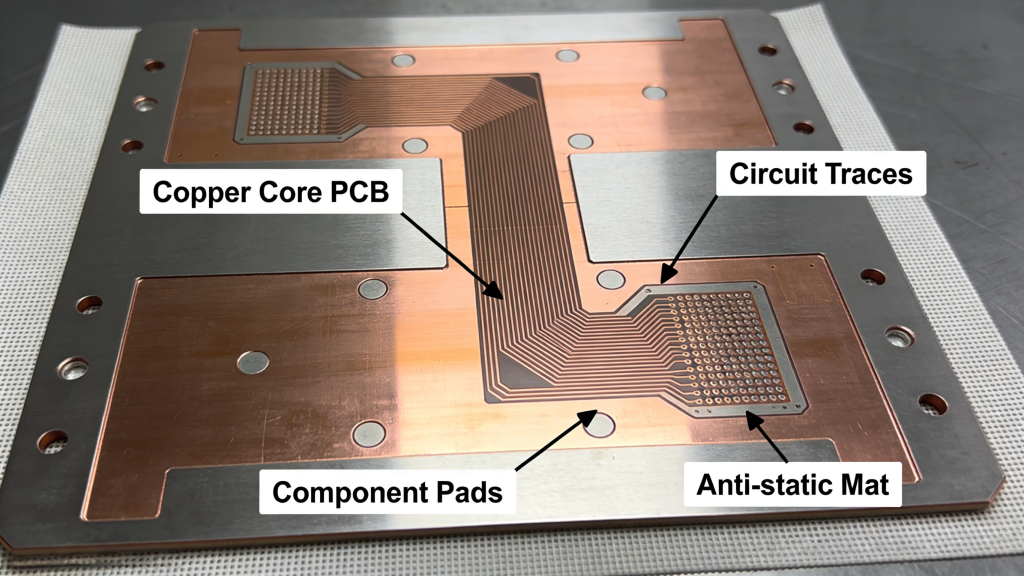

Metal Core PCB Structure - Aluminum Base, Thermal Dielectric, Copper Circuit Layer

Understanding Copper Core PCBs (CCPCBs)

What Makes Copper Core PCBs Unique?

Copper Core PCB features a pure copper base with thermal conductivity of 385–400 W/m·K, far exceeding aluminum-based Metal Core PCB.

Key Features of Copper Core PCBs

Copper Core PCB offers excellent mechanical strength, low thermal expansion, and superior electrical conductivity, making it ideal for high-power, high-frequency, and mission-critical applications.

Applications of Copper Core PCBs

Copper Core PCBs serve aerospace, defense, industrial automation, high-power LEDs, laser systems, and electric vehicle power modules.

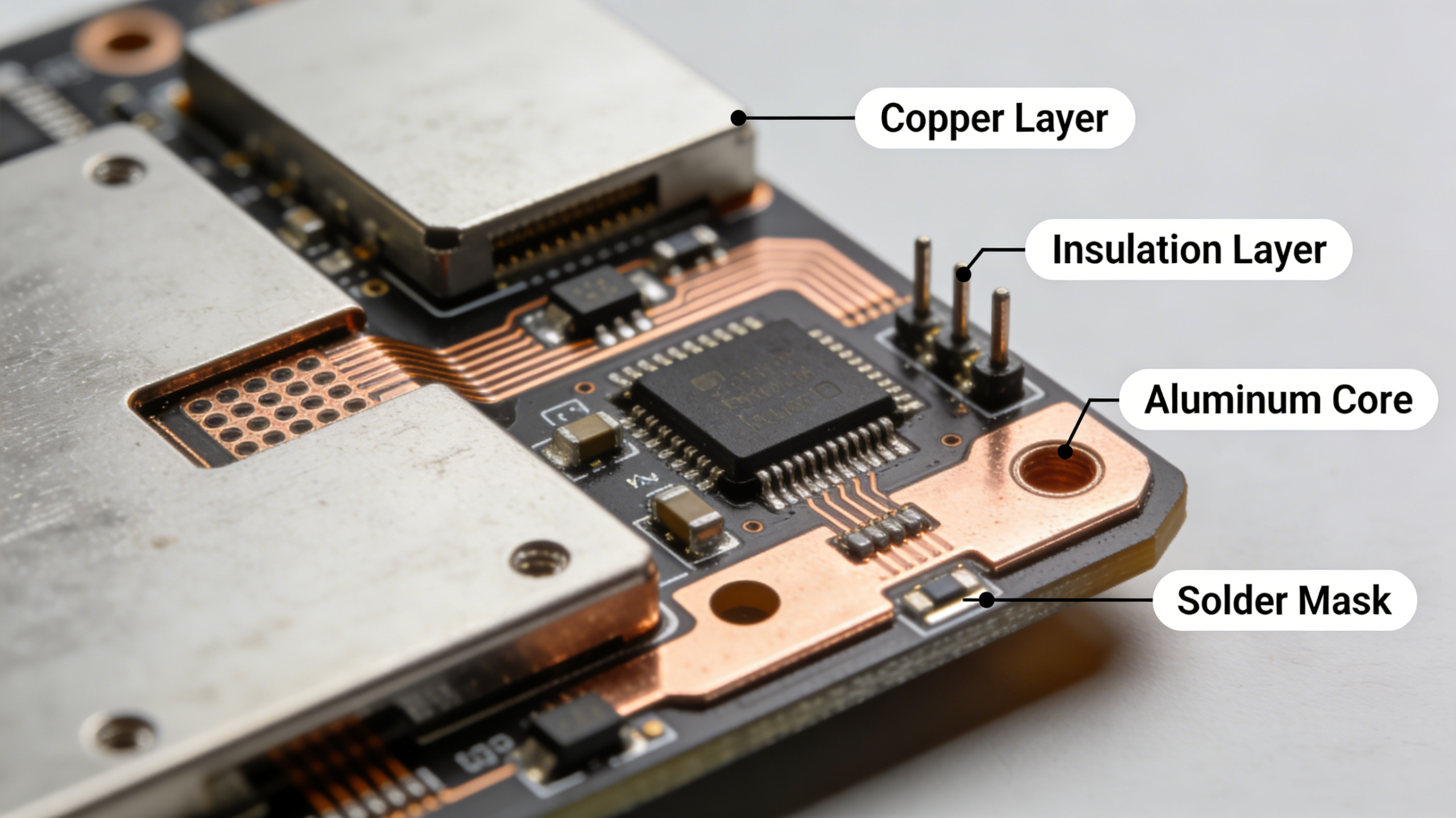

Copper Core PCB Structure - High Thermal Conductivity Copper Base

Copper Core PCB vs. Metal Core PCB: Detailed Comparison

ParameterCopper Core PCBMetal Core PCB (Aluminum)
Thermal Conductivity385–400 W/m·K150–235 W/m·K
CostHigherLower to Moderate
WeightHeavierLighter
Electrical StabilityExcellentGood
Mechanical StrengthVery HighModerate
Typical ApplicationsAerospace, Power ModulesLED, Automotive, Telecom

Thermal Conductivity

Copper Core PCB has nearly double the thermal conductivity of aluminum Metal Core PCB, providing far better heat dissipation for high-power devices.

Cost & Manufacturing

Copper Core PCB involves more complex manufacturing, leading to higher cost. Metal Core PCB (aluminum) is easier to produce and more affordable for mass production.

Electrical & Mechanical Performance

Copper Core PCB provides superior electrical conductivity and mechanical stability under thermal cycling. Metal Core PCB offers sufficient performance for most general applications.

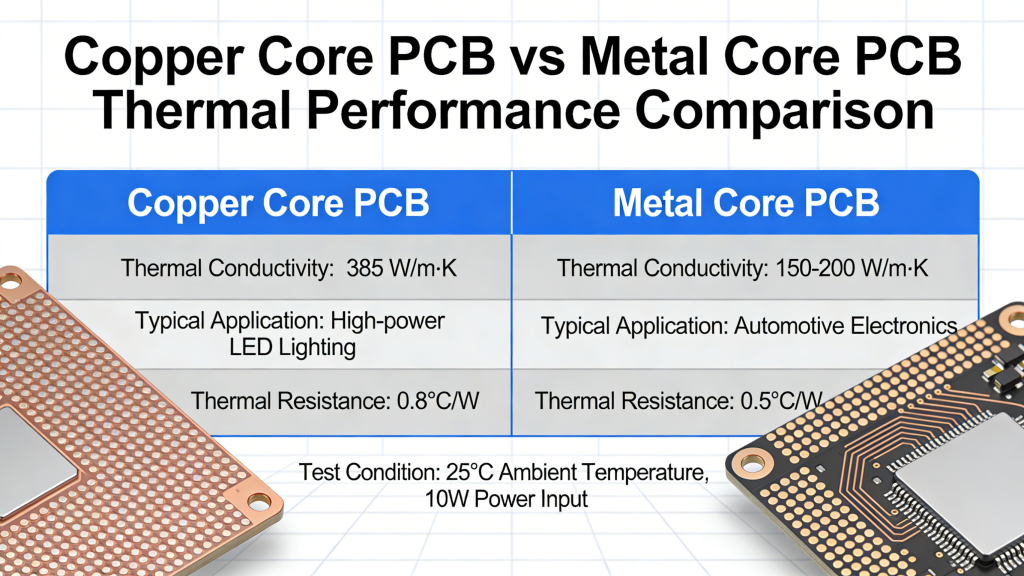

Thermal Performance Comparison Copper Core vs Metal Core PCB

Pros & Cons of Copper Core & Metal Core PCBs

Pros and Cons of Copper Core PCBs

✔ Unmatched thermal conductivity

✔ Excellent electrical performance

✔ High mechanical strength & stability

✘ Higher cost

✘ Heavier weight

Pros and Cons of Metal Core PCBs

✔ Cost-effective

✔ Lightweight

✔ Easy manufacturing & assembly

✔ Good thermal management for general use

✘ Lower thermal conductivity than copper

Choosing Between Copper Core and Metal Core PCBs

Choose Copper Core PCB if you need maximum thermal performance, high current capacity, and long-term reliability for high-power, aerospace, defense, or industrial applications.

Choose Metal Core PCB if you need a cost-effective, lightweight solution for LED lighting, automotive electronics, power supplies, and general industrial equipment.

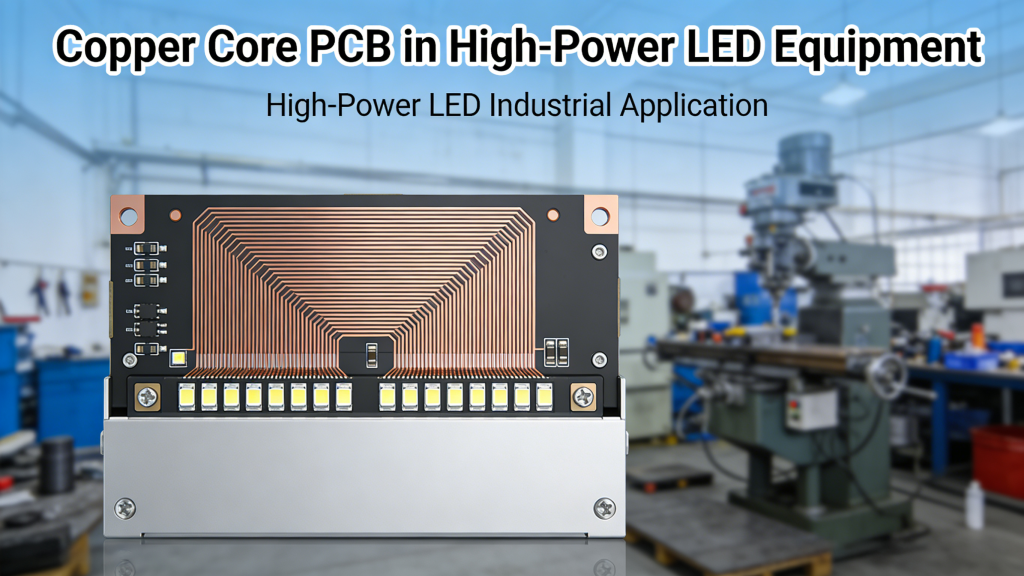

Copper Core and Metal Core PCB Applications in Various Industries

The industry is moving toward hybrid metal-composite cores, graphene-enhanced substrates, and nano-ceramic dielectrics to further improve thermal performance, reduce weight, and lower costs for both Copper Core PCB and Metal Core PCB technologies.

Conclusion

Copper Core PCB and Metal Core PCB both solve critical thermal challenges in modern electronics. Copper Core PCB leads in performance for demanding applications, while Metal Core PCB provides a practical, budget-friendly solution for mainstream designs.

Selecting the right PCB type ensures optimal performance, reliability, and cost efficiency for your electronic project.

Get Custom PCB Solutions & Free Quote

We provide professional Copper Core PCB and Metal Core PCB design, manufacturing, and assembly for global industrial buyers. Contact us today for a fast, accurate quotation and technical support.

Contact Us for Inquiry & Custom PCB Quote

Advantages of OSP PCB surface finish for fine pitch SMT

PCB OSP Surface Finish: Complete Technical Guide for Buyers & Engineers

Posted on
0 Comments
OSP (Organic Solderability Preservative) is a lead‑free, RoHS‑compliant organic coating applied to exposed copper pads on printed circuit boards to prevent oxidation and preserve solderability before SMT assembly. This guide explains PCB OSP surface finish in full: process, pros, cons, storage, assembly, comparisons, and best practices for industrial electronics manufacturing. What Is PCB Surface Finish?…
Rigid, flexible, rigid-flex and metal core PCB types

The Best PCB Manufacturer in China | PCB Prototype & Assembly Services

Posted on
0 Comments
We are a top PCB manufacturer and trusted PCB supplier in China, delivering professional PCB prototype fabrication, high-quality PCB production and full PCB assembly services for global engineers, procurement teams and industrial buyers. About Our PCB Manufacturing in China As a leading PCB manufacturer in China, we focus on high‑reliability PCB solutions for automotive, medical,…
SMT PCB Assembly Line and Automated Manufacturing Process

10 Essential Tips for Optimizing PCB Design for Manufacturing

Posted on
0 Comments
This expert guide delivers 10 actionable PCB design for manufacturing best practices to lower production cost, improve yield, speed up assembly, and ensure high‑reliability PCBs for industrial, automotive, and high‑tech applications. Introduction to PCB Design for Manufacturing PCB design for manufacturing (DFM) is a core engineering methodology that aligns PCB layout with real‑world production capabilities….
Reflow soldering oven and temperature profile for SMT PCB

Reflow Soldering vs. Wave Soldering: What’s the Difference?

Posted on
0 Comments
Soldering is a core step in PCBA manufacturing that securely bonds electronic components to printed circuit boards. Wave soldering and reflow soldering are the two dominant industrial processes. Understanding their differences helps you select the ideal method for cost, quality, and assembly type in your PCB production. What Is Wave Soldering? Wave soldering is a…
FR-4 laminate structure fiberglass epoxy copper foil

What is FR-4 Material in PCB Fabrication? The Complete Professional Guide

Posted on
0 Comments
FR-4 is the most widely used flame-retardant glass-epoxy laminate material for rigid PCB manufacturing. Defined by NEMA standards, it offers excellent electrical insulation, mechanical strength, thermal stability, and cost efficiency, making it the global industry standard for most electronic applications. What is FR-4 Material? FR-4 (Flame Retardant Grade 4) is a NEMA-defined material grade for…
PCB DFA component placement pad design solder mask

PCB DFM and DFA: Best Practices for Optimal Design

Posted on
0 Comments
Learn PCB DFM and DFA best practices to streamline manufacturing and assembly. This guide covers key design tips, common mistakes, and practical solutions for high-quality PCBs. Why PCB DFM and DFA Matter Creating a high-quality printed circuit board starts with smart design. PCB Design for Manufacturability (DFM) and Design for Assembly (DFA) are critical to…

FAQs: Copper Core PCB vs Metal Core PCB

A: Metal Core PCB mostly adopts aluminum base for heat dissipation; Copper Core PCB uses pure copper base with far higher thermal conductivity for high-demand scenarios.

A: Copper Core PCB reaches 385–400 W/m·K, while aluminum Metal Core PCB is 150–235 W/m·K.

A: It features outstanding heat dissipation, electric performance and mechanical strength, but costs more and weighs heavier.

A: It is low-cost, lightweight, easy to produce and well suited for mass production and regular thermal management needs.

A: Pick Copper Core PCB for high-power, aerospace and defense products; choose Metal Core PCB for LED, automotive and common industrial equipment.

A: The industry is developing hybrid composite cores, graphene and nano-ceramic materials to boost performance and cut costs.
