What Is the Tg Value of PCB Substrate? A Complete Guide for 2025 Designs
The Tg value of PCB substrate (glass transition temperature) defines the critical temperature where PCB materials shift from rigid glassy to soft rubbery states. This guide explains Tg value fundamentals, classification, selection rules, reliability impacts, and 2025 best practices for industrial, automotive, telecom, and aerospace designs.
What Is Tg Value of PCB Substrate

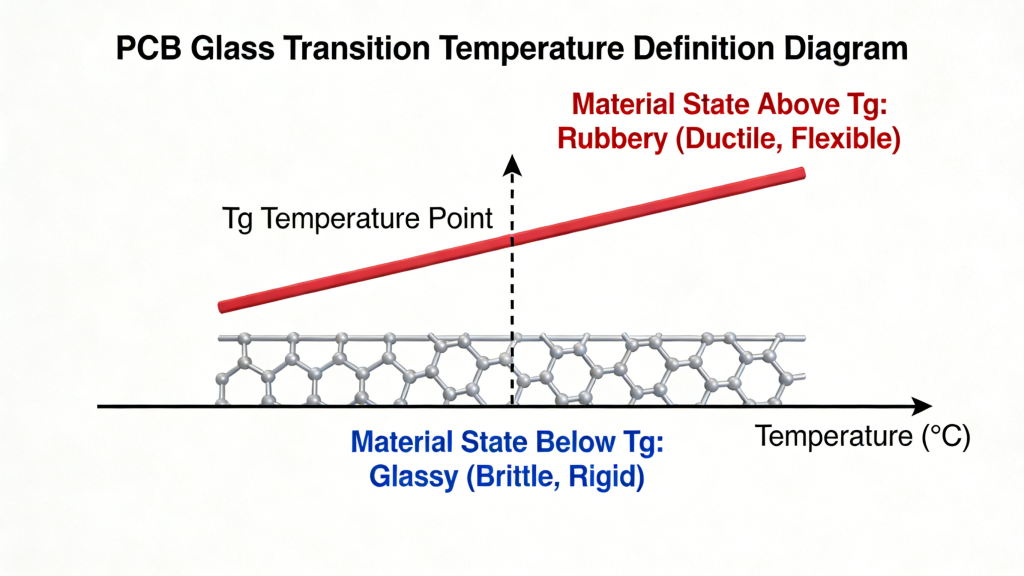

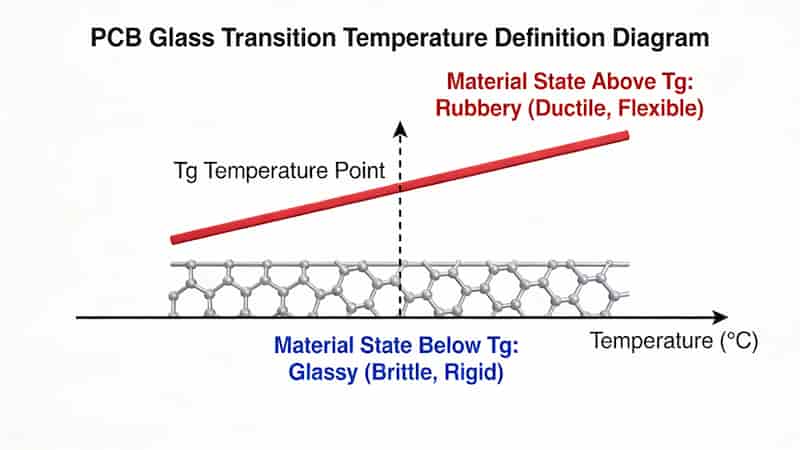

The Tg value of PCB substrate is the glass transition temperature at which polymer-based PCB materials change from a rigid glassy state to a flexible rubbery state. Below Tg, substrates maintain high rigidity, dimensional stability, and mechanical strength. Above Tg, materials soften, CTE rises sharply, increasing risks of warpage, delamination, and via cracking.
Tg value is measured in °C and is a core thermal parameter for lead‑free soldering, multilayer PCBs, HDI, and high‑reliability applications.

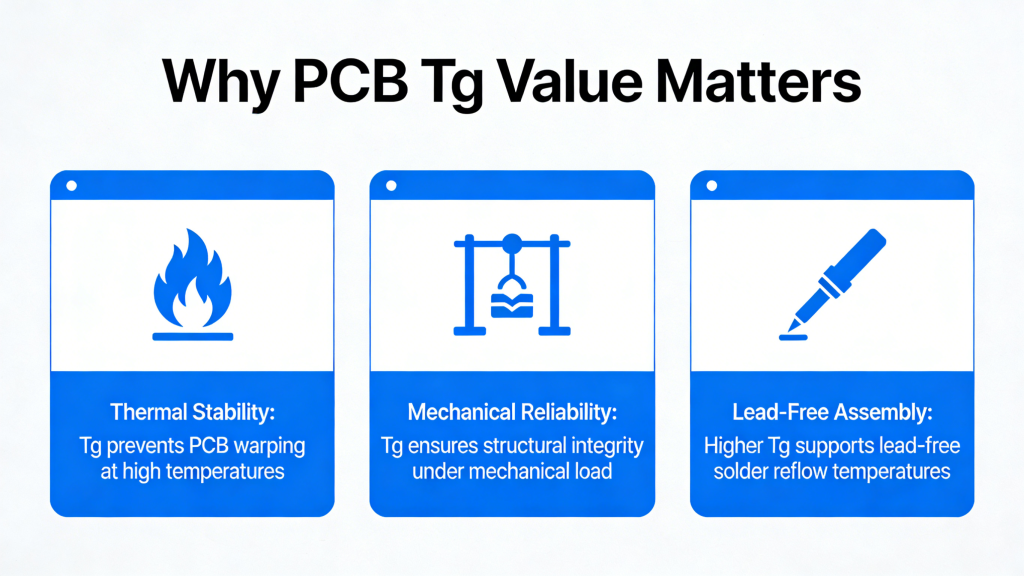

Why Tg Value Is Critical for PCB Reliability
Correct Tg value of PCB substrate directly ensures PCB performance across manufacturing and operation.
- Thermal stability: Resists deformation during reflow and thermal cycling
- Mechanical reliability: Reduces Z‑axis expansion and via failure
- Electrical performance: Stable dielectric properties under high heat
- Lead‑free assembly compatibility: Meets 245–260°C peak temperatures
- Lifespan: Extends service life in harsh environments
Tg Value Classification & Material Matching
Industry standard Tg value ranges for PCB substrates in 2025:
- Standard Tg: 130–140°C, general consumer electronics
- Mid Tg: 150–160°C, industrial and communication devices
- High Tg: 170–180°C, automotive, server, telecom, multilayer PCBs
- Ultra‑high Tg: 190–260°C+, aerospace, military, high‑frequency, extreme environments
2025 Tg Value Selection Guide for Engineers

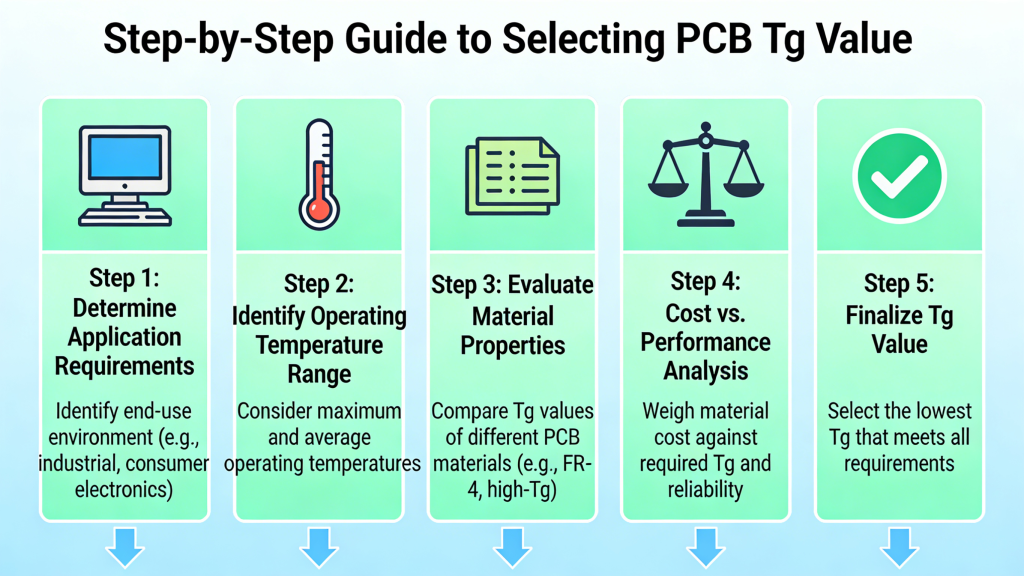

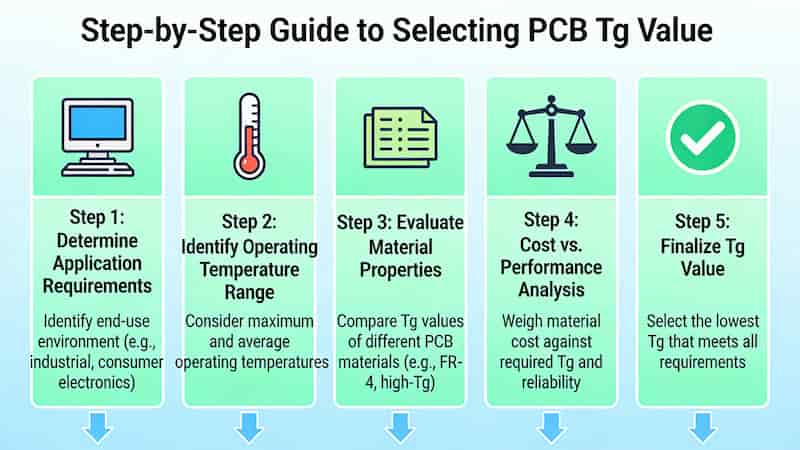

Follow these steps to choose the right Tg value of PCB substrate:
- Set max operating temp + 20–25°C safety margin = minimum Tg
- Lead‑free soldering requires Tg ≥170°C
- Multilayer/HDI designs prefer high Tg materials
- Match Tg to application environment and lifespan

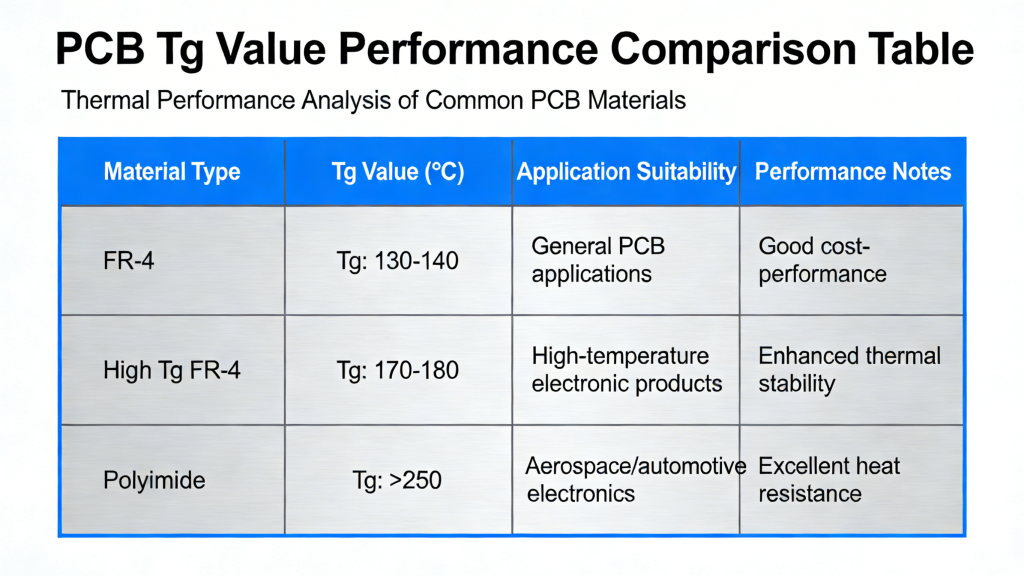

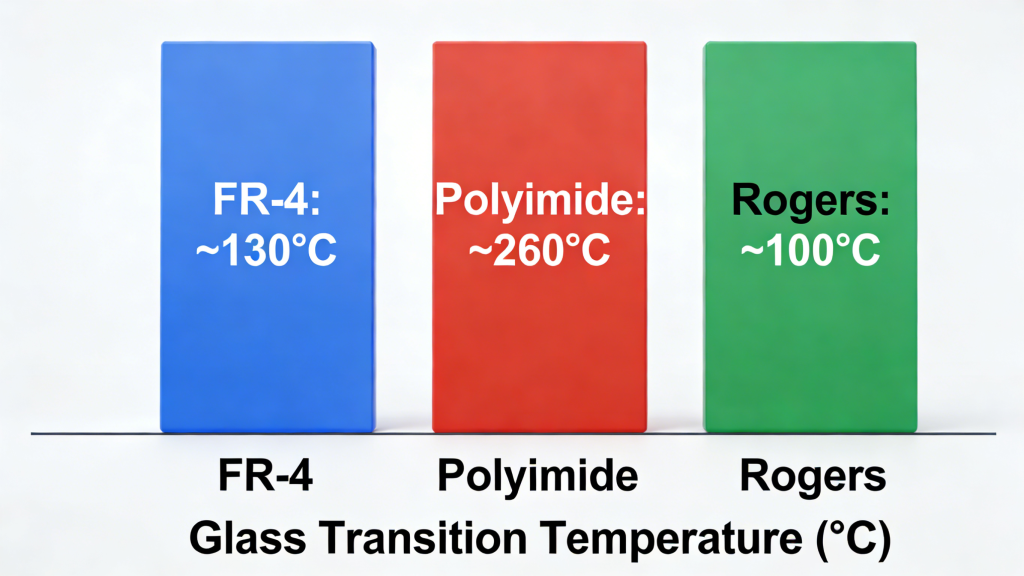

Tg Value Performance Comparison Table
| Tg Grade | Tg Value (°C) | Typical Materials | Applications | Lead‑Free Safe |
|---|---|---|---|---|
| Standard | 130–140 | Standard FR‑4 | Consumer electronics | No |
| Mid | 150–160 | Mid‑Tg FR‑4 | General industrial | Marginal |
| High | 170–180 | High‑Tg FR‑4 | Automotive, Telecom | Yes |

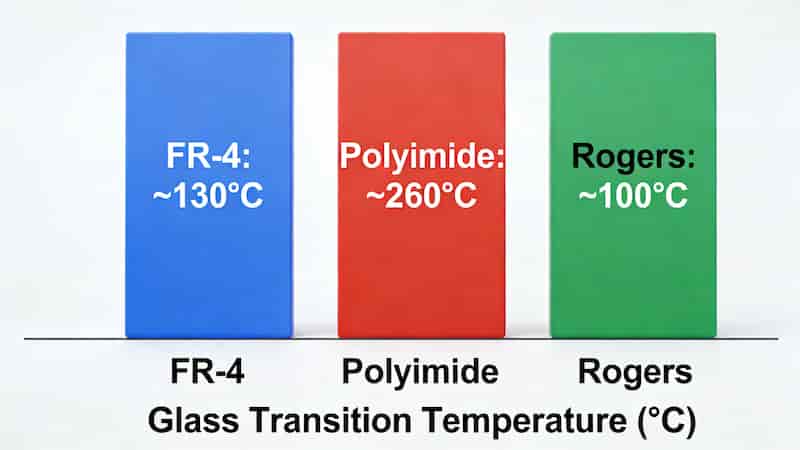

| Ultra High | 190–260+ | Polyimide, Rogers | Aerospace, Defense | Yes |
Summary
The Tg value of PCB substrate is a foundational parameter for thermal stability, mechanical reliability, and electrical performance. Selecting the proper Tg based on operating temperature, assembly process, and application ensures robust, long‑life PCBs. We provide tailored Tg value solutions for 2025 high‑reliability designs.
FAQ About Tg Value of PCB Substrate
Q1: What is the ideal Tg value for lead‑free PCBs?
A: ≥170°C is recommended for reliable lead‑free assembly.
Q2: Does higher Tg always mean better performance?
A: Higher Tg improves heat resistance but may increase cost and brittleness; match to your needs.
Q3: How does Tg value affect multilayer PCBs?
A: High Tg reduces Z‑axis expansion and lowers via‑cracking risk in multilayer designs.
