How to Use PCB Stencil: Professional Step-by-Step Guideline
This professional guide explains PCB stencil usage for SMT assembly, including preparation, alignment, printing, inspection, cleaning, maintenance and best practices to ensure high-quality solder paste deposition for prototypes and mass production.

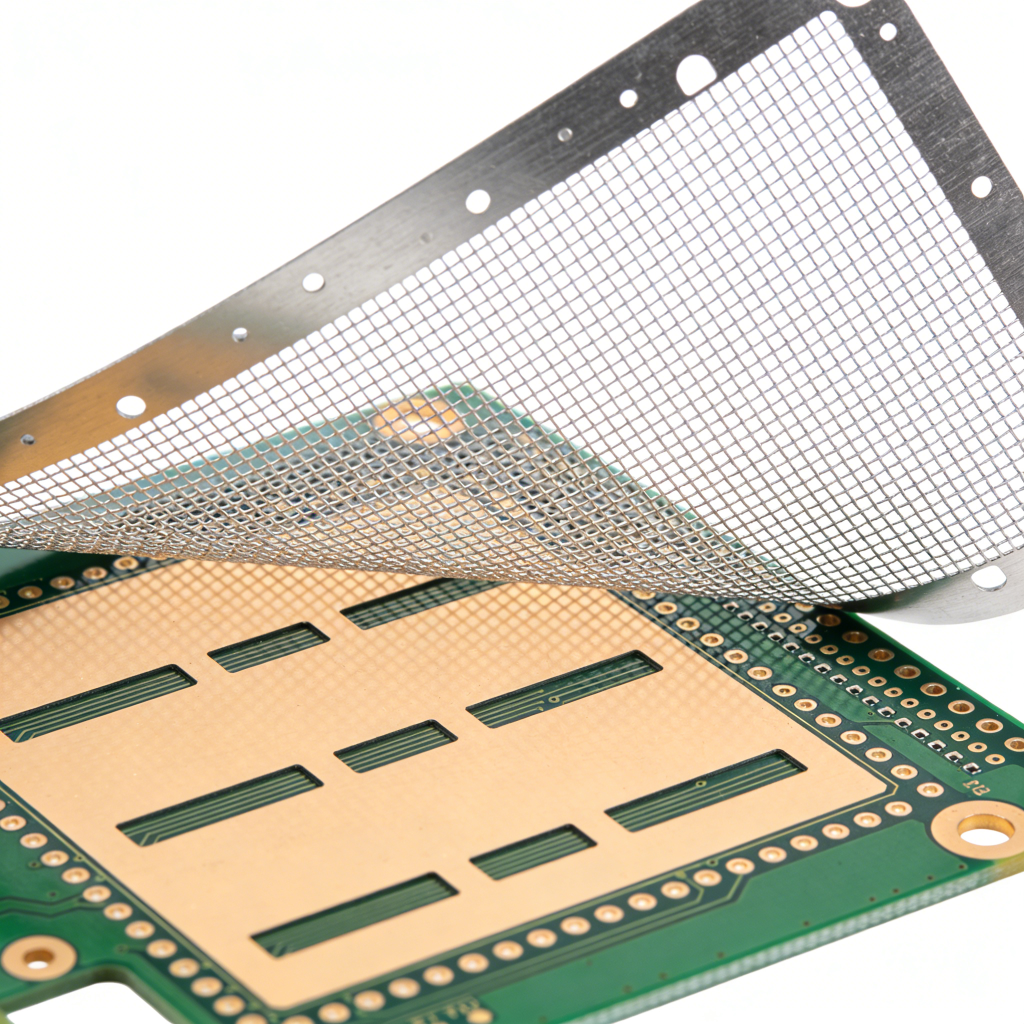

What is PCB Stencil
Stencils, also known as SMT stencil, are specialized molds for SMT assembly. Their primary function is to assist solder paste deposition, transferring a precise volume of solder paste to exact locations on the bare PCB.
As electronics shrink, PCBs become smaller, with components evolving from 1206/0805 to 0603/0402 packages. Traditional soldering irons are no longer efficient. PCB stencil enables fast, high-quality soldering for prototypes and small-batch production.
Pre-Use Preparation & Essential Tools
Proper preparation ensures stable PCB stencil performance and high-quality printing.
Bare PCB Handling: Unpack only required quantity to prevent pad oxidation. Wear gloves to avoid contamination, especially for OSP-finished PCBs.
Stencil Inspection: Verify matching PCB design, clean apertures, no damage or deformation. Stencils come in framed and frameless types.
Solder Paste Preparation: Thaw naturally at room temperature for 2–4 hours; stir manually (about 4 minutes) or by machine (1–3 minutes) before use.

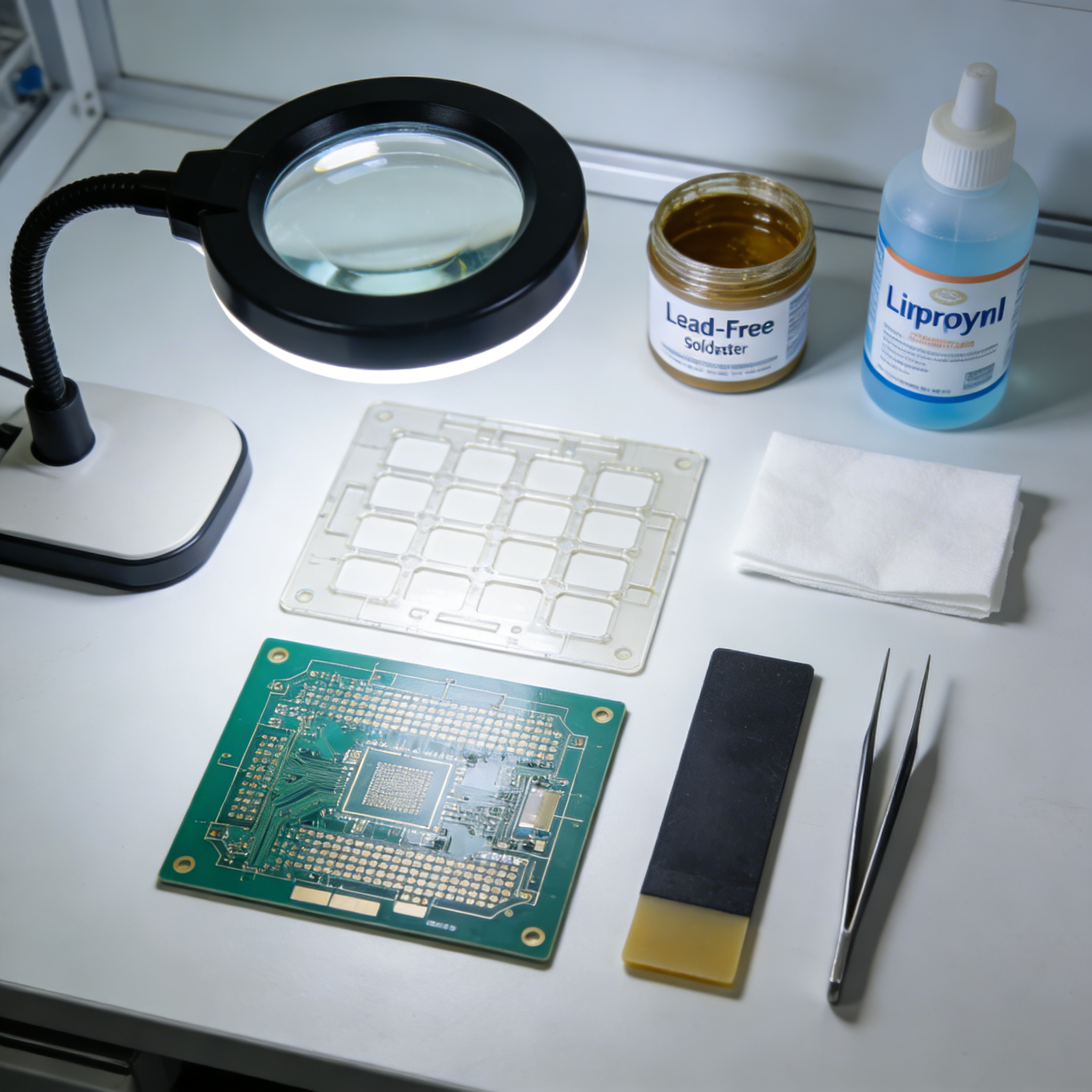

Required Tools:
- Matched PCB stencil
- Lead‑free solder paste
- Squeegee / scraper
- Fixture for PCB fixing
- Hot air gun or thermostat heater
- Cleaning wipes, alcohol, brush
- Tweezers for component placement
- Clean, flat working surface

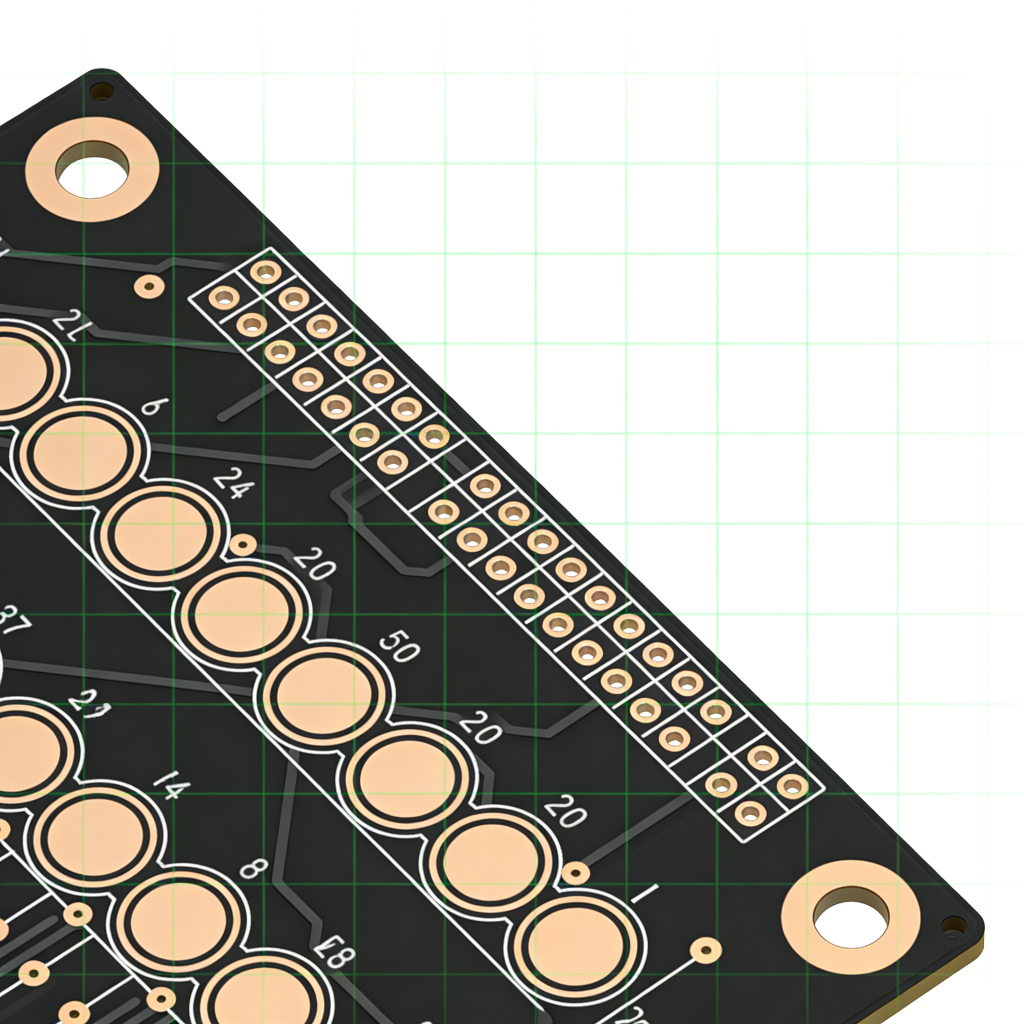

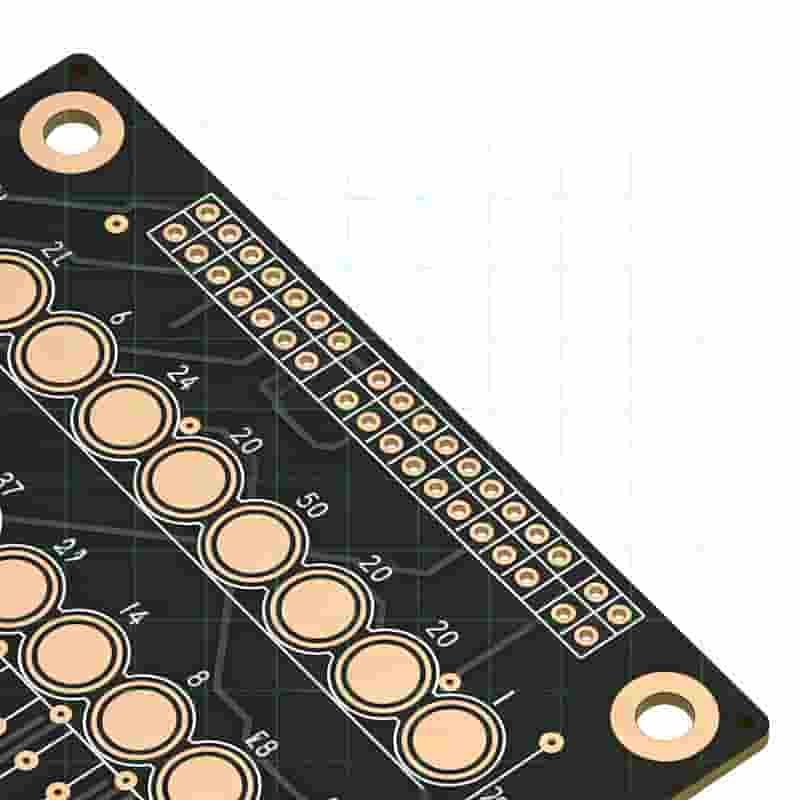

Step-by-Step Solder Paste Printing Process
Follow these steps for reliable PCB stencil printing:
1. Solder Paste Tempering: Remove from refrigerator and allow natural warming to room temperature.
2. Pre‑Print Check: Confirm PCB and stencil match; clean blocked apertures with alcohol and lint‑free wipes; check stencil tension.
3. Alignment: Match fiducial (Mark) points between PCB and stencil for precise positioning.
4. Printing: Fix PCB and stencil; apply solder paste evenly across apertures with a squeegee at a consistent angle.
5. Stencil Removal: Lift stencil vertically without dragging to avoid smearing.
6. Component Placement: Use tweezers to mount components according to BOM.
7. Reflow: Heat with hot air gun or thermostat (about 250°C) until solder paste melts; cool slowly.
8. Inspection & Cleaning: Check solder joints; clean PCB with cleaner if needed.
Printing Tips: Clean stencil every 3–5 prints; clean defective PCBs carefully to avoid pad damage.
PCB Stencil Cleaning
Clean PCB stencil immediately after use to prevent aperture blockage:
- Recover remaining solder paste from stencil surface
- Wipe both sides with alcohol and specialized stencil wipes
- Use soft brush to clean apertures gently from top to bottom, left to right
- Dry completely before storage

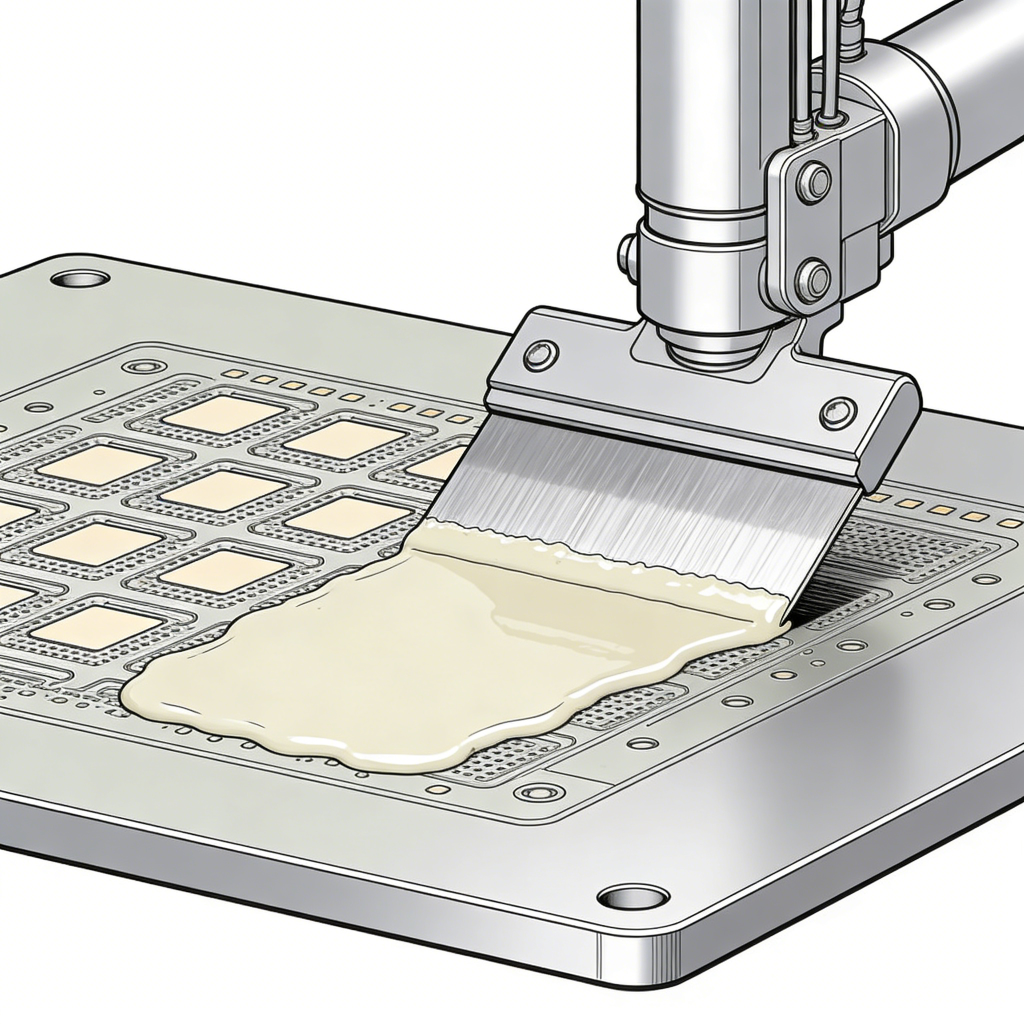

SMT Stencil Maintenance
Regular maintenance extends PCB stencil lifespan and ensures accuracy:
- Inspect for scratches, deformation or damage under light after each use
- Re‑clean if paste residue remains in apertures
- Store in dry, dust‑free protective case
- Avoid bending or heavy pressure during handling
Service Life & Replacement
A high‑quality PCB stencil can last up to 100,000 prints. Misuse reduces lifespan and precision. Replace stencils that reach service life or show damage; do not use expired or deformed stencils.
Summary
Mastering PCB stencil usage improves soldering efficiency, quality and consistency for SMT assembly. Proper preparation, alignment, printing, cleaning and maintenance ensure reliable performance and long service life.
Whether for prototypes, small batches or mass production, correct use of PCB stencil reduces defects, lowers costs and speeds up production.
