How to Solder On Flex PCB? Complete Professional Guide

Flux application process for flex PCB soldering and SMT assembly

Learn professional flex PCB soldering techniques, temperature control, defect prevention, and step-by-step processes to ensure reliable, long-lasting assemblies for industrial and electronic applications.

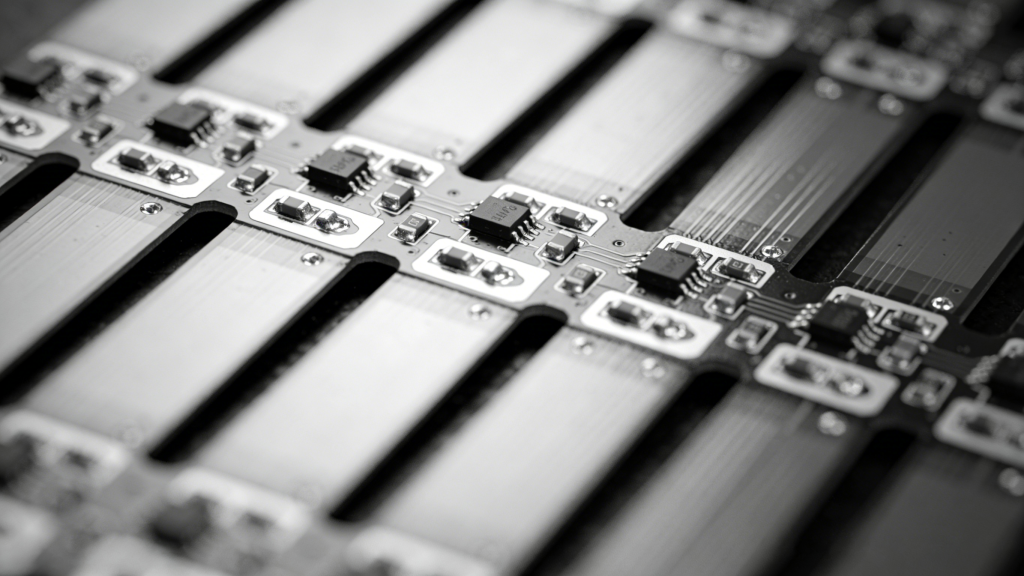

Why Flex PCB Soldering Is Different From Rigid PCBs

Flex PCBs use thin polyimide substrates that are highly sensitive to heat and mechanical stress. While basic solder principles match rigid boards, flex PCB soldering demands strict thermal control, special fixturing, and adjusted process parameters.

Improper soldering causes delamination, blistering, pad lifting, or permanent damage. Unlike standard PCBs, flex PCB materials cannot withstand high temperatures or prolonged heat exposure.

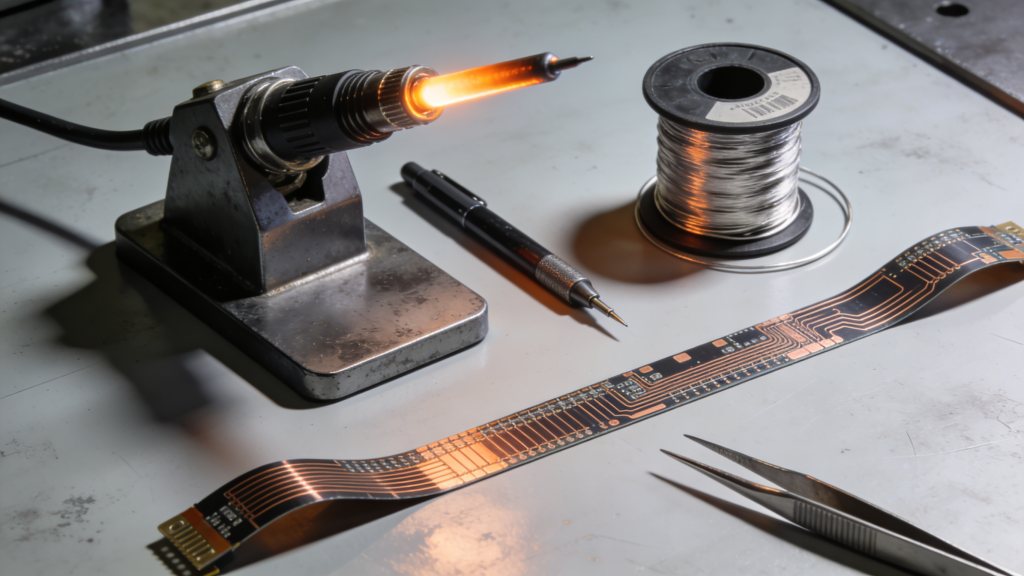

Flex PCB polyimide structure compared with rigid PCB for soldering analysis

9 Professional Guidelines for Soldering on Flexible PCB

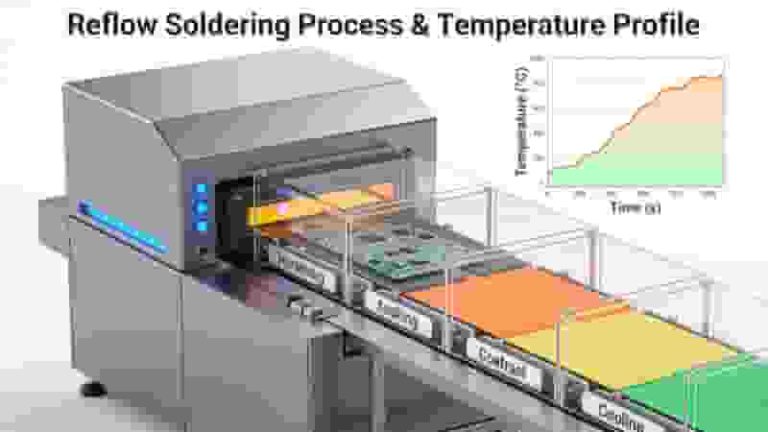

1. Use Correct Temperature Profiles

Never use standard rigid PCB temperature settings for flex PCB soldering. Typical single-edge flex joints require 330°C – 400°C. Always use the lowest effective temperature to prevent substrate damage.

2. Strict Heat Control During Assembly

Thin flex PCB construction requires effective heat dissipation. Use high surface-area components and compact layouts to shorten thermal paths and avoid heat buildup during flex PCB soldering.

3. Avoid Layer Stacking & I-Beam Effect

Stacking conductors increases thickness and creates stress. Spread signal and return lines to reduce EMI effects while preserving flex PCB flexibility during soldering.

4. Remove Surface Residues

Use a flux pen to clean oxides, improve wetting, and prevent copper oxidation. Proper flux ensures strong, reliable joints in every flex PCB soldering job.

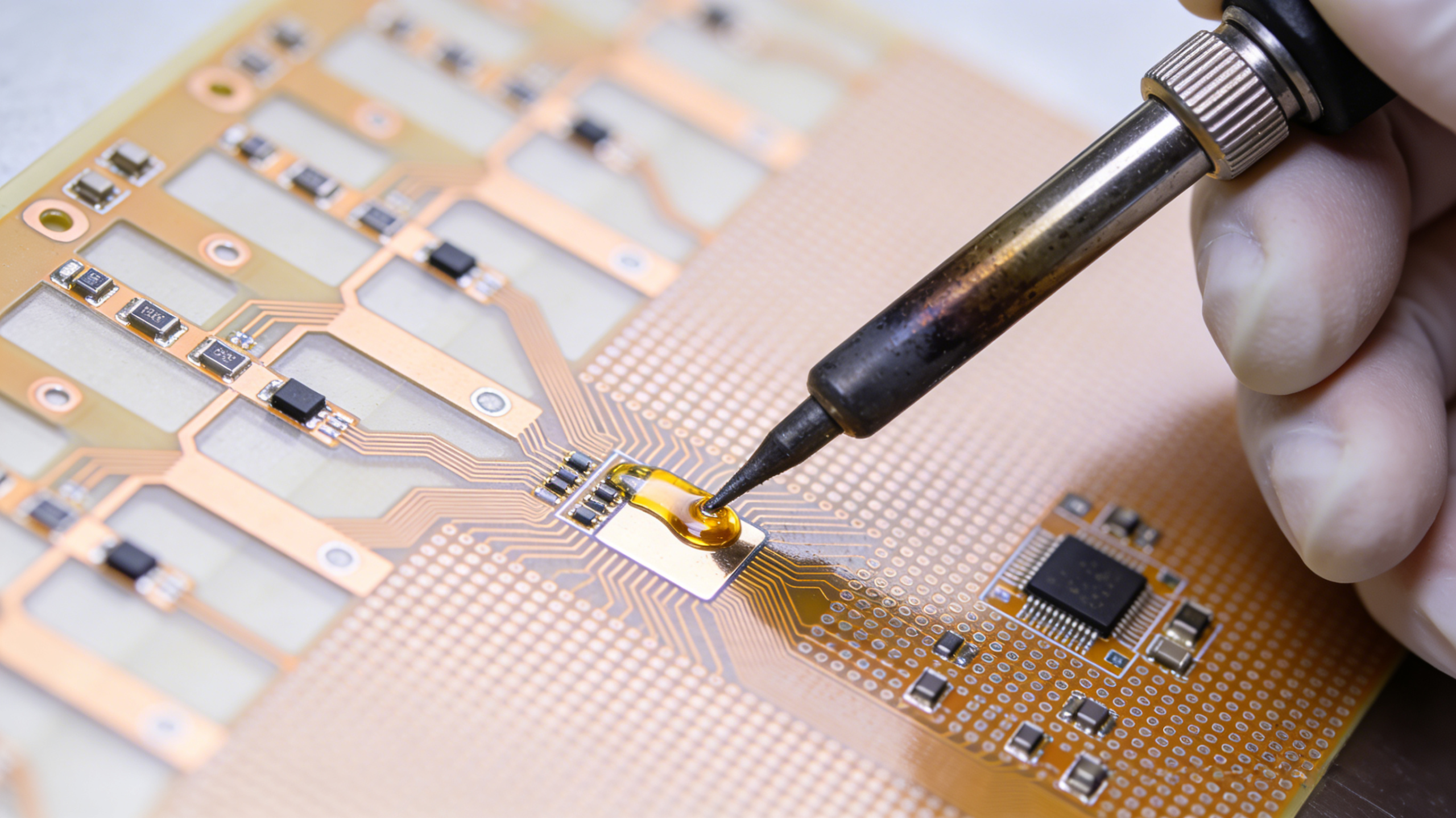

Flux application process for flex PCB soldering and SMT assembly

5. Precise Solder Paste Printing

Solder paste printing is critical for SMT flex PCB soldering. Use calibrated SMT stencils to ensure accurate paste volume and perfect pad alignment.

6. Soldering SMT Components

Clean pads with flux → apply solder paste → place components → solder with controlled heat. This sequence ensures stable flex PCB component attachment.

7. Prevent Bending During Soldering

Reinforce the flex PCB back with tape or transparent film to eliminate edge stress and avoid deformation while soldering components.

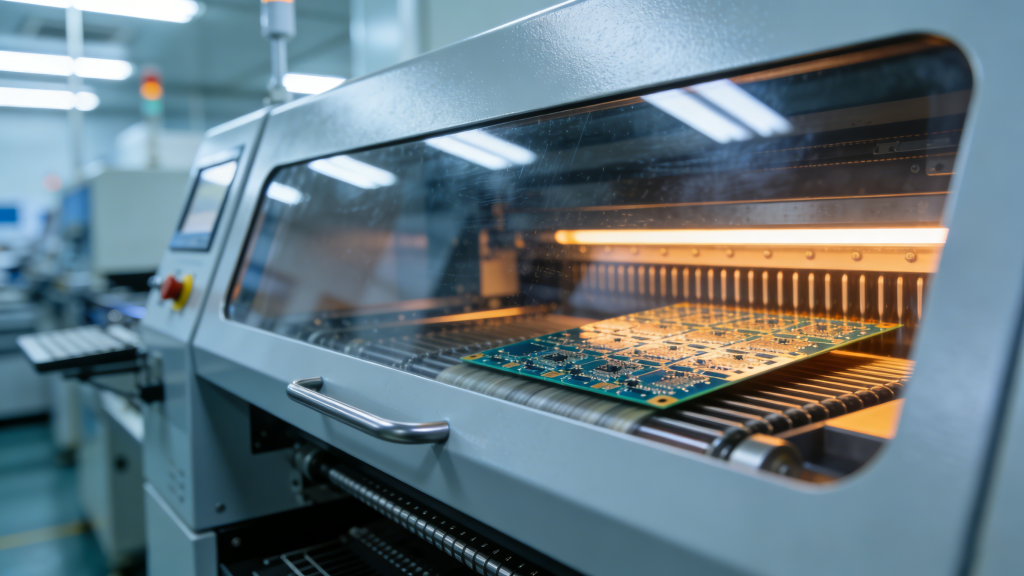

Flex PCB fixturing and reinforcement during soldering process

8. Clean Flux Residues Properly

Remove non-no-clean flux residues to avoid corrosion. Failure to clean flex PCB assemblies leads to long-term reliability risks.

9. Allow Tolerance for Stiffeners & Coverlay

Remove excess adhesive after lamination to simplify flex PCB soldering. Design stiffeners and coverlayers with sufficient dimensional tolerance.

How to Solder Flex PCB by Hand (DIY)

For engineers, makers, and prototypers, manual flex PCB soldering requires these tools:

  • Temperature-controlled soldering iron
  • Solder paste (Sn43Pb43Bi14 or Sn63Pb37)
  • No-clean flux pen
  • Hot air pencil or rework station
  • Tweezers, fixturing tape, and flat work surface

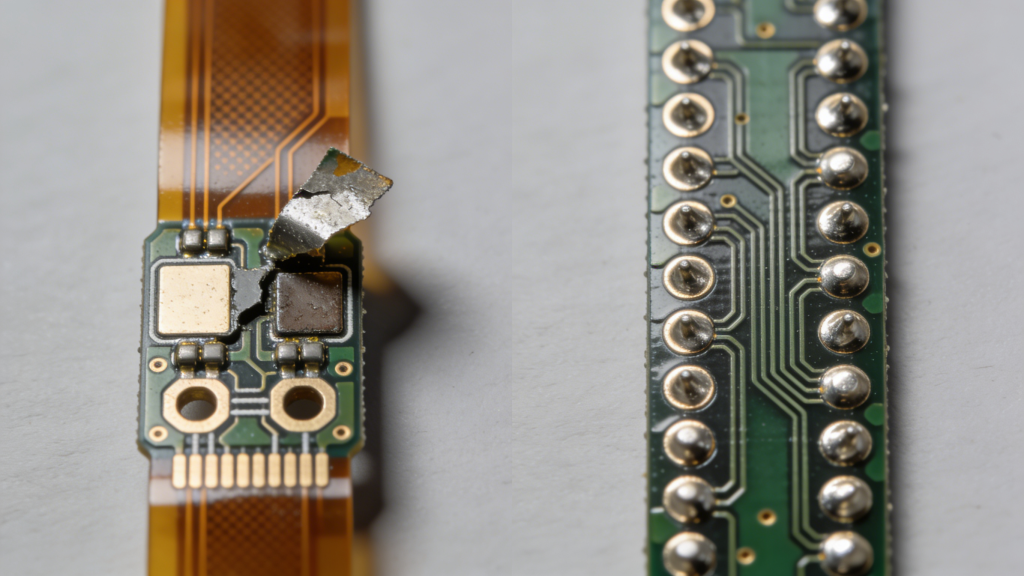

Hand soldering tools kit for flex PCB and SMT assembly work

Common Defects in Flex PCB Soldering & Prevention

DefectCausePrevention
DelaminationExcess heatLower temp, shorten heat time
Pad LiftingStress or high heatFixture flex PCB properly
Cold JointsInsufficient heat/fluxUse correct flux and temp

Conclusion

Flex PCB soldering requires specialized processes different from rigid PCB assembly. By following correct temperatures, heat management, fixturing, and cleaning steps, you can achieve high-quality, reliable flex PCB assemblies.

Mastering these techniques reduces failures, improves performance, and extends the service life of flexible circuits in consumer, industrial, and medical electronics.

Need Professional Flex PCB Soldering & Assembly?

We provide reliable flex PCB manufacturing, prototyping, and SMT assembly for global buyers. Get expert support and competitive pricing today.

Request a Quote | Ask Technical Questions

China Custom PCB Manufacturer Factory Production Line

China Custom PCB Manufacturer – Full-Service PCB Manufacturing & Assembly

Posted on
0 Comments
As a top China custom PCB manufacturer, we deliver high-precision, cost-effective custom PCB manufacturing for prototypes to mass production. With certified facilities, strict quality control, and global delivery, we support industrial, automotive, medical, and consumer electronics projects worldwide. The Importance of Custom PCB Manufacturing for Electronics Innovation Consumer electronics, industrial equipment, and automotive systems increasingly…
PCB Prototype Quality Testing - AOI Electrical Impedance Verification

PCB Prototype Manufacturing: The Complete 2025 Technical Guide for Engineers & Buyers

Posted on
0 Comments
PCB prototype manufacturing is the critical first step in electronic product development. This professional guide covers full processes, materials, DFM, testing, standards, and selection tips to help you build reliable, production-ready prototypes efficiently. Introduction to PCB Prototypes PCB prototype manufacturing validates design functionality, optimizes performance, and reduces risks before mass production. For engineers and procurement…
PTH, blind via, buried via comparison diagram for PCB design

Blind Vias & Buried Vias in PCBs – The Complete Technical Guide

Posted on
0 Comments
Blind vias and buried vias enable superior signal routing, component density, electrical performance, and simplified stackups for complex high‑speed designs. This guide defines both via types, explains key differences, design rules, manufacturing, applications, and implementation best practices for engineers and buyers. Introduction As printed circuit boards grow more complex and highly integrated, advanced via structures…
Single-layer PCB structure diagram with one copper layer and component mounting

Single-layer PCB vs. Double-sided PCB: How to Choose?

Posted on
0 Comments
Discover the differences between single-layer PCB, double-sided PCB, and multilayer PCBs with our expert guide. Learn their applications, advantages, and how to choose the right PCB for your project. Introduction Printed Circuit Boards (PCBs) are the foundation of modern electronics, serving as the critical platform that connects and powers components in devices ranging from simple…
FR-4 PCB 2025 trends high Tg halogen free multilayer

Why Choose FR-4 as Your PCB Material in 2025? The Definitive Engineer’s Guide

Posted on
0 Comments
FR-4 remains the most trusted, cost-effective, and versatile PCB substrate for global industrial, automotive, consumer, and medical electronics. This guide explains key electrical, mechanical, thermal, and economic reasons to select FR-4 PCB for your 2025 projects. What is FR-4 PCB Material? FR-4 (Flame Retardant 4) is a fiberglass-reinforced epoxy laminate, the global standard for printed…
Plated Half-Hole PCB Overview Castellated Holes

Understanding Plated Half-Holes (Castellated Holes) in PCB Design

Posted on
0 Comments
Plated half-holes (also known as castellated holes) offer a space-efficient, reliable method for interconnecting PCB modules through direct soldering. Positioned at board edges, they simplify assembly, improve alignment, and boost mechanical stability compared to traditional bottom pads. This guide covers structure, design rules, fabrication, benefits, applications, and best practices for engineers and buyers. What Are…

FAQs About Flexible PCB Soldering Technology

A: Flex adopts thin polyimide substrate sensitive to heat and mechanical stress; overheating easily triggers delamination, blistering and pad lifting, so parameters need customized adjustment.

A: Single-edge flex solder joints adopt 330°C–400°C, apply the minimum available temperature to protect polyimide material.

A: Paste protective tape or transparent backing film on flex bottom for reinforcement to stabilize board shape and reduce assembly stress.

A: Excessive heating or mechanical stress leads to pad peeling; fix flex tightly and shorten heating duration with optimized temperature.

A: Prepare temperature-controlled iron, designated solder alloy, flux pen, hot air rework station, tweezers and fixing fixture tape.

A: Remaining flux will gradually corrode copper traces and pads, bringing hidden reliability trouble for long-term usage of flexible circuits.

A: Cut down peak temperature and shorten heat exposure time, optimize thermal curve and avoid concentrated local overheating.

A: Use precisely calibrated stencil to control paste volume and guarantee accurate pad alignment for stable SMT soldering quality.
