What is a Surface Mount Device or SMD Component Package?

SMD Package Types for PCB Assembly

A Surface Mount Device (SMD) component package is a standardized enclosure designed for direct soldering onto PCB surfaces, enabling high-density assembly, miniaturization, and automated manufacturing in modern electronics.

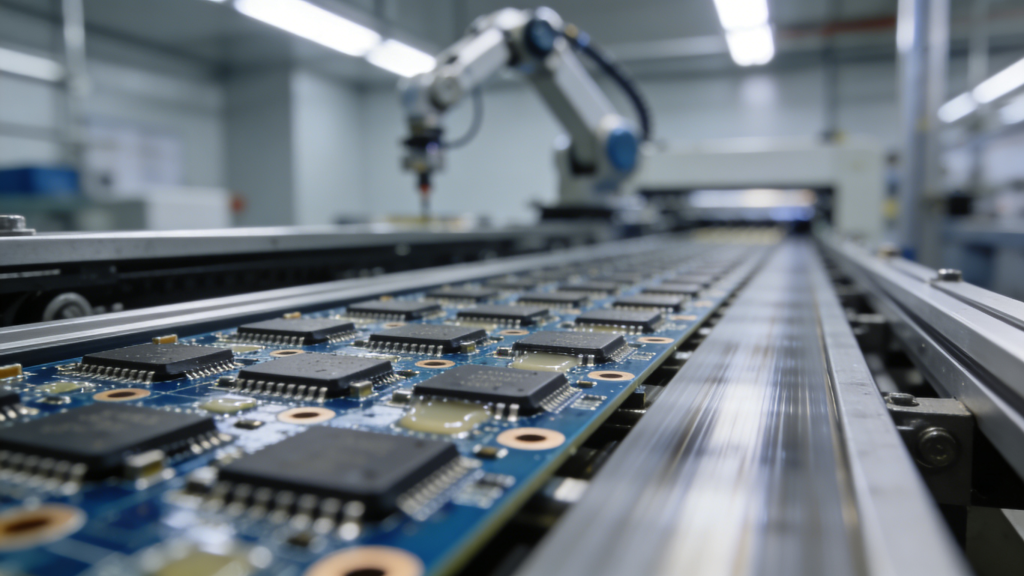

SMD Component Package Overview on PCB Assembly

What Is an SMD Component Package?

SMD stands for Surface Mount Device, referring to electronic components designed exclusively for Surface Mount Technology (SMT) assembly. An SMD component package is the physical housing that protects internal chips, provides electrical connections, supports heat dissipation, and enables automated placement onto printed circuit boards.

Unlike through-hole components, SMD packages require no drilled holes. They are soldered directly to copper pads on PCB surfaces, making them the foundation of compact, high-performance electronic devices.

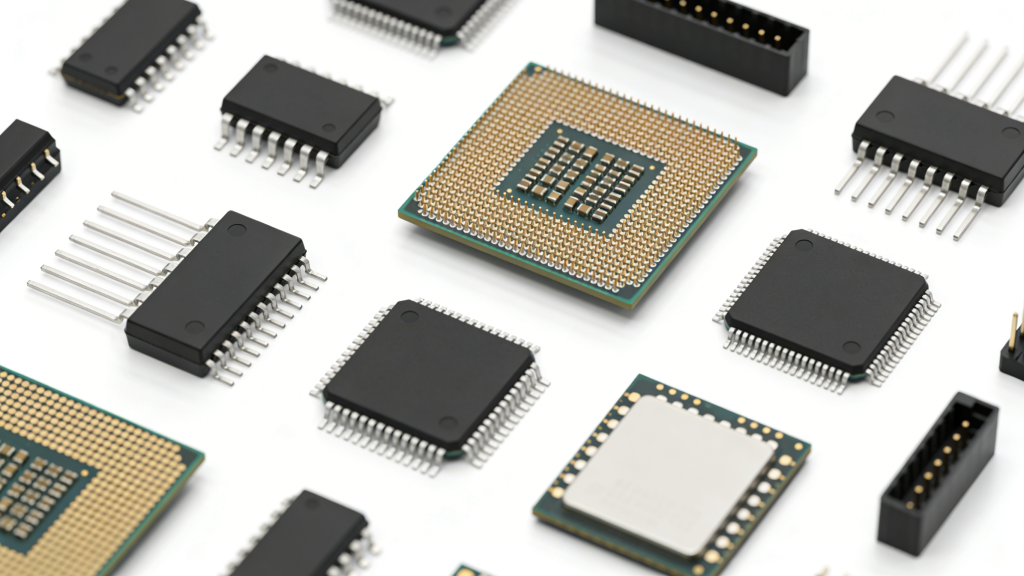

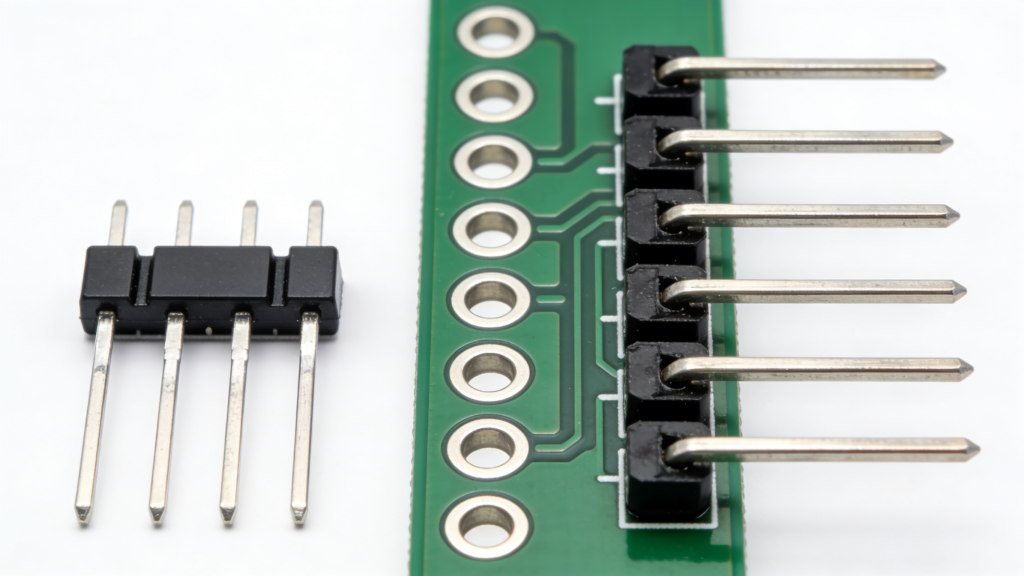

SMD vs Through-Hole Components on PCB

Key Differences: SMD vs SMT

Many people confuse SMD and SMT. Here is a clear distinction:

  • SMD: Surface Mount Device – the actual electronic component used in assembly
  • SMT: Surface Mount Technology – the automated process of mounting SMD components onto PCB
TermFull NameCategory
SMDSurface Mount DeviceComponent
SMTSurface Mount TechnologyAssembly Process
SMCSurface Mount ComponentComponent
SMPSurface Mount PackageComponent Housing

Advantages of SMD Components & SMT

SMD components and SMT assembly dominate modern electronics manufacturing due to these benefits:

  • Up to 60-80% smaller size and lighter weight than through-hole parts
  • Higher PCB assembly density for compact device design
  • Better high-frequency performance and lower electromagnetic interference
  • Stronger anti-vibration and higher reliability with low solder defect rates
  • Fully automated production supporting mass manufacturing
  • Cost reduction of 30-50% through material and labor savings

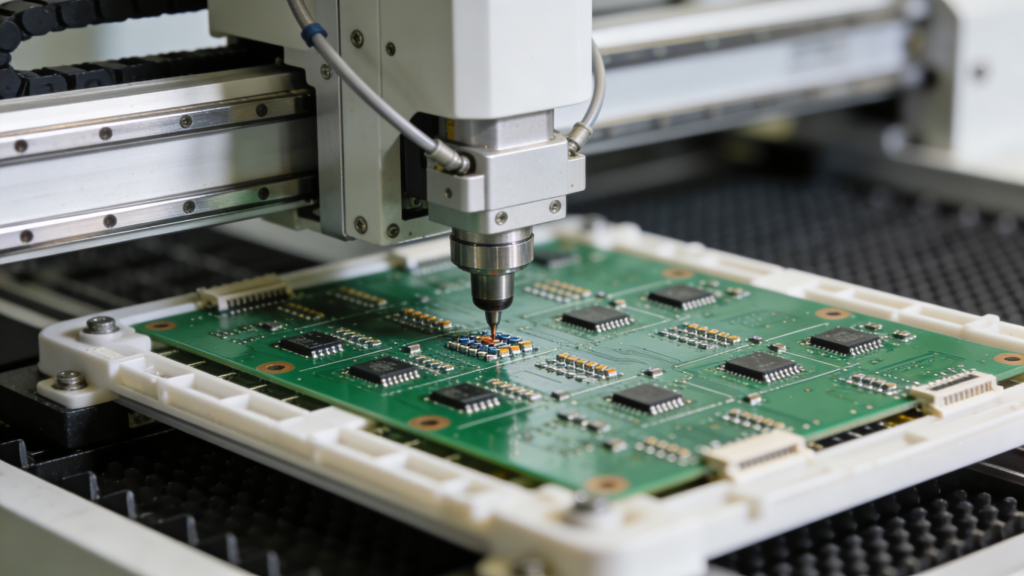

Common SMD Component Types on PCB

Common Types of SMD Components

Passive Components

  • Chip Resistor (R): Standard surface mount resistors with compact SMD packages
  • MLCC Capacitor (C): Multi-layer ceramic capacitors, the most widely used SMD component
  • Inductor (L): Compact coil components for filtering and energy storage
  • Crystal Oscillator (X): Provides stable clock signals for circuits

Active Components

  • Diode / LED (D): Rectification and lighting functions in small SMD packages
  • Transistor (Q): SOT-23, SOT-223 packages for switching and amplification
  • Integrated Circuit (IC): Complex functions in QFP, BGA, CSP SMD packages

Main SMD Component Package Types

  • SOP / SOIC: Small Outline Package – standard low-pin ICs
  • QFP: Quad Flat Package – high-pin-count logic ICs
  • BGA: Ball Grid Array – high-performance processors with bottom solder balls
  • CSP: Chip Scale Package – near-chip-size SMD packaging
  • LCCC / CLCC: Leadless ceramic chip carriers for high-reliability use
  • QFN: Quad Flat No-leads – compact, thermally efficient SMD package

Standard SMD Component Sizes (Imperial & Metric)

SMD SizeMetric (mm)Inch
12063.2 × 1.60.12 × 0.06
08052.0 × 1.250.08 × 0.05
06031.6 × 0.80.06 × 0.03
04021.0 × 0.50.04 × 0.02
02010.6 × 0.30.02 × 0.01

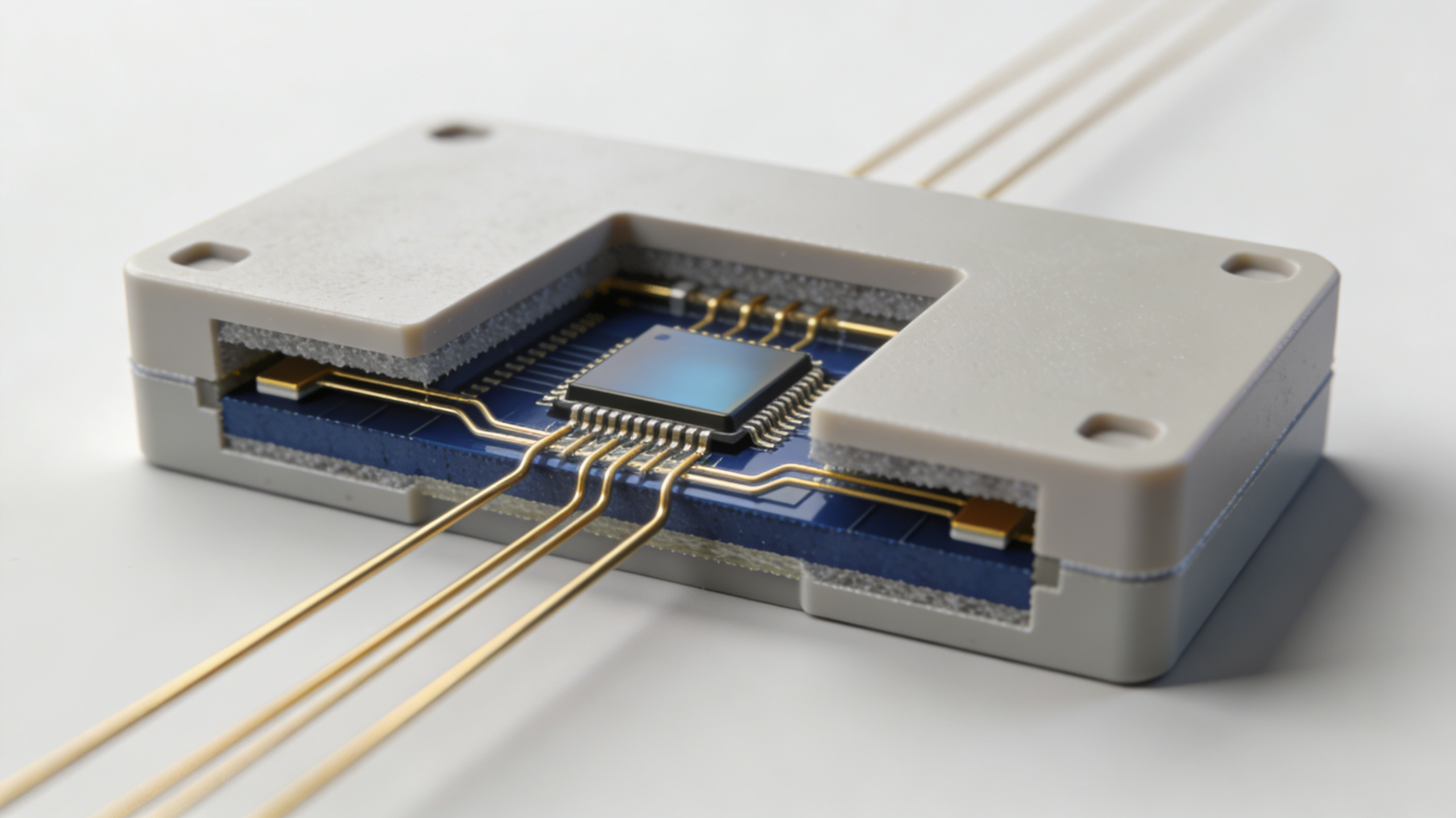

SMD Package Types for PCB Assembly

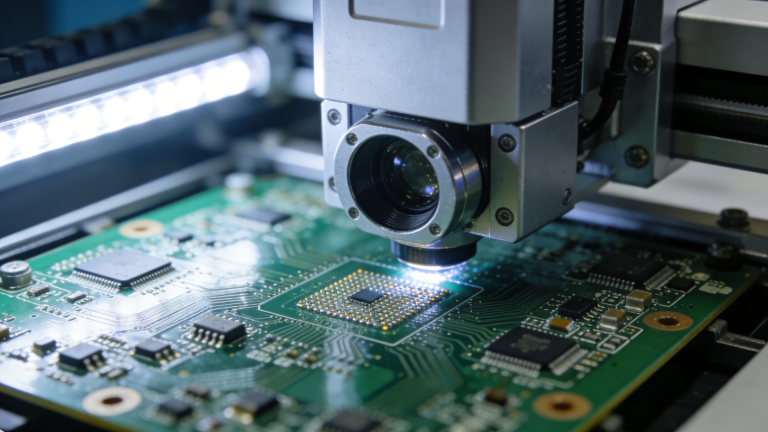

SMD Storage, Handling & Inspection

Proper management of SMD components ensures reliable PCB assembly:

  • Store in ≤30°C, ≤75% RH environment to prevent moisture damage
  • Use opened moisture-sensitive devices within 12-48 hours
  • Bake components at 125°C ±5°C if humidity indicator exceeds 30%
  • Inspect solderability, pin coplanarity, and absence of oxidation

Conclusion

A Surface Mount Device (SMD) component package is essential to modern PCB design and manufacturing. It enables miniaturization, high performance, and mass production for consumer, industrial, and automotive electronics.

Understanding SMD packages, sizes, and assembly requirements helps engineers and purchasers select optimal components for reliable, cost-effective PCB projects.
