Ball Grid Array (BGA) PCB Manufacturing & Assembly Services

BGA PCB Structure and Solder Ball Array Diagram

We provide professional BGA PCB manufacturing, precision assembly, rework, reballing, and full turnkey solutions for global industrial, automotive, medical, and telecom customers. Our ISO & IPC-compliant processes ensure high yield, reliability, and fast delivery from prototypes to volume production.

What Is BGA (Ball Grid Array) and Why It Matters for Your PCB?

A ball grid array (BGA) is a high-density surface-mount package that uses an array of solder balls on the underside of the component instead of traditional leads. It is widely used in advanced electronics such as processors, FPGAs, ASICs, memory, and high-speed communication devices where compact size and high I/O counts are required.

  • Higher I/O density in a smaller footprint compared to QFP and other leaded packages.
  • Improved electrical performance and signal integrity for high-speed, high-frequency designs.
  • Better thermal performance and heat dissipation through the solder ball array.
  • Increased mechanical reliability with controlled reflow and proper BGA PCB design.

Today, BGA PCB assemblies are standard in smartphones, networking equipment, automotive control units, and industrial automation. Choosing the right manufacturing partner ensures long-term reliability and consistent yield.

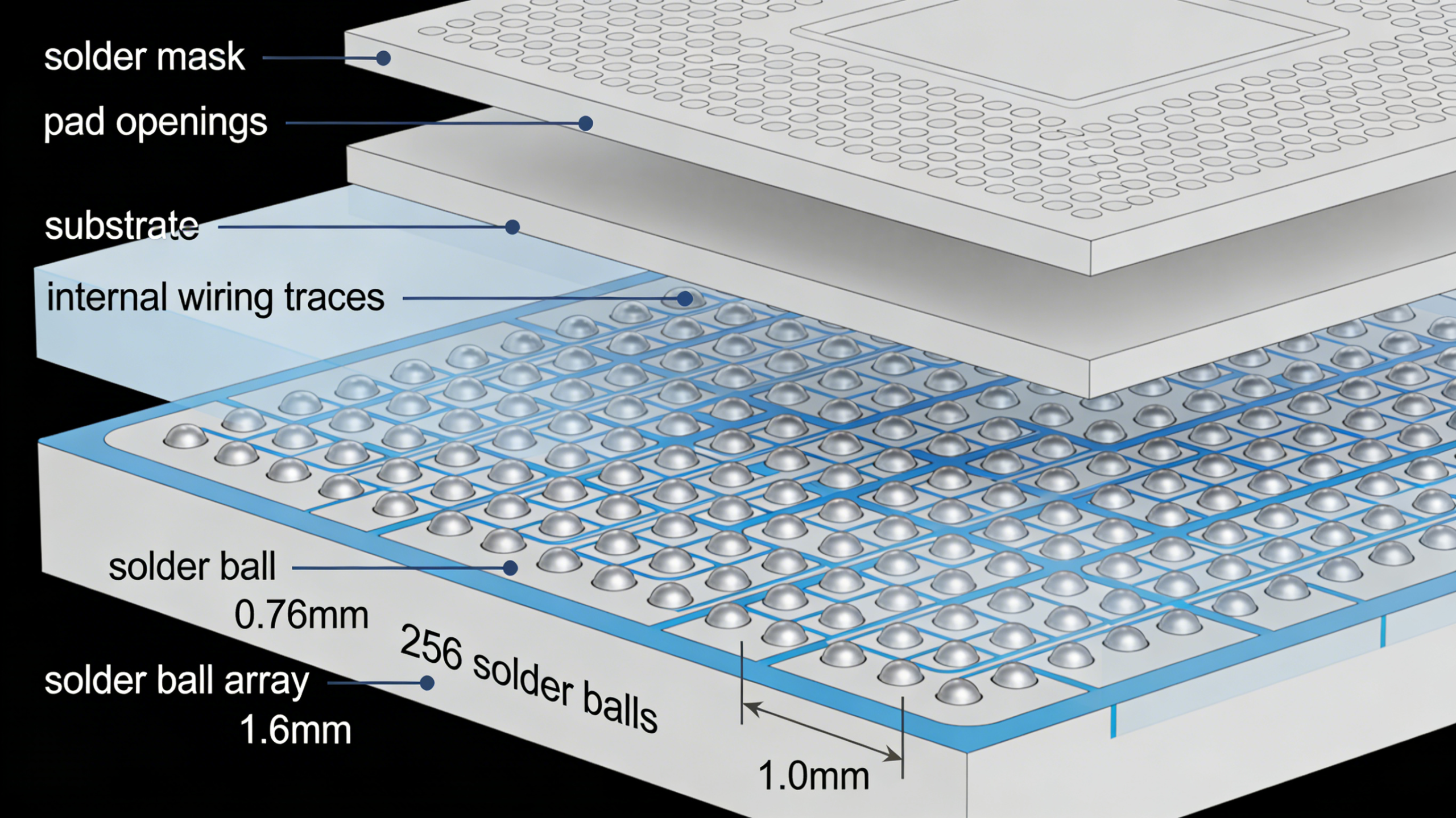

BGA PCB Structure and Solder Ball Array Diagram

BGA PCB Manufacturing & Assembly Capabilities

We provide comprehensive BGA PCB manufacturing and assembly services for fine-pitch, high-density designs. Our capabilities cover standard BGA, micro BGA, and complex multi-BGA boards with advanced SMT and 100% X-ray inspection.

ItemCapability
BGA Package TypesPBGA, CBGA, FBGA, micro BGA, stacked BGA, PoP
Minimum BGA PitchDown to 0.25 mm (fine-pitch & µBGA)
PCB LayersUp to 40 layers for HDI BGA PCB
Min Trace/Space2.5/2.5 mil (0.063 mm) with HDI stack-ups
Via TechnologyMicrovias, via-in-pad (filled & capped)
Surface FinishesENIG, ENEPIG, immersion tin, HASL, gold
Inspection100% X-ray, 3D AOI, ICT, functional test

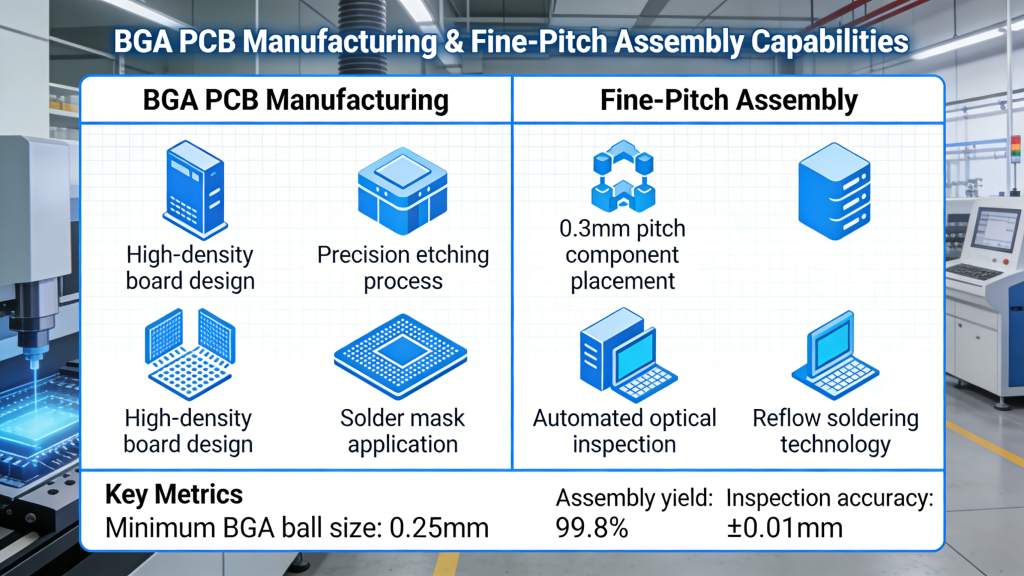

BGA PCB Manufacturing and Fine-Pitch Assembly Capabilities

BGA PCB Manufacturing & Assembly Process

Our controlled end-to-end process ensures reliable BGA PCB solder joints and consistent production yield from DFM review to final inspection.

1. Engineering Review & DFM Check

We review Gerber, BOM, and placement files to optimize BGA pad design, fan-out, via-in-pad, and thermal layout for manufacturability and reliability.

2. HDI PCB Fabrication

Multilayer and HDI BGA PCB production with tight registration, microvias, and premium surface finishes for consistent solderability.

3. Solder Paste Printing & BGA Placement

High-precision stencil printing and automated placement with ±25 µm accuracy for fine-pitch devices.

4. Reflow Soldering

Customized thermal profiles prevent head-in-pillow, voids, and bridging for stable BGA PCB joints.

5. 100% X-Ray & AOI Inspection

Full X-ray inspection of hidden solder joints; 3D AOI verifies placement and visible solder quality.

6. Testing & Shipping

ICT, flying-probe, and functional testing available; ESD-safe packaging for global delivery.

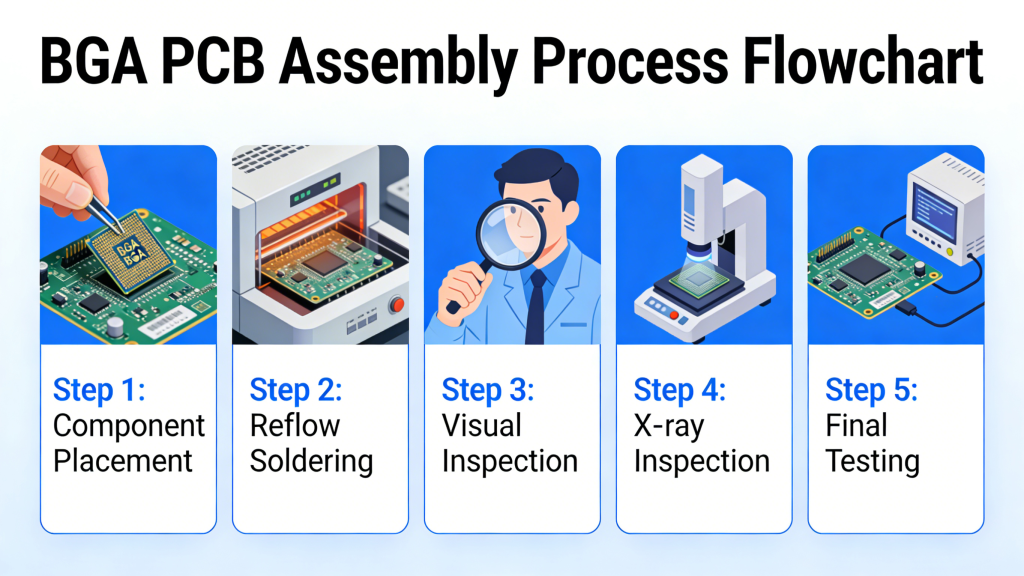

BGA PCB Assembly Process Flowchart

BGA PCB Design & DFM Guidelines

Optimize your layout for BGA PCB assembly success with our proven design rules to avoid respins and assembly failures.

  • Use NSMD pads for better solder joint reliability and consistent dimensions.
  • Apply dog-bone fan-out for ≥0.65 mm pitch; via-in-pad for ≤0.4 mm ultra-fine pitch.
  • Fill and cap vias on BGA pads to prevent solder wicking and voids.
  • Maintain proper solder mask clearance to avoid bridging.
  • Add thermal vias under high-power BGAs to improve heat dissipation.
  • Keep clearance around BGAs for X-ray inspection and rework access.

BGA PCB Quality Control & Inspection

Quality is critical for BGA PCB because solder joints are hidden. Our inspection system eliminates latent defects.

100% X-Ray Inspection

Detects voids, opens, shorts, misalignment, and head-in-pillow defects invisible to optical tools.

3D AOI & Process Control

Validates component placement, polarity, and solder fillets; real-time reflow profile monitoring ensures consistency.

Electrical & Reliability Testing

ICT, flying-probe, functional test, burn-in, and environmental screening available for high-reliability BGA PCB projects.

BGA PCB X-Ray Inspection for Solder Joint Quality

Industries & Applications for BGA PCB Assemblies

Our BGA PCB solutions serve high-performance industries demanding density, speed, and reliability:

  • Consumer Electronics: Smartphones, tablets, gaming, IoT devices
  • Networking & Telecom: Routers, switches, 5G equipment, optical modules
  • Automotive: ECUs, ADAS, infotainment, vehicle connectivity
  • Industrial Automation: PLCs, drives, robotics, machine vision
  • Medical & Instrumentation: Diagnostics, imaging, precision tools

BGA PCB Pricing, Lead Time & Quote Requirements

Cost and lead time for BGA PCB depend on layer count, BGA pitch, HDI structure, quantity, and testing.

Typical Lead Times:

  • Prototypes: 7–10 working days
  • Complex HDI BGA boards: 10–15 working days
  • Volume production: confirmed per project

To request a quote, provide:

  • Gerber/design files (including drill and stack-up)
  • BOM with part numbers
  • Pick-and-place/XY data
  • Assembly notes and test requirements
  • Order quantity and target lead time
BGA PCB Rework and Reballing Service

Summary

We deliver full-service BGA PCB manufacturing and assembly with fine-pitch capability, HDI expertise, 100% X-ray inspection, and end-to-end quality control. From prototype to volume production, we support global buyers with reliable, cost-effective, and on-time BGA PCB solutions for industrial, automotive, medical, and telecom applications.

Request Your BGA PCB Quote Today

Get DFM review, competitive pricing, and fast lead time for your BGA PCB project.

Get BGA PCB Quote
