Semi-Flex PCBs: The Ultimate Bridge Between Rigid and Flex PCBs

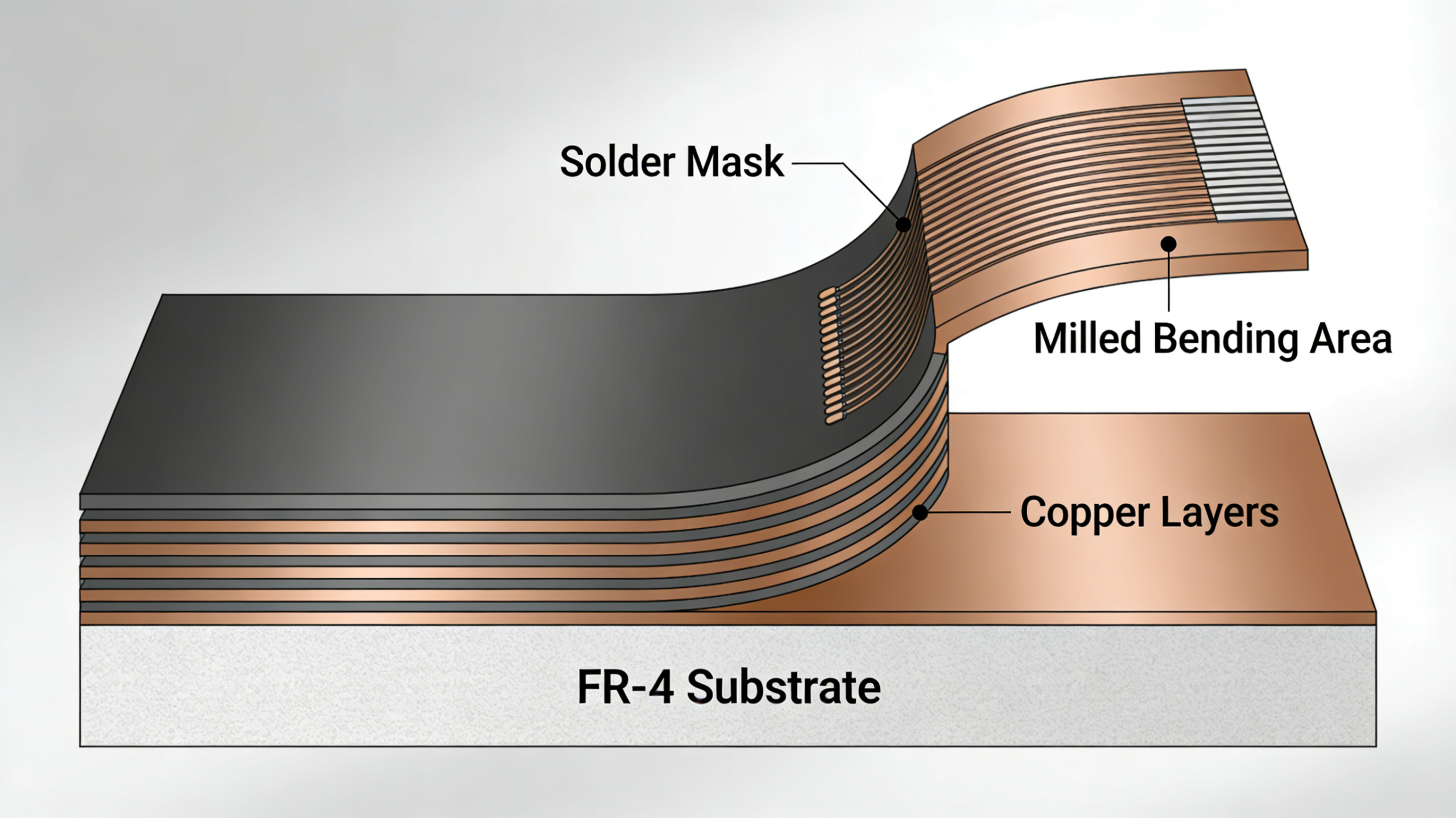

Semi-Flex PCB Bending Principle Depth Milling

Semi-Flex PCBs deliver the ideal balance of rigidity and flexibility for modern electronics. Built on standard FR-4 with precision thinned bending zones, they offer cost efficiency, reliable performance, and easy assembly, filling the critical gap between traditional rigid PCBs and high-cost flex circuits. Ideal for static bend installations, Semi-Flex PCBs reduce assembly complexity while enhancing product durability and design freedom.

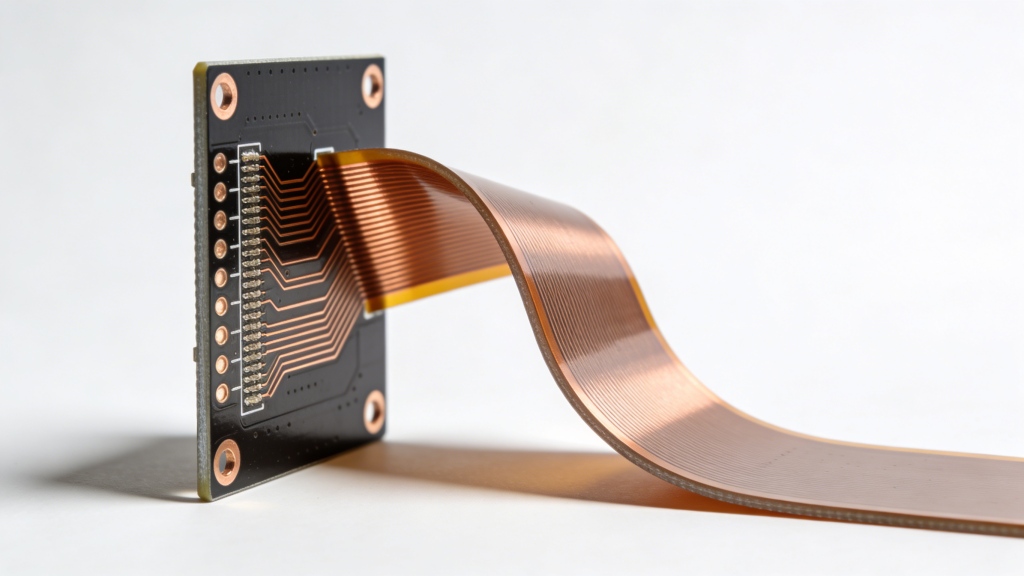

Semi-Flex PCB Overview Structure Bending Zone FR-4

What Are Semi-Flex PCBs

Printed circuit boards form the backbone of all electronic devices. Rigid PCBs offer stability but no flexibility, while flex PCBs bend freely but lack structural strength. Semi-Flex PCBs solve this dilemma by combining both properties in one board.

Semi-Flex PCBs are rigid PCB derivatives with selectively milled thin zones (0.10mm to 0.30mm) that allow controlled static bending. They are designed for one-time flex-to-install use, not repeated dynamic flexing, making them perfect for compact enclosures in automotive, telecom, and consumer electronics.

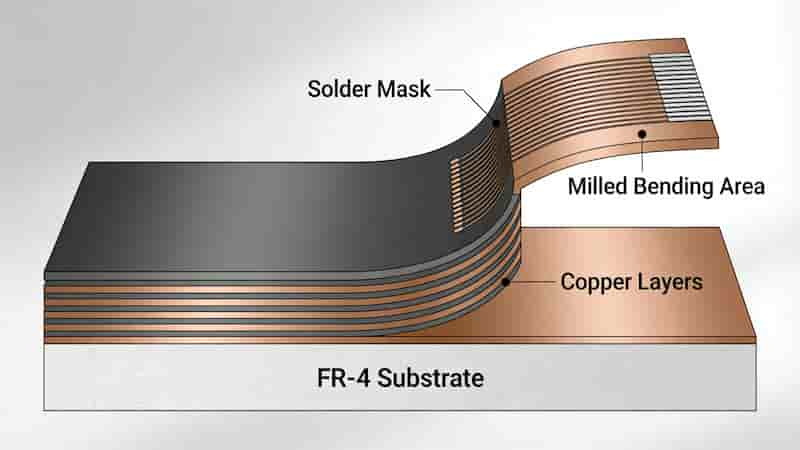

Semi-Flex PCB Bending Principle Depth Milling

Materials & Structure of Semi-Flex PCBs

Semi-Flex PCBs use industry-standard FR-4 material as the core substrate, the same reliable material used in most rigid PCBs. No expensive polyimide flex layers are required, keeping costs low.

Key structural features:

  • Bending zones milled to 0.10 to 0.30mm thickness
  • 2 to 8 conductive copper layers (35μm standard)
  • Standard solder mask (green/black/blue)
  • PTH vias, buried vias for layer connectivity
  • Surface finishes: ENIG, Immersion Tin, OSP

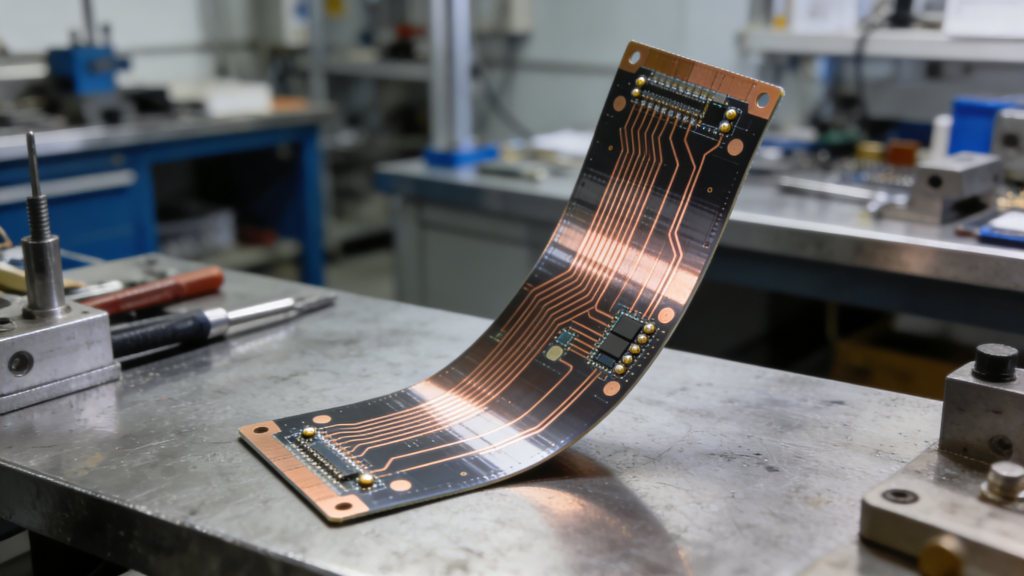

Semi-Flex PCB Layer Stackup Multilayer Structure

Key Advantages of Semi-Flex PCBs

1. Cost Efficiency: 30% to 50% lower than rigid-flex PCBs by using FR-4 instead of polyimide

2. High Reliability: FR-4 rigid sections match standard PCB durability

3. Design Freedom: 3D routing fits tight spaces without connectors

4. Easy Assembly: Compatible with standard SMT assembly lines

5. Shorter Lead Time: Uses rigid PCB manufacturing processes

6. Space & Weight Saving: Eliminates cables and connectors for compact designs

Semi-Flex PCB Application Benefits Cost Reliability Space

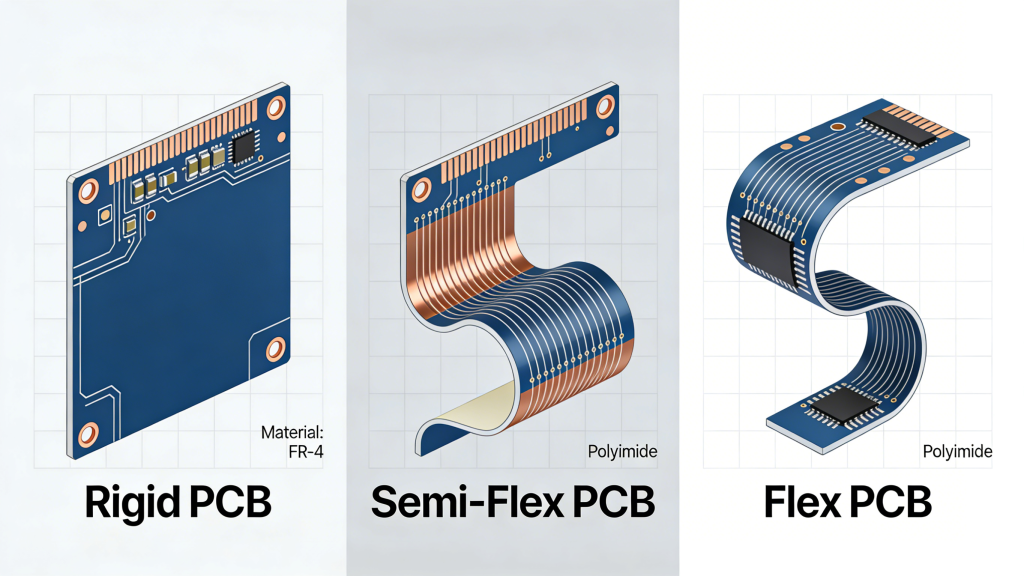

Comparison: Rigid vs Semi-Flex vs Flex vs Rigid-Flex PCBs

ParameterRigid PCBSemi-Flex PCBFlex PCBRigid-Flex PCB
MaterialFR-4FR-4 (thinned)PolyimideFR-4 + PI
Bending TypeNoneStatic one-timeDynamic repeatedStatic + dynamic
CostLowestMediumHighHighest
Layers1 to 30+2 to 81 to 62 to 12
Best ForStandard devicesStatic bend installsDynamic flexHigh-end complex

Industry Applications of Semi-Flex PCBs

Semi-Flex PCBs serve diverse industries where moderate bending and high reliability are required:

  • Automotive: EV batteries, sensors, navigation systems, in-car controls
  • Consumer Electronics: Wearables, laptops, smartphones, compact devices
  • Industrial: Robots, control modules, sensors, test equipment
  • Medical: Monitoring devices, imaging equipment, portable diagnostics
  • Telecom: Routers, transceivers, compact communication hardware
  • Aerospace: Avionics, guidance systems, lightweight electronics

Design & Bending Guidelines for Semi-Flex PCBs

To ensure reliable performance of Semi-Flex PCBs, follow these critical design rules:

  • Bend only with copper on the outside of the curve
  • Minimum bending radius: 3 to 5x the board thickness
  • Keep traces perpendicular to bending lines
  • Avoid components and vias in bending zones
  • Use 0.10 to 0.30mm thickness for flex areas
  • Limit bending to one-time installation only

Our Semi-Flex PCB Manufacturing Capabilities

We specialize in high-quality Semi-Flex PCB manufacturing and assembly for global buyers. Our advanced facilities ensure precision, reliability, and cost efficiency:

  • Layer count: 2 to 8 layers for Semi-Flex PCBs
  • Minimum line width/space: 4/4mil (0.10mm)
  • Minimum via size: 0.15mm
  • Bending zone thickness: 0.10 to 0.30mm
  • Full SMT assembly & testing services
  • UL, RoHS, and IPC Class 2/3 compliance

Our engineering team provides free DFM analysis to optimize your Semi-Flex PCB design for manufacturability, performance, and cost.

Conclusion

Semi-Flex PCBs represent the optimal middle ground between rigid and flex circuit boards. They deliver the stability of FR-4 rigid PCBs with controlled flexibility for static installations, all at a lower cost than rigid-flex alternatives.

With broad industry applications, easy assembly, and excellent reliability, Semi-Flex PCBs are the smart choice for compact, high-performance electronic designs that need both rigidity and controlled bending.

Get Your Semi-Flex PCB Quote Today

Contact us for custom Semi-Flex PCB design, manufacturing, and assembly services. We provide fast quotes, DFM support, and high-quality production for global buyers.

Request a Quote
Contact Engineering

SMD Package Types for PCB Assembly

What is a Surface Mount Device or SMD Component Package?

Posted on
0 Comments
A Surface Mount Device (SMD) component package is a standardized enclosure designed for direct soldering onto PCB surfaces, enabling high-density assembly, miniaturization, and automated manufacturing in modern electronics. What Is an SMD Component Package? SMD stands for Surface Mount Device, referring to electronic components designed exclusively for Surface Mount Technology (SMT) assembly. An SMD component…
PCB quality control and flying probe testing process

Affordable PCB Prototypes & Assembly Services

Posted on
0 Comments
We provide high-quality, low-cost PCB prototypes and professional PCB assembly for global engineers and buyers. Reliable, fast, and cost-effective PCB solutions from 2-layer to multilayer, flexible, and rigid-flex boards. Why Choose Us for Low-Cost PCB Prototypes We balance affordable PCB prototypes with consistent, industrial-grade quality. Our advantages help you reduce costs while ensuring reliability: Factors…
Heavy Copper PCB thermal management and heat dissipation structure

Heavy Copper PCB Manufacturing & Thick Copper PCB Fabrication Service

Posted on
0 Comments
We provide custom heavy copper PCB and thick copper PCB solutions up to 12oz for high‑current, high‑thermal power electronics, automotive, industrial, and military applications. As a professional heavy copper PCB manufacturer, we deliver engineering‑driven fabrication with optimized stackups, reliable plating, and robust solder mask for long‑term performance under high current and harsh environments. Prototypes and…
Flux application process for flex PCB soldering and SMT assembly

How to Solder On Flex PCB? Complete Professional Guide

Posted on
0 Comments
Learn professional flex PCB soldering techniques, temperature control, defect prevention, and step-by-step processes to ensure reliable, long-lasting assemblies for industrial and electronic applications. Why Flex PCB Soldering Is Different From Rigid PCBs Flex PCBs use thin polyimide substrates that are highly sensitive to heat and mechanical stress. While basic solder principles match rigid boards, flex…

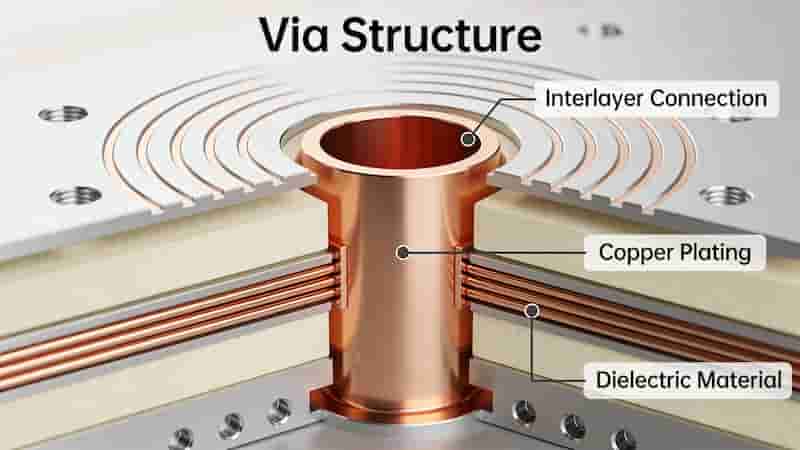

PCB via structure showing interlayer connections in multilayer PCB
