PCB Solder Mask: The Complete Technical Guide for Global Buyers

PCB Solder Mask full color options green red blue white black matte

PCB Solder Mask (also known as solder resist) is a protective polymer layer applied to printed circuit boards to prevent solder bridging, resist oxidation, improve insulation, and ensure long‑term reliability in SMT assembly and industrial applications. This guide covers definitions, types, colors, processes, DFM rules, IPC standards, testing, and troubleshooting for engineering and procurement teams worldwide.

What Is PCB Solder Mask?

PCB Solder Mask is a permanent protective coating that covers most copper traces while exposing only component pads and test points. It is essential for PCB manufacturing, preventing short circuits, environmental corrosion, and assembly failures.

Without a qualified PCB Solder Mask, PCBs face high risks of solder bridging, oxidation, insulation failure, and shortened service life—directly increasing assembly costs and quality risks.

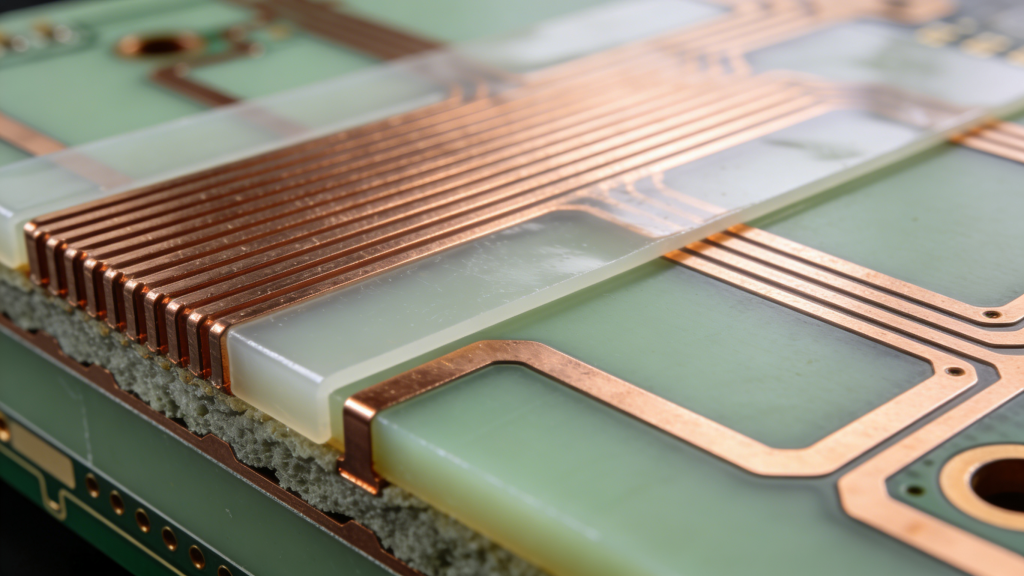

PCB Solder Mask basic structure protecting copper traces and SMT pads

Core Functions of PCB Solder Mask

  • Prevents solder bridging during reflow and wave soldering
  • Protects copper from oxidation, humidity, chemicals, and abrasion
  • Enhances electrical insulation and high‑voltage resistance
  • Improves SMT assembly yield and reduces defects
  • Provides stable performance under thermal shock and cycling
  • Offers visual contrast for manual and AOI inspection

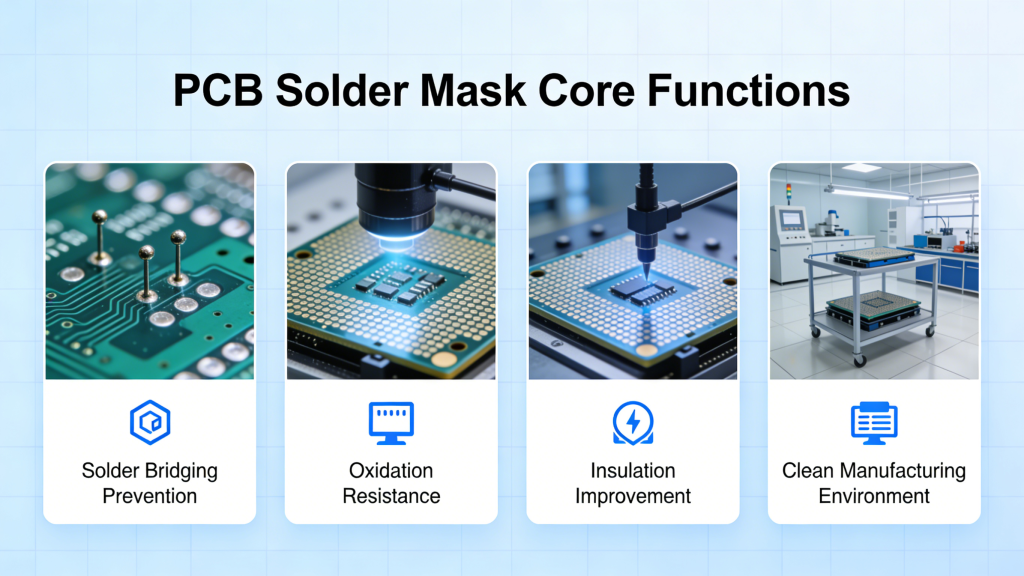

PCB Solder Mask core functions in protection and assembly

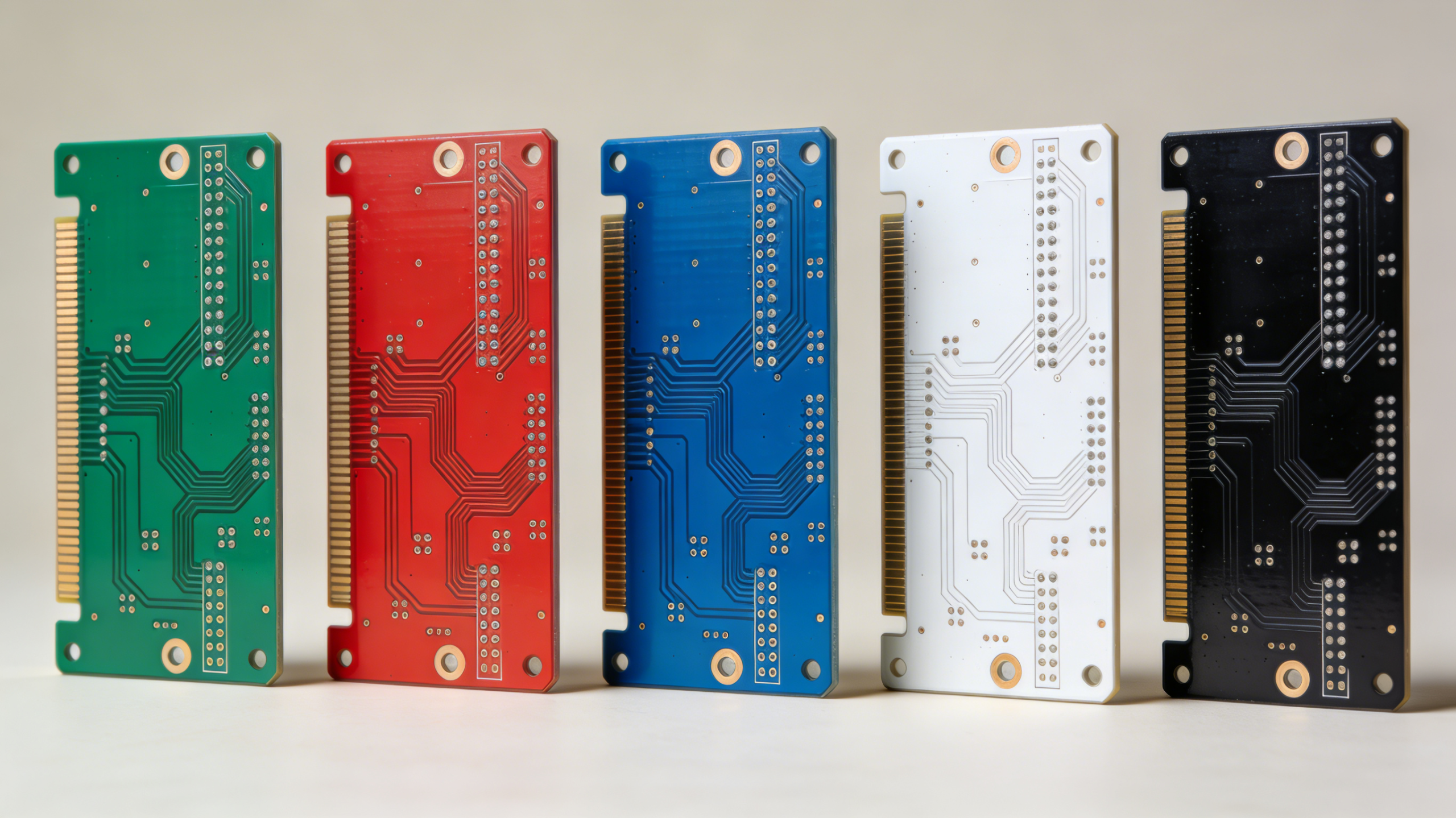

PCB Solder Mask Colors & Applications

Color does not change core electrical performance, but affects inspection, lighting, and branding. The most widely used PCB Solder Mask colors include:

  • Green: Industry standard; best for AOI and cost‑effective
  • Red / Blue: High visibility for project differentiation
  • White: Ideal for LED PCBs to improve light reflection
  • Black: Anti‑glare for display and optical devices
  • Matte Green / Black: Premium for anti‑reflective designs
PCB Solder Mask full color options green red blue white black matte

4 Main Types of PCB Solder Mask

1. Liquid Photoimageable (LPI) Solder Mask

The most common PCB Solder Mask for industrial and high‑precision PCBs. Applied by screen printing, spraying, or curtain coating, then UV exposed and developed. Offers high resolution, strong adhesion, and stable performance.

2. Dry Film Photoimageable Solder Mask

Used for HDI and heavy‑copper PCBs. Laminated under vacuum for uniform thickness. Delivers ultra‑high precision but at a higher cost.

3. Epoxy Liquid Solder Mask

Low‑cost option for low‑density boards. Applied by screen printing without photolithography. Suitable for simple consumer electronics.

4. Peelable Solder Mask

Temporary protection for specific areas during surface finishing and assembly. Can be removed cleanly without residue.

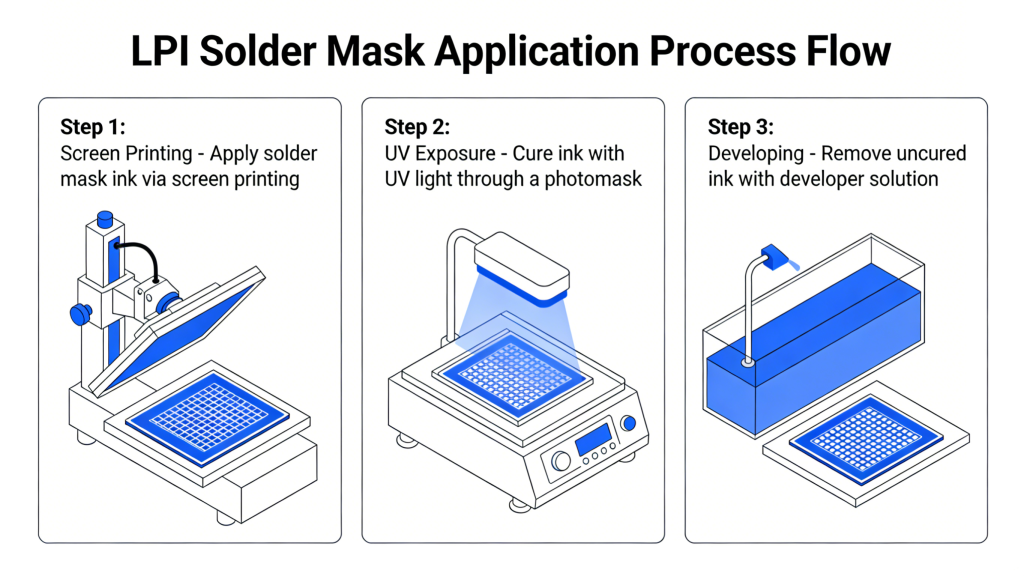

PCB Solder Mask types LPI and dry film application process

Full PCB Solder Mask Manufacturing Process

  1. Pretreatment: Cleaning and roughening copper surface
  2. Coating: Applying PCB Solder Mask ink
  3. Pre‑baking: Evaporating solvent
  4. Exposure: UV curing patterned areas
  5. Developing: Removing unexposed ink
  6. Final Curing: Enhancing hardness and adhesion
  7. Inspection: Checking defects per IPC standards

PCB Solder Mask Type Comparison Table

ParameterLPI Solder MaskDry FilmEpoxy Liquid
PrecisionHighUltra HighLow
CostMediumHighLow
ApplicationGeneral & High‑PrecisionHDI & Heavy CopperSimple Low‑Density

IPC Standards & Quality Testing

All PCB Solder Mask production follows international standards:

  • IPC‑SM‑840: Solder mask performance requirements
  • IPC‑SM‑781: Application and design guidelines
  • Adhesion Test: IPC‑TM‑650 2.4.28.1
  • Hardness Test: Pencil hardness per JIS
  • Heat Resistance: 260°C tin dipping test
  • RoHS & REACH compliance for global export

Common Issues & Solutions

  • Peeling: Improve pretreatment and curing parameters
  • Uneven Coating: Optimize ink viscosity and application speed
  • Bridge Breaking: Increase exposure energy and control thickness
  • Color Difference: Standardize ink mixing and baking
  • Misregistration: Stabilize temperature and film alignment

Summary

PCB Solder Mask is a critical layer for PCB reliability and assembly quality. Choosing the right type, color, and process ensures high yield, long service life, and compliance with global industry standards.

For industrial buyers and engineers, prioritizing IPC compliance, DFM optimization, and stable manufacturing processes is the key to successful PCB projects.

Need Professional PCB Solder Mask Solutions?

Get free DFM analysis, custom color options, IPC‑certified production, and fast global delivery. Contact us for a detailed quote today.

Request PCB Quote Now

PCB Lead Time Comparison Prototype and Mass Production Volume

Key Differences Between Prototype and Production PCBs Explained

Posted on
0 Comments
Understanding prototype PCBs and production PCBs is essential for engineers, buyers, and project managers. This guide breaks down critical differences in lead time, cost, design flexibility, materials, testing, quality standards, and manufacturing processes to help you make informed decisions for your electronics projects. Introduction Printed circuit boards are foundational to nearly all electronic devices. The…
Flexible PCB for consumer electronics, smartphone FPC, wearable PCB

Top 8 Applications of Flexible PCBs for Industrial & Electronics Manufacturing

Posted on
0 Comments
Flexible PCBs (FPCBs) deliver compact, reliable, and high-performance interconnects for consumer electronics, medical, automotive, aerospace, and industrial systems. This guide covers 8 high-value use cases for global buyers, engineers, and OEMs. Consumer Electronics & Wearables Flexible PCBs enable slim, foldable, and ergonomic designs in smartphones, foldable screens, smartwatches, and true wireless earbuds. They replace bulky…
Rogers PCB material for RF microwave and high frequency applications

Choosing the Right PCB Material for Your Prototype: A Comprehensive Guide

Posted on
0 Comments
Discover the best PCB material for your prototyping needs with our complete engineering guide. From FR‑4 to metal core, Rogers, polyimide, and ceramic PCBs, we help you select the ideal substrate for performance, cost, and reliability. Introduction Selecting the right PCB material is crucial for ensuring your prototype delivers optimal performance, durability, and cost-efficiency. With materials like FR-4, metal…
6 Layer PCB Stackup Standard Structure for High Speed Circuits

PCB Stackup Design Guidelines: Best Practices for 2, 4, 6 Layers

Posted on
0 Comments
PCB stackup design directly determines signal integrity, EMI control, power stability and manufacturing reliability. This guideline provides professional, field-proven best practices for 2‑layer PCB stackup, 4‑layer PCB stackup and 6‑layer PCB stackup for industrial electronics, communications equipment and high‑speed digital products. Introduction to PCB Stackup Design PCB stackup design is the foundation of high‑performance printed…
Laser Drilled vs Photoimageable Microvias PCB

The Essentials of Microvias – Enabling Miniaturization in PCBs

Posted on
0 Comments
As printed circuit boards pack more components into smaller spaces, microvias enable advanced PCB miniaturization for HDI PCBs. We explain core technology, fabrication, types, reliability, and industrial applications for engineers and global buyers. What Are Microvias As printed circuit boards are designed to pack ever more components into compact spaces, manufacturers use microvias to enable…
SMD LED PCB Board Assembly SMT Production Line

SMD LED PCB Board Assembly, LED Light Circuit Board Assembly Service | Full Turnkey LED PCB Manufacturing & Assembly in China

Posted on
0 Comments
LED PCB assembly has transformed the world of lighting. Today, LED PCBs are used in nearly all lighting applications, favored over traditional lighting for efficiency, durability, and long‑term performance. Demand for LED Light Circuit Board Assembly continues growing as technology advances and industrial requirements rise. At first, LED lighting was not that popular because of…

FAQ About PCB Solder Mask

A: Typical thickness is 15–35 μm, with the most common range 20–25 μm.

A: No, color only influences inspection, lighting, and appearance—not electrical performance.

A: Solder mask is a permanent PCB layer; paste mask is a stencil for SMT solder paste printing.

A: Industry standard is 4 mil (0.1 mm) to avoid covering pads and prevent solder bridging.
