Flexible PCB Manufacturing and Assembly: The Complete 2025 Guide

Flexible PCB fabrication process flow chart

This professional guide covers flexible PCB materials, fabrication, SMT assembly, quality control, and best practices for engineers, buyers, and global importers. Learn how to ensure reliability, consistency, and cost efficiency for your flex PCB projects.

Why Choose Flexible PCBs?

Flexible PCB devices offer distinct advantages over rigid PCBs, making them ideal for modern electronics with dynamic shape requirements:

  • Lightweight & Compact: Thinner construction saves space and reduces weight for portable devices.
  • Dynamic Flexibility: Bend radii as low as 0.1 mm enable electronics to fit irregular shapes.
  • High-Density Interconnects: Fine trace/space (25/25 μm) supports complex circuits in tight spaces.
  • Enhanced Signal Integrity: Stable high-frequency performance at bends ensures reliable transmission.
  • Superior Heat Dissipation: Copper heat-spreader layers optimize thermal management.

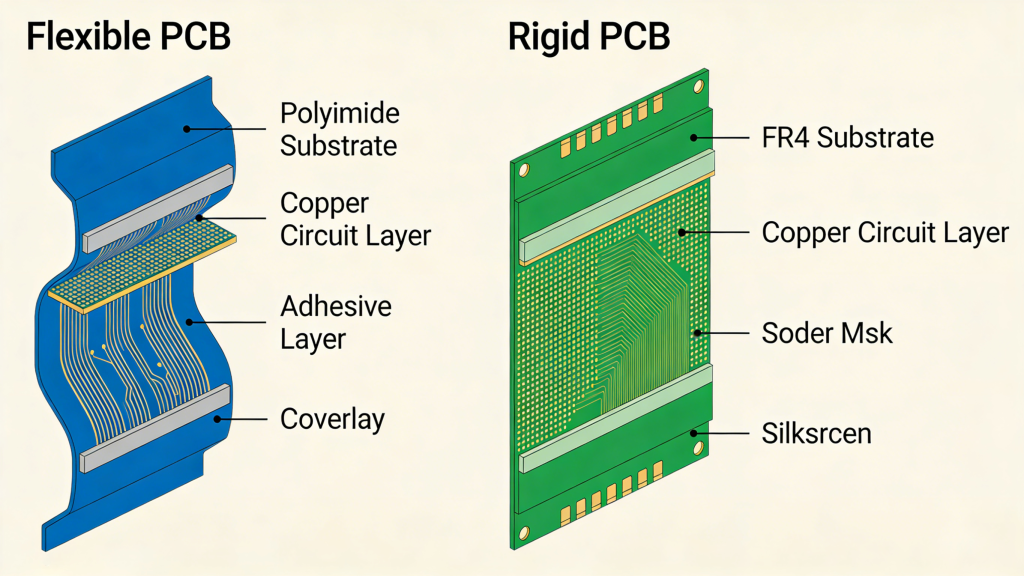

Flexible PCB layer structure diagram polyimide copper trace

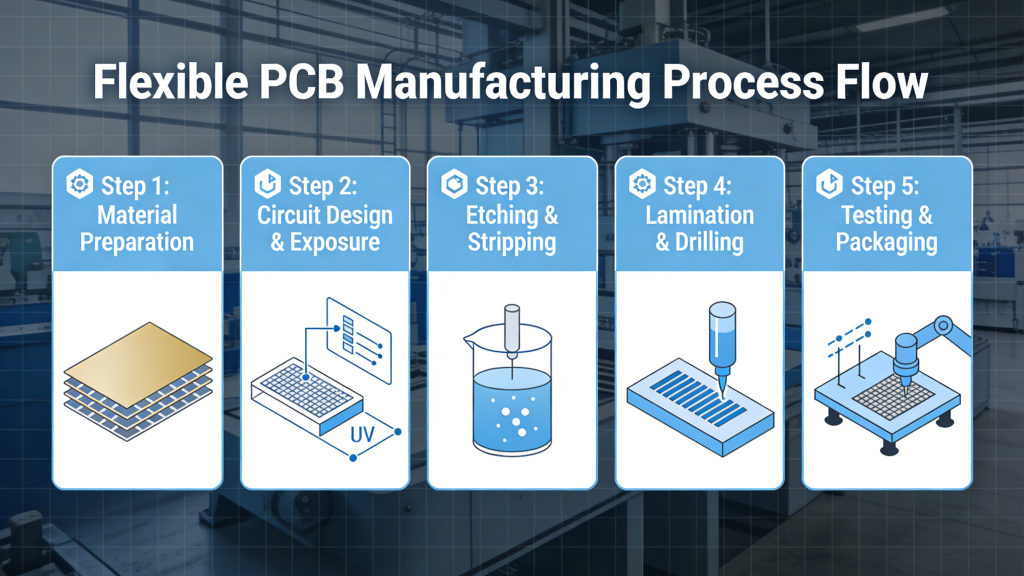

Flexible PCB Fabrication Process

Flexible PCB manufacturing uses specialized materials and precision processes to ensure durability and performance.

Materials

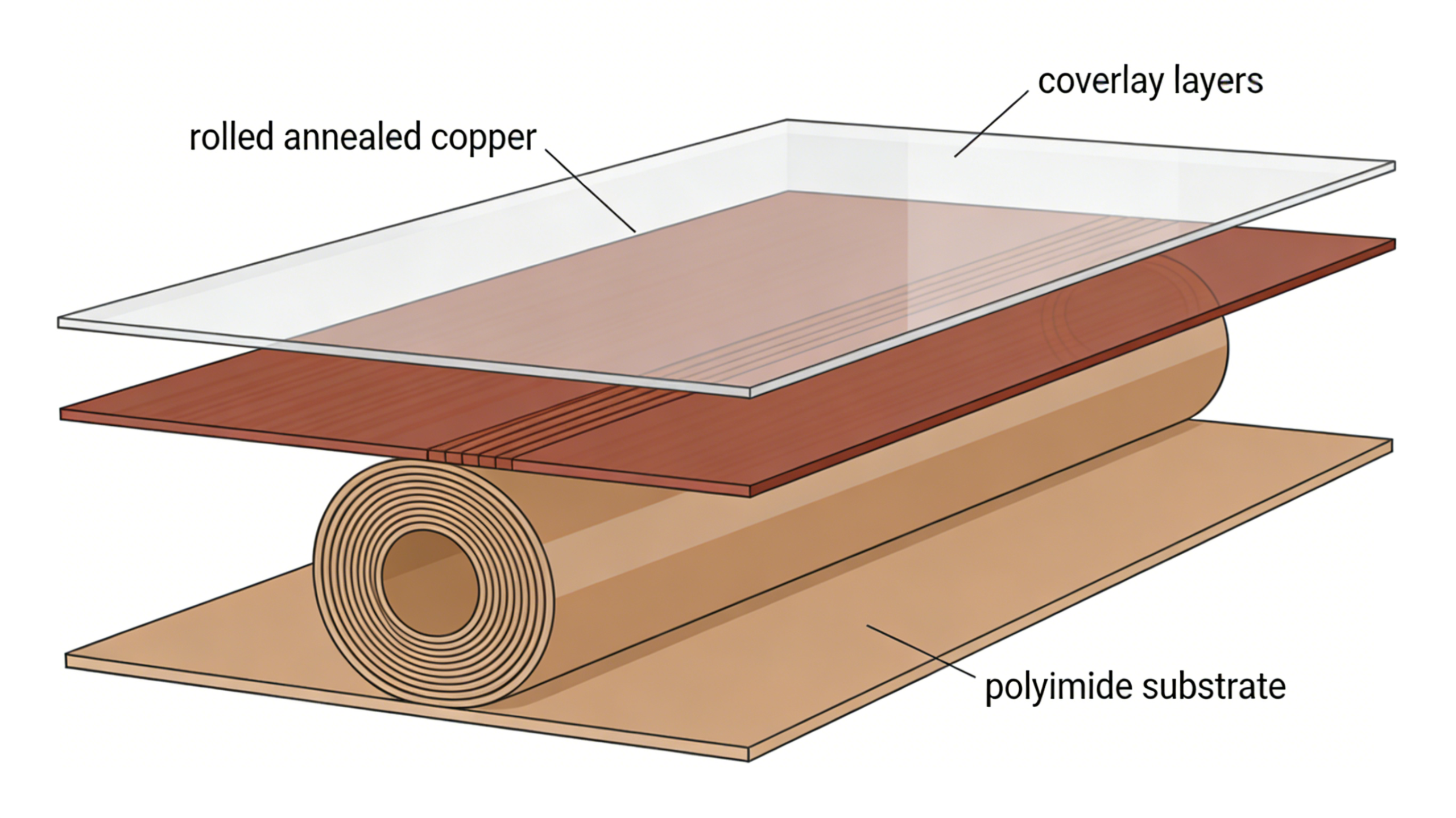

Polyimide (Kapton) is the primary substrate for heat resistance and flexibility. PET films are used for cost-sensitive projects. Circuit layers use rolled annealed copper etched via photolithography.

Our Capabilities

  • Multilayer flex PCB (2–12 layers) with adhesive dielectric films
  • Plated-through holes and microvias down to 50 μm
  • AOI and electrical testing for full quality assurance
Flexible PCB fabrication process flow chart

Key Flexible PCB Design Considerations

Designing reliable flex circuits requires strict attention to these factors:

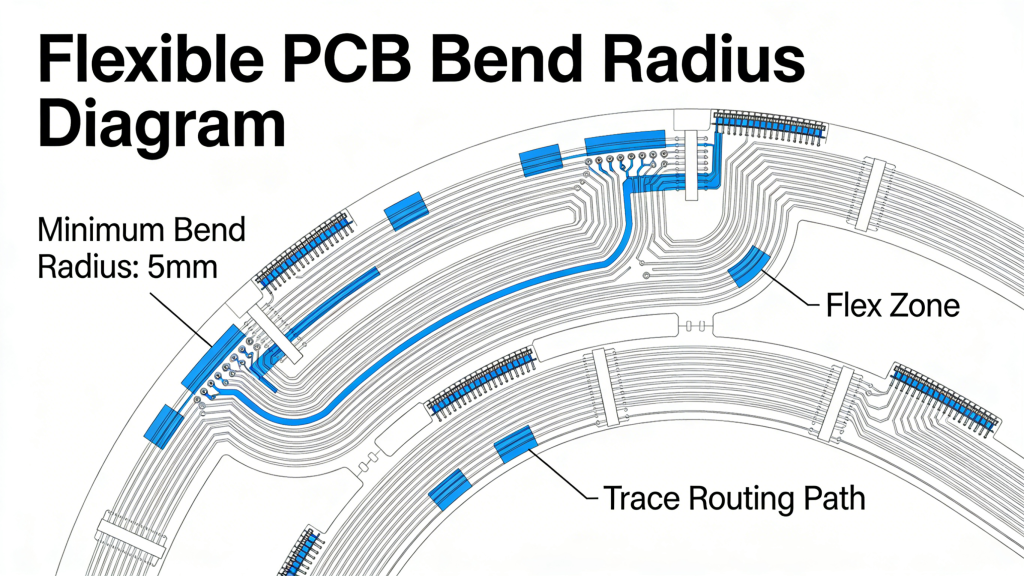

  • Bend Radius: Optimize stackup to reach 0.1 mm for long-term durability
  • Board Stiffness: Use selective stiffeners to balance flex and rigidity
  • Thermal Management: Copper planes with thermal reliefs prevent stress
  • High-Frequency Layout: Controlled impedance for RF and digital stability
  • Component Selection: Low-profile SMT components resist flex fatigue
Flex PCB design rules bend radius DFM guidelines

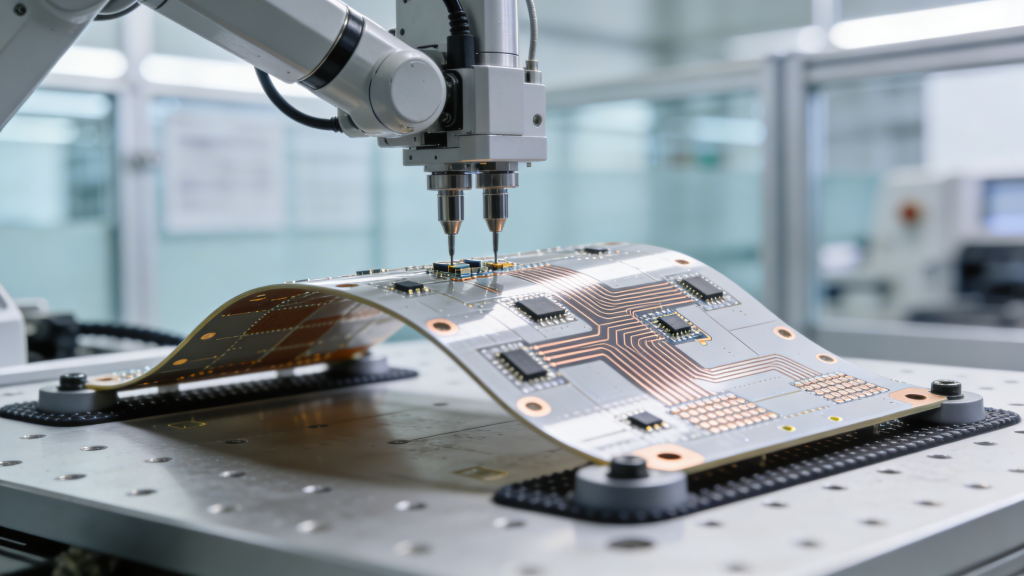

Advanced Flex PCB Assembly Techniques

Flex PCB assembly demands precision to protect delicate polyimide substrates.

Assembly Methods

  • SMT Assembly: Pick-and-place + reflow soldering for high efficiency
  • Manual Assembly: For complex high-density layouts
  • Attachment: Solder, conductive epoxy, or mechanical fasteners

Rework & Repair

Specialized equipment safely replaces components without damaging flex layers.

Flexible PCB SMT assembly reflow soldering process

Applications & Future Trends

Flexible PCB technology powers innovation across industries:

  • Wearable devices & health trackers
  • IoT sensors & smart home electronics
  • Automotive interior & movable systems
  • Medical implants & diagnostic tools
  • Robotics, UAVs & foldable electronics

By 2026, flex circuits will lead 6G antenna, flexible display, and sustainable manufacturing trends.

Flex PCB applications automotive medical wearable IoT

Summary

This guide covers the full lifecycle of flexible PCB manufacturing and assembly, from materials and design to production and applications. With professional processes, strict quality control, and engineering support, we deliver reliable flex circuits for global industrial buyers.

Get Your Flexible PCB Solution

We provide professional flexible PCB manufacturing and turnkey assembly services for global importers, engineers, and procurement teams. We offer free design reviews, fast prototyping, competitive pricing, and reliable mass production.

Contact us today for a free quote, custom solution, or technical consultation!

HDI PCB manufacturing capabilities and technical specifications

HDI PCB Manufacturing – Microvia, Blind & Buried Via HDI Boards up to 30 Layers

Posted on
0 Comments
We provide professional HDI PCB manufacturing with laser‑drilled microvias, blind vias, buried vias, and advanced stack‑ups for high‑performance, compact electronic devices. Our services include fast prototyping, controlled impedance, strict quality control, and full DFM engineering support. What Is an HDI PCB and Why Choose It? High‑density interconnect (HDI PCB) offers significantly higher wiring density than…
Fine-Pitch BGA and QFN SMT PCB Assembly

SMT PCB Assembly Services for Prototypes & Production

Posted on
0 Comments
We provide professional SMT PCB assembly services supporting rapid prototypes to high-volume production. Certified to IPC‑A‑610 Class 2/3, ISO 9001, RoHS, we deliver precision assembly for 01005 components, fine‑pitch BGAs, rigid/flex/rigid‑flex PCBs with full inspection and global delivery. Core SMT PCB Assembly Capabilities We support full‑process SMT PCB assembly from prototype validation to stable mass…
PCBA finished product storage conditions SMT PCB assembly

How Long Can PCBA Finished Products Be Stored?

Posted on
0 Comments
PCBA finished products can typically be stored from 3 months to 10 years under controlled conditions, depending on surface finish, packaging, components, and environment. This guide explains official shelf life standards, storage conditions, and best practices for industrial buyers and engineers. What Is PCBA (PCB Assembly)? PCBA stands for Printed Circuit Board Assembly, the completed…
Plated Through Hole PTH Structure in PCB

What is the Difference Between PTH and Via in PCBs?

Posted on
0 Comments
Understanding the key differences between PTH and via is essential for optimizing PCB design and manufacturing. This article defines PTH and via, compares dimensions, functions, locations and finishing requirements. Typical applications and design considerations are also discussed. Defining PTH and Vias in PCBs PCBs serve as the foundation for almost all modern electronics. They provide…
FR-4 PCB laminate structure cross section

What is FR-4 Material in PCB Fabrication? Complete Engineering Guide

Posted on
0 Comments
FR-4 is the global industry-standard flame-retardant glass-reinforced epoxy laminate for rigid printed circuit boards. Defined by NEMA LI-1 and IPC-4101, it delivers balanced electrical insulation, mechanical strength, thermal stability, UL94 V-0 flame resistance, and cost efficiency for industrial, automotive, telecom, and consumer electronics. What is FR-4 Material? FR-4 (Flame Retardant Type 4) is a material…
Gerber Export Settings PCB Prototyping RS-274X Units Precision Drill File

Gerber Files for PCB Prototyping: Complete Professional Guide

Posted on
0 Comments
Gerber files are the universal manufacturing standard for PCB prototyping, defining copper traces, solder mask, silkscreen, drill data, and board geometry to ensure accurate, fast, and reliable fabrication. What Are Gerber Files for PCB Prototyping? Gerber files (RS‑274X standard) are vector‑based fabrication files that translate your CAD design into machine‑readable instructions for PCB prototyping. They…

FAQs About Flexible PCB Manufacturing & Assembly

A: They are lightweight and compact, support ultra-small bend radius, enable high-density routing and maintain stable signal performance when bent.

A: Polyimide (Kapton) for heat resistance and long flex life; PET for cost-sensitive ordinary projects.

A: The minimum bend radius can reach 0.1 mm with optimized design and material selection.

A: We make 2–12 layer flex PCBs, with microvias down to 50 μm and complete PTH processing.

A: Mainly automatic SMT reflow soldering, plus manual assembly for complex layouts and professional rework solutions.

A: Optimize layer quantity, adopt standard materials and apply free DFM review to reduce design revisions.

A: Yes, we offer one-stop design, fabrication and assembly services for rigid-flex PCBs.

A: Widely applied in wearables, medical devices, automotive electronics, IoT sensors, robotics and foldable products.
