High Frequency PCB Manufacturer & RF PCB Fabrication
As a dedicated high frequency PCB manufacturer, we provide reliable RF and microwave circuit boards from 500 MHz up to 20 GHz, using Rogers, PTFE and hybrid stackups to ensure stable signal integrity and low loss.
High Frequency PCB Services We Provide
As an experienced high frequency PCB manufacturer, we offer complete RF and microwave PCB manufacturing services from prototype to volume production. We combine advanced high frequency materials, impedance-controlled processes, and strict quality management to ensure stable performance from 500 MHz up to 20 GHz.
RF & Microwave PCB Fabrication
We fabricate high frequency PCB boards using Rogers, PTFE, Taconic and other high-performance laminates, supporting 2–22 layer stackups, controlled impedance and low-loss transmission for demanding communication and radar systems.
Prototype & Small Batch Manufacturing
Fast-turn high frequency PCB manufacturing for prototypes and small batches, helping RF engineers quickly verify designs, optimize stackups and move to mass production with identical processes and materials.
Hybrid High Frequency PCB Solutions
Cost-effective hybrid high frequency PCB solutions that combine Rogers or PTFE layers with FR4, ideal for mixed RF and digital circuits where signal integrity and budget must be balanced.
DFM Review & RF Design Support
Professional DFM review and basic RF design support for high frequency PCB projects, including stackup suggestions, impedance targets and manufacturability checks to reduce iterations and improve first-pass yield.
High Frequency PCB Manufacturing Capabilities
As a professional high frequency PCB manufacturer, we deliver stable and repeatable RF PCB manufacturing for prototypes and production runs. Our processes are optimized for impedance-controlled multilayer boards, low-loss materials and tight geometries.
| Parameter | Capability |
|---|---|
| Frequency range | 500 MHz – 20 GHz |
| Board types | Rigid high frequency PCB, hybrid Rogers + FR4 |
| Layer count | 2 – 22 layers |
| Max board size | Up to 500 mm × 500 mm |
| Board thickness | 0.2 mm – 4.0 mm |
| Copper thickness | 0.5 oz – 3 oz |
| Min. trace / spacing | 0.15 mm / 0.13 mm |
| Min. drill hole | 0.20 mm – 0.30 mm |
| Surface finishes | ENIG, OSP, Immersion Silver, Hard Gold |
| Impedance control | Single-ended & differential, ±10% |
| Materials | Rogers, PTFE, Taconic, high-performance FR4 |

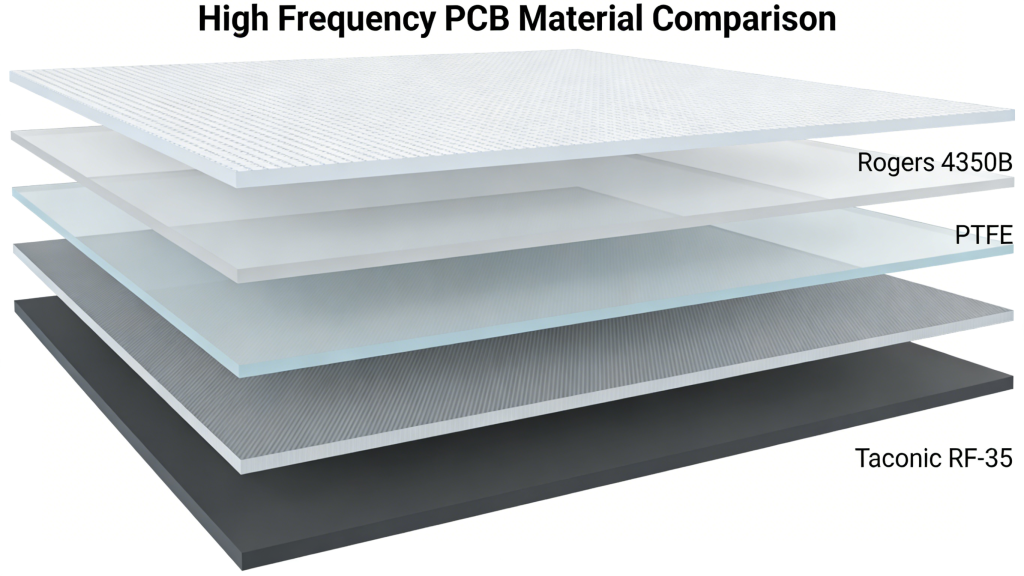

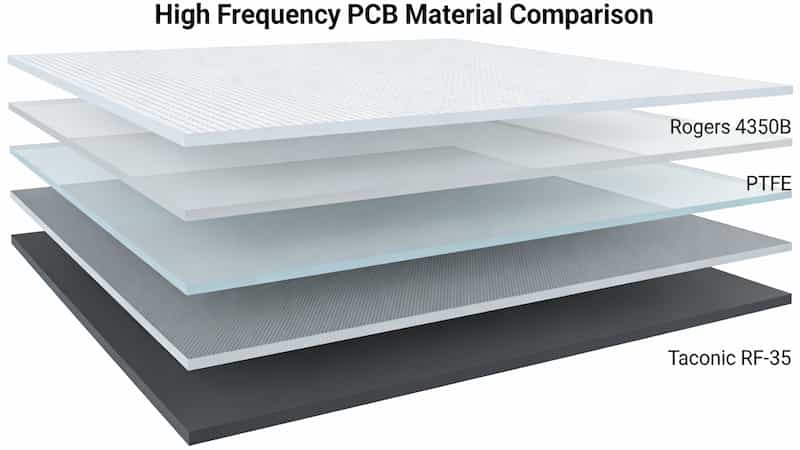

High Frequency PCB Materials & Stackup
As a specialized high frequency PCB manufacturer, we work with a full range of RF-grade materials and hybrid stackups. Careful selection of dielectric constants, loss tangents and layer structures ensures low loss, stable impedance and reliable high frequency PCB performance.
| Material | Type | Dk @10GHz | Applications |
|---|---|---|---|
| Rogers RO4350B | Hydrocarbon ceramic | 3.48 ± 0.05 | RF PCB front-end, power amplifiers |
| Rogers RO4003C | Hydrocarbon ceramic | 3.38 | High-frequency signal routing |
| Rogers RT5880 | PTFE glass | 2.20 ± 0.02 | Microwave antennas, radar |
| Taconic RF-35 | Ceramic PTFE | 3.50 | General high frequency PCB |
| High-Performance FR4 | Epoxy glass | ~4.2 | Hybrid stackup digital layers |
Stackup Types
- 2-layer Rogers HF PCB: Simple high frequency PCB for filters, amplifiers, antennas
- Hybrid HF + FR4: Balances RF PCB performance and cost for mixed circuits
- Multilayer RF Stackup: 4–22 layers for complex base station, radar systems
High Frequency PCB Materials Suppliers
We source authentic, traceable high-frequency laminates from global leading suppliers:
Rogers · ARLON · Taconic · TAIYO INK · SHENGYI TECHNOLOGY · Kingboard · Kuangshun
Why Choose Us for High Frequency PCB Manufacturing
- Dedicated Expertise: Focused high frequency PCB manufacturer for 5G, radar, satellite and aerospace
- Material Mastery: Rogers, PTFE, Taconic and hybrid stackups for optimal RF PCB performance
- Strict Quality Control: ISO & RoHS certified, impedance testing, full electrical inspection
- Fast Engineering Support: Quick quotes, DFM review, prototype to mass production consistency
High Frequency PCB Applications
5G & Wireless Communication
High frequency PCB boards for base stations, small cells, and RF front-end modules with low-loss signal integrity.
Satellite & Aerospace Systems
Ruggedized RF PCB designs for satellite terminals and aerospace electronics with long-term reliability.
Radar & Automotive ADAS
Stable high frequency PCB for automotive radar, collision avoidance and industrial sensors.
High-Speed Digital & Mixed-Signal
Hybrid high frequency PCB stackups for high-speed interfaces and RF/digital integration.
High Frequency PCB Product Examples
2 Layer Rogers 4350B High Frequency PCB
Material: Rogers 4350B | Thickness: 0.8 mm | Finish: ENIG
Ideal for RF PCB front-ends, filters, and small high-frequency modules.
4 Layer Hybrid Rogers RT5880 + FR4 PCB
Material: Hybrid | Thickness: 1.6 mm | Finish: OSP
Balanced high frequency PCB for mixed RF and digital circuits.
22 Layer High Density High Frequency PCB
Material: High-performance FR4 | Thickness: 4.0 mm | Finish: ENIG
Complex high frequency PCB for communication infrastructure.
PTFE / Teflon High Frequency Microwave PCB
Material: PTFE | Thickness: 1.6 mm | Finish: ENIG
Ultra-low loss RF PCB for antennas and radar systems.
Manufacturing Process & Lead Time
- RF Requirements & File Review: DFM check for high frequency PCB design
- Material Confirmation & Quotation: Material and stackup matching
- PCB Fabrication: Lamination, drilling, plating, etching with tight control
- Finishing, Testing & Inspection: Surface finish, electrical & impedance test
- Packing & Shipping: Vacuum-packed high frequency PCB with full docs
Lead Time: Prototype 5–10 working days; Production 2–3 weeks (expedited available)
Quality Assurance for High Frequency PCBs
- ISO 9001 & RoHS compliant manufacturing
- Full electrical testing & optional impedance verification
- 100% material traceability from certified suppliers
- Strict process control for consistent high frequency PCB performance
High Frequency PCB FAQ
Q1: What is a high frequency PCB?
A high frequency PCB is designed for low loss and stable impedance at RF/microwave frequencies.
Q2: What frequency range do you support?
500 MHz up to 20 GHz for high frequency PCB and RF PCB designs.
Q3: Which materials are available?
Rogers, PTFE, Taconic, high-performance FR4, and hybrid laminates.
Q4: Can you make hybrid Rogers + FR4 PCBs?
Yes, we specialize in cost-effective hybrid high frequency PCB solutions.
Q5: What do you need for a quote?
Gerber files, stackup, layer count, quantity, and target frequency.
Request Your High Frequency PCB Quote
Ready to start your RF or microwave project? As a trusted high frequency PCB manufacturer, we provide fast quotes, DFM review, and reliable RF PCB fabrication for global export.
Get Instant High Frequency PCB Quote
Upload Gerber files, stackup, and requirements for a detailed, no-obligation quotation.
