PCB Pad Design Basics: Standards, Rules & Best Practices for Engineers

This guide covers core PCB pad design principles, component spacing, IPC standards, SMD/through-hole rules, thermal management, and DFM to boost assembly yield, reliability, and performance for industrial and export-grade PCBs.

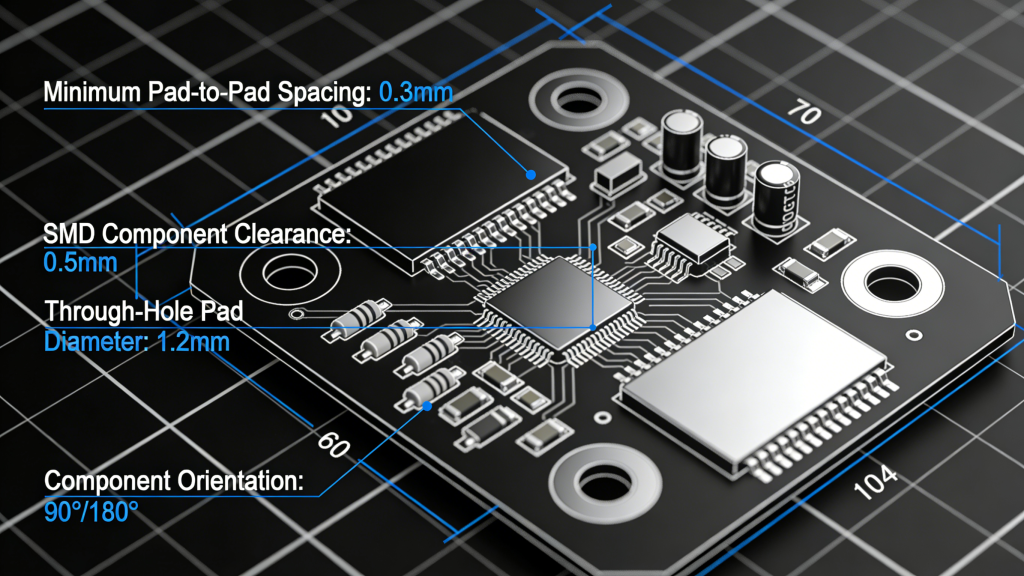

PCB Component Layout & Spacing Rules

When laying out PCB components, designers must balance minimum component spacing against component height and thickness. Proper spacing prevents assembly interference, soldering defects, and thermal crowding.

• Increase clearance between tall/large components to avoid shadowing thin components during reflow.
• Maintain consistent spacing to prevent solder bridging, cold joints, or component damage.
• Components are mechanically secured and electrically connected via PCB pad design and plated through holes.
• Poor soldering practices can lift or damage pads, leading to full board failure.

What Are PCB Pads?

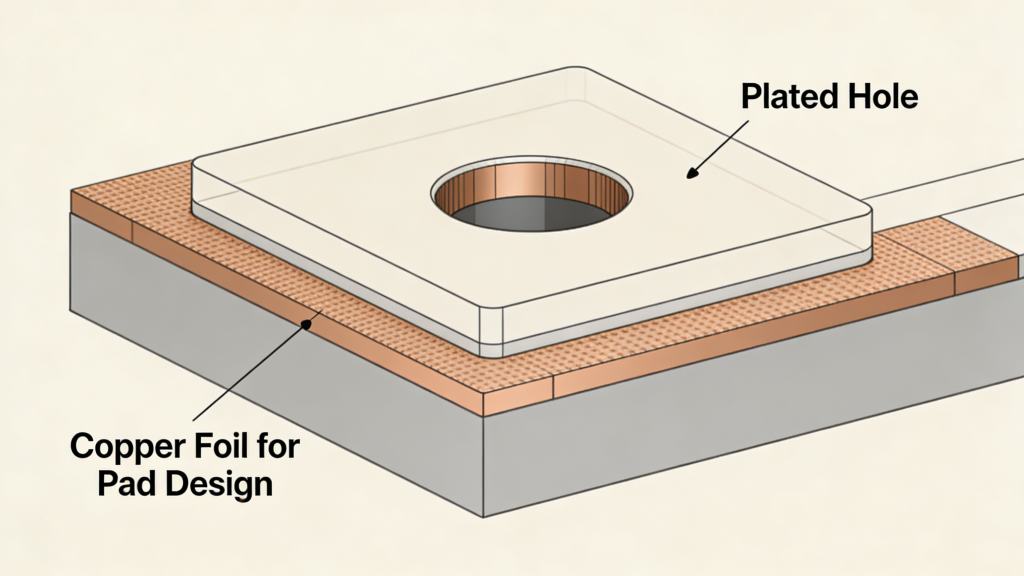

A PCB pad consists of a plated through hole or surface mount area and its surrounding copper foil. It is the fundamental conductive unit that forms electrical connections and mechanical bonds for components.

A complete land pattern is a group of pads tailored to a specific component package, enabling reliable SMT or through-hole assembly.

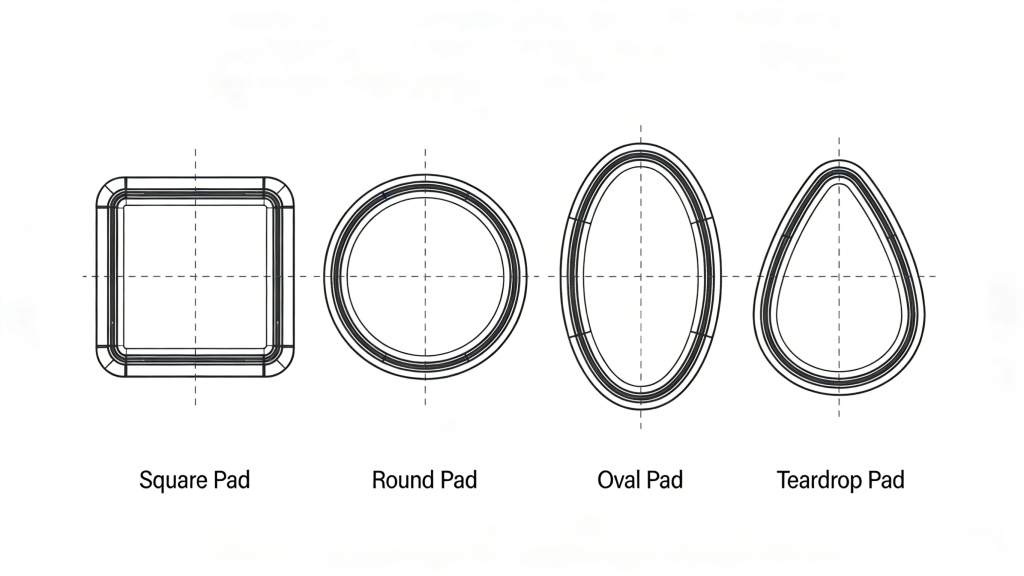

Common PCB Pad Shapes & Uses

Different pad shapes support various assembly methods, board densities, and manual or automated production.

• Square Pads: Ideal for large, low-component-count boards; simple for manual PCB fabrication.
• Round Pads: Widely used in single/double-sided boards with regular component arrays; improves bonding strength.
• Oblong/Oval Pads: Preferred in dense layouts to save space while maintaining reliable solder joints.
• Specialty Pads: Diamond, plum, and teardrop shapes for high-stress, large-aperture, or thermal applications.

Critical PCB Pad Design Standards

Standardized PCB pad design ensures manufacturability, reliability, and compatibility with global assembly lines.

• Minimum single-sided pad width: ≥0.25 mm
• Maximum pad diameter: ≤3 × component hole diameter
• Single-sided pad diameter: minimum 1.6 mm
• Double-sided low-current pads: hole diameter + 0.5 mm
• Holes >1.2 mm or pad diameter >3.0 mm: use diamond or plum shape
• Auto-insert components: teardrop pads along leg bend direction for full solder coverage
• Large copper areas: use thermal relief (chrysanthemum) pads to prevent cold joints

Soldering Best Practices for Pad Protection

Improper soldering is a leading cause of pad liftoff and board scrap. Follow these rules to protect PCB pad design integrity.

• Avoid excessive soldering iron temperature to prevent copper separation.
• Do not use over-sized pads, which cause solder bridging and extended joints.
• Use thermal relief pads for pads connected to large copper planes.
• Manual soldering requires controlled heat and dwell time to protect pad adhesion.

Summary

Correct PCB pad design and component spacing are essential for high-yield assembly and long-term reliability. Following industry standards for pad size, shape, and soldering practices minimizes defects and supports consistent production for global industrial applications.
