HASL: Hot Air Solder Leveling for PCB Surface Finish

HASL PCB industrial applications industrial control LED automotive

HASL (Hot Air Solder Leveling) is a widely used, cost-effective PCB surface finish that protects copper pads from oxidation and ensures reliable solderability for industrial and commercial electronics assembly.

What Is Hot Air Solder Leveling (HASL)?

Hot Air Solder Leveling (HASL) is a mature and industry-standard PCB surface finish applied to exposed copper circuits. It coats pads with molten solder and uses high-pressure hot air to create a uniform protective layer, preventing oxidation and ensuring strong solder joints during assembly.

For decades, HASL has been the most widely adopted surface treatment due to its low cost, strong reliability, and compatibility with standard assembly processes. It supports both through-hole and SMT assembly, making it ideal for mass production and prototyping alike.

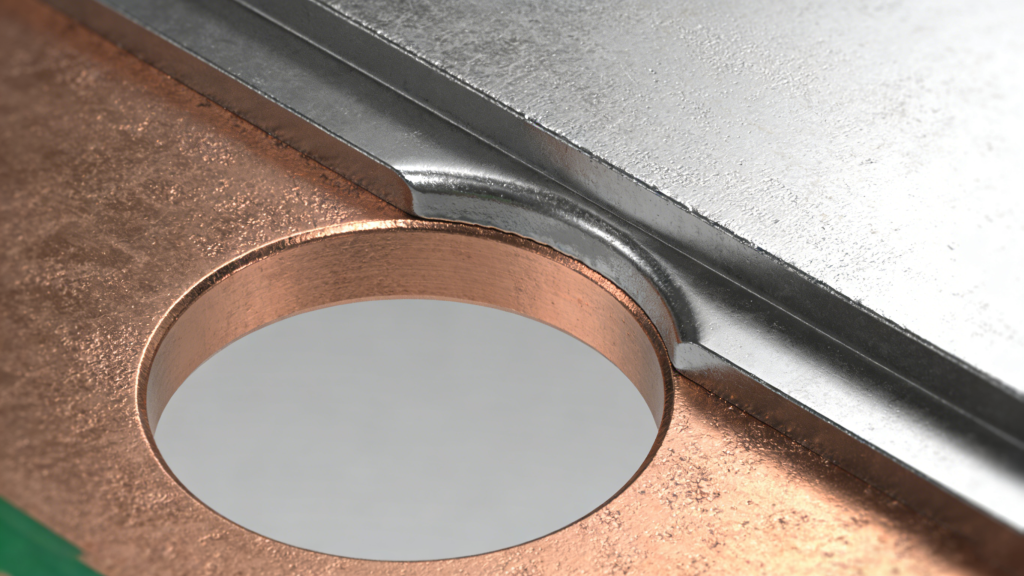

HASL PCB surface finish overview diagram for copper pad protection

How the HASL Process Works

The HASL process follows a strict, repeatable workflow to ensure consistent coating quality across all PCB panels:

  1. Precleaning: Removes contaminants, oils, and oxides from copper surfaces.
  2. Preheating: Reduces thermal shock before solder immersion.
  3. Solder Immersion: PCB is dipped into molten solder alloy to coat copper pads.
  4. Hot Air Leveling: High-temperature air knives remove excess solder for uniformity.
  5. Cooling & Inspection: Rapid cooling stabilizes the finish; quality checks ensure performance.

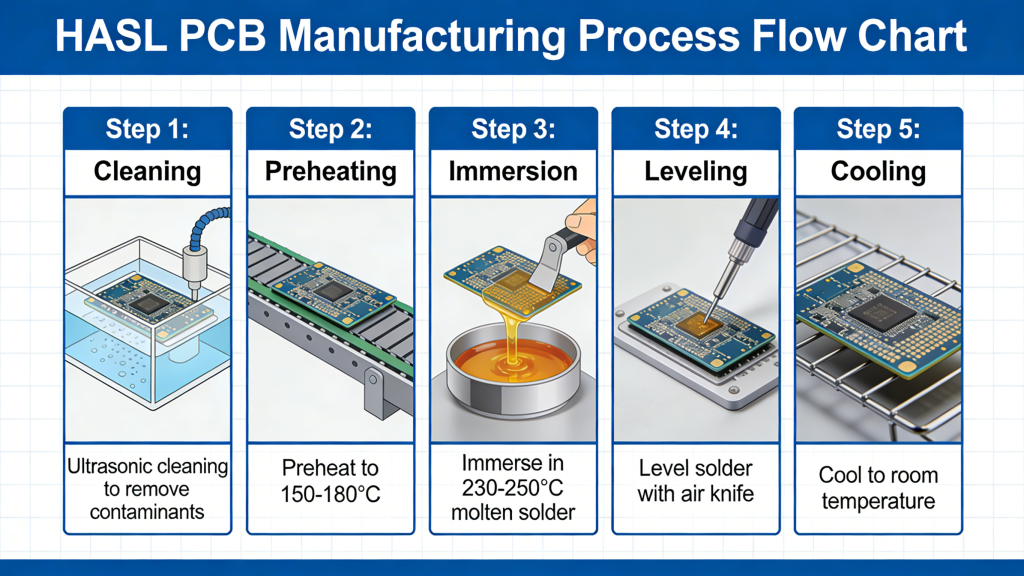

HASL PCB process flow steps cleaning preheating immersion leveling cooling

Key Benefits of HASL for PCB Production

  • Low Cost: Most economical PCB surface finish for high-volume runs.
  • Excellent Solderability: Native solder layer ensures strong, stable joints.
  • Long Shelf Life: Up to 12 months of sealed storage without degradation.
  • Easy Rework: Supports multiple reflow cycles and field repairs.
  • Universal Compatibility: Works with wave soldering, hand soldering, and standard SMT lines.

Limitations of HASL

  • Moderate surface flatness; not recommended for fine-pitch components below 0.5mm.
  • Higher processing temperature may stress thin or high-layer-count PCB substrates.
  • Slight pad unevenness can affect precision stencil printing.
  • Traditional leaded HASL is not RoHS-compliant for global markets.

Lead-Free HASL vs Traditional HASL

Modern electronics require compliance with RoHS and REACH, making lead-free HASL the standard for global export. Below are the core differences:

ItemTraditional HASLLead-Free HASL
Alloy63% Sn + 37% PbSnCu or SAC305
RoHSNoYes
Melting PointLowHigh
Best ForLegacy, non-regulated marketsGlobal export, industrial electronics

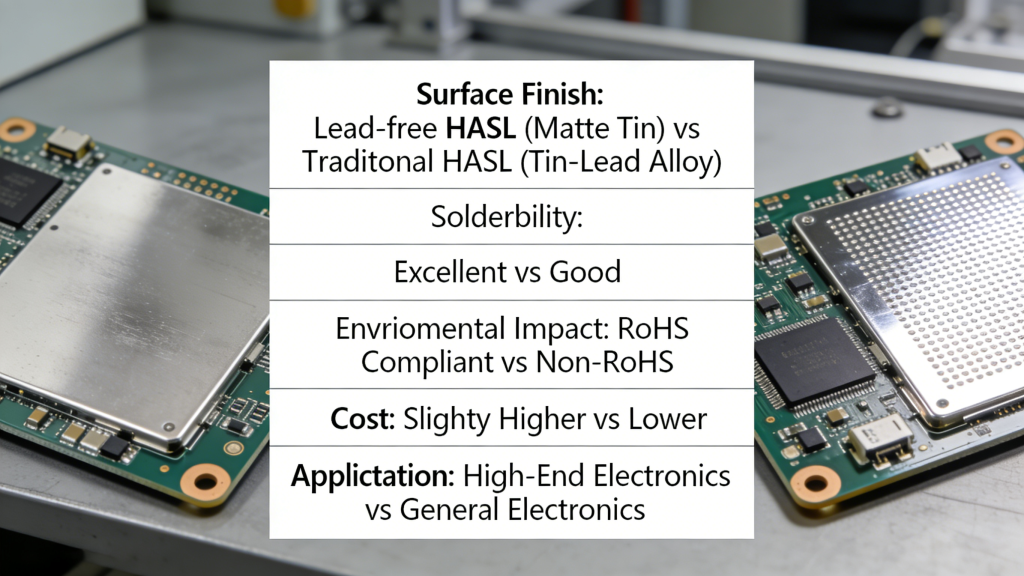

Lead-free HASL vs traditional HASL PCB surface finish comparison

HASL vs Other PCB Surface Finishes

FinishCostFlatnessFine PitchRoHS
HASLLowModerate≥0.5mmLF Version
ENIGHighExcellent<0.5mmYes
OSPLowExcellentGoodYes
PCB surface finish comparison HASL ENIG OSP for industrial buyers

Ideal Applications for HASL PCBs

HASL is widely used in industrial and commercial electronics where cost and reliability are critical:

  • Industrial control and power supply PCB
  • LED lighting and consumer electronics
  • Automotive non-safety subsystems
  • Through-hole heavy assemblies
  • Prototypes and mid-volume production
  • General-purpose boards for global markets

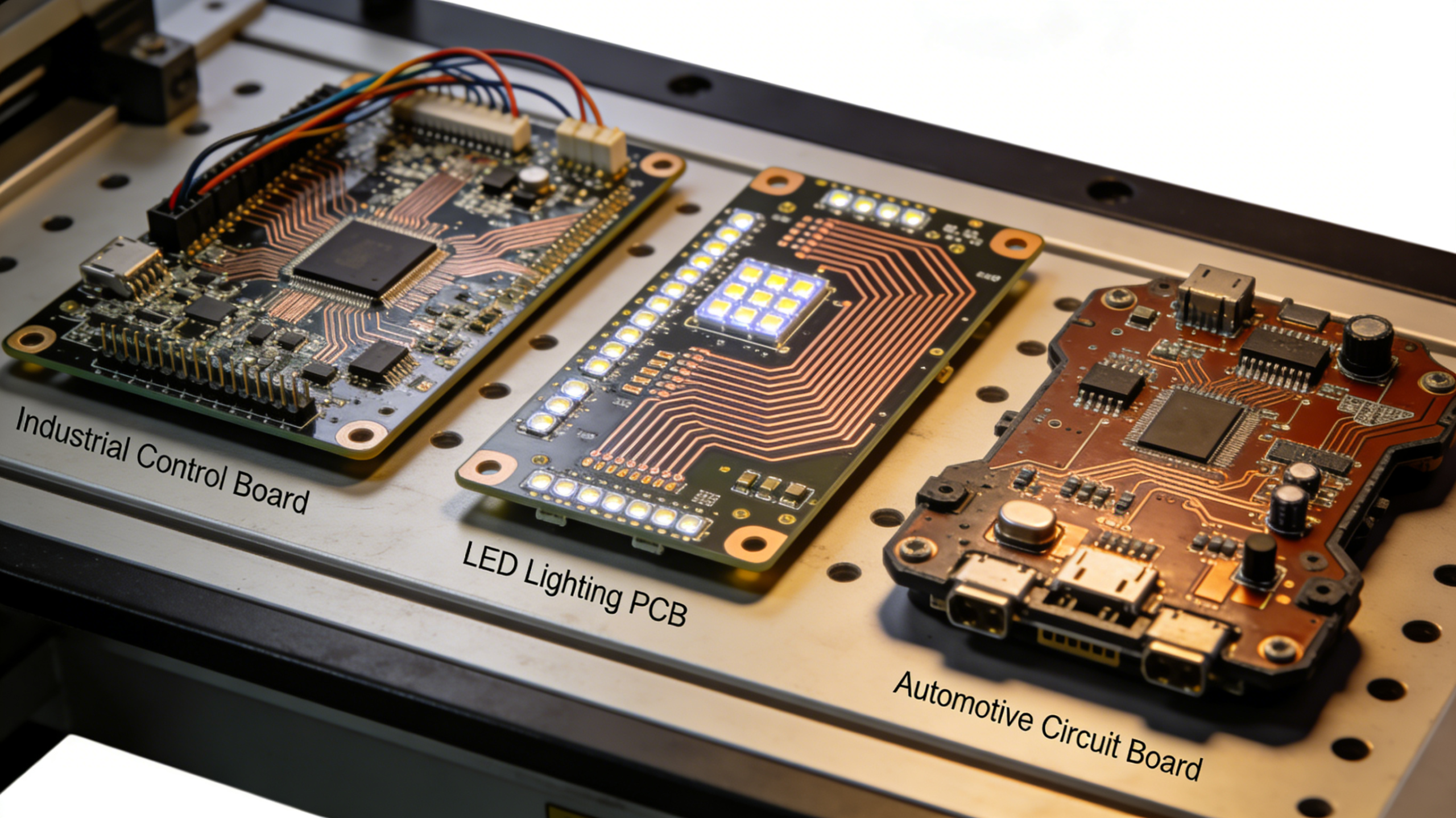

HASL PCB industrial applications industrial control LED automotive

Conclusion

HASL remains one of the most practical and cost-efficient PCB surface finish options available today. With lead-free HASL, it meets global environmental standards while delivering consistent solderability and protection for copper circuits.

It is the top choice for cost-sensitive projects, industrial equipment, and standard SMT/through-hole assemblies where ultra-fine pitch is not required.

Get Your HASL PCB Quote Today

We provide professional HASL and lead-free HASL PCB manufacturing for global buyers. Send your Gerber files and BOM for a fast, free, and detailed quotation.

Inquire Now | Free PCB Quote

PCB Prototype Quality Control and Testing - UK PCB Prototype Manufacturing

UK PCB Prototype Manufacturing: Fast Turnaround, Cost-Effective & IPC-Certified Quality

Posted on
0 Comments
UK PCB prototype manufacturing delivers rapid, reliable printed circuit board prototypes for engineers, procurement teams, and industrial buyers. We provide fast lead times, competitive pricing, and consistent quality compliant with IPC, ISO 9001, RoHS, and REACH standards to support UK and global electronics development. PCB Prototype Capabilities & Specifications Our UK PCB prototype manufacturing supports…
Expedited PCB manufacturing process for quick turnaround production

Expedited PCB Services – Fast Turnaround for Urgent Prototypes & Production

Posted on
0 Comments
Expedited PCB services deliver fast circuit board prototyping, manufacturing, and assembly for global engineers and procurement teams. We provide high‑quality rush PCB solutions with reliable lead times, strict quality control, and competitive pricing for urgent export orders. Why Choose Expedited PCB Services In the global electronics industry, speed directly impacts time‑to‑market and project success. Expedited…
Flexible PCB Overview Structure and Applications

Flexible PCB Manufacturing Process Steps: Complete Technical Guide

Posted on
0 Comments
This professional guide covers full flexible PCB manufacturing workflow, materials, key processes, quality control, and engineering best practices for global industrial buyers, engineers, and procurement teams. What is Flexible PCB (FPC) Flexible PCB (FPC) is a lightweight, bendable printed circuit board widely used in consumer electronics, automotive, medical devices, and industrial equipment. It supports component…
HDI PCB Microvia Types: Blind, Buried, Stacked Vias

HDI PCB Layout and Basic HDI Design Guidelines

Posted on
0 Comments
HDI PCB is an advanced printed circuit board technology for high‑component‑density electronics. This guide covers core HDI PCB layout principles, via design, trace rules, stackup, and IPC standards for engineers and buyers. What Is HDI PCB Layout? High Density Interconnects (HDI PCB) layout refers to advanced PCB design techniques used when trace widths drop below…
Flexible PCB Coverlay Lamination Process

Flexible PCB Coverlay: What It Is & How It Works

Posted on
0 Comments
Flexible PCB coverlay is a protective polyimide film that protects FPC copper circuits while keeping full flexibility. Learn materials, thickness, comparison with solder mask, manufacturing, and selection for industrial and medical applications. What Is Flexible PCB Coverlay? A flexible PCB coverlay, also known as FPC cover layer, is a key protective part for flexible printed…
PTH, blind via, buried via comparison diagram for PCB design

Blind Vias & Buried Vias in PCBs – The Complete Technical Guide

Posted on
0 Comments
Blind vias and buried vias enable superior signal routing, component density, electrical performance, and simplified stackups for complex high‑speed designs. This guide defines both via types, explains key differences, design rules, manufacturing, applications, and implementation best practices for engineers and buyers. Introduction As printed circuit boards grow more complex and highly integrated, advanced via structures…

FAQs About HASL PCB Surface Finish

A: HASL is hot air solder leveling; PCB pads dip into molten solder then excess solder is blown off by high-pressure hot air to form protective solder coating on copper.

A: Low manufacturing cost, outstanding solderability, up to 12 months storage life, easy rework and compatible with all mainstream soldering processes.

A: Unideal flat surface unsuitable for pitch below 0.5mm fine-pitch BGA; high process temperature may damage thin multilayer substrates.

A: Traditional uses SnPb alloy without RoHS approval; lead-free adopts SnCu/SAC305 with higher melting point and meets global RoHS export standards.

A: Power supply, industrial control, LED circuit, regular through-hole assembly, cost-saving prototype and mid-volume consumer electronics.

A: HASL lowest cost with mediocre flatness; ENIG high cost & ultra-flat for fine pitch; OSP low cost, flat but short storage shelf life.

A: Not recommended due to uneven solder surface easily causing bridging during precision SMT stencil printing.

A: Properly sealed HASL PCB can be stored up to 12 months without oxidation and solderability decline.
