How to Choose a Reliable PCB Prototype Manufacturer for Electronics Projects

PCB DFM Analysis Engineering Support SMT Assembly

Selecting a trusted PCB prototype manufacturer directly impacts product performance, development speed, and long-term reliability. This professional guide helps engineers and buyers evaluate technical capabilities, quality systems, lead times, and services to pick the ideal partner for your electronic projects.

Technical & Manufacturing Capabilities

A professional PCB prototype manufacturer must match your design complexity and application requirements.

Key capabilities include layer count (1–40+ layers), minimum trace/space, hole size, HDI, rigid‑flex, high‑frequency, and metal core boards. Supported materials include FR‑4, Rogers, Isola, aluminum, and polyimide. Surface finishes cover HASL, ENIG, OSP, immersion tin, and hard gold.

PCB Prototype Technical Capabilities Layers HDI Materials

We support fine pitch down to 3/3 mil, microvias, impedance control, and specialized processing for aerospace, medical, automotive, and 5G applications.

Quality Assurance & Certifications

Reliable quality systems separate professional PCB prototype manufacturers from standard suppliers.

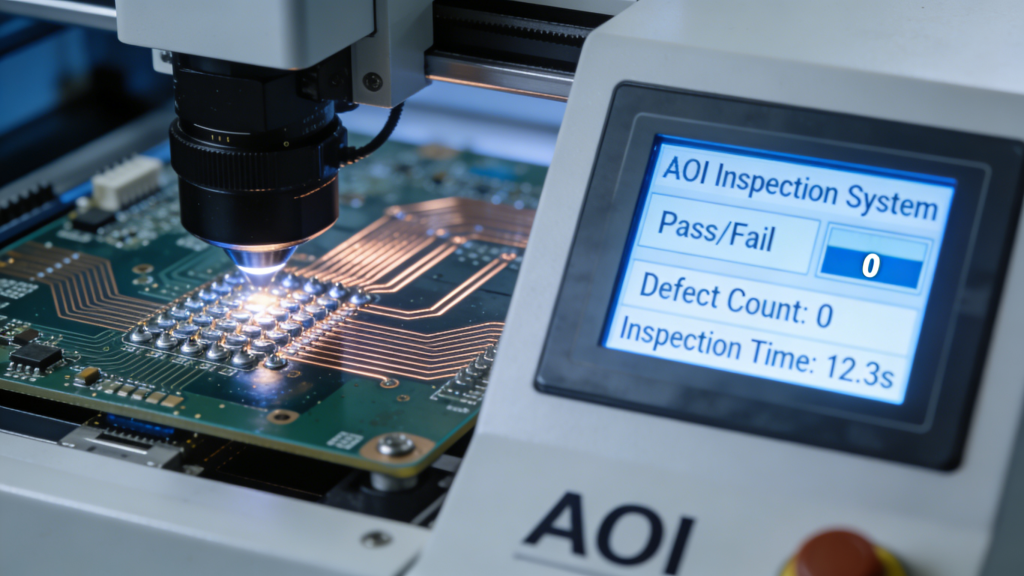

Essential certifications: ISO 9001, UL, RoHS, IPC-A-600, IPC Class 2/3. In-line testing includes AOI, flying probe, X-ray for BGA, electrical continuity, and thermal stress tests.

PCB Quality Control AOI X-Ray Testing

Full material traceability and strict incoming inspection ensure every PCB prototype meets design specifications and industry standards.

Lead Time & Scalability

Fast, stable delivery is critical for R&D cycles. Top PCB prototype manufacturers offer flexible turnaround options.

Standard: 3–5 days; Expedited: 24–48 hours for simple boards. Seamless scaling from prototypes to mid‑volume production reduces switching costs and shortens time‑to‑market.

PCB Prototype Lead Time Fast Turnaround Production

We maintain stable material inventory and efficient production lines to honor committed lead times for your PCB prototype projects.

Engineering Support & Value‑Added Services

Professional support reduces risks and lowers total costs. A qualified PCB prototype manufacturer provides:

  • Free DFM analysis to optimize design
  • Engineer‑to‑engineer technical support
  • One‑stop PCB + SMT assembly
  • NDA protection for confidential designs
  • Transparent pricing with no hidden fees
PCB DFM Analysis Engineering Support SMT Assembly

PCB Prototype Manufacturer Evaluation Comparison

ItemStandard SupplierProfessional PCB Prototype Manufacturer
CertificationsBasic onlyISO 9001, UL, RoHS, IPC
TestingBasic visualAOI, X‑ray, flying probe
DFM SupportLimited or noneFree full analysis
Lead TimeUnstable24h–5d guaranteed

Conclusion

Choosing the right PCB prototype manufacturer is a strategic decision affecting performance, cost, and launch speed. Prioritize technical capability, certified quality, reliable lead times, and professional engineering support.

We specialize in high‑reliability PCB prototypes for industrial, medical, automotive, and IoT applications, with full technical support and global export service.

Need a Reliable PCB Prototype Partner?

Send your Gerber files for a free DFM check and quick quote. We support fast-turn prototypes and global delivery for your electronics projects.

Request a Fre Quote
