PCB Classification Guide: Types, Applications & Selection for Industrial Buyers

PCB manufacturing process flowchart from design to finished board

Summary: This professional PCB classification guide helps engineers and procurement teams understand PCB types by layers, materials, flexibility, and applications. It provides clear selection criteria to balance performance, cost, and reliability for global industrial projects.

Why Understanding PCB Classification Matters

Printed Circuit Boards (PCB) are the backbone of modern electronics, serving as the foundation for connecting and supporting components in devices ranging from smartphones to industrial machinery. Choosing the right PCB type is critical to achieving optimal performance, cost-efficiency, and design flexibility in your project.

PCB classification based on layer count, substrate material, and application scope guides engineers and designers in selecting the most suitable board for specific needs, whether it is a low-cost single-sided PCB for basic electronics or a complex multilayer PCB for advanced applications.

What is a PCB?

A Printed Circuit Board (PCB) is a fundamental component in modern electronics, acting as a platform to connect and support electronic components such as resistors, capacitors, and microchips. It consists of a non-conductive substrate, typically made of fiberglass or plastic, with conductive copper traces printed onto its surface to form electrical pathways.

These pathways enable signals and power to flow between components, ensuring devices like smartphones, computers, and medical equipment function reliably. PCB technology eliminates messy manual wiring and enables mass production of consistent electronic assemblies.

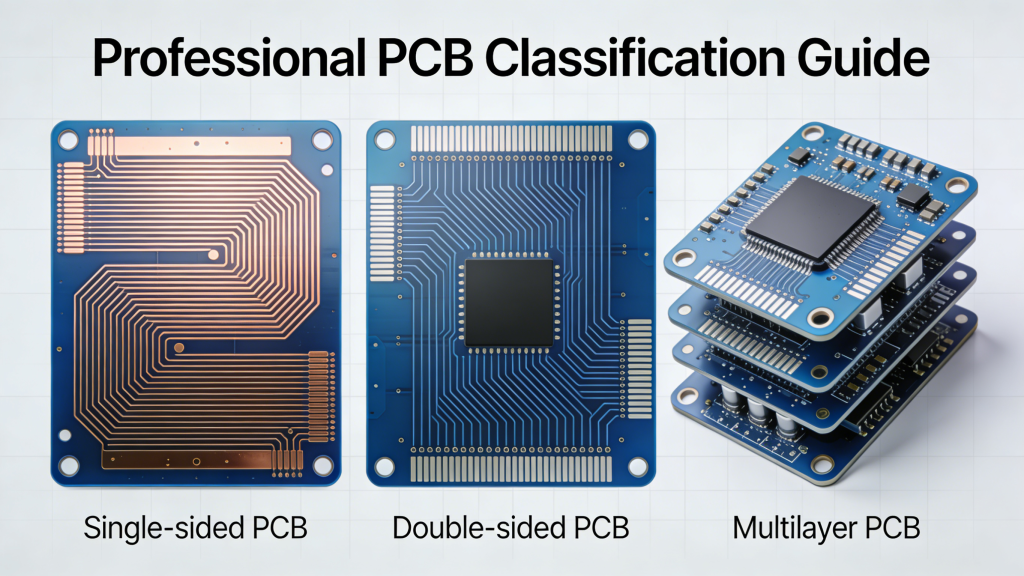

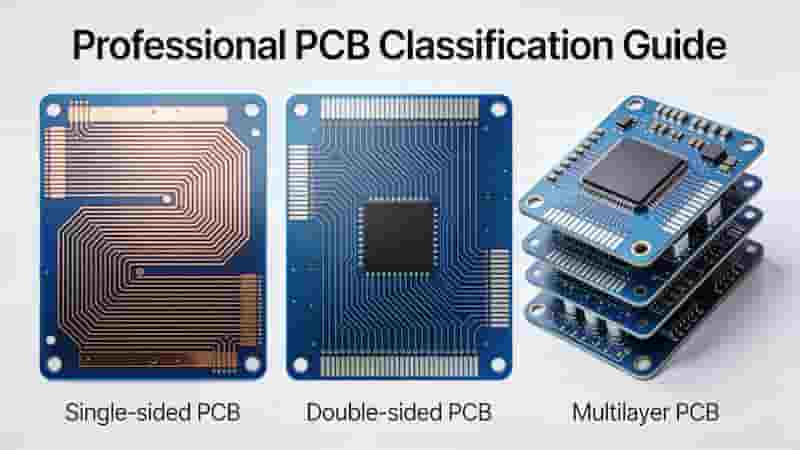

PCB basic structure diagram showing substrate, copper traces, and solder mask

PCB Classification Overview

PCBs are classified based on three primary dimensions: layer count, substrate material, and application scope. These categories help engineers select the right PCB type to meet specific project requirements, such as circuit complexity, physical constraints, or environmental conditions.

  • Layer Count: Defines circuit density and design complexity
  • Substrate Material: Determines rigidity, flexibility, and heat resistance
  • Application Scope: Matches signal frequency and environmental demands

Classification by Layer Count

PCB classification by layer count determines the board’s capacity to support varying levels of circuit complexity. Based on the number of conductive layers, PCBs are categorized into single-sided, double-sided, and multilayer types.

Single-sided PCB

A single-sided PCB features conductive copper traces on one side of a non-conductive substrate. This design simplifies manufacturing and minimizes costs, making it ideal for basic electronics with straightforward circuit requirements.

Applications: Remote controls, simple calculators, basic home appliances

Double-sided PCB

Double-sided PCBs have copper traces on both sides of the substrate, connected through vias. This configuration doubles the design space compared to single-sided boards, enabling more complex circuits while reducing electromagnetic interference.

Applications: Consumer electronics, automotive dashboards, power supplies

Multilayer PCB

Multilayer PCBs consist of three or more conductive layers, laminated together with insulating material. They support high-density circuits, making them essential for advanced electronics requiring compact designs and robust performance.

Applications: Smartphones, medical devices, aerospace systems

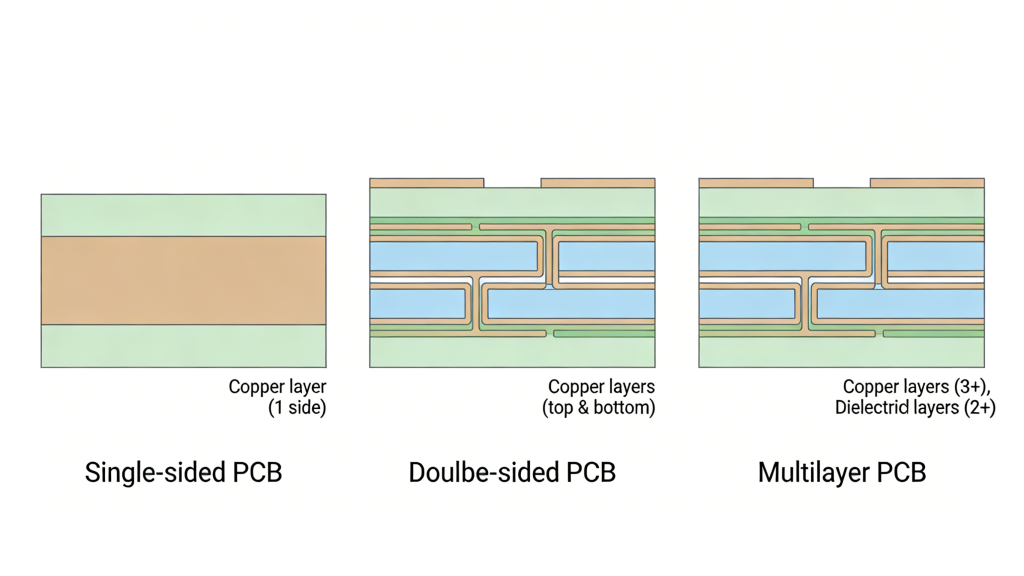

Single-sided, double-sided, and multilayer PCB structure comparison
PCB TypeLayersAdvantagesApplicationsCost
Single-sided1Low cost, simple manufacturingRemote controls, basic appliancesLow
Double-sided2Moderate complexity, reduced EMIConsumer electronics, automotiveMedium
Multilayer3+High density, compact designSmartphones, medical devicesHigh

Classification by Substrate Material

The substrate material of a PCB defines its mechanical properties, influencing its suitability for specific applications. PCBs are classified into rigid, flexible, and rigid-flex types based on their base materials.

Rigid PCB

Rigid PCBs use solid, non-bendable substrates like FR-4, CEM-1/3, or metal-based materials such as aluminum. These boards provide excellent mechanical strength and stability, ideal for fixed installations.

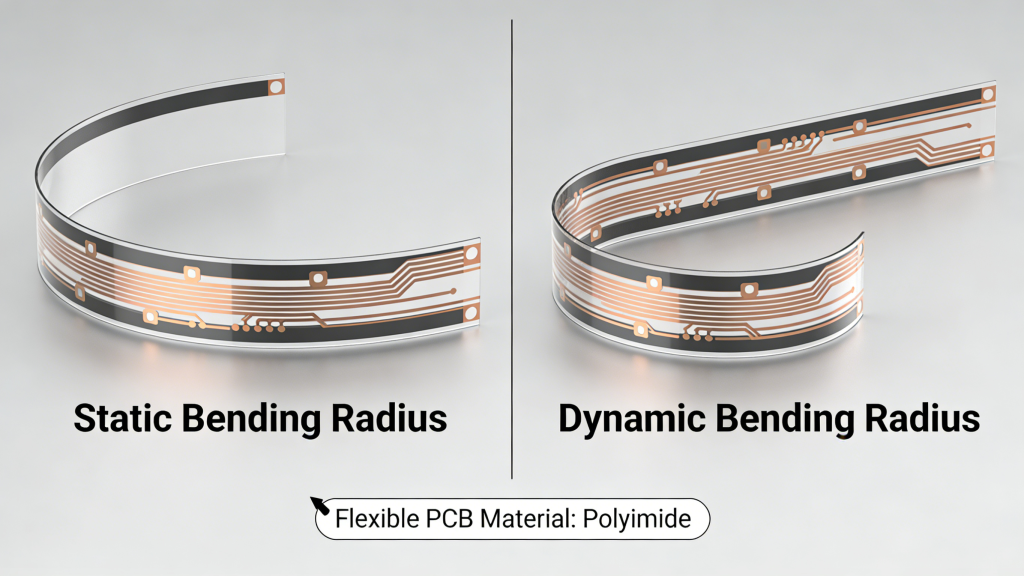

Flexible PCB (FPC)

Flexible PCBs are made from pliable materials like polyimide, allowing them to bend and conform to unique shapes. This enables compact and lightweight designs perfect for space-constrained devices.

Rigid-Flex PCB

Rigid-flex PCBs combine rigid and flexible substrates, integrating durability with adaptability. This hybrid design supports complex 3D configurations and reduces the need for connectors.

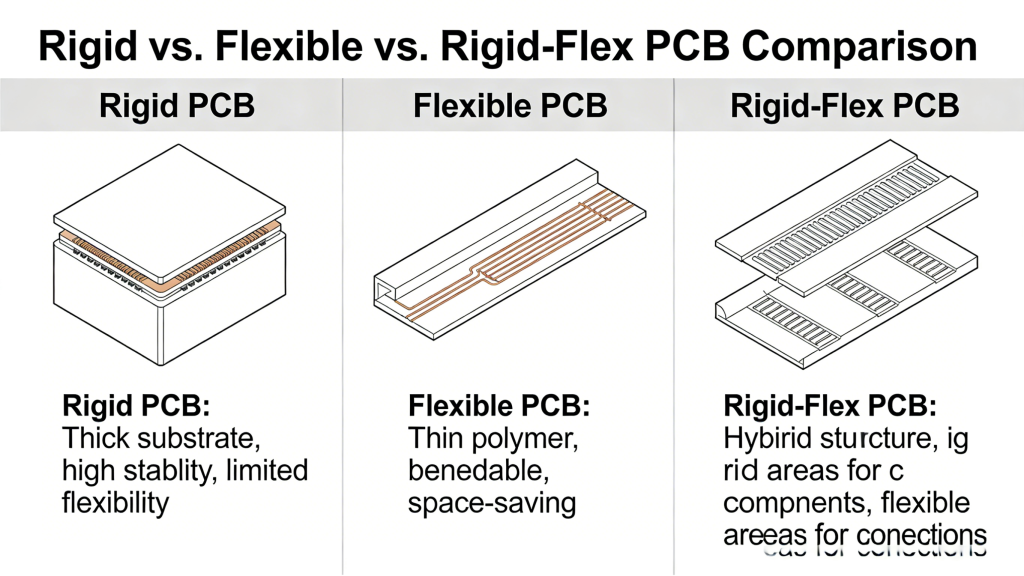

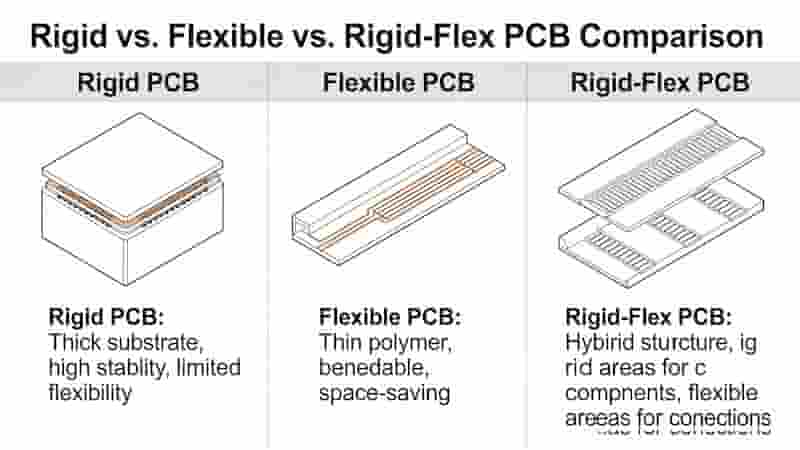

Rigid, Flexible & Rigid-Flex PCB Comparison

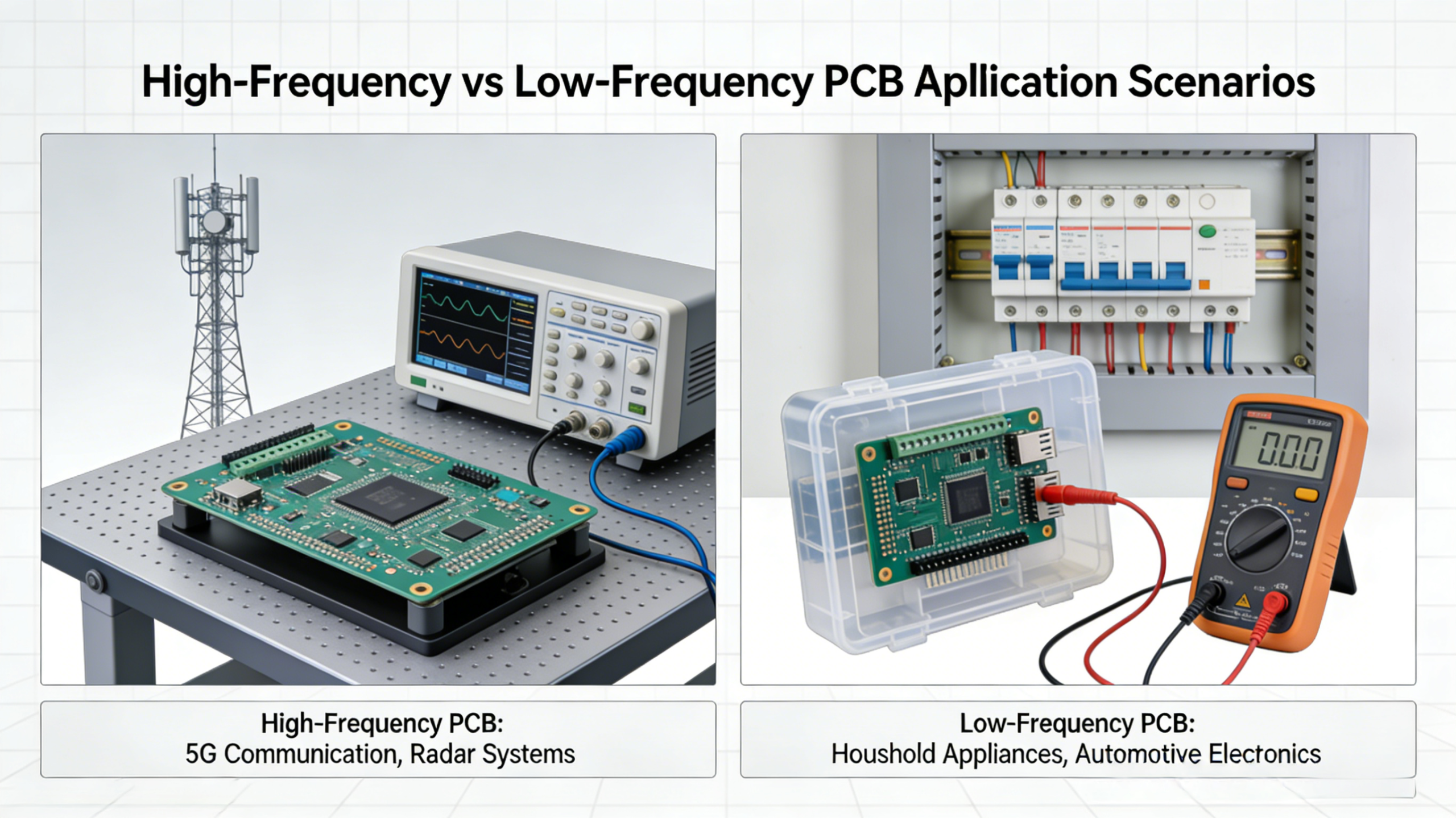

Classification by Application Scope

PCBs are also classified based on their application scope, particularly the frequency of signals they handle. This divides PCBs into high-frequency and low-frequency types.

High-frequency PCB

High-frequency PCBs operate above 1 GHz, using low-dielectric materials to minimize signal loss. Critical for 5G, radar, and satellite systems where signal integrity is paramount.

Low-frequency PCB

Low-frequency PCBs operate below 1 GHz, using standard materials like FR-4. Cost-effective for household appliances, basic consumer electronics, and industrial controls.

PCB Manufacturing Basics

The manufacturing process transforms raw materials into functional PCB boards. Key steps include circuit design, photolithography, etching, lamination (for multilayer), drilling, plating, solder mask, and surface finishing.

Each step is tailored to the PCB type, ensuring performance, reliability, and consistency for industrial and commercial applications.

PCB manufacturing process flowchart from design to finished board

How to Choose the Right PCB Type

Selecting the right PCB type balances performance, cost, and design requirements. Key factors include:

  • Circuit Complexity: Simple → single-sided; Advanced → multilayer
  • Space & Weight: Compact devices → flexible or rigid-flex PCB
  • Environmental Conditions: High heat → metal core; High speed → high-frequency PCB
  • Budget: Balance cost and performance for your project

Conclusion

Understanding PCB classification helps you select the ideal board type for your electronic projects. By categorizing PCBs based on layer count, substrate material, and application scope, you can optimize performance, cost, and reliability for applications from consumer electronics to aerospace.

We specialize in manufacturing a full range of high-quality PCB solutions tailored to global industrial buyers. Our capabilities include single-sided to 32-layer multilayer boards, rigid, flexible, rigid-flex, and high-frequency PCBs for demanding applications.

Need a Custom PCB Solution?

Request a free quote or contact our engineering team for professional PCB design, manufacturing, and assembly support.

Get Free Quote

PCB Manufacturer in South Africa - Professional PCB Production Line

PCB Manufacturer in South Africa | Reliable Custom PCB & PCBA Services

Posted on
0 Comments
Looking for a trusted PCB manufacturer in South Africa for prototypes, mass production, or full PCBA? We deliver high-quality, cost-effective PCB manufacturing and assembly solutions to industrial buyers, engineers, and procurement teams across South Africa.  Local PCB Manufacturing in South Africa  We are a professional local PCB manufacturer serving South Africa with flexible lead times…
Heavy Copper PCB thermal management and heat dissipation structure

Heavy Copper PCB Manufacturing & Thick Copper PCB Fabrication Service

Posted on
0 Comments
We provide custom heavy copper PCB and thick copper PCB solutions up to 12oz for high‑current, high‑thermal power electronics, automotive, industrial, and military applications. As a professional heavy copper PCB manufacturer, we deliver engineering‑driven fabrication with optimized stackups, reliable plating, and robust solder mask for long‑term performance under high current and harsh environments. Prototypes and…
Multilayer PCB stackup basics core prepreg copper layers

Ultimate Guide to Multilayer PCB Layer Stackup & Thickness | Standard 4–14 Layer Configurations

Posted on
0 Comments
Multilayer PCB stackup and thickness design directly determines signal integrity, EMC performance, impedance control and mechanical reliability of high-speed electronic products. This guide covers standard stackup structures, typical thickness values, and professional selection tips from 4-layer to 14-layer PCBs for industrial and export-grade applications. Why Multilayer PCB Stackup And Thickness Matter In modern electronics, products…
FR4 PCB layer structure fiberglass epoxy copper

Aluminum PCB vs FR4 PCB: Full Technical Comparison for Industrial & Export Buyers

Posted on
0 Comments
This professional guide compares Aluminum PCBs and FR4 PCBs in thermal performance, electrical properties, mechanical strength, cost, and ideal applications to help engineers and purchasers select the right PCB for reliable export projects. What is FR4 PCB FR4 PCB is the most widely used rigid PCB material, made of woven fiberglass cloth bonded with flame‑resistant…
Rogers PCB material types RO4000 RO3000 RT duroid laminate series

Rogers PCB: Full Guide to High-Frequency & High-Speed Circuit Boards

Posted on
0 Comments
Rogers PCB is the leading solution for high‑frequency electronics. This guide covers properties, types, benefits, applications, and comparisons between Rogers PCB, FR‑4, and Teflon PCBs, ideal for engineers and manufacturers looking for advanced circuit solutions. What is Rogers PCB? Rogers PCB refers to printed circuit boards using advanced laminate materials produced by Rogers Corporation. Unlike…
Metal Core PCB cross section structure aluminum copper thermal dielectric layer

Standard PCB Thickness: Complete Guide for Engineers & Buyers

Posted on
0 Comments
Standard PCB thickness is critical for mechanical strength, signal integrity, and assembly compatibility. This guide covers definitions, industry standards, influencing factors, manufacturing constraints, and design best practices for global industrial buyers. What Is Standard PCB Thickness The global standard PCB thickness is 1.57 mm (0.062 in), commonly referenced as 1.6 mm for simplicity. This is…

FAQs About PCB Classification & Type Selection

A: Classified by layer quantity, substrate material and application frequency to match different circuit complexity, mechanical requirement and working condition.

A: Single-sided with copper only on one layer for simple low-cost circuits; double-sided has traces on two sides linked by vias; multilayer ≥3 layers for high-density advanced electronics.

A: Rigid PCB uses FR4 for fixed installation; flex with PI substrate for bendable compact equipment; rigid-flex combines both to simplify assembly without extra connectors.

A: High-frequency works over 1GHz with low-Dk special material for 5G/radar; low-frequency below 1GHz adopts regular FR4 for home appliances and common industrial control.

A: Circuit complexity, available installation space, working temperature/frequency environment and overall project budget control.

A: Remote controllers, simple calculators and low-end small household appliances with uncomplicated circuit design.

A: Graphic transfer etching, lamination(multilayer only), drilling, PTH plating, solder mask printing and final surface finish treatment.

A: High-layer-count multilayer PCB or customized rigid-flex PCB to realize compact layout and stable high-reliability performance.
