Impedance Control PCB Manufacturing and TDR Testing Process

Impedance Control PCB Fabrication Services

Advanced controlled impedance PCB manufacturing for high-speed, RF and telecom designs, delivering precise 50 Ω / 90-100 Ω impedance, tight tolerances and fast global turnaround.

Tight-tolerance controlled impedance: 50 Ω single-ended and 90/100 Ω differential traces engineered for consistent signal integrity.

Multilayer stackups with FR-4 and high-frequency materials (Rogers, hybrid) for complex high-speed designs.

Full engineering support for stackup, routing and DFM review before production.

Impedance coupons, TDR testing and detailed measurement reports provided for validation.

Get Impedance Control PCB Quote
Send Your Gerber Files

ISO, UL and RoHS certified PCB manufacturer, supporting prototypes, small runs and volume production with reliable impedance control.

Impedance Control PCB Capabilities

Our impedance control PCB fabrication service supports a wide range of high-speed and RF designs, from prototypes to volume production, with stable, repeatable impedance performance across multilayer stackups.

CapabilityTypical Specification
Impedance types50 Ω single-ended, 75 Ω video, 90 Ω and 100 Ω differential pairs, coplanar waveguides
Target tolerance±10% standard, tighter available for critical high-speed channels
Layer count4-layer to complex high-density multilayer designs
MaterialsFR-4, Rogers, hybrid high-frequency laminates
Stackup & geometryMicrostrip, stripline, dual-stripline optimized for impedance control
Testing & reportingImpedance coupons, TDR measurement, full test reports
Impedance Control PCB Capabilities and Specifications

Impedance Control PCB Specification Overview

When Do You Need Controlled Impedance PCBs?

Controlled impedance becomes critical whenever high-speed or high-frequency signals travel across the PCB without distortion, reflections or timing errors.

If your design operates at hundreds of megahertz or uses fast edge-rate digital interfaces, you need impedance control to maintain signal integrity and reliable system performance.

Typical Applications

  • Telecom and networking equipment (switches, routers, base stations)
  • High-speed computing systems (100 MHz and above)
  • RF and microwave communication modules
  • High-resolution imaging and analog video systems
  • Data acquisition and test & measurement instruments

Typical Signal Types

  • High-speed differential pairs (LVDS, USB, PCIe, Ethernet)
  • High-speed clocks and critical timing signals
  • RF transmission lines requiring matched impedance control
  • Long-distance signal traces matching cable/connector impedance
Impedance Control PCB Applications in High Speed and RF Devices

Impedance Control PCB Industry Applications

How to Specify Impedance Control for Your PCB Order

To achieve target impedance, our engineering team needs clear design, material and performance requirements. Providing these details avoids delays and optimizes stackup and geometry.

Key Electrical Requirements

  1. Target impedance values (50 Ω single-ended, 90/100 Ω differential)
  2. Transmission line type (single-ended, differential, microstrip, stripline)
  3. Impedance tolerance (standard ±10% or tighter for critical nets)

Stackup & Material Information

  1. Proposed layer stackup, copper weights and dielectric thickness
  2. Base material (FR-4, Rogers or hybrid high-frequency laminates)
  3. Overall board thickness and mechanical constraints

Design Files & Documentation

  1. Complete Gerber / ODB++ files with impedance notes
  2. Stackup drawing, schematics and simulation data (if available)
  3. Test and reporting requirements (coupons, TDR, reports)

How We Fabricate Impedance Control PCBs

Our process tightly controls trace geometry, dielectric thickness and material properties to ensure finished boards match your target impedance control requirements.

1. Engineering Review & Stackup Optimization

CAM and SI engineers review Gerber files, impedance tables and stackups to confirm manufacturability.

2. Precision Lamination & Layer Buildup

Controlled copper and dielectric thickness to match impedance models.

3. Controlled Imaging & Etching

High-resolution processes maintain trace width/spacing for impedance-critical lines.

4. Impedance Coupons & TDR Measurement

Coupons tested via TDR to validate impedance control within tolerance.

5. Final Inspection & Documentation

Electrical test, visual inspection and full quality reports provided.

Impedance Control PCB Manufacturing and TDR Testing Process

Impedance Control PCB Fabrication Flow

Why Choose Us for Impedance Control PCBs

  • Proven high-speed/RF expertise in telecom, networking and RF applications requiring impedance control
  • Dedicated engineering support for stackup, impedance and DFM before production
  • Controlled processes + TDR validation for consistent, repeatable results
  • Flexible quantities from prototypes to mass production
  • Certified quality (ISO, UL, RoHS) with global delivery
  • Transparent technical communication to keep projects on track
Impedance Control PCB Engineering andQuality Control

Impedance Control PCB Engineering Support

Impedance Control PCB FAQs

Q1. What is controlled impedance on a PCB?

Controlled impedance maintains consistent characteristic impedance along signal traces to preserve signal integrity in high-speed designs.

Q2. When do I need an impedance control PCB?

For high-speed signals, RF links, differential pairs or long traces where signal reflection must be avoided.

Q3. What information do you need for impedance control?

Target impedance, tolerance, stackup, materials, Gerber files and test requirements.

Q4. What impedance tolerance can you achieve?

Standard ±10%, with tighter tolerances available for critical high-speed channels.

Q5. How do you verify impedance performance?

Using TDR testing on impedance coupons and providing full measurement reports.

Q6. Can you help define impedance requirements?

Our engineering team provides free stackup and impedance control reviews for all orders.

Ready to Build Your Impedance Control PCB?

Our team supports stable, repeatable impedance control from prototype to volume production.

Get Impedance Control PCB Quote
Email Your Gerber Files

Recommended PCB Services

Double-Sided PCB Manufacturing
High Tg PCB Manufacturing
Quick Turn PCB Fabrication
Metal Core PCB Manufacturing
BGA PCB Manufacturing
SMT PCB Assembly Service

Get DFM-optimized impedance control PCB in as fast as 24 hours. 100% quality guaranteed.

Get a Free Quote

PCB technical capabilities HDI multilayer flex rigid for European manufacturing

How to Choose a Reliable PCB Manufacturer in Europe: Complete Guide for Industrial Buyers

Posted on
0 Comments
Meta Description: Learn how to select a trusted PCB manufacturer in Europe with certifications, technical capabilities, quality control, lead times, and compliance for industrial, automotive, medical, and aerospace projects. Selecting a reliable PCB manufacturer in Europe directly impacts product quality, compliance, supply chain stability, and long-term project success. This guide helps engineers, procurement teams, and…
PCB solder mask protection layer and insulation coating

What Are PCB Boards Made Of? Complete Materials Guide for Engineers & Buyers

Posted on
0 Comments
Wondering what PCB boards are made of? This professional guide explains core PCB materials including substrates, copper foil, solder mask, surface finishes, and dielectric layers. We break down how each material impacts performance, reliability, thermal stability, and cost for industrial, automotive, medical, 5G, and high-speed electronic applications. Core Components of a PCB: What Are PCB…

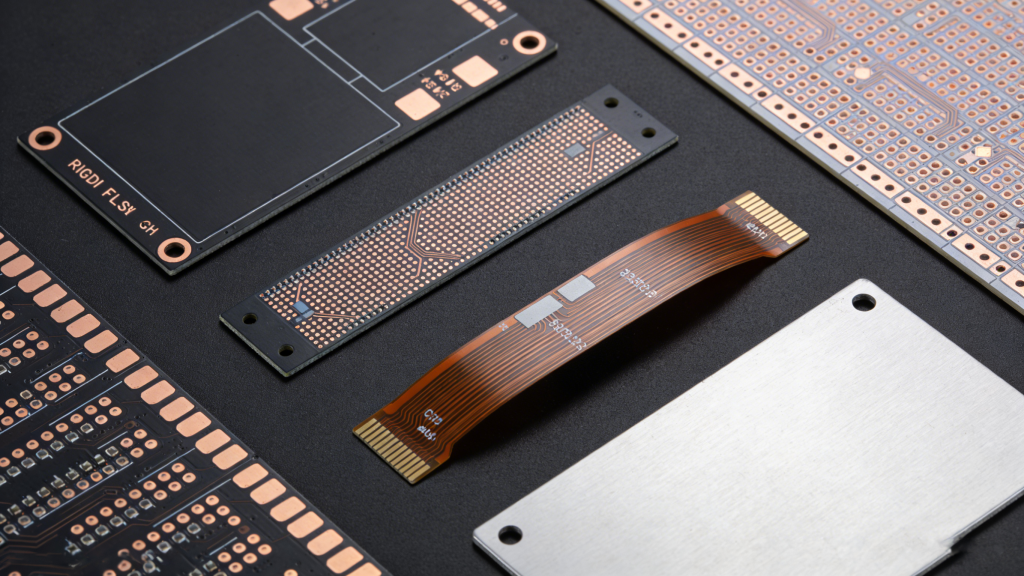

Fast Turnaround PCB Prototype Manufacturing Line HDI Microvias
